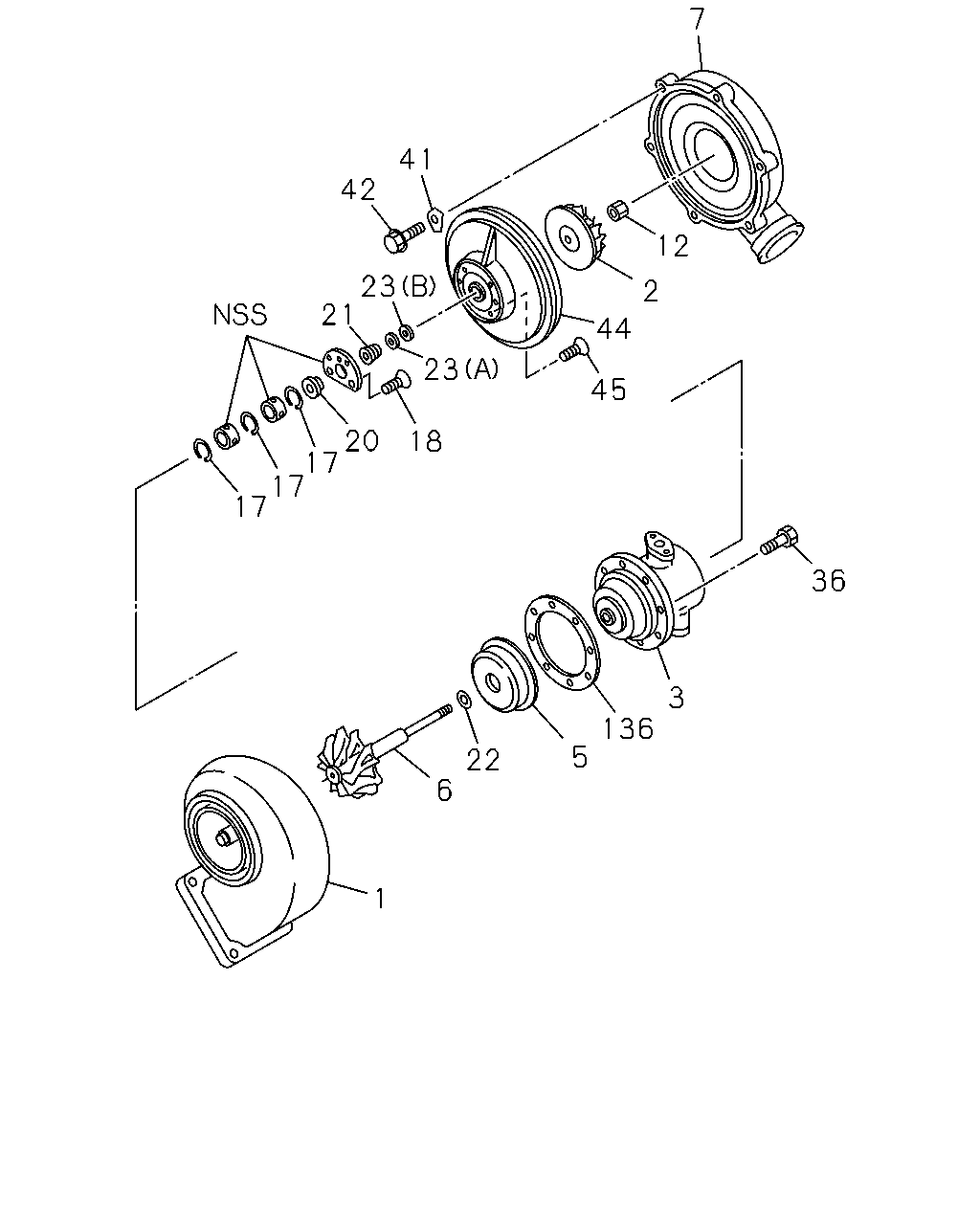

1 |
HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14415-102-1 |
01 |
1 |
- |
| |
2 |
IMPELLER; TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14451-054-0 |
01 |
1 |
- |
| |
3 |
HOUSING; BRG,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14411-056-0 |
01 |
1 |
- |
| |
5 |
PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14425-027-0 |
01 |
1 |
- |
| |
6 |
SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14450-051-1 |
01 |
1 |
- |
| |
7 |
HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14414-081-0 |
01 |
1 |
- |
| |
12 |
NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 1-14400-339-5
|
1-09400-041-0 |
01 |
1 |
- |
| |
17 |
RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14455-025-0 |
03 |
1 |
- |
| |
18 |
SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-09100-016-0 |
04 |
1 |
- |
| |
20 |
BUSHING; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14453-073-0 |
01 |
1 |
- |
| |
21 |
THROWER; OIL,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14455-037-0 |
01 |
1 |
- |
| |
22 |
RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14453-037-0 |
01 |
1 |
- |
| |
23 |
RING; SEAL,BLOWER SIDE,TURBOCHARGER
(A) ASM PART: A = 1-14400-339-5
|
1-14453-035-0 |
01 |
1 |
- |
| |
23 |
RING; SEAL,BLOWER SIDE,TURBOCHARGER
(B) ASM PART: A = 1-14400-339-5
|
1-14453-036-0 |
01 |
1 |
- |
| |
36 |
BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 1-14400-339-5
|
1-09000-611-0 |
08 |
1 |
- |
| |
41 |
PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14421-016-0 |
06 |
1 |
- |
| |
42 |
BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-09000-404-0 |
06 |
1 |
- |
| |
44 |
PLATE; SEAL,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14425-026-0 |
01 |
1 |
- |
| |
45 |
SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-09100-026-0 |
04 |
1 |
- |
| |
136 |
GASKET; TURBINE HSG,TURBOCHARGER
ASM PART: A = 1-14400-339-5
|
1-14412-007-0 |
01 |
1 |
- |
