Isuzu WW
▶
TRUCKS
▶
QKR
▶
51423 - QKR RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#96038) — 26 parça
Tümü
A - 4JB1-TC ENG
B - 4JB1-NA ENG
◀

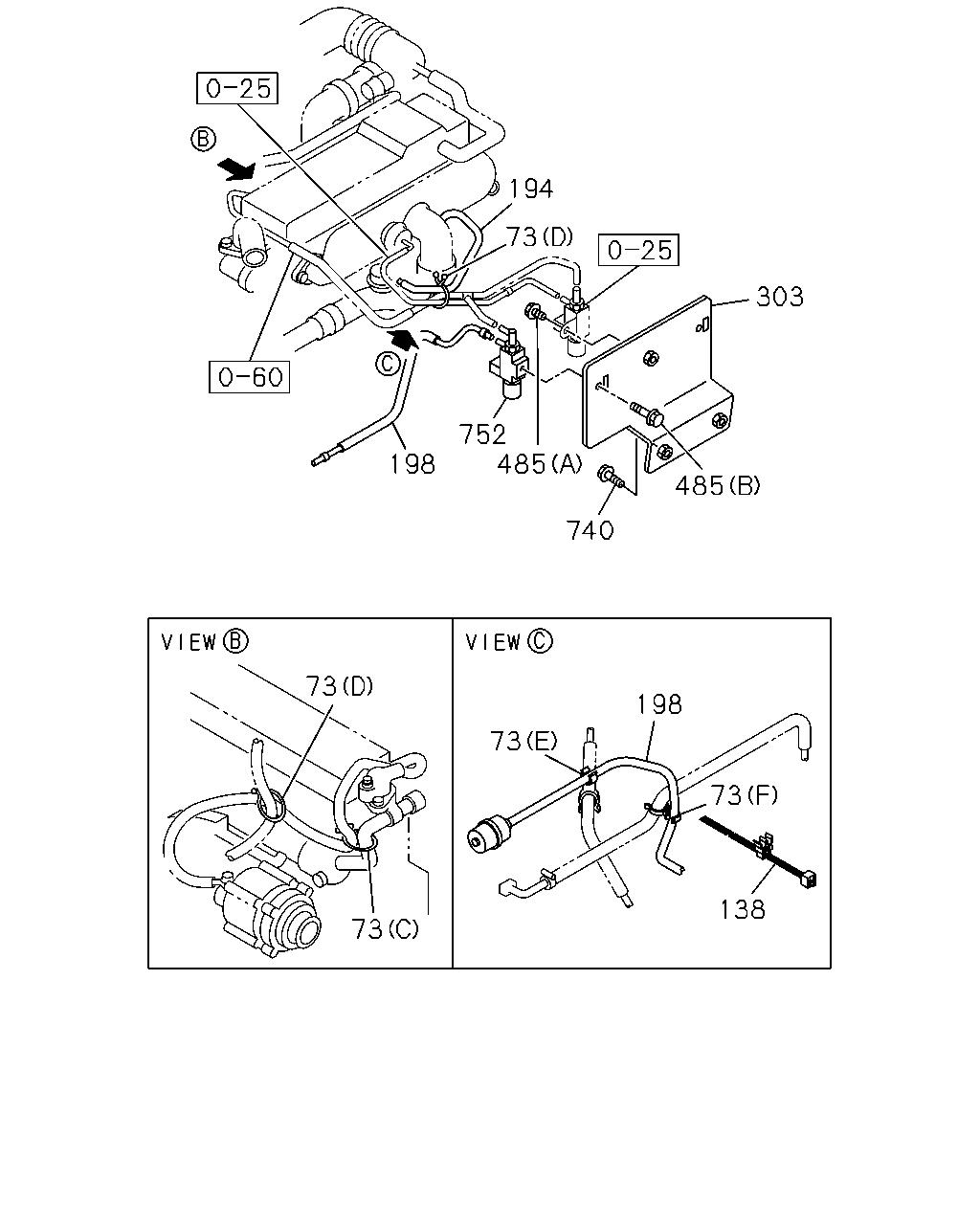

[057A] 4JB1-NA (7 parça)

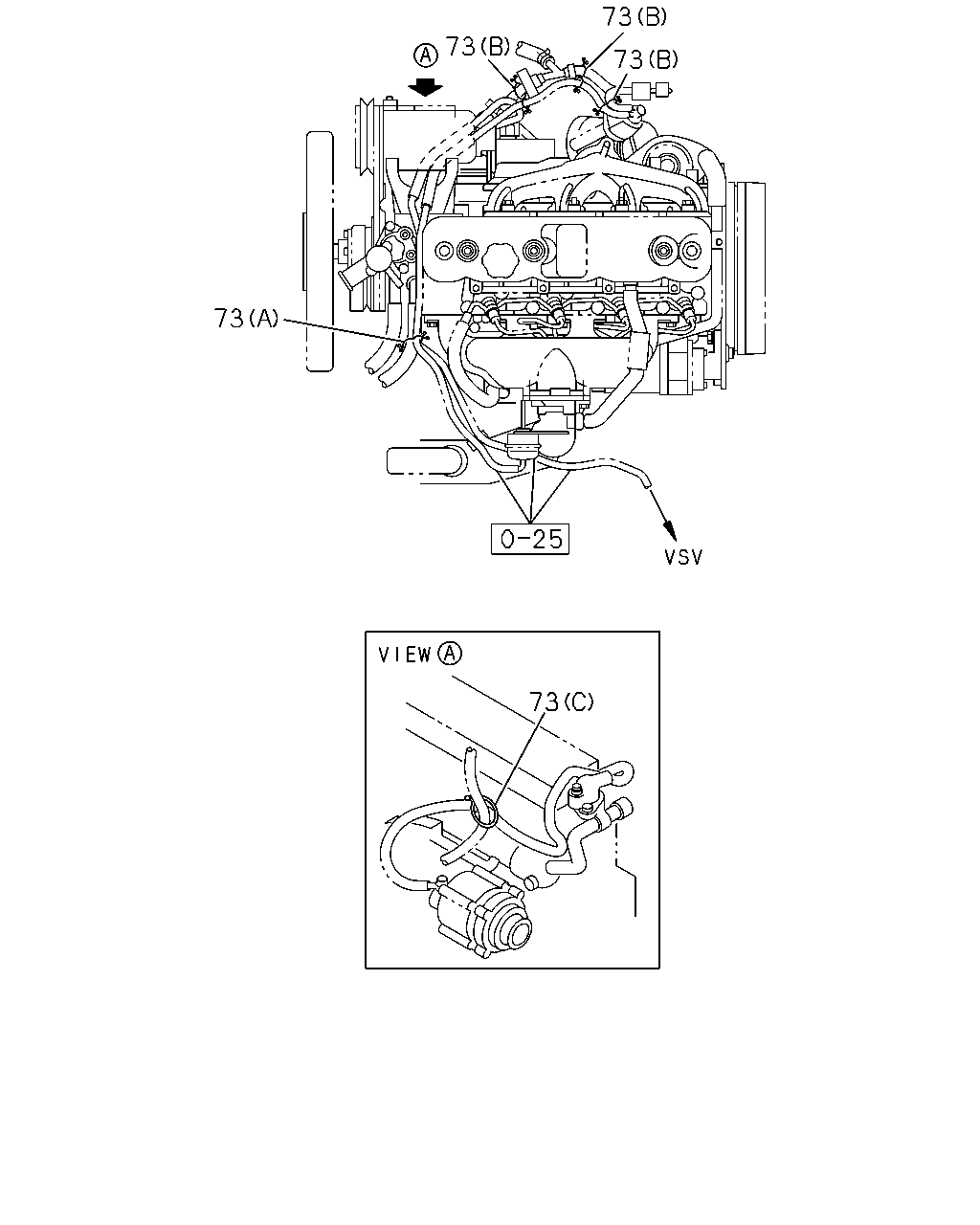

[057A] 4JB1-TC(NO.2) (15 parça)

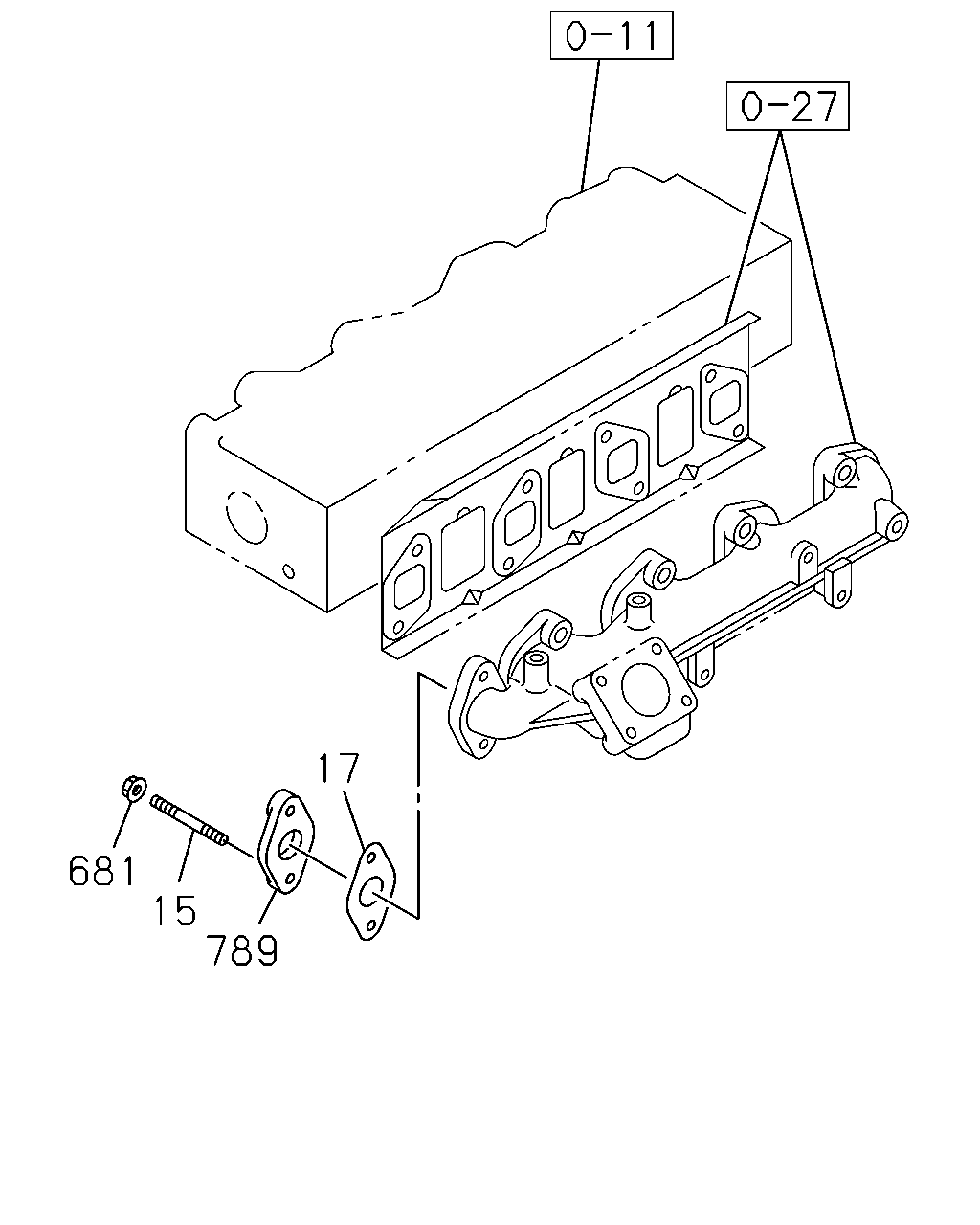

[057A] 4JB1-TC(NO.1) (4 parça)
▶
73
73
73
73
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
73
03.680 CLIP; VAC HOSE
01.540 (D) ID=30
8-94315-423-0
02
1
1206-
●
73
03.680 CLIP; VAC HOSE
03.162 (E) ID=13.2 & 7.5
8-94315-426-0
01
1
1206-
●
73
03.680 CLIP; VAC HOSE
(F) ID=16.5 & 7
8-97226-171-0
01
1
1206-
●
73
03.680 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23
5-09707-002-0
01
1
1206-
●
73
03.680 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 08.852 (B) ID=8 & 16
5-09707-032-0
03
1
1206-
●
73
03.680 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 03.278 (C) ID=37
8-94481-468-0
01
1
1206-
●
73
03.680 CLIP; VAC HOSE
03.278 (C) ID=37
8-94481-468-0
01
1
1206-
●
194
73
752
198
485
740
485
303
73
73
73
198
73
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
73
03.680 CLIP; VAC HOSE
01.540 (D) ID=30
8-94315-423-0
02
1
1206-
●
73
03.680 CLIP; VAC HOSE
03.162 (E) ID=13.2 & 7.5
8-94315-426-0
01
1
1206-
●
73
03.680 CLIP; VAC HOSE
(F) ID=16.5 & 7
8-97226-171-0
01
1
1206-
●
73
03.680 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23
5-09707-002-0
01
1
1206-
●
73
03.680 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 08.852 (B) ID=8 & 16
5-09707-032-0
03
1
1206-
●
73
03.680 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 03.278 (C) ID=37
8-94481-468-0
01
1
1206-
●
73
03.680 CLIP; VAC HOSE
03.278 (C) ID=37
8-94481-468-0
01
1
1206-
●
138
03.675 CLIP; BAND,VAC HOSE
8-98090-689-0
01
1
1206-
●
194
03.675 HOSE; VAC
8-97208-495-0
01
1
1206-
●
198
03.675 HOSE; VAC,VSV
L=300 SERVICED BY L=3000
0-04930-300-0
01
1
1206-
●
303
03.671 BRACKET; VAC SW
8-97225-561-0
01
1
1206-
●
485
03.671 BOLT; VSV
02.343 (A) M8X12 FLANGE
0-28050-812-0
01
1
1206-
●
485
03.671 BOLT; VSV
03.680 (B) M5X10 W/LK+PL WASHER
0-36230-510-0
02
1
1206-
●
740
03.680 BOLT; VAC REG VALVE
01.531 M8X20 FLANGE
0-28650-820-0
02
1
1206-
●
752
03.670 VALVE; EVRV
8-94384-335-0
01
1
1206-
●
681
15
789
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
15
03.670 STUD; EGR PIPE
03.601 M8X25 L=36
8-97378-062-0
02
1
1206-
●
17
03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97192-765-0
01
1
1206-
●
681
03.671 NUT; EGR PIPE
01.540 M8 FLANGE
0-91180-208-0
02
1
1206-
●
789
03.670 COVER; COOLER,EGR
8-98118-248-0
01
1
1206-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
