1 |

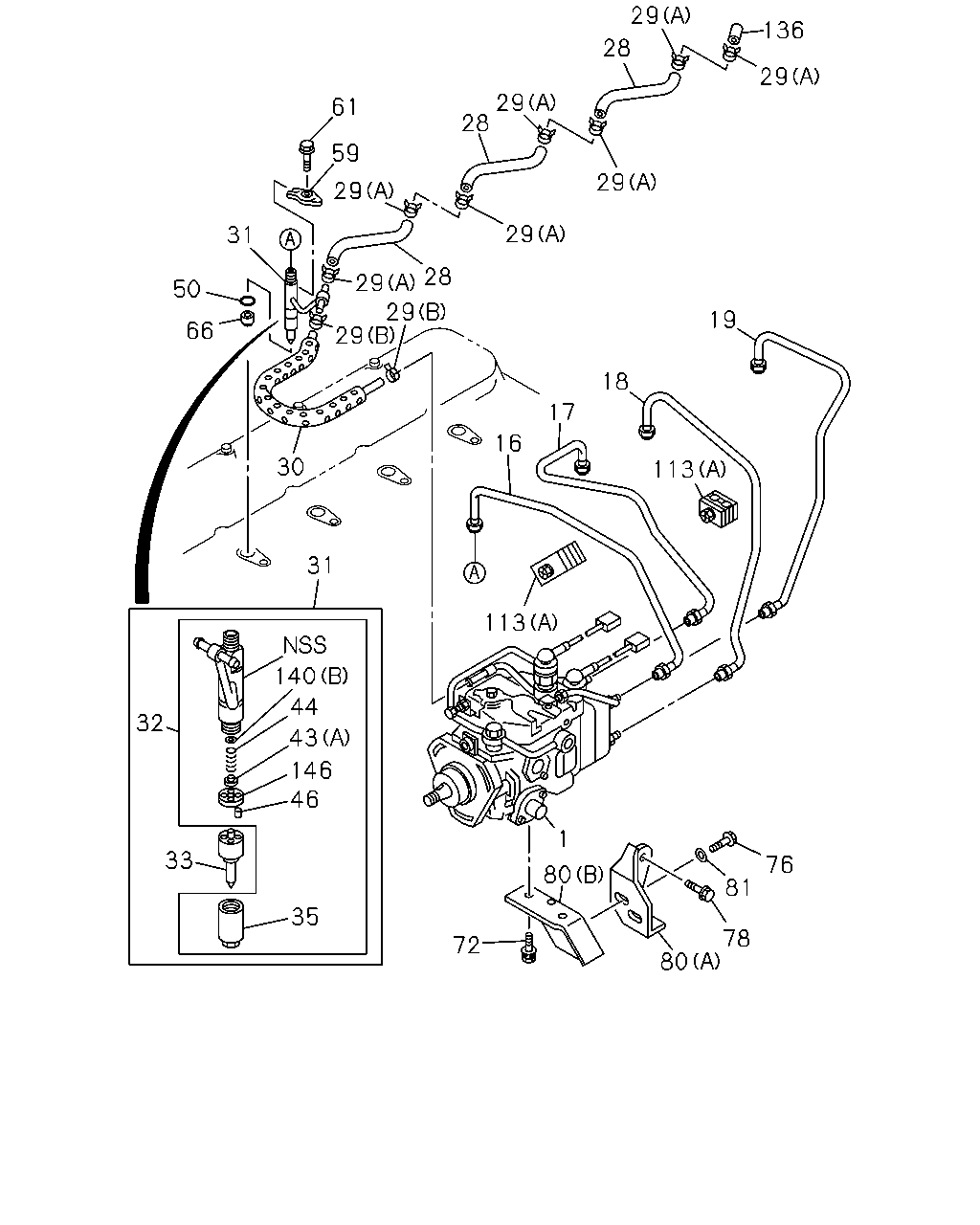

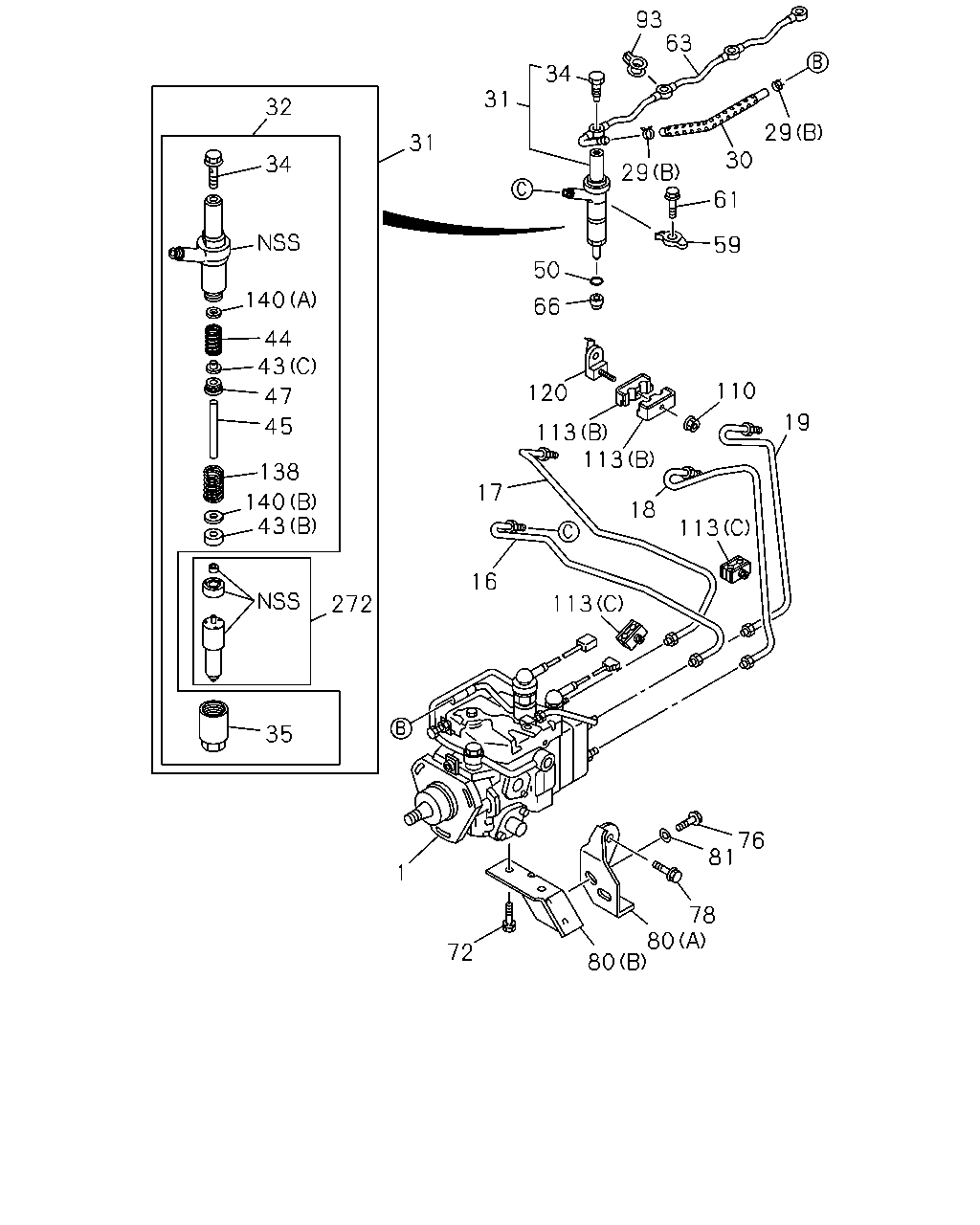

03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-97263-086-3 |
01 |
1 |
1206- |
● |
|
| |
1 |
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
|
8-97120-180-1 |
01 |
1 |
1206- |
|
● |
| |
16 |
03.330 PIPE; INJ NO.1
|
8-97223-923-1 |
01 |
1 |
1206- |
● |
|
| |
16 |
03.330 PIPE; INJ NO.1
|
8-97120-154-2 |
01 |
1 |
1206- |
|
● |
| |
17 |
03.330 PIPE; INJ NO.2
|
8-97223-924-1 |
01 |
1 |
1206- |
● |
|
| |
17 |
03.330 PIPE; INJ NO.2
|
8-97120-155-2 |
01 |
1 |
1206- |
|
● |
| |
18 |
03.330 PIPE; INJ NO.3
|
8-97223-925-1 |
01 |
1 |
1206- |
● |
|
| |
18 |
03.330 PIPE; INJ NO.3
|
8-97120-156-2 |
01 |
1 |
1206- |
|
● |
| |
19 |
03.330 PIPE; INJ NO.4
|
8-97223-926-1 |
01 |
1 |
1206- |
● |
|
| |
19 |
03.330 PIPE; INJ NO.4
|
8-97120-157-3 |
01 |
1 |
1206- |
|
● |
| |
29 |
03.162 CLIP; HOSE
01.219
(A)
ID=13
|
8-94238-571-0 |
07 |
1 |
1206- |
|
● |
| |
29 |
03.162 CLIP; HOSE
03.163
(B)
ID=11
|
8-97173-219-0 |
02 |
1 |
1206- |
● |
● |
| |
30 |
03.163 HOSE; RUBBER,FUEL LEAK
L=320
|
8-97364-773-0 |
01 |
1 |
1206- |
● |
|
| |
30 |
03.163 HOSE; RUBBER,FUEL LEAK
L=240
|
8-97364-774-1 |
01 |
1 |
1206- |
|
● |
| |
31 |
03.332 NOZZLE ASM; INJ
|
8-97382-945-0 |
04 |
1 |
1206- |
● |
|
| |
31 |
03.332 NOZZLE ASM; INJ
|
8-97122-939-0 |
04 |
1 |
1206- |
|
● |
| |
32 |
03.332 HOLDER ASM; NOZZLE
|
8-97203-471-1 |
04 |
1 |
1206- |
● |
|
| |
32 |
03.332 HOLDER ASM; NOZZLE
|
8-94451-184-1 |
04 |
1 |
1206- |
|
● |
| |
34 |
03.330 BOLT; EYE,NOZZLE HOLDER
03.306
|
8-94320-307-0 |
04 |
1 |
1206- |
● |
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
|
1-15349-041-0 |
04 |
1 |
1206- |
● |
|
| |
35 |
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
|
8-94174-184-0 |
04 |
1 |
1206- |
|
● |
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.00
|
8-97223-343-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.02
|
8-97223-344-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.04
|
8-97223-345-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.06
|
8-97223-346-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.08
|
8-97223-347-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.10
|
8-97223-348-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.12
|
8-97223-349-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.14
|
8-97223-350-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.16
|
8-97223-351-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.18
|
8-97223-352-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.20
|
8-97223-353-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.22
|
8-97223-354-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.24
|
8-97223-355-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.26
|
8-97223-356-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.28
|
8-97223-357-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.30
|
8-97223-358-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.32
|
8-97223-359-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.34
|
8-97223-360-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.36
|
8-97223-361-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.38
|
8-97223-362-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.40
|
8-97223-363-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.42
|
8-97223-364-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.44
|
8-97223-365-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.46
|
8-97223-366-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.48
|
8-97223-367-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.50
|
8-97223-368-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.52
|
8-97223-369-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.54
|
8-97223-370-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.56
|
8-97223-371-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.58
|
8-97223-372-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.60
|
8-97223-373-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.62
|
8-97223-374-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.64
|
8-97223-375-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.66
|
8-97223-376-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.68
|
8-97223-377-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.70
|
8-97223-378-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.72
|
8-97223-379-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.74
|
8-97223-380-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.76
|
8-97223-381-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.78
|
8-97223-382-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.80
|
8-97223-383-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.82
|
8-97223-384-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.84
|
8-97223-385-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.86
|
8-97223-386-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.88
|
8-97223-387-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.90
|
8-97223-388-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.92
|
8-97223-389-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.94
|
8-97223-390-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.96
|
8-97223-391-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=2.98
|
8-97223-392-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=3.00
|
8-97223-393-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(C)
|
8-97361-697-0 |
04 |
1 |
1206- |
● |
|
| |
43 |
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A)
|
8-94312-723-0 |
04 |
1 |
1206- |
|
● |
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
|
1-15343-003-0 |
04 |
1 |
1206- |
● |
|
| |
44 |
03.330 SPRING; NOZZLE,NOZZLE HOLDER
|
8-94174-141-0 |
04 |
1 |
1206- |
|
● |
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.25
|
8-97355-112-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.26
|
8-97355-113-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.27
|
8-97355-114-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.28
|
8-97355-115-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.29
|
8-97355-116-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.30
|
8-97355-117-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.31
|
8-97355-118-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.32
|
8-97355-119-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.33
|
8-97355-120-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.34
|
8-97355-121-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.35
|
8-97355-122-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.36
|
8-97355-123-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.37
|
8-97355-124-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.38
|
8-97355-125-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.39
|
8-97355-126-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.40
|
8-97355-127-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.41
|
8-97355-128-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.42
|
8-97355-129-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.43
|
8-97355-130-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.44
|
8-97355-131-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.45
|
8-97355-132-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.46
|
8-97355-133-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.47
|
8-97355-134-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.48
|
8-97355-135-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.49
|
8-97355-136-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.50
|
8-97355-137-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.51
|
8-97355-138-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.52
|
8-97355-139-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.53
|
8-97355-140-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.54
|
8-97355-141-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.55
|
8-97355-142-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.56
|
8-97355-143-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.57
|
8-97355-144-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.58
|
8-97355-145-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.59
|
8-97355-146-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.60
|
8-97355-147-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.61
|
8-97355-148-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.62
|
8-97355-149-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.63
|
8-97355-150-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.64
|
8-97355-151-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.65
|
8-97355-152-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.66
|
8-97355-153-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.67
|
8-97355-154-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.68
|
8-97355-155-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.69
|
8-97355-156-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.70
|
8-97355-157-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.71
|
8-97355-158-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.72
|
8-97355-159-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.73
|
8-97355-160-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.74
|
8-97355-161-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.75
|
8-97355-162-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.76
|
8-97355-163-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.77
|
8-97355-164-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.78
|
8-97355-165-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.79
|
8-97355-166-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.80
|
8-97355-167-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.81
|
8-97355-168-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.82
|
8-97355-169-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.83
|
8-97355-170-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.84
|
8-97355-171-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.85
|
8-97355-172-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.86
|
8-97355-173-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.87
|
8-97355-174-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.88
|
8-97355-175-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.89
|
8-97355-176-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.90
|
8-97355-177-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.91
|
8-97355-178-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.92
|
8-97355-179-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.93
|
8-97355-180-0 |
04 |
1 |
1206- |
● |
|
| |
45 |
03.330 ROD; PUSH,NOZZLE HOLDER
L=38.94
|
8-97355-182-0 |
04 |
1 |
1206- |
● |
|
| |
47 |
03.332 SPACER; NOZZLE SPRING,NOZZLE HOL
|
8-97223-340-0 |
04 |
1 |
1206- |
● |
|
| |
50 |
03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-97287-402-2 |
04 |
1 |
1206- |
● |
● |
| |
59 |
03.332 CLAMP; NOZZLE HOLDER
|
8-97259-884-0 |
04 |
1 |
1206- |
● |
|
| |
59 |
03.332 CLAMP; NOZZLE HOLDER
|
8-94433-427-0 |
04 |
1 |
1206- |
|
● |
| |
61 |
03.332 BOLT; CLAMP NOZZLE HOLDER
|
8-94468-020-2 |
04 |
1 |
1206- |
● |
|
| |
61 |
03.332 BOLT; CLAMP NOZZLE HOLDER
|
8-94433-717-1 |
04 |
1 |
1206- |
|
● |
| |
63 |
03.163 PIPE; FUEL,NOZZLE LEAK OFF
|
8-97288-702-0 |
01 |
1 |
1206- |
● |
|
| |
66 |
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=7.2 OD=15.0 T=6.6
|
8-97171-331-0 |
04 |
1 |
1206- |
● |
● |
| |
72 |
03.330 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER
|
0-50551-020-0 |
02 |
1 |
1206- |
● |
● |
| |
76 |
03.330 BOLT; BRKT TO BRKT
09.008
M8X25 W/LK WASHER
|
0-50540-825-0 |
02 |
1 |
1206- |
● |
● |
| |
78 |
03.330 BOLT; BRKT TO C/BL
01.531
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1206- |
● |
● |
| |
80 |
03.306 BRACKET; PUMP
(A)
|
8-97368-670-0 |
01 |
1 |
1206- |
● |
● |
| |
80 |
03.306 BRACKET; PUMP
(B)
|
8-97368-671-0 |
01 |
1 |
1206- |
● |
● |
| |
81 |
03.330 WASHER; PL,BRKT TO PUMP
02.277
ID=8.4 OD=22
|
0-91614-708-0 |
02 |
1 |
1206- |
● |
● |
| |
93 |
03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-97375-236-0 |
04 |
1 |
1206- |
● |
|
| |
110 |
03.330 NUT; CLIP
01.062
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
1206- |
● |
|
| |
113 |
03.162 CLIP; INJ PIPE
(B)
|
1-09701-132-1 |
02 |
1 |
1206-1210 |
● |
|
| |
113 |
03.162 CLIP; INJ PIPE
03.634
(B)
|
1-09701-240-0 |
02 |
1 |
1211- |
● |
|
| |
113 |
03.162 CLIP; INJ PIPE
(C)
|
8-97224-041-1 |
02 |
1 |
1206-1212 |
● |
|
| |
113 |
03.162 CLIP; INJ PIPE
(C)
|
8-98227-926-0 |
02 |
1 |
1301- |
● |
|
| |
113 |
03.162 CLIP; INJ PIPE
03.330
(A)
|
5-15419-013-1 |
02 |
1 |
1206- |
|
● |
| |
120 |
03.330 BRACKET; INJ PIPE
|
8-98015-024-1 |
01 |
1 |
1206- |
● |
|
| |
138 |
03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER
|
8-94174-141-0 |
04 |
1 |
1206- |
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A)
T=1.20
|
1-15349-004-0 |
AR |
1 |
1206- |
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A)
T=0.52
|
1-15349-044-0 |
AR |
1 |
1206- |
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A)
T=0.54
|
1-15349-045-0 |
AR |
1 |
1206- |
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A)
T=0.56
|
1-15349-046-0 |
AR |
1 |
1206- |
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A)
T=0.58
|
1-15349-047-0 |
AR |
1 |
1206- |
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A)
T=0.60
|
1-15349-048-0 |
AR |
1 |
1206- |
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A)
T=0.70
|
1-15349-049-0 |
AR |
1 |
1206- |
● |
|
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.10
|
8-97116-029-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.20
|
8-97116-032-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.30
|
8-97116-033-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.40
|
8-97116-034-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.50
|
8-97116-035-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.51
|
8-97116-036-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.52
|
8-97116-037-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.53
|
8-97116-038-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.54
|
8-97116-039-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.55
|
8-97116-040-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.56
|
8-97116-041-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.57
|
8-97116-042-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.58
|
8-97116-043-0 |
AR |
1 |
1206- |
● |
● |
| |
140 |
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B)
T=0.59
|
8-97116-044-0 |
AR |
1 |
1206- |
● |
● |
| |
272 |
03.332 NOZZLE KIT; INJ
|
8-97329-208-0 |
04 |
1 |
1206- |
● |
|
