◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51423 - QKR RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#96031) — 11 parça

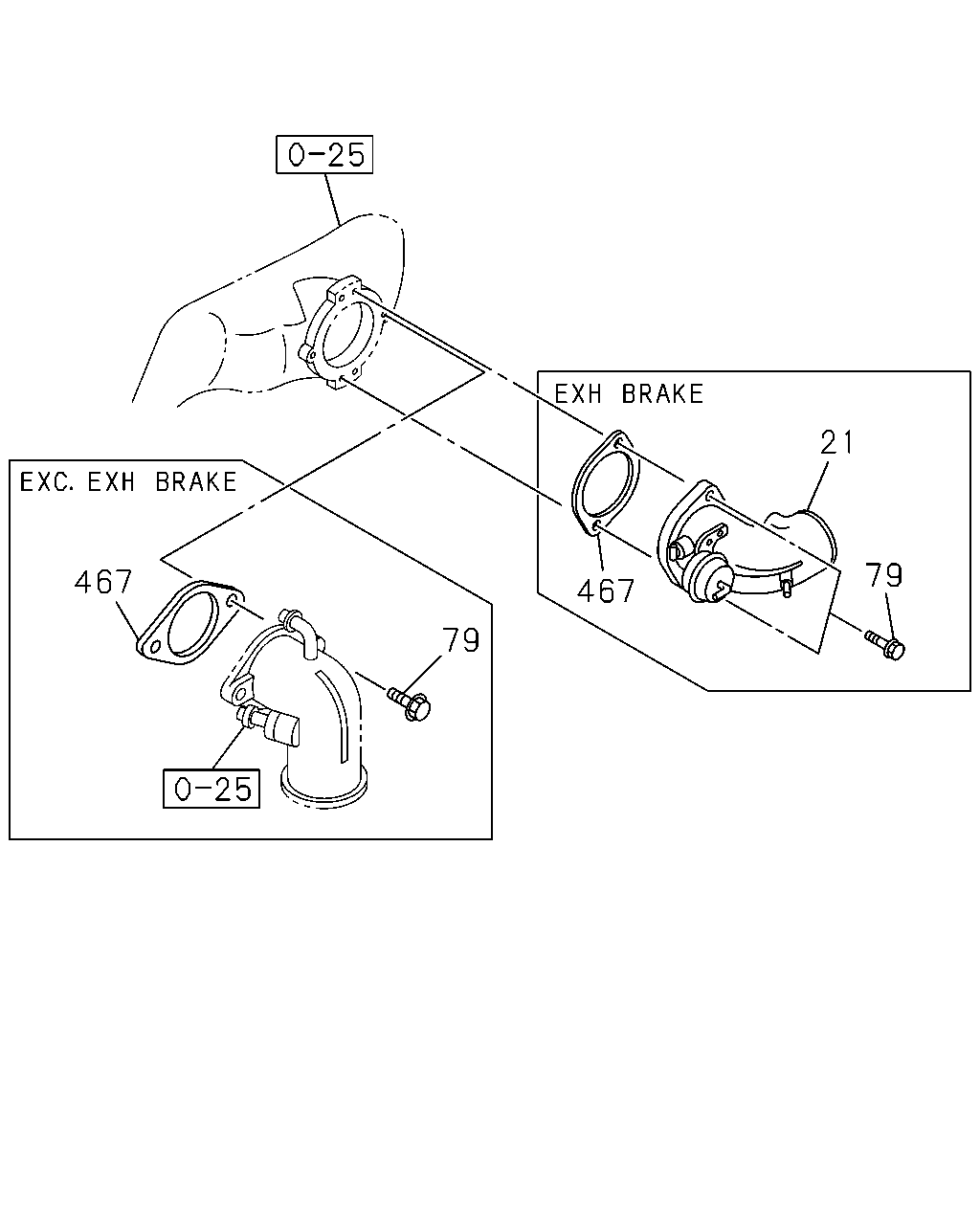

çizim 288081
467 79 21 467 79
BalonParca AdiParca NoAdetTipApplied Date A B
21 03.440 VALVE ASM; THROTTLE 8-97309-924-3 01 1 1206- ●
21 03.440 VALVE ASM; THROTTLE
EXHAUST BRAKE<NF8> 03.265 		8-94143-586-1 01 1 1206- ●
79 03.440 BOLT; BRKT,TB
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 1206- ●
467 03.440 GASKET; INT THROTTLE
03.406 		8-97035-883-1 01 1 1206- ●

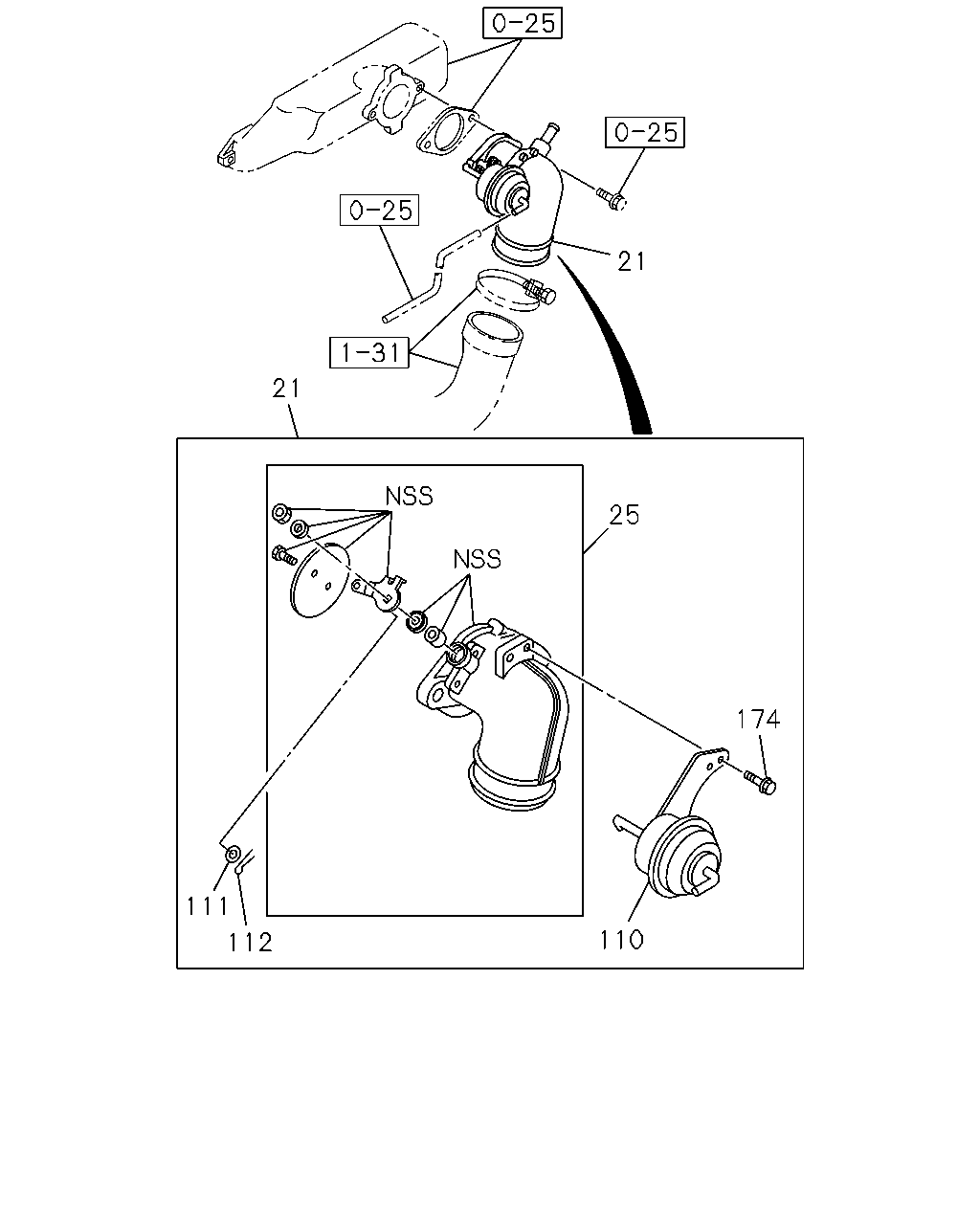

çizim 500320
21 25 21 174 110 111 112
BalonParca AdiParca NoAdetTipApplied Date A B
21 03.440 VALVE ASM; THROTTLE 8-97309-924-3 01 1 1206- ●
21 03.440 VALVE ASM; THROTTLE
EXHAUST BRAKE<NF8> 03.265 		8-94143-586-1 01 1 1206- ●
25 03.440 BODY ASM; THROTTLE 8-97317-383-2 01 1 1206- ●
110 03.440 CHAMBER ASM; DIAPH 8-97317-385-0 01 1 1206- ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 1206- ●
112 03.440 PIN; SPLIT,LEVER 9-08112-010-0 01 1 1206- ●
174 03.440 BOLT; CHAMBER
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 1206- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
