◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51423 - QKR RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#96030) — 33 parça

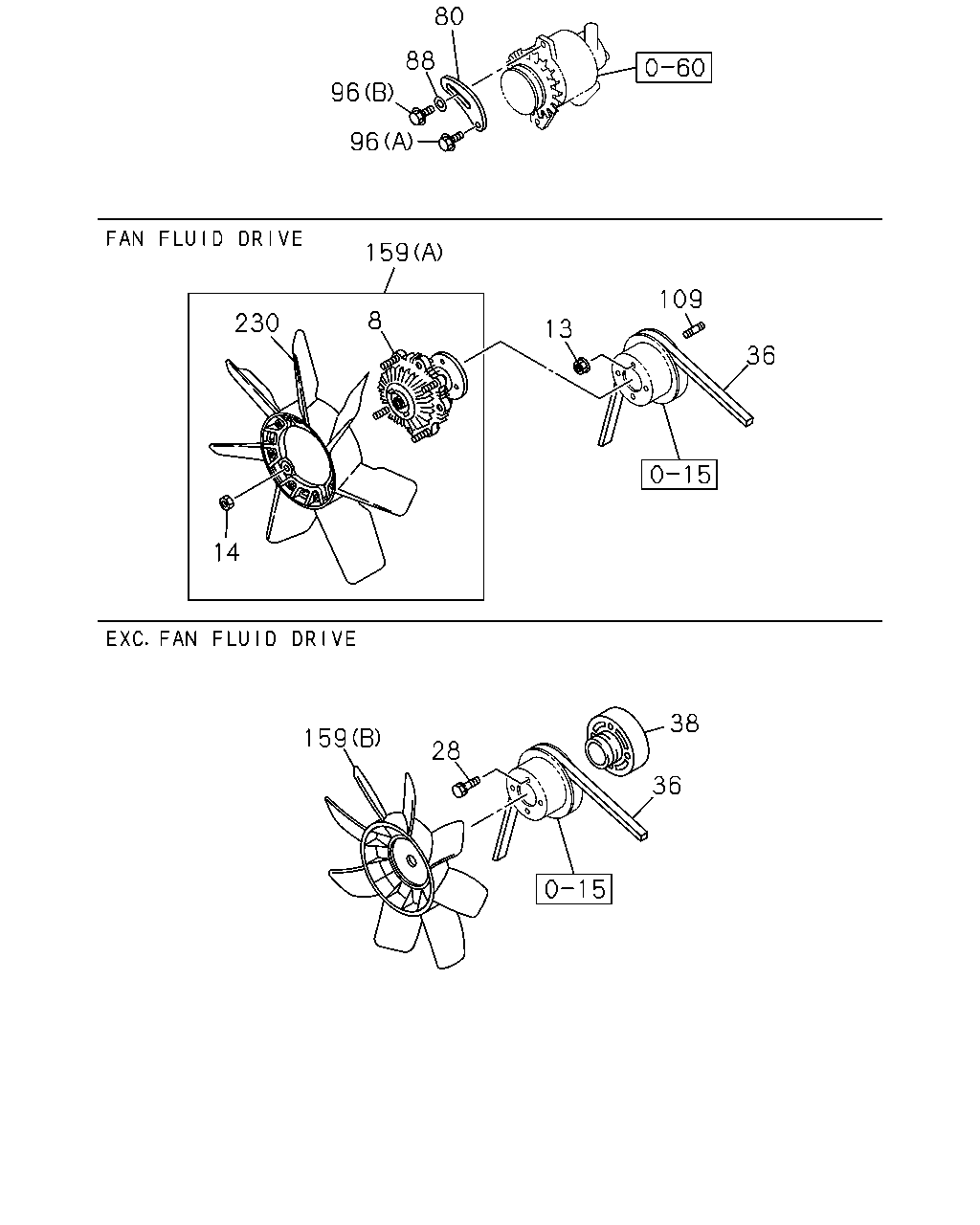

çizim 288077
109 36 13 8 230 14 159 96 96 88 80 28 159 36 38
BalonParca AdiParca NoAdetTipApplied Date A B
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-94244-409-0 01 1 1206- ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 1206-1304 ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 1305- ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 1305- ●
14 01.062 NUT; FAN TO CLU
FAN FLUID DRIVE<KA3> M6 FLANGE 		0-91180-106-0 04 1 1206- ●
28 01.062 BOLT; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> M6X45 W/LK WASHER 		0-50540-645-0 04 1 1206- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 1206- ● ●
38 01.062 SPACER; FAN
EXC. FAN FLUID DRIVE<KA3> 01.064 		9-13642-078-0 01 1 1206- ●
80 02.317 PLATE; ADJ 8-97080-556-2 01 1 1206- ● ●
88 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 1206- ● ●
96 02.317 BOLT; ADJ PLATE
09.173 (A) M8X45 FLANGE 		0-28050-845-0 01 1 1206- ● ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 1206- ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1206-1304 ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> M6X18 L=27 		0-41010-618-0 04 1 1305- ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1305- ●
159 01.064 BLADE; COOLING FAN
(C) OD=410 		8-97129-769-2 01 1 1206- ●
159 01.064 BLADE; COOLING FAN
FAN FLUID DRIVE<KA3> (A) OD=390 		8-94239-651-0 01 1 1206- ●
159 01.064 BLADE; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> (B) OD=390 		5-13660-285-0 01 1 1206- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		5-13660-300-0 01 1 1206- ●

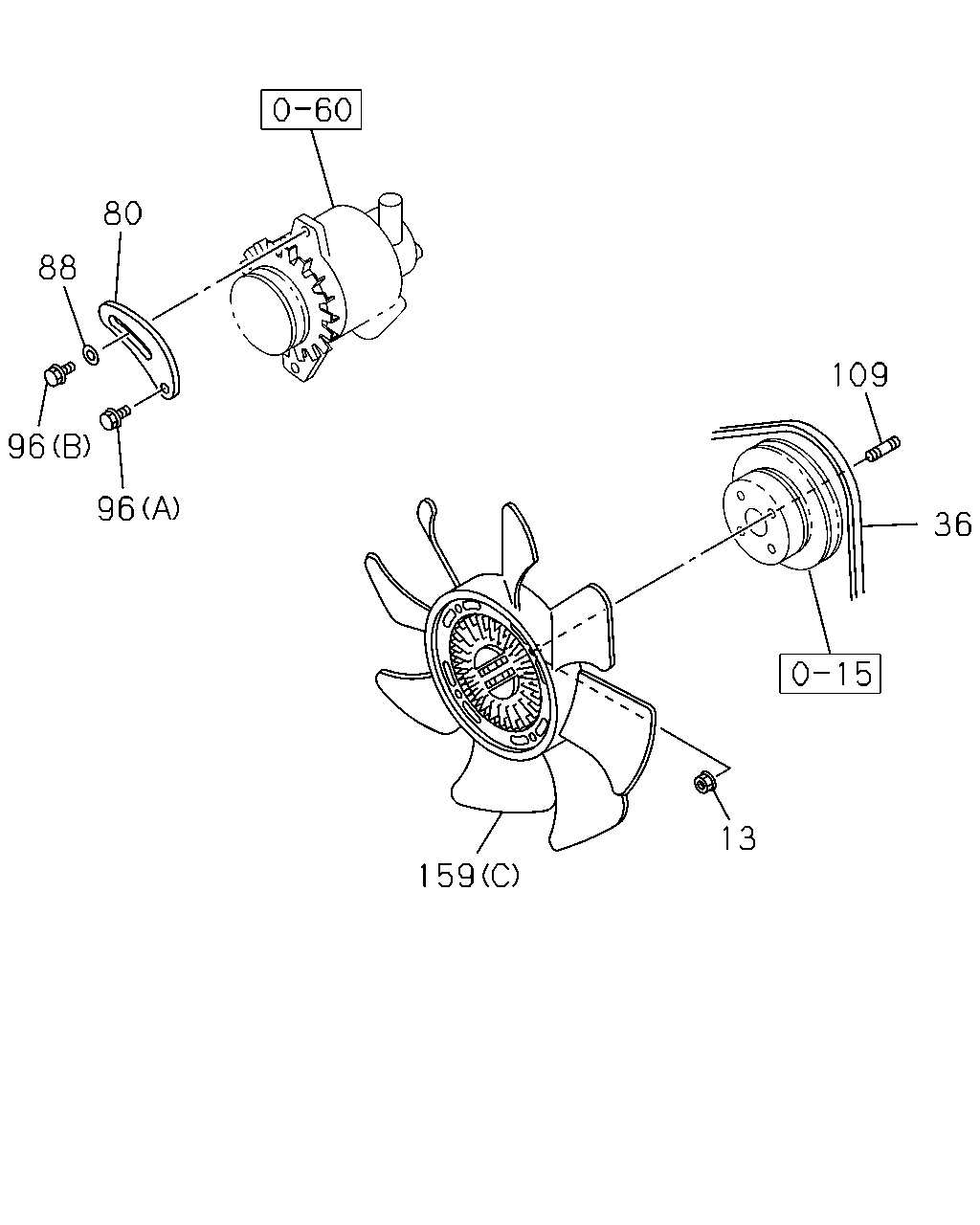

çizim 500319
109 36 13 159 96 96 88 80
BalonParca AdiParca NoAdetTipApplied Date A B
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 1206-1304 ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 1305- ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 1305- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 1206- ● ●
80 02.317 PLATE; ADJ 8-97080-556-2 01 1 1206- ● ●
88 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 1206- ● ●
96 02.317 BOLT; ADJ PLATE
09.173 (A) M8X45 FLANGE 		0-28050-845-0 01 1 1206- ● ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 1206- ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1206-1304 ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> M6X18 L=27 		0-41010-618-0 04 1 1305- ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1305- ●
159 01.064 BLADE; COOLING FAN
(C) OD=410 		8-97129-769-2 01 1 1206- ●
159 01.064 BLADE; COOLING FAN
FAN FLUID DRIVE<KA3> (A) OD=390 		8-94239-651-0 01 1 1206- ●
159 01.064 BLADE; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> (B) OD=390 		5-13660-285-0 01 1 1206- ●
