◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#96013) — 43 parça

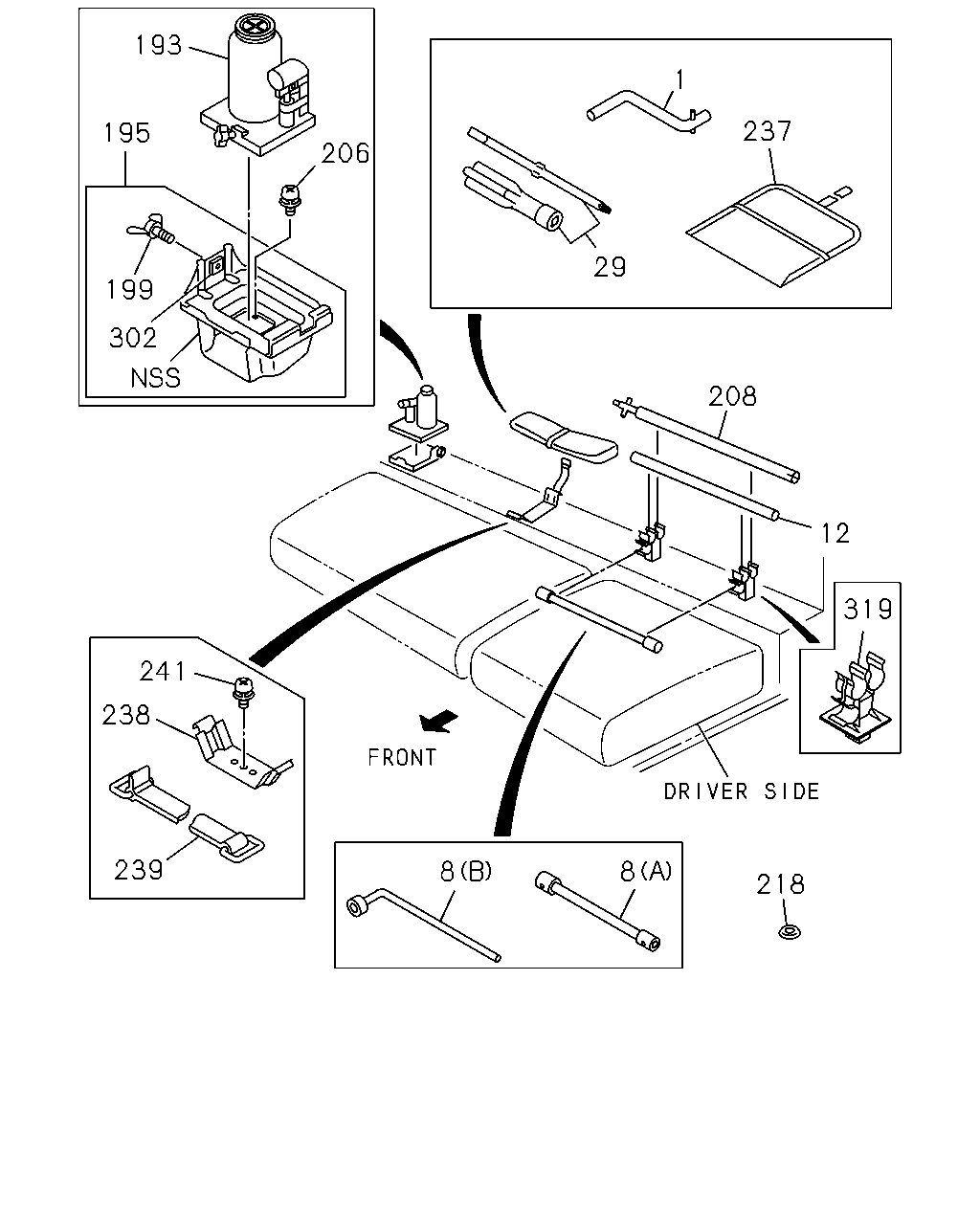

çizim 288901
193 195 206 199 302 29 237 1 12 208 218 8 8 241 238 239 319
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 1206- ● ●
8 08.821 WRENCH; WHEEL
WHEEL BASE 2400MM(24W) (B) B=23 L=300 		9-85113-935-0 01 1 1206- ●
8 08.821 WRENCH; WHEEL
WHEEL BASE 2700MM(27W) (A) B=41X19 L=330 		8-94386-490-1 01 1 1206-1601 ●
8 08.821 WRENCH; WHEEL
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A) B=41X19 L=330 		8-94386-490-1 01 1 1206-1601 ●
8 08.821 WRENCH; WHEEL
WHEEL BASE 2700MM(27W) (A) B=41X19 L=330 		8-98316-702-0 01 1 1602- ●
8 08.821 WRENCH; WHEEL
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A) B=41X19 L=330 		8-98316-702-0 01 1 1602- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. SINGLE RR TIRE(6TD) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1206-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1206-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. SINGLE RR TIRE(6TD) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1408- ●
29 08.821 DRIVER; SCREW
WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) <+>,<-> L=160 		8-94242-798-1 01 1 1206- ●
29 08.821 DRIVER; SCREW
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) <+>,<-> L=160 		8-94242-798-1 01 1 1206- ●
193 08.820 JACK ASM
SINGLE RR TIRE(6TD) 5TON 		8-98114-047-0 01 1 1206-1302 ●
193 08.820 JACK ASM
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 5TON 		8-98114-047-0 01 1 1303- ●
193 08.820 JACK ASM
EXC. SINGLE RR TIRE(6TD) 4TON 		8-98012-285-0 01 1 1206-1302 ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 1206-1302 ●
193 08.820 JACK ASM
G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 4TON 		8-98012-285-0 01 1 1303- ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 1303- ●
195 08.820 BRACKET; JACK
SINGLE RR TIRE(6TD) 		8-97856-994-3 01 1 1206-1302 ●
195 08.820 BRACKET; JACK
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-97856-994-3 01 1 1303- ●
195 08.820 BRACKET; JACK
EXC. SINGLE RR TIRE(6TD) 		8-97856-997-4 01 1 1206-1302 ●
195 08.820 BRACKET; JACK 8-97856-997-4 01 1 1206-1302 ●
195 08.820 BRACKET; JACK
G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-97856-997-4 01 1 1303- ●
195 08.820 BRACKET; JACK 8-97856-997-4 01 1 1303- ●
199 08.820 BOLT; JACK
SINGLE RR TIRE(6TD) M8X30 WING 		8-94279-018-1 01 1 1206-1302 ●
199 08.820 BOLT; JACK
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) M8X30 WING 		8-94279-018-1 01 1 1303- ●
199 08.820 BOLT; JACK
EXC. SINGLE RR TIRE(6TD) M8X50 WING 		8-94279-136-0 01 1 1206-1302 ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 1206-1302 ●
199 08.820 BOLT; JACK
G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) M8X50 WING 		8-94279-136-0 01 1 1303- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 1303- ●
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 1206- ● ●
208 08.820 HANDLE; JACK
L=642 		8-98181-477-0 01 1 1206- ● ●
218 08.821 PLUG
08.131 OD=53.5 		8-94356-253-0 02 1 1206- ● ●
237 08.821 BAG; TOOL
WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 		8-97130-903-1 01 1 1206- ●
237 08.821 BAG; TOOL
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 		8-97130-903-1 01 1 1206- ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1206- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1206- ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1206- ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 1206-1302 ● ●
302 08.820 NUT; JACK BRKT
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-94279-522-0 01 1 1303- ●
302 08.820 NUT; JACK BRKT
G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-94279-522-0 01 1 1303- ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 1303- ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1206- ● ●
