Isuzu WW
▶
BUSES
▶
MV
▶
10853 - MV123(RHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

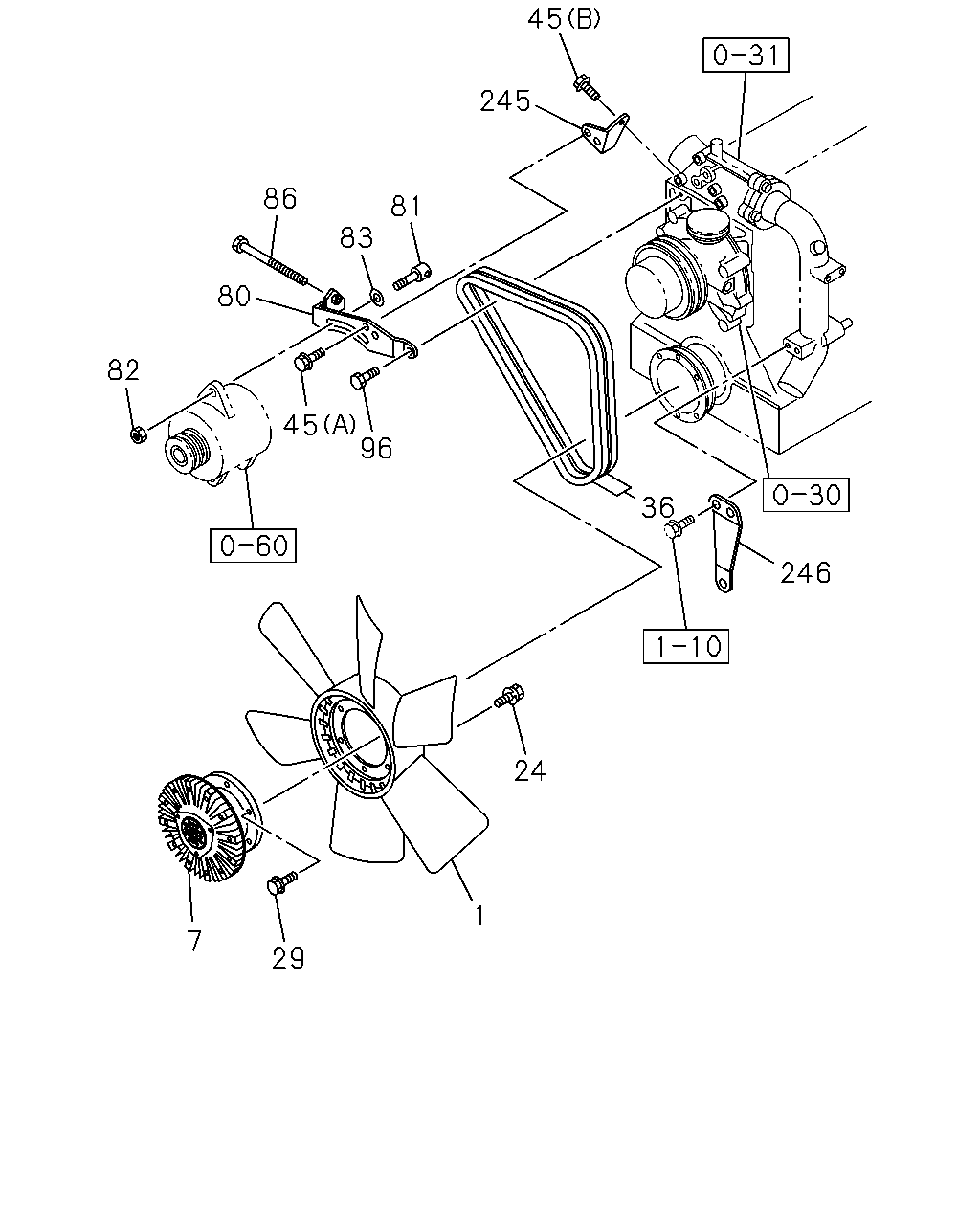

0-33 — FAN AND FAN BELT
(#9601) — 23 parça
45
245
86
81
83
80
82
45
96
36
246
24
1
7
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
1-13660-283-1
01
1
0109-
7
COUPLING; FAN
1-21650-195-1
01
1
0109-0609
7
COUPLING; FAN
8-97612-064-0
01
1
0610-0701
7
COUPLING; FAN
8-98075-122-0
01
1
0702-1009
7
COUPLING; FAN
8-98174-432-0
01
1
1010-
24
BOLT; FAN
M8X16 W/LK WASHER
0-50040-816-0
06
1
0109-0512
24
BOLT; FAN
M8X16 W/LK WASHER
0-50540-816-0
06
1
0601-
29
BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE
0-28181-022-0
06
1
0109-
36
BELT; COOLING FAN
1 SET=2 PIECE MITSUBOSHI
1-13671-412-0
01
1
0109-
45
BOLT; STAY
(A) M8X30 FLANGE
0-28080-830-0
02
1
0109-0512
45
BOLT; STAY
(A) M8X30 FLANGE
0-28050-830-0
02
1
0601-
45
BOLT; STAY
(B) M10X20 FLANGE
0-28181-020-0
01
1
0109-0512
45
BOLT; STAY
(B) M10X20 FLANGE
0-28151-020-0
01
1
0601-
80
PLATE; ADJ
1-13674-265-0
01
1
0109-
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
0109-
82
NUT; ADJ PLATE
M12 FLANGE
0-91150-112-0
01
1
0109-0602
82
NUT; ADJ PLATE
M12 FLANGE
0-91180-112-0
01
1
0603-
83
WASHER; PL
ID=12.5 T=5.8
8-94217-363-0
01
1
0109-
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
0109-
96
BOLT; ADJ PLATE
M12X40 FLANGE
0-28181-240-0
01
1
0109-0804
96
BOLT; ADJ PLATE
M12X40 FLANGE
0-28151-240-0
01
1
0805-
245
STAY; PLATE
1-21559-374-0
01
1
0109-
246
STAY; FAN
1-21559-360-0
01
1
0109-
