◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#96008) — 114 parça

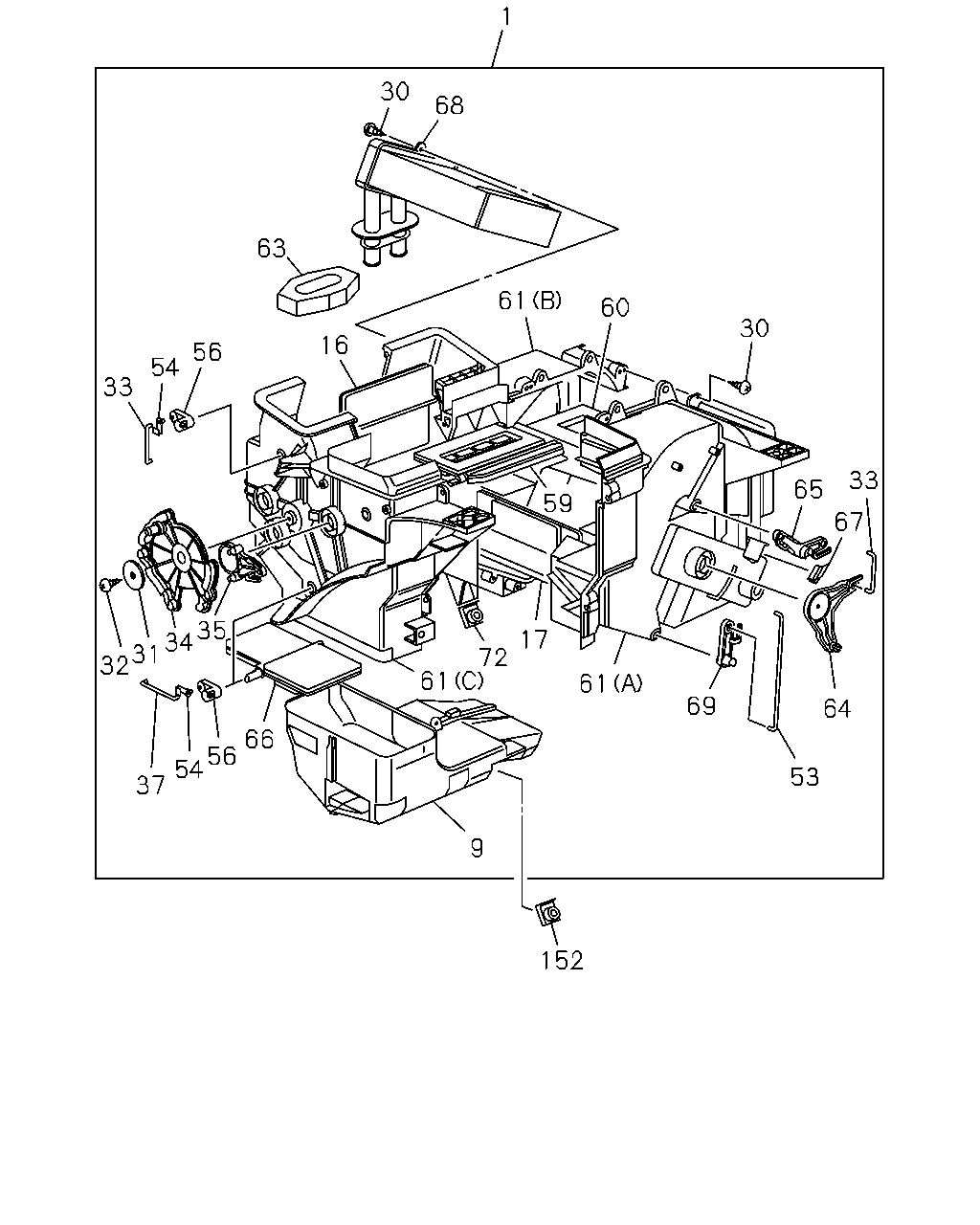

çizim 288857
152 9 53 64 69 61 17 72 61 66 56 54 37 35 34 31 32 56 54 33 16 59 67 33 65 30 60 61 1 68 30 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-199-0 01 1 1206- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97174-733-6 01 1 1206-1309 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97174-733-6 01 1 1310-1408 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-98238-500-0 01 1 1409- ● ●
9 08.854 DUCT; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-638-0 01 1 1206-1309 ● ●
9 08.854 DUCT; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-638-0 01 1 1310- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-642-0 01 1 1206-1309 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-642-0 01 1 1310- ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41) 		8-97101-640-0 01 1 1206-1309 ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-640-0 01 1 1310- ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 		8-94324-850-0 10 1 1206- ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 1206-1309 ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 08.852 M4X16 		8-94324-850-0 11 1 1310- ● ●
31 08.852 WASHER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-94129-950-0 01 1 1206-1309 ● ●
31 08.852 WASHER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-94129-950-0 01 1 1310- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 08.846 M5X16 		8-94248-820-0 01 1 1409- ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 10.240 M5X20 		9-09829-324-1 01 1 1206-1309 ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 10.240 M5X20 		9-09829-324-1 01 1 1310-1408 ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 10.240 M5X20 		9-09829-324-1 01 1 1409- ● ●
33 09.786 ROD; SHUTTER LEVER
FORGED AIR VENTILATION(C39) 08.866 		8-97087-566-0 01 1 1206- ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) 08.866 		8-97087-566-0 02 1 1206-1309 ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 08.866 		8-97087-566-0 02 1 1310- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-669-0 01 1 1206-1309 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-669-0 01 1 1310- ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-673-0 03 1 1206-1309 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-673-0 03 1 1310- ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-677-2 02 1 1206-1309 ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-677-2 02 1 1310- ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) 		8-97087-567-1 01 1 1206-1309 ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97087-567-1 01 1 1310- ● ●
54 08.854 CLIP; SHUTTER LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		1-83574-136-0 03 1 1206-1309 ● ●
54 08.854 CLIP; SHUTTER LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		1-83574-136-0 03 1 1310- ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97096-142-0 03 1 1206-1309 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97096-142-0 03 1 1310- ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-641-0 01 1 1206-1309 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-641-0 01 1 1310- ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41) 		8-97087-556-1 01 1 1206-1309 ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97087-556-1 01 1 1310- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) 		8-97101-634-4 01 1 1206-1309 ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) (A) 		8-97101-634-4 01 1 1310- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) 		8-97101-635-4 01 1 1206-1309 ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) (B) 		8-97101-635-4 01 1 1310- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C) 		8-97101-636-4 01 1 1206-1309 ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) (C) 		8-97101-636-4 01 1 1310- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97131-580-0 01 1 1206-1309 ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97131-580-0 01 1 1310-1408 ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97131-323-0 01 1 1409- ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97101-670-1 01 1 1206-1309 ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-670-1 01 1 1310- ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97200-276-0 01 1 1206-1309 ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97200-276-0 01 1 1310- ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-643-0 01 1 1206-1309 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-643-0 01 1 1310- ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 09.787 		8-94337-654-0 01 1 1206- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 09.787 		8-94337-654-0 02 1 1206-1309 ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 09.787 		8-94337-654-0 02 1 1310- ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97240-941-0 01 1 1206-1309 ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97240-941-0 01 1 1310-1408 ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-98238-504-0 01 1 1409- ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-97101-671-0 01 1 1206-1309 ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-671-0 01 1 1310- ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97085-613-0 01 1 1206-1309 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97085-613-0 01 1 1310- ● ●
152 08.854 NUT; HTR UNIT 8-97107-811-0 01 1 1206- ● ●

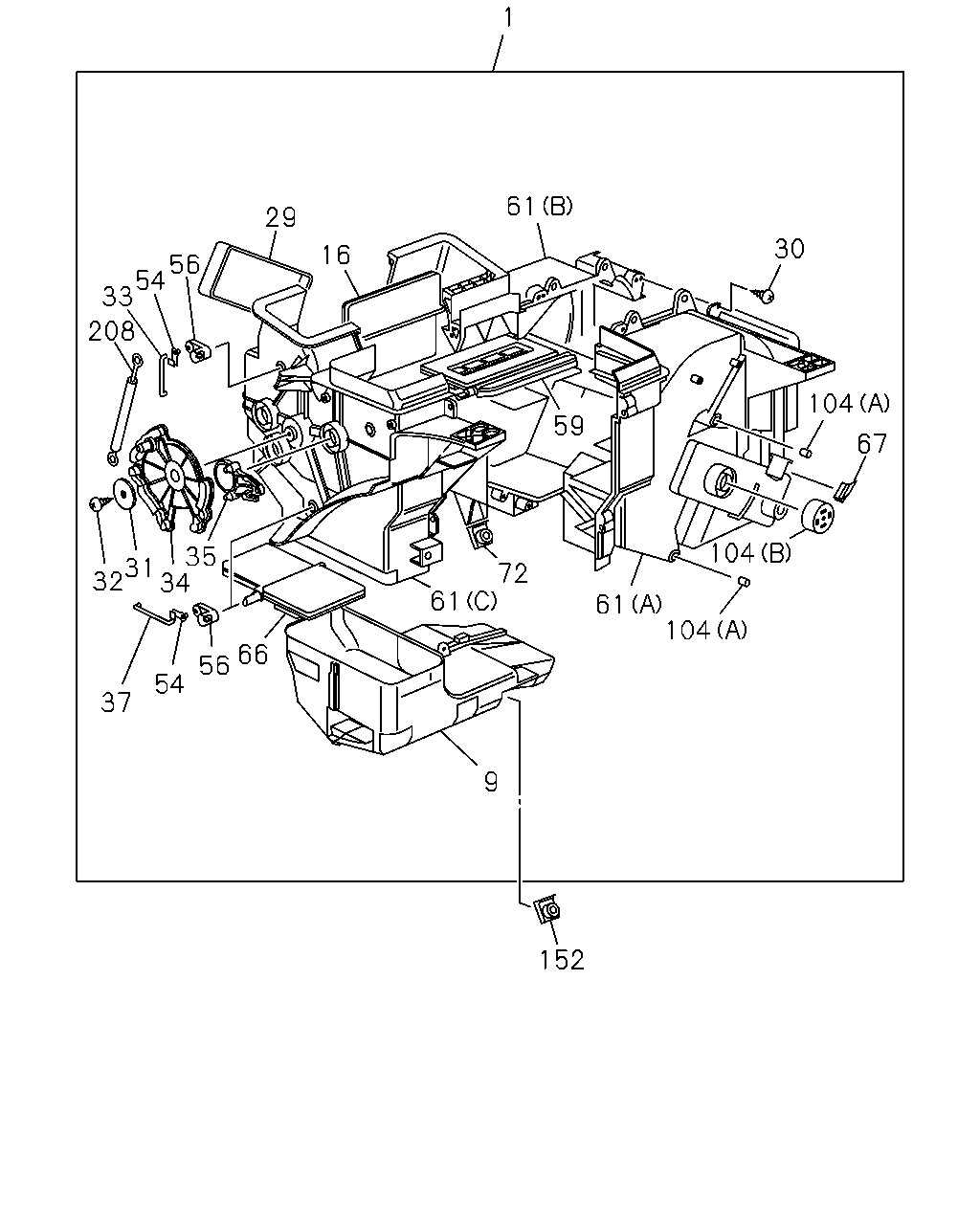

çizim 288860
104 61 72 61 9 152 66 56 54 37 35 34 31 32 56 54 33 208 29 16 61 30 104 67 104 59 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-199-0 01 1 1206- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97174-733-6 01 1 1206-1309 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97174-733-6 01 1 1310-1408 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-98238-500-0 01 1 1409- ● ●
9 08.854 DUCT; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-638-0 01 1 1206-1309 ● ●
9 08.854 DUCT; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-638-0 01 1 1310- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-642-0 01 1 1206-1309 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-642-0 01 1 1310- ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-97102-661-0 01 1 1206- ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 		8-94324-850-0 10 1 1206- ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 1206-1309 ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 08.852 M4X16 		8-94324-850-0 11 1 1310- ● ●
31 08.852 WASHER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-94129-950-0 01 1 1206-1309 ● ●
31 08.852 WASHER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-94129-950-0 01 1 1310- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 08.846 M5X16 		8-94248-820-0 01 1 1409- ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 10.240 M5X20 		9-09829-324-1 01 1 1206-1309 ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 10.240 M5X20 		9-09829-324-1 01 1 1310-1408 ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 10.240 M5X20 		9-09829-324-1 01 1 1409- ● ●
33 09.786 ROD; SHUTTER LEVER
FORGED AIR VENTILATION(C39) 08.866 		8-97087-566-0 01 1 1206- ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) 08.866 		8-97087-566-0 02 1 1206-1309 ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 08.866 		8-97087-566-0 02 1 1310- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-669-0 01 1 1206-1309 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-669-0 01 1 1310- ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-673-0 03 1 1206-1309 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-673-0 03 1 1310- ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-677-2 02 1 1206-1309 ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-677-2 02 1 1310- ● ●
54 08.854 CLIP; SHUTTER LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		1-83574-136-0 03 1 1206-1309 ● ●
54 08.854 CLIP; SHUTTER LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		1-83574-136-0 03 1 1310- ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97096-142-0 03 1 1206-1309 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97096-142-0 03 1 1310- ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-641-0 01 1 1206-1309 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-641-0 01 1 1310- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) 		8-97101-634-4 01 1 1206-1309 ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) (A) 		8-97101-634-4 01 1 1310- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) 		8-97101-635-4 01 1 1206-1309 ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) (B) 		8-97101-635-4 01 1 1310- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C) 		8-97101-636-4 01 1 1206-1309 ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) (C) 		8-97101-636-4 01 1 1310- ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97101-643-0 01 1 1206-1309 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97101-643-0 01 1 1310- ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 09.787 		8-94337-654-0 01 1 1206- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 09.787 		8-94337-654-0 02 1 1206-1309 ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 09.787 		8-94337-654-0 02 1 1310- ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97085-613-0 01 1 1206-1309 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 		8-97085-613-0 01 1 1310- ● ●
104 08.854 CAP; CASE,HTR UNIT
FORGED AIR VENTILATION(C39) 08.845 (A) 		8-94328-657-0 04 1 1206- ● ●
104 08.854 CAP; CASE,HTR UNIT
FORGED AIR VENTILATION(C39) (B) 		8-94387-703-0 01 1 1206- ● ●
152 08.854 NUT; HTR UNIT 8-97107-811-0 01 1 1206- ● ●
208 02.480 CABLE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98008-958-0 01 1 1206- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
