8-21 — METER ASM (#96002) — 115 parça

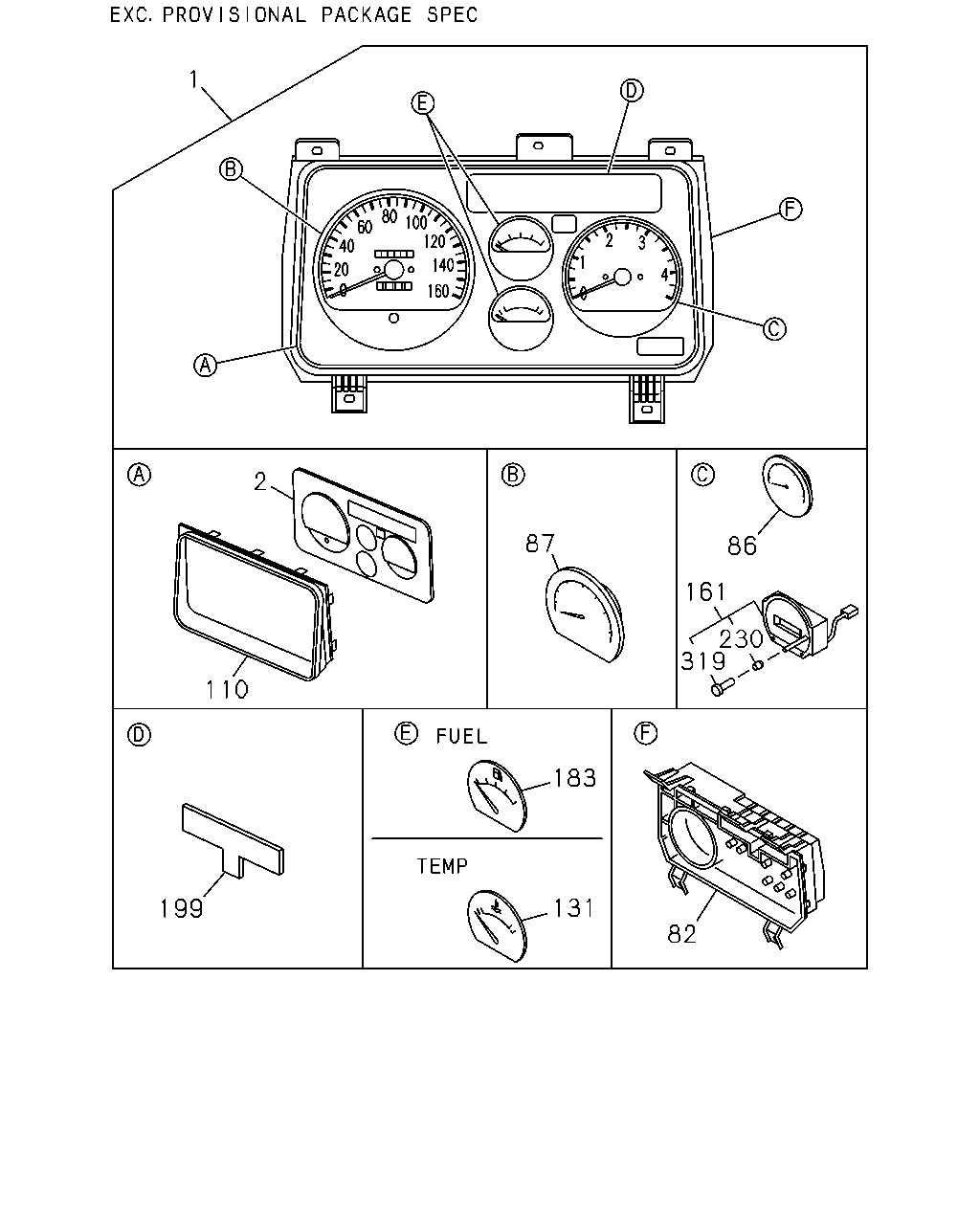

1 2 87 86 161 230 319 183 131 82 110 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> TACHOMETER<U16>	8-97381-296-0	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97381-296-0	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>	8-97381-295-0	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97381-295-0	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97381-294-1	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>	8-97381-294-1	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>	8-97381-293-0	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97381-293-0	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> SPEEDOMETER MILE<UC1> TACHOMETER<U16>	8-98179-895-1	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98179-891-1	01	1	1207-	●	●
2	09.735 PANEL; CLUSTER	8-97185-443-0	01	1	1206-1206	●	●
2	09.735 PANEL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-443-0	01	1	1207-	●	●
82	09.743 CASE ASM; CLUSTER METER	8-97185-448-0	01	1	1206-1206	●	●
82	09.743 CASE ASM; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-448-0	01	1	1207-	●	●
86	09.750 TACHOMETER; CLUSTER METER TACHOMETER<U16>	8-98002-111-0	01	1	1206-1206	●	●
86	09.750 TACHOMETER; CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-111-0	01	1	1207-	●	●
87	09.761 SPEEDOMETER SPEEDOMETER MILE<UC1>	8-98002-109-0	01	1	1206-1206	●	●
87	09.761 SPEEDOMETER SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-109-0	01	1	1207-	●	●
87	09.761 SPEEDOMETER EXC. SPEEDOMETER MILE<UC1>	8-98002-108-0	01	1	1206-1206	●	●
87	09.761 SPEEDOMETER EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>	8-98002-108-0	01	1	1207-	●	●
110	09.748 GLASS; CLUSTER METER TACHOMETER<U16>	8-97185-452-0	01	1	1206-1206	●	●
110	09.748 GLASS; CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-452-0	01	1	1207-	●	●
110	09.748 GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-97185-451-0	01	1	1206-1206	●	●
110	09.748 GLASS; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97185-451-0	01	1	1207-	●	●
110	09.748 GLASS; CLUSTER METER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16>	8-98203-825-0	01	1	1207-	●	●
131	01.148 GAUGE; TEMP,CLUSTER METER	8-98002-122-0	01	1	1206-1206	●	●
131	01.148 GAUGE; TEMP,CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-122-0	01	1	1207-	●	●
161	09.772 CLOCK; CLUSTER METER EXC. TACHOMETER<U16>	8-98002-110-0	01	1	1206-1206	●	●
161	09.772 CLOCK; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-98002-110-0	01	1	1207-	●	●
183	03.107 GAUGE; FUEL	8-98002-118-0	01	1	1206-1206	●	●
183	03.107 GAUGE; FUEL EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-118-0	01	1	1207-	●	●
199	09.772 LENS; WARNING LAMP	8-98002-124-0	01	1	1206-1206	●	●
199	09.772 LENS; WARNING LAMP EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-124-0	01	1	1207-	●	●
230	09.772 KNOB; DIGITAL CLOCK,SUB METER EXC. TACHOMETER<U16>	8-97185-644-0	01	1	1206-1206	●	●
230	09.772 KNOB; DIGITAL CLOCK,SUB METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97185-644-0	01	1	1207-	●	●
319	09.744 SCREW; KNOB,CLUSTER METER EXC. TACHOMETER<U16>	8-97185-522-0	01	1	1206-1206	●	●
319	09.744 SCREW; KNOB,CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97185-522-0	01	1	1207-	●	●

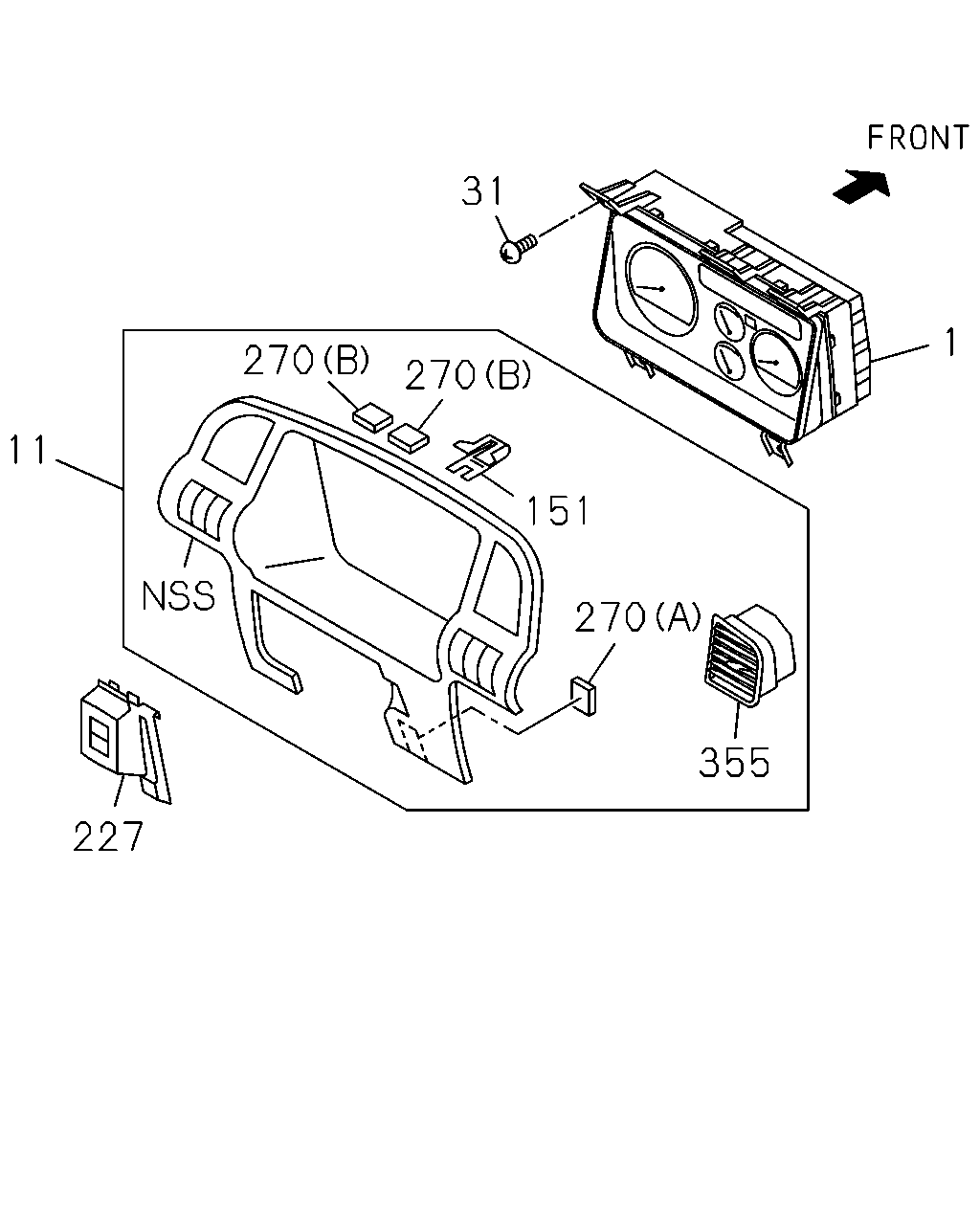

1 270 355 151 270 270 11 227 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> TACHOMETER<U16>	8-97381-296-0	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97381-296-0	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>	8-97381-295-0	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97381-295-0	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97381-294-1	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>	8-97381-294-1	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>	8-97381-293-0	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97381-293-0	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> SPEEDOMETER MILE<UC1> TACHOMETER<U16>	8-98179-895-1	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98179-891-1	01	1	1207-	●	●
11	09.743 CLUSTER ASM; METER KD PREPARATORY PACK VAR.4<7TV>	8-97693-086-0	01	1	1206-	●	●
11	09.743 CLUSTER ASM; METER EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK	8-97195-965-2	01	1	1206-	●	●
31	09.761 SCREW; METER,INST PANEL 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	1206-1210	●	●
31	09.761 SCREW; METER,INST PANEL 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	05	1	1211-	●	●
151	09.747 CLIP; METER CLUSTER KD PREPARATORY PACK VAR.4<7TV>	5-87220-525-0	07	1	1206-	●	●
151	09.747 CLIP; METER CLUSTER EXC. KD PREPARATORY PACK VAR.4<7TV>	8-97217-066-0	07	1	1206-	●	●
227	09.743 BEZEL; METER BLACK	8-97307-066-0	01	1	1206-	●	●
270	09.743 CUSHION; METER CLUSTER KD PREPARATORY PACK VAR.4<7TV> (A)	5-87220-526-0	01	1	1206-	●	●
270	09.743 CUSHION; METER CLUSTER KD PREPARATORY PACK VAR.4<7TV> (B)	5-87220-527-0	02	1	1206-	●	●
270	09.743 CUSHION; METER CLUSTER EXC. KD PREPARATORY PACK VAR.4<7TV> 16.085 (A) 15X30 T=5	8-94270-366-2	01	1	1206-	●	●
270	09.743 CUSHION; METER CLUSTER EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 6X30 T=2	8-94270-378-1	02	1	1206-	●	●
355	09.748 GRILLE; VENT KD PREPARATORY PACK VAR.4<7TV>	5-87220-528-0	01	1	1206-	●	●
355	09.748 GRILLE; VENT KD PREPARATORY PACK VAR.4<7TV>	5-87220-529-0	01	1	1206-	●	●
355	09.748 GRILLE; VENT EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK	8-97195-966-1	01	1	1206-	●	●
355	09.748 GRILLE; VENT EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK	8-97195-967-1	01	1	1206-	●	●

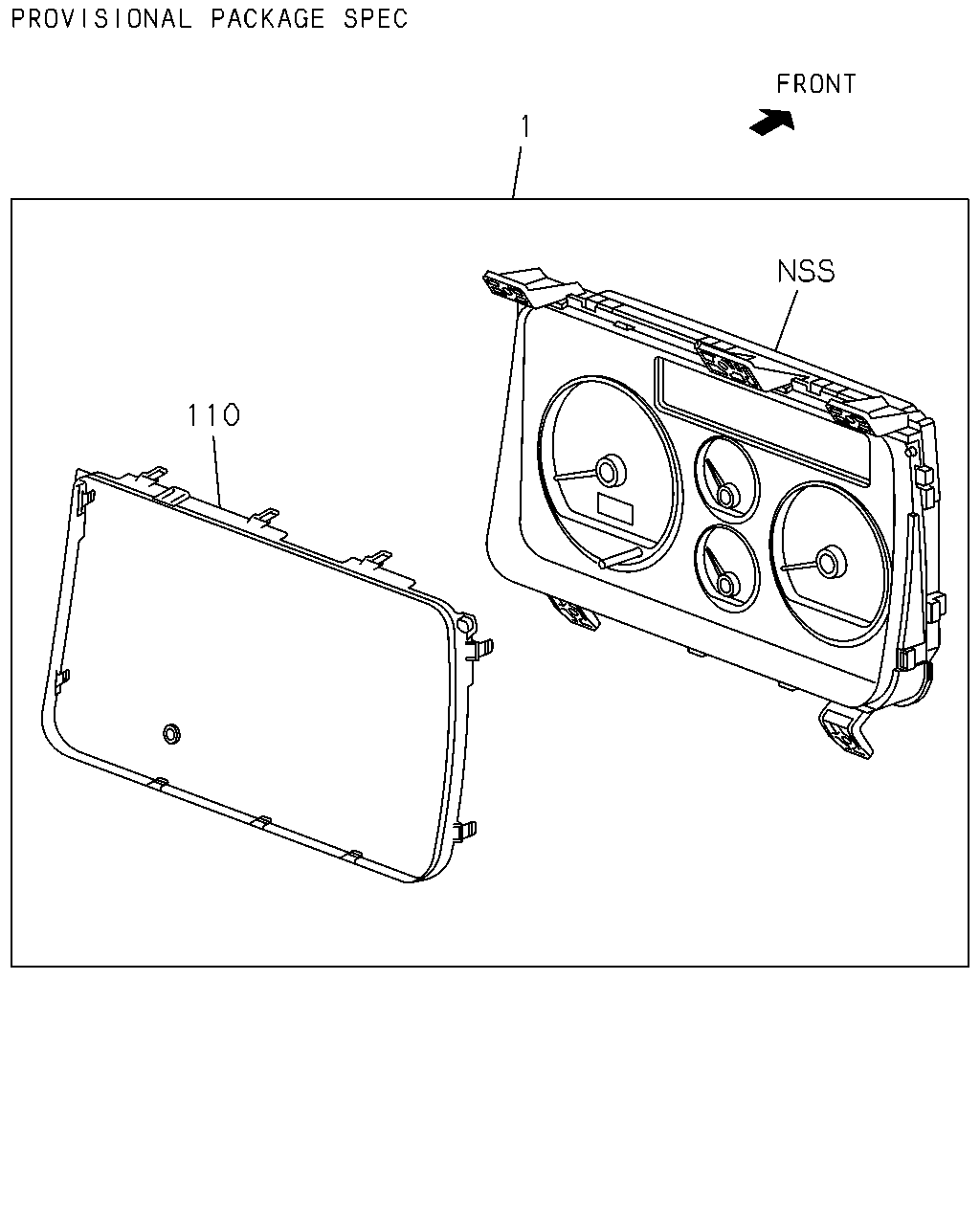

1 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> TACHOMETER<U16>	8-97381-296-0	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97381-296-0	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>	8-97381-295-0	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97381-295-0	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97381-294-1	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>	8-97381-294-1	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>	8-97381-293-0	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97381-293-0	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> SPEEDOMETER MILE<UC1> TACHOMETER<U16>	8-98179-895-1	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98179-891-1	01	1	1207-	●	●
110	09.748 GLASS; CLUSTER METER TACHOMETER<U16>	8-97185-452-0	01	1	1206-1206	●	●
110	09.748 GLASS; CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-452-0	01	1	1207-	●	●
110	09.748 GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-97185-451-0	01	1	1206-1206	●	●
110	09.748 GLASS; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97185-451-0	01	1	1207-	●	●
110	09.748 GLASS; CLUSTER METER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16>	8-98203-825-0	01	1	1207-	●	●

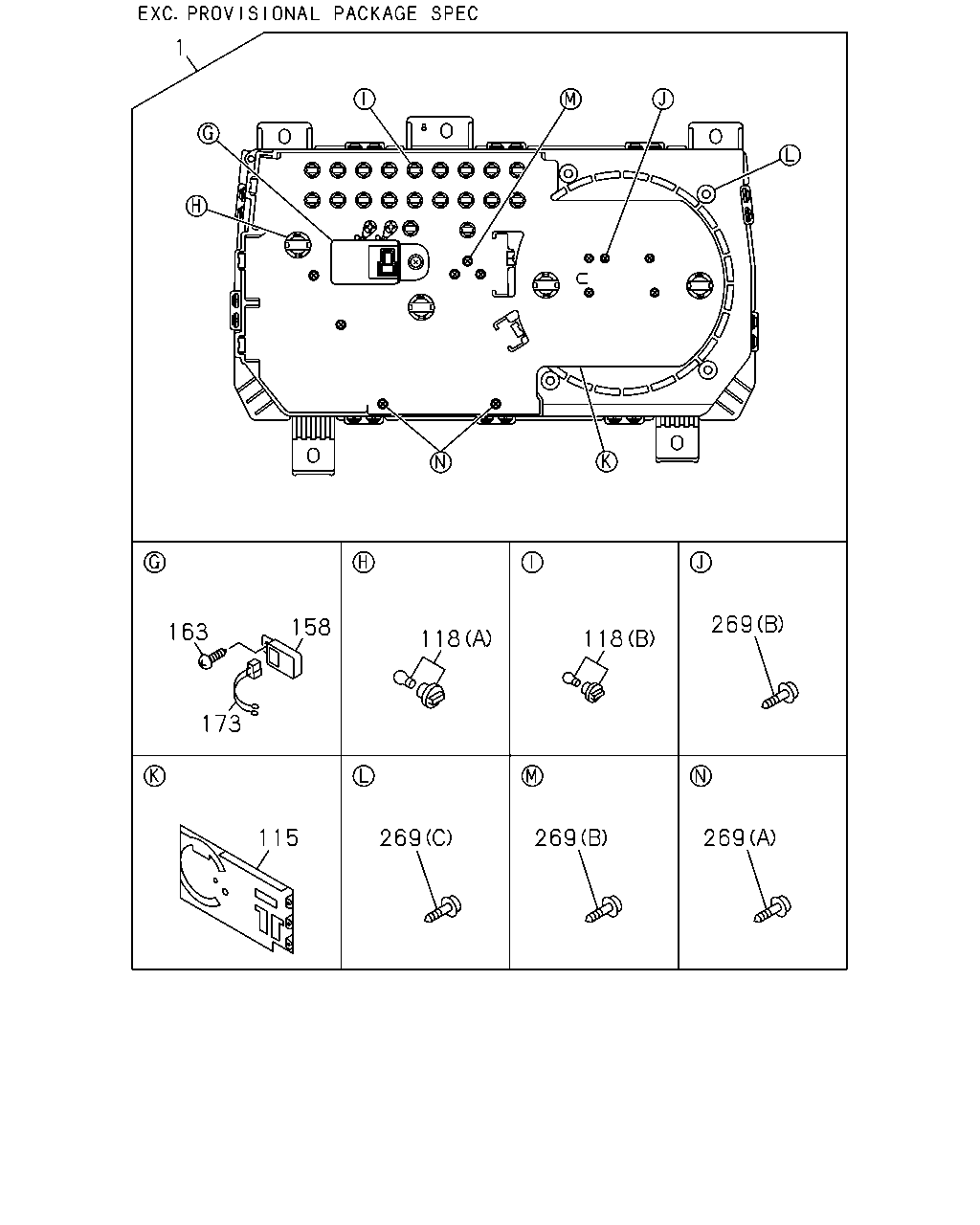

1 163 158 173 118 118 269 115 269 269 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> TACHOMETER<U16>	8-97381-296-0	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97381-296-0	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>	8-97381-295-0	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97381-295-0	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97381-294-1	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>	8-97381-294-1	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>	8-97381-293-0	01	1	1206-1206	●	●
1	09.735 METER COMPL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97381-293-0	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> SPEEDOMETER MILE<UC1> TACHOMETER<U16>	8-98179-895-1	01	1	1207-	●	●
1	09.735 METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98179-891-1	01	1	1207-	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-97185-506-0	01	1	1206-1206	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-506-0	01	1	1207-	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-97185-499-0	01	1	1206-1206	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97185-499-0	01	1	1207-	●	●
118	08.991 BULB; CLUSTER METER SPEEDOMETER MILE<UC1> TACHOMETER<U16> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	09	1	1206-1206	●	●
118	08.991 BULB; CLUSTER METER EXC. TACHOMETER<U16> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	09	1	1206-1206	●	●
118	08.991 BULB; CLUSTER METER SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	09	1	1207-	●	●
118	08.991 BULB; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	09	1	1207-	●	●
118	08.991 BULB; CLUSTER METER TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	10	1	1206-1206	●	●
118	08.991 BULB; CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	10	1	1207-	●	●
118	08.991 BULB; CLUSTER METER (A) 12V SOCKET COLOR BLACK	8-97185-535-0	04	1	1206-1206	●	●
118	08.991 BULB; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 12V SOCKET COLOR BLACK	8-97185-535-0	04	1	1207-	●	●
118	08.991 BULB; CLUSTER METER (B) 12V SOCKET COLOR BLUE	8-97185-537-0	02	1	1206-1206	●	●
118	08.991 BULB; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 12V SOCKET COLOR BLUE	8-97185-537-0	02	1	1207-	●	●
158	09.765 BUZZER; VAC WARNING 12V	8-97185-520-0	01	1	1206-1206	●	●
158	09.765 BUZZER; VAC WARNING EXC. PROVISIONAL PACKAGE SPEC<BCC> 12V	8-97185-520-0	01	1	1207-	●	●
163	08.977 SCREW; BUZZER	8-97185-527-0	01	1	1206-1206	●	●
163	08.977 SCREW; BUZZER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-527-0	01	1	1207-	●	●
173	09.744 WIRE; LEAD	8-97185-643-0	01	1	1206-1206	●	●
173	09.744 WIRE; LEAD EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-643-0	01	1	1207-	●	●
269	09.743 SCREW; METER CLUSTER TACHOMETER<U16> (B)	8-97185-524-0	08	1	1206-1206	●	●
269	09.743 SCREW; METER CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B)	8-97185-524-0	08	1	1207-	●	●
269	09.743 SCREW; METER CLUSTER (C)	8-97185-525-0	06	1	1206-1206	●	●
269	09.743 SCREW; METER CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC> (C)	8-97185-525-0	06	1	1207-	●	●
269	09.743 SCREW; METER CLUSTER (A)	8-97185-528-0	02	1	1206-1206	●	●
269	09.743 SCREW; METER CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A)	8-97185-528-0	02	1	1207-	●	●
269	09.743 SCREW; METER CLUSTER EXC. TACHOMETER<U16> (B)	8-97185-524-0	07	1	1206-1206	●	●
269	09.743 SCREW; METER CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (B)	8-97185-524-0	07	1	1207-	●	●
