10853 - MV123(RHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#9600) — 17 parça
◀

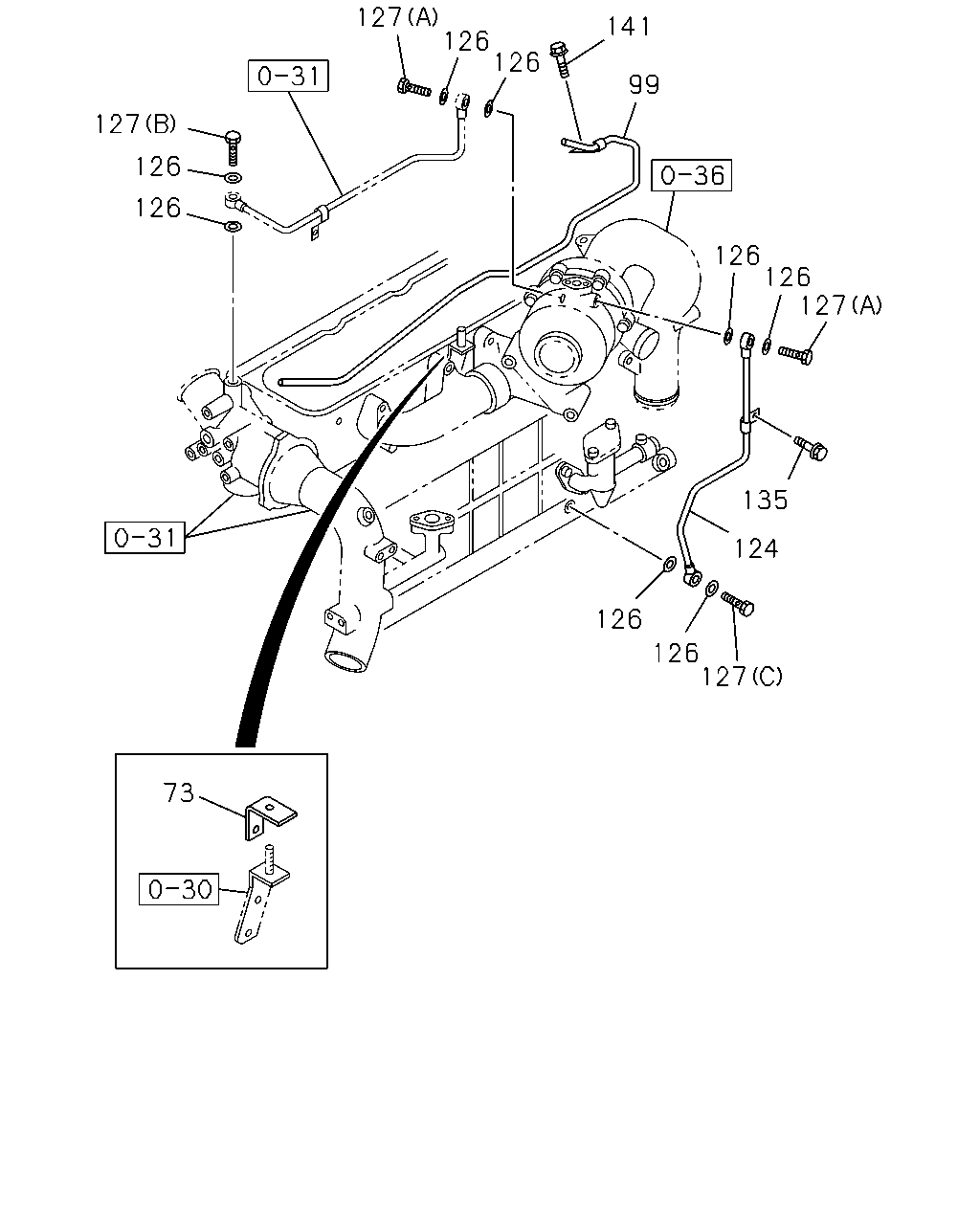

[032A] PIPE;WATER,OVERFLOW (12 parça)
[032A] PIPE;WATER,AIR CMPR (5 parça)
▶
127
126
126
141
99
127
126
126
126
126
127
135
124
126
126
127
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
PROTECTOR; HEAT,WATER PIPE
1-14181-293-0
01
1
0109-
99
PIPE; WATER,OVERFLOW
1-13721-629-0
01
1
0109-
124
PIPE; WATER,C/BL TO THERMOSTAT HSG
1-13721-738-1
01
1
0109-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
08
1
0109-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
8-98251-345-0
08
1
1401-
127
BOLT; EYE
(A) M14X31
1-09675-191-0
02
1
0109-
127
BOLT; EYE
(B) M14X27 FLANGE
1-09675-192-0
01
1
0109-
127
BOLT; EYE
(C) M14X27 EYE-BOLT
1-09675-193-0
01
1
0109-
135
BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE
0-28080-825-0
01
1
0109-0512
135
BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE
0-28050-825-0
01
1
0601-
141
BOLT; WATER PIPE
M8X12 FLANGE
0-28080-812-0
01
1
0109-0512
141
BOLT; WATER PIPE
M8X12 FLANGE
0-28050-812-0
01
1
0601-
91
91
90
92
90
91
91
90
91
91
91
89
91
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
PIPE; WATER,AIR CMPR,IN
1-13721-409-0
01
1
0109-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
0109-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
0109-1312
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
08
1
1401-
92
PIPE; WATER,AIR CMPR,OUT
1-13721-201-0
01
1
0109-
