◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#95992) — 61 parça

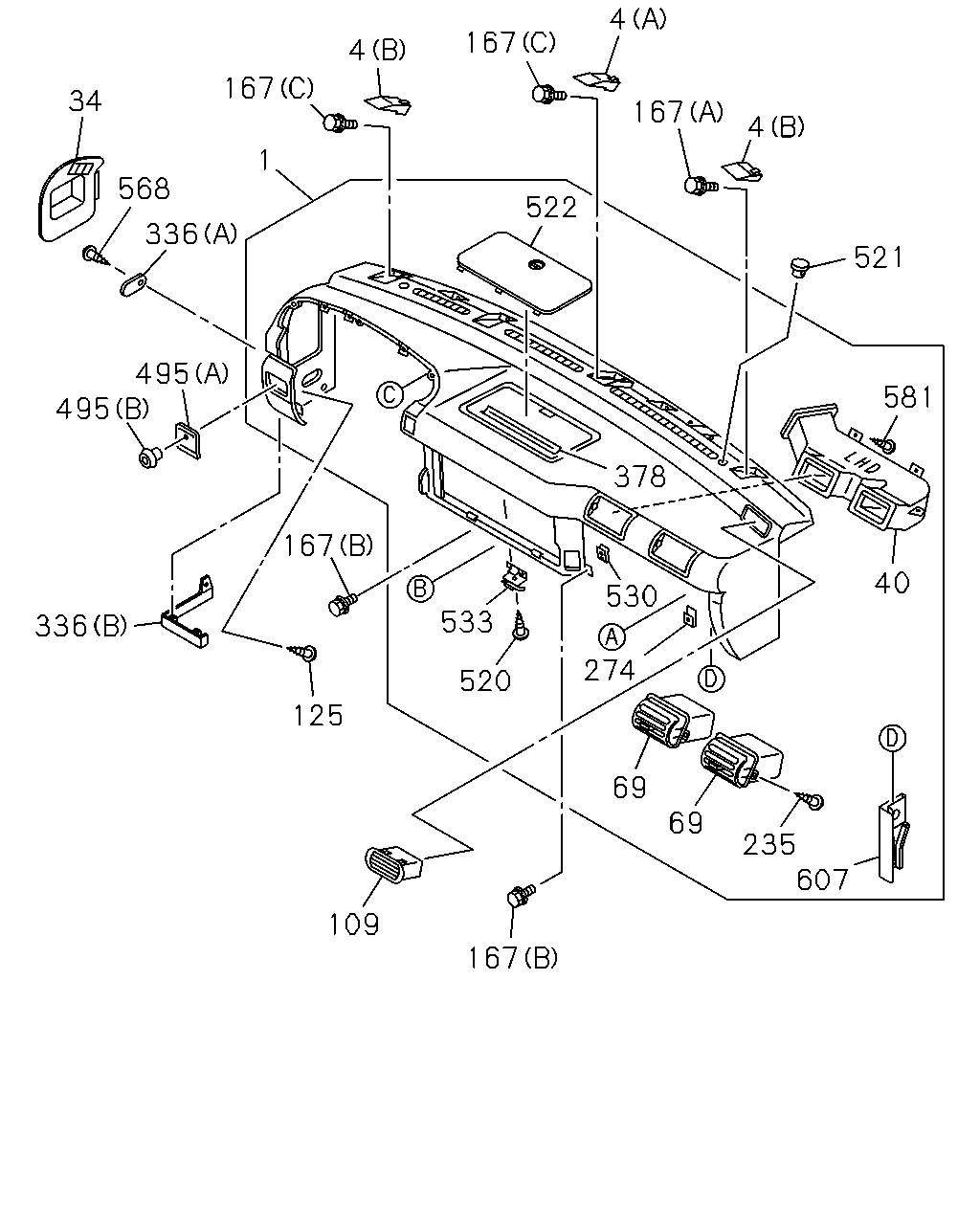

çizim 288701
167 109 607 235 69 69 274 530 40 520 533 125 336 167 378 581 521 4 167 4 167 4 167 1 34 568 336 495 495 522
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.080 PANEL; INST
DARK GRAY 		8-97587-476-2 01 1 1206- ● ●
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 1206- ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 1206- ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 1206- ● ●
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> 16.085 (C) 		1-72438-139-1 01 1 1206- ● ●
34 16.085 LID; OIL TANK
FORGED AIR VENTILATION(C39) 16.081 DARK GRAY 		8-97585-448-4 01 1 1206- ● ●
34 16.085 LID; OIL TANK
HEATER & DEFROSTER(C41) DARK GRAY 		8-97585-433-5 01 1 1206-1412 ● ●
34 16.085 LID; OIL TANK
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) DARK GRAY 		8-97585-433-5 01 1 1501- ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-698-0 01 1 1206- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 1206- ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97585-436-0 01 1 1206- ● ●
125 16.085 CLIP; INST PANEL
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 1206- ● ●
167 16.085 BOLT; REINF TO INST
(A) M6X24 FLANGE 		8-94279-231-1 02 1 1206- ● ●
167 16.085 BOLT; REINF TO INST
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1206-1210 ● ●
167 16.085 BOLT; REINF TO INST
02.587 (B) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1211- ● ●
167 16.085 BOLT; REINF TO INST
06.500 (C) M6X25 		8-94279-204-0 02 1 1206- ● ●
167 16.085 BOLT; REINF TO INST
(D) M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 1206- ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 1206- ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 1206- ● ●
336 16.081 COVER; INST PANEL SIDE
(A) DARK GRAY 		8-97582-218-4 02 1 1206- ● ●
336 16.081 COVER; INST PANEL SIDE
(B) DARK GRAY 		8-97585-432-1 01 1 1206- ● ●
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 1206- ● ●
495 09.743 BEZEL; SW
(A) DARK GRAY 		8-97582-214-4 01 1 1206- ● ●
495 09.743 BEZEL; SW
16.085 (B) DARK GRAY 		8-97582-247-0 01 1 1206- ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 03 1 1206- ● ●
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 1206- ● ●
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 1206- ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 1206- ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 1206- ● ●
568 09.744 BOLT; COVER
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1206- ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 02 1 1206- ● ●
607 16.085 FIXING ASM; CLIP INST TO M/CSTR 8-97857-893-2 01 1 1206- ● ●

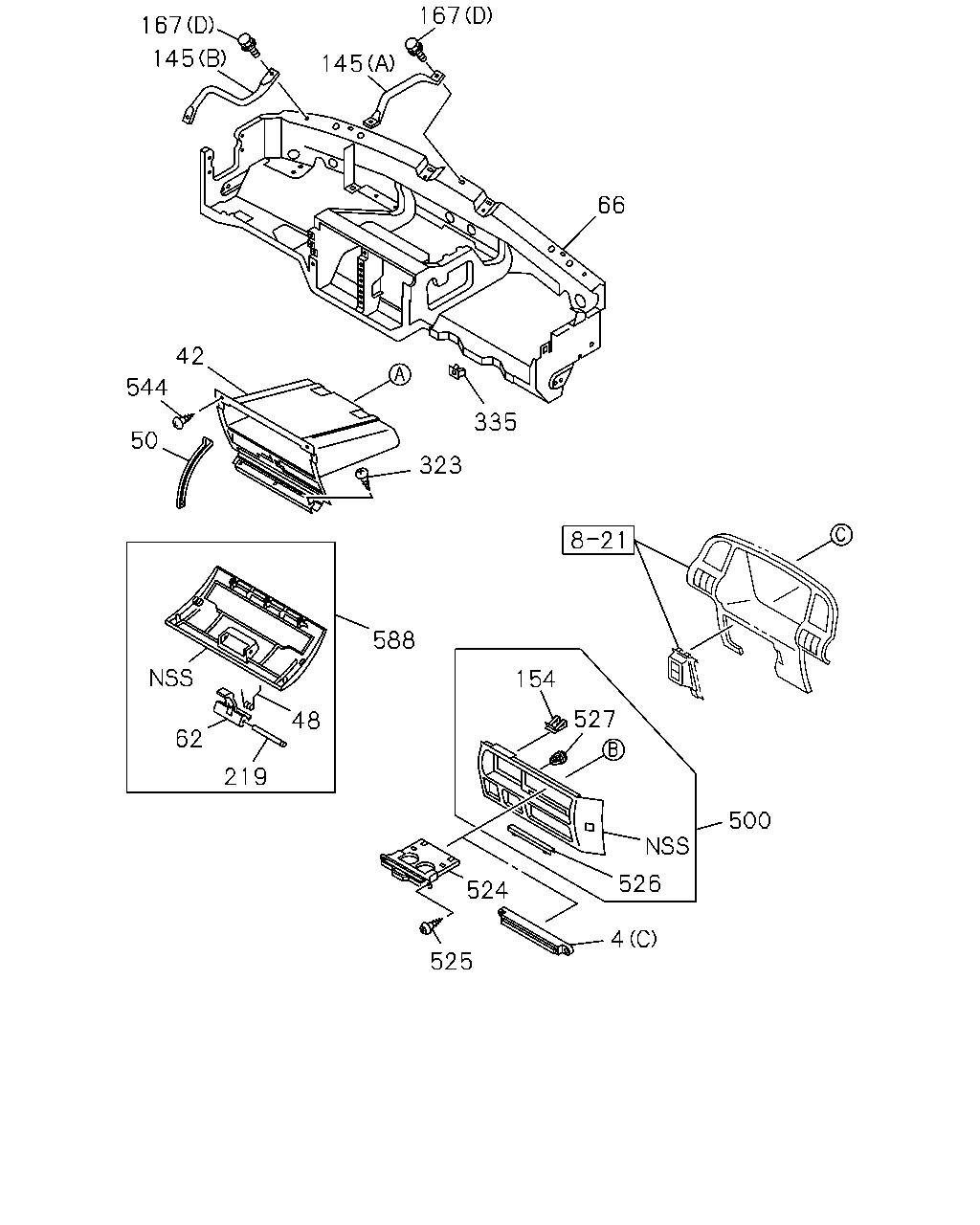

çizim 288707
525 524 526 4 500 527 154 588 219 62 48 323 335 50 544 42 66 167 145 145 167
BalonParca AdiParca NoAdetTipApplied Date A B
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 1206- ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 1206- ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 1206- ● ●
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> 16.085 (C) 		1-72438-139-1 01 1 1206- ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-150-5 01 1 1206- ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 1206- ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 1206- ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 1206- ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97898-464-7 01 1 1206- ● ●
145 16.085 STAY; INST PANEL SIDE
(A) 		8-97856-196-2 01 1 1206- ● ●
145 16.085 STAY; INST PANEL SIDE
(B) 		8-97856-197-2 01 1 1206- ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 1206- ● ●
167 16.085 BOLT; REINF TO INST
(A) M6X24 FLANGE 		8-94279-231-1 02 1 1206- ● ●
167 16.085 BOLT; REINF TO INST
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1206-1210 ● ●
167 16.085 BOLT; REINF TO INST
02.587 (B) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1211- ● ●
167 16.085 BOLT; REINF TO INST
06.500 (C) M6X25 		8-94279-204-0 02 1 1206- ● ●
167 16.085 BOLT; REINF TO INST
(D) M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 1206- ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 1206- ● ●
323 16.110 SCREW; GLOVE BOX LK
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 1206- ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1206- ● ●
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97587-475-7 01 1 1206- ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 1206- ● ●
525 16.100 SCREW; CUP STAND
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1206-1212 ● ●
525 16.100 SCREW; CUP STAND
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 1206- ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 1206- ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1206-1212 ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
588 16.081 LID; BOX
16.110 DARK GRAY 		8-97582-199-5 01 1 1206- ● ●
