◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#95990) — 52 parça
çizim 288685
2 3 159 158 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.068 MIRROR; ROOM
LIGHT GRAY 		8-97582-926-2 01 1 1206- ● ●
2 16.069 SCREW; MIRROR TO BODY
16.263 M5X16 		8-94279-341-0 02 1 1206- ● ●
3 16.069 STOPPER; RR VIEW MIRROR
L=22 		8-97857-352-1 01 1 1206- ● ●
158 16.495 LENS; ROOM LAMP
16.068 		5-73117-108-1 01 1 1206- ● ●
159 08.991 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 1206- ● ●

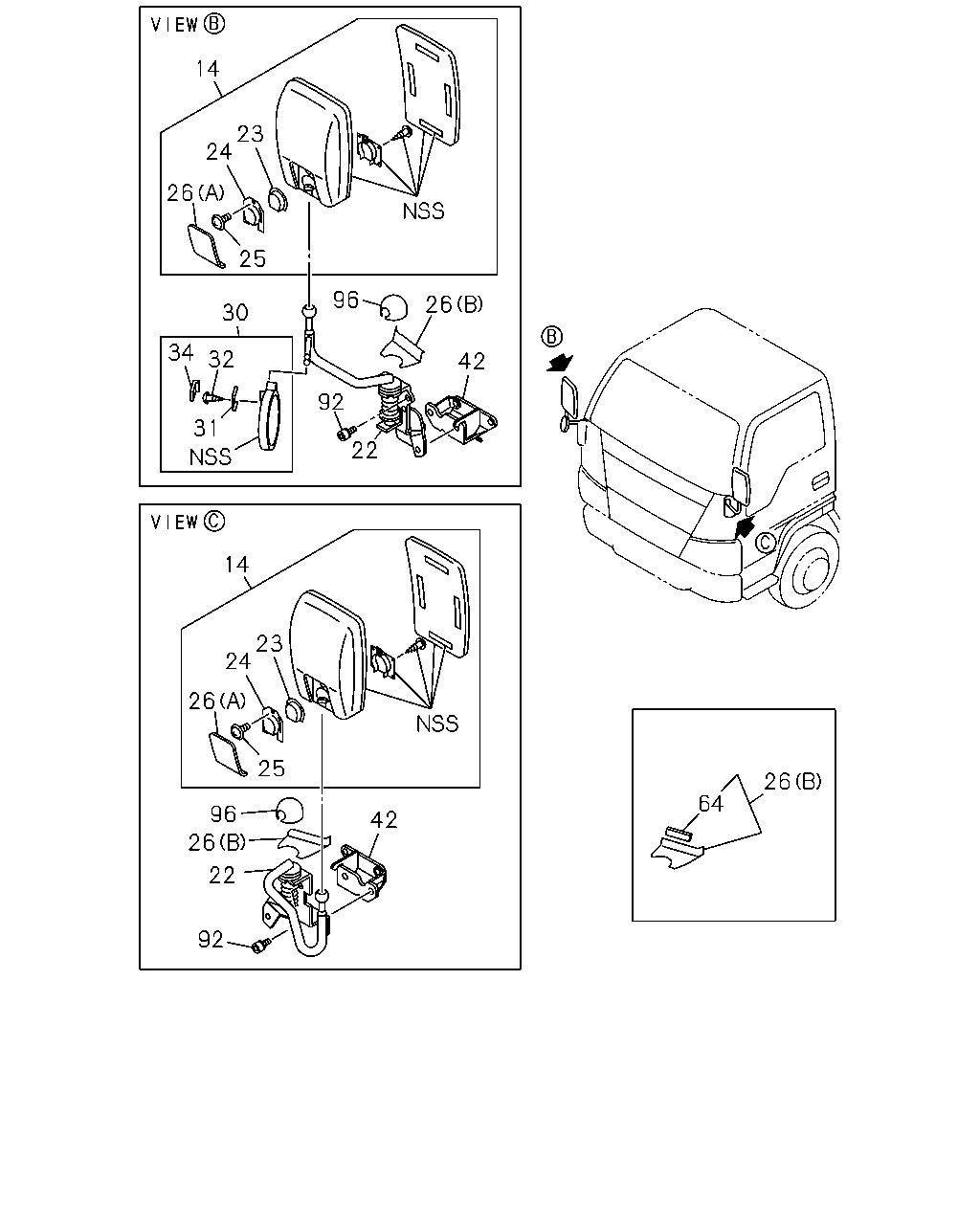

çizim 288693
14 24 26 23 25 30 34 31 96 42 26 92 22 14 23 24 26 25 26 64 42 96 26 22 92 32
BalonParca AdiParca NoAdetTipApplied Date A B
14 16.068 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1206- ● ●
14 16.068 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1206- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> UNDER MIRROR<RR9> 		8-98039-571-1 01 1 1206- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> EXC. UNDER MIRROR<RR9> 		8-98039-570-1 01 1 1206- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98039-576-1 01 1 1206- ●
22 16.069 STAY; OUTSIDE MIRROR 8-98039-576-1 01 1 1206- ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> 		8-98039-573-1 01 1 1206- ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98039-573-1 01 1 1206- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> 		8-98039-572-1 01 1 1206- ●
22 16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98039-572-1 01 1 1206- ●
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1206- ● ●
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1206- ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1206- ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1206- ● ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1206- ● ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1206- ● ●
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-831-5 01 1 1206- ●
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-831-5 01 1 1206- ●
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-840-4 01 1 1206- ●
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-840-4 01 1 1206- ●
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97582-835-5 01 1 1206- ●
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97582-835-5 01 1 1206- ●
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97582-844-4 01 1 1206- ●
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97582-844-4 01 1 1206- ●
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97422-113-5 01 1 1206- ●
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR TRANS BLUE(999) KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97422-113-5 01 1 1206- ●
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97422-114-4 01 1 1206- ●
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR TRANS BLUE(999) KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97422-114-4 01 1 1206- ●
26 16.069 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 1206- ● ●
26 16.069 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 1206- ● ●
30 16.068 MIRROR; UNDER
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9> 		8-94262-625-2 01 1 1206- ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 1206- ●
31 16.069 PLATE; MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9> 		8-94262-631-0 01 1 1206- ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 1206- ●
32 16.069 SCREW; UNDER MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 1206- ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 1206- ●
34 16.069 CAP; MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9> 		8-94262-629-0 01 1 1206- ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 1206- ●
42 16.069 ATTACHMENT; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-97581-625-2 01 1 1206- ●
42 16.069 ATTACHMENT; OUTSIDE MIRROR 8-97581-625-2 01 1 1206- ●
42 16.069 ATTACHMENT; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-97581-755-2 01 1 1206- ●
42 16.069 ATTACHMENT; OUTSIDE MIRROR 8-97581-755-2 01 1 1206- ●
64 16.069 SEAL; MIRROR
KD PREPARATORY PACK VAR.4<7TV> 		8-98015-057-0 02 1 1206- ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M8X30 W/LK WASHER 		8-98020-347-0 10 1 1206- ●
92 16.069 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-98020-347-0 10 1 1206- ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-97581-631-2 02 1 1206- ●
96 16.069 CAP; MIRROR STAY 8-97581-631-2 02 1 1206- ●
