Isuzu WW
▶
TRUCKS
▶
QKR
▶
51422 - QKR LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

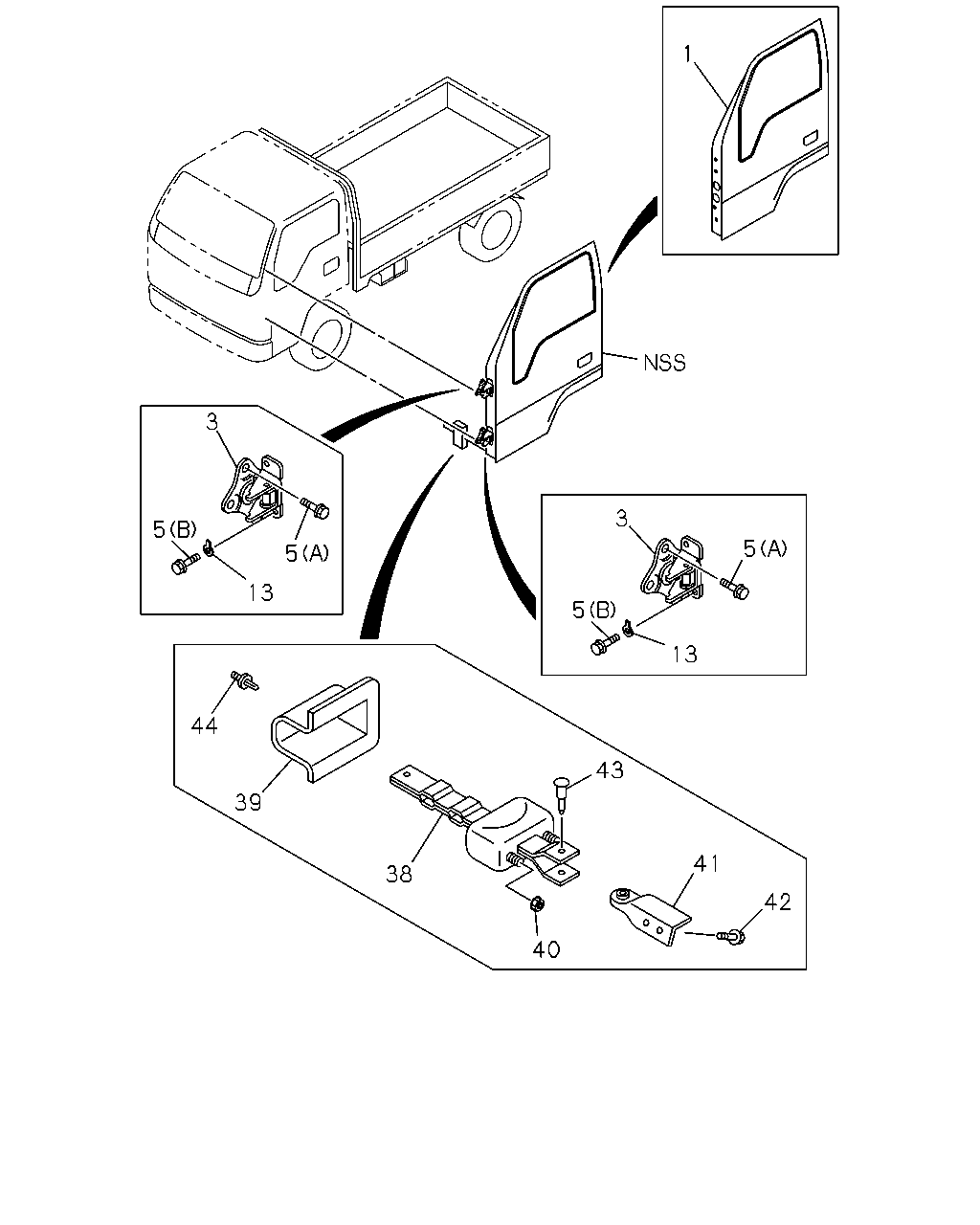

6-30 — FRONT DOOR AND HINGE
(#95973) — 15 parça
Tümü
A - NKR6SE
B - NKR6SN
1
3
5
5
13
44
39
38
43
41
42
40
13
5
3
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97581-447-1
01
1
1206-
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97581-448-2
01
1
1206-
●
●
3
16.320 HINGE; DOOR FRT
KD PREPARATORY PACK VAR.4<7TV>
8-97693-136-0
04
1
1206-
●
●
3
16.320 HINGE; DOOR FRT
EXC. KD PREPARATORY PACK VAR.4<7TV>
8-97852-007-5
04
1
1206-
●
●
5
16.320 BOLT; HINGE
(B) M8X22 FLANGE
8-94279-098-1
08
1
1206-
●
●
5
16.320 BOLT; HINGE
(A) M8X18 W/LK&PL WASHER
8-94279-232-0
12
1
1206-
●
●
13
16.320 WASHER; HINGE
ID=8.1 W/SEAL
8-97890-584-1
04
1
1206-
●
●
38
16.320 CHECKER ASM; DOOR
8-97581-681-4
02
1
1206-
●
●
39
16.320 COVER; CHECKER
8-97852-365-5
02
1
1206-
●
●
40
16.320 NUT; CHECKER
01.062 M8 FLANGE
0-91180-108-0
04
1
1206-
●
●
41
16.320 BRACKET; CHECKER
8-97852-402-1
01
1
1206-
●
●
41
16.320 BRACKET; CHECKER
8-97852-403-1
01
1
1206-
●
●
42
16.320 BOLT; BRKT
01.531 M8X20 FLANGE
0-28650-820-0
04
1
1206-
●
●
43
16.320 PIN
8-97852-057-1
02
1
1206-
●
●
44
16.320 FASTENER; COVER
OD=8.3
8-97997-832-0
02
1
1206-
●
●
