◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#95966) — 49 parça

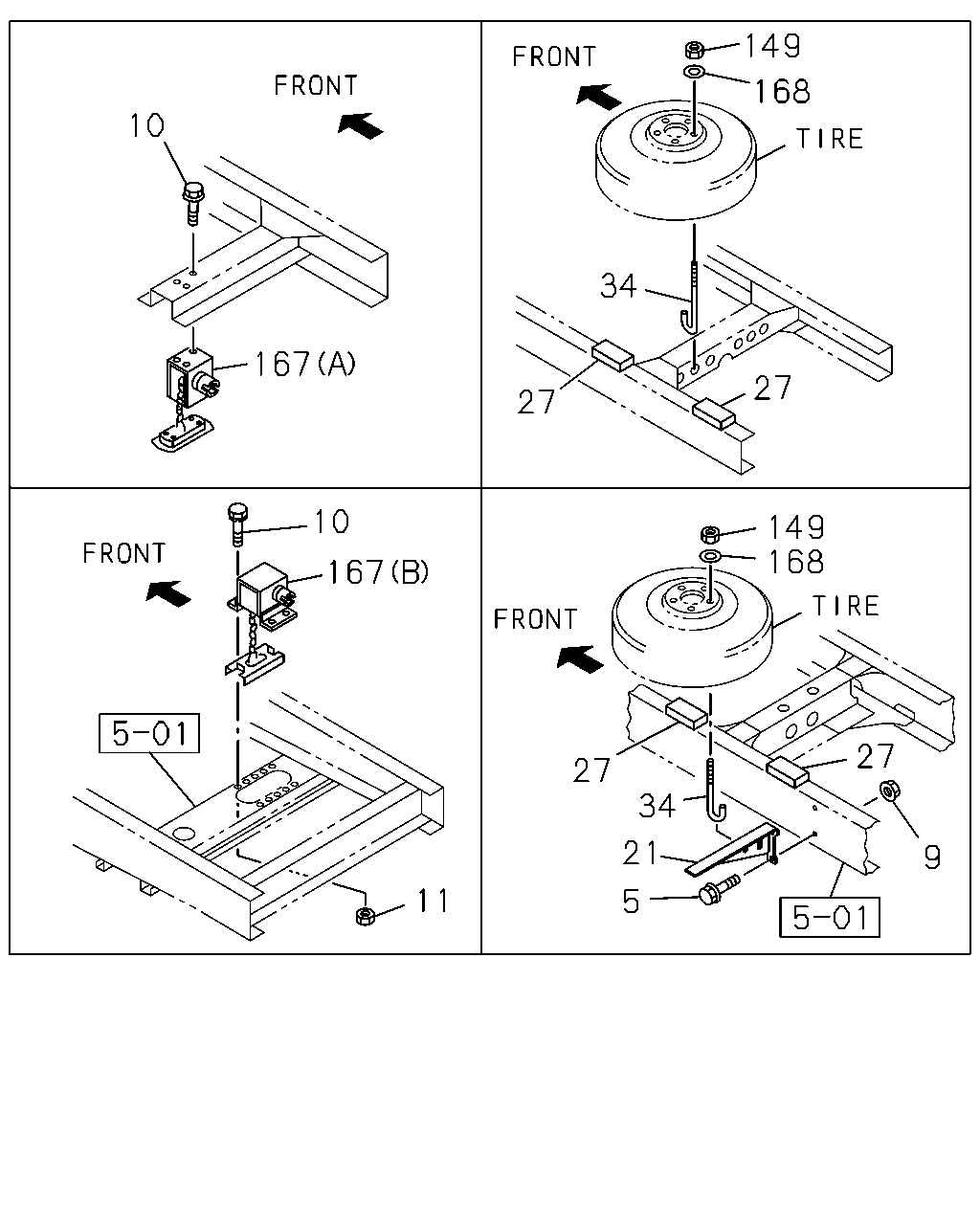

çizim 288561
9 27 168 149 27 27 34 168 149 5 21 34 27 11 167 10 167 10
BalonParca AdiParca NoAdetTipApplied Date A B
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1206-1306 ● ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1307-1411 ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1307-1411 ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1412- ● ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1206-1306 ● ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1307-1411 ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1307-1411 ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1412- ● ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1206- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1206- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1206- ●
11 07.629 NUT; TIRE HANGER
WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1206- ●
11 07.629 NUT; TIRE HANGER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1206- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98095-660-1 01 1 1206-1306 ● ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98095-660-1 01 1 1307-1411 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 		8-98095-660-1 01 1 1307-1411 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 		8-98095-660-1 01 1 1412- ● ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 125X50X10 		8-94341-284-0 05 1 1206-1306 ● ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 125X50X10 		8-94341-284-0 05 1 1307-1411 ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 125X50X10 		8-94341-284-0 05 1 1307-1411 ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 125X50X10 		8-94341-284-0 05 1 1412- ● ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 125X50X10 		8-94341-284-0 02 1 1206-1306 ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 125X50X10 		8-94341-284-0 02 1 1307- ●
34 07.629 BOLT; SPARE TIRE
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X305 		8-94441-189-0 02 1 1206-1209 ●
34 07.629 BOLT; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X305 		8-94441-189-0 02 1 1206-1209 ●
34 07.629 BOLT; SPARE TIRE
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X330 		8-98226-501-0 02 1 1210-1306 ●
34 07.629 BOLT; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X330 		8-98226-501-0 02 1 1210-1306 ●
34 07.629 BOLT; SPARE TIRE
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X330 		8-98226-501-0 02 1 1307-1411 ●
34 07.629 BOLT; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> M12X330 		8-98226-501-0 02 1 1307-1411 ●
34 07.629 BOLT; SPARE TIRE
WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> M12X330 		8-98226-501-0 02 1 1412- ●
34 07.629 BOLT; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> M12X330 		8-98226-501-0 02 1 1412- ●
149 07.629 NUT; CARRIER
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 05.002 M12 		0-91110-512-0 02 1 1206-1306 ●
149 07.629 NUT; CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 05.002 M12 		0-91110-512-0 02 1 1206-1306 ●
149 07.629 NUT; CARRIER
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 05.002 M12 		0-91110-512-0 02 1 1307-1411 ●
149 07.629 NUT; CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 05.002 M12 		0-91110-512-0 02 1 1307-1411 ●
149 07.629 NUT; CARRIER
WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 05.002 M12 		0-91110-512-0 02 1 1412- ●
149 07.629 NUT; CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 05.002 M12 		0-91110-512-0 02 1 1412- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97693-140-0 01 1 1206- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-94380-175-1 01 1 1206- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97693-151-0 01 1 1206- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97693-151-0 01 1 1206- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97182-113-1 01 1 1206- ●
167 07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97182-113-1 01 1 1206- ●
168 07.633 WASHER; SPARE TIRE
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 1206-1306 ●
168 07.633 WASHER; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 1206-1306 ●
168 07.633 WASHER; SPARE TIRE
WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 1307-1411 ●
168 07.633 WASHER; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 1307-1411 ●
168 07.633 WASHER; SPARE TIRE
WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 1412- ●
168 07.633 WASHER; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6), IDENTIFICATIONLABEL FOR KD<6UT> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 1412- ●
