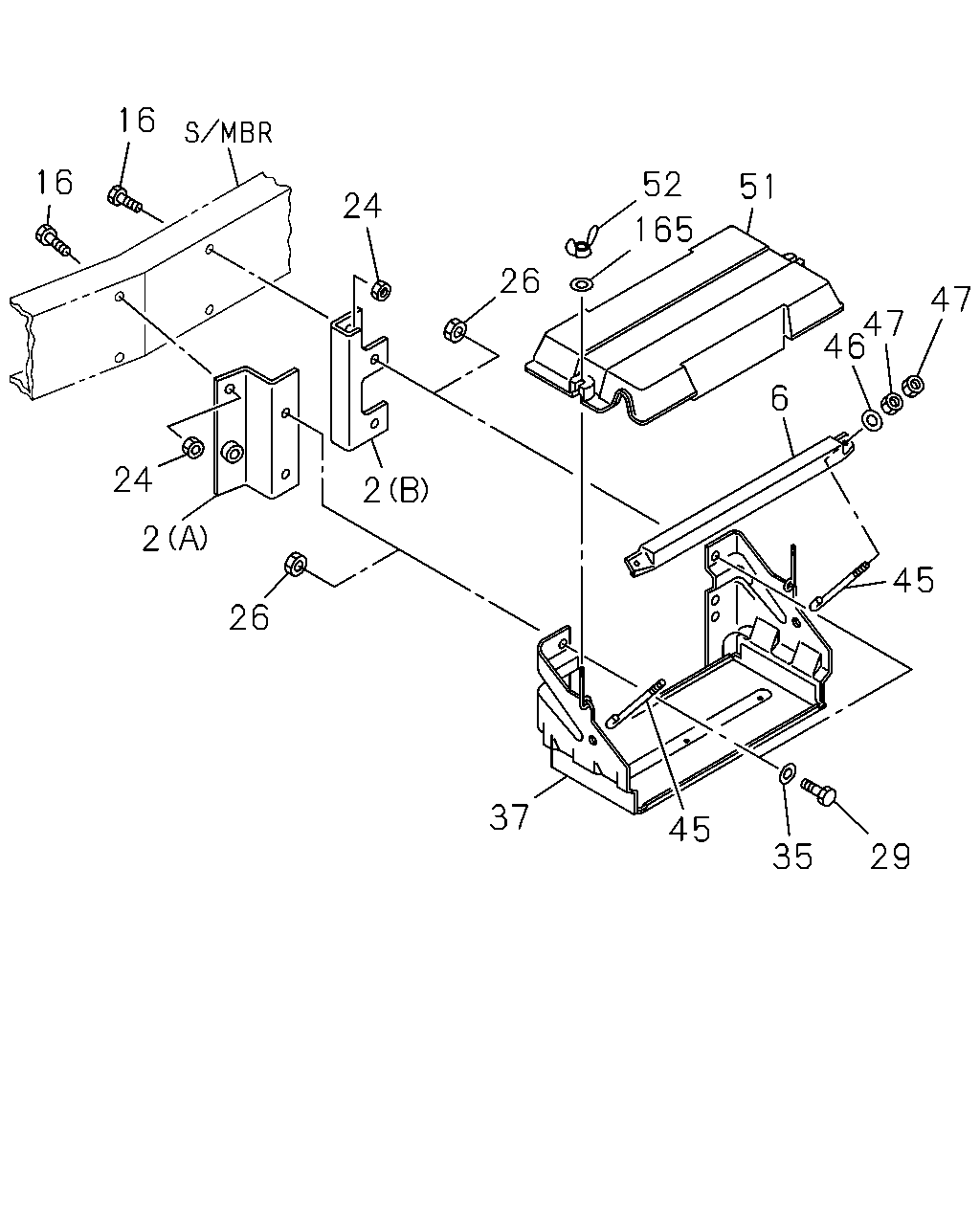

5-20 — BATTERY CARRIER (#95965) — 29 parça

16 16 24 24 2 26 2 37 26 52 165 51 6 46 47 47 45 29 35 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	02.333 BRACKET; BATTERY WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) BATTERY 95D31R<6DN> (A)	8-98239-852-1	01	1	1501-	●
2	02.333 BRACKET; BATTERY WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) BATTERY 95D31R<6DN> (B)	8-98239-853-0	01	1	1501-	●
6	02.333 BRACKET; BATTERY CARRIER BATTERY NX200-10<S9C>	9-53616-153-0	01	1	1206-	●	●
6	02.333 BRACKET; BATTERY CARRIER BATTERY 95D31R<6DN>	8-94108-314-0	01	1	1206-	●	●
16	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) BATTERY 95D31R<6DN> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1501-	●
24	02.334 NUT; BRKT TO FRAME WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) BATTERY 95D31R<6DN> 03.162 M10 FLANGE	0-91180-110-0	03	1	1501-	●
26	02.334 NUT; BRKT WHEEL BASE 2400MM(24W) 04.085 M10 FLANGE	0-91180-210-0	02	1	1206-1311	●
26	02.334 NUT; BRKT WHEEL BASE 2400MM(24W) BATTERY NX200-10<S9C> 04.085 M10 FLANGE	0-91180-210-0	02	1	1312-1412	●
26	02.334 NUT; BRKT WHEEL BASE 2400MM(24W) BATTERY NX200-10<S9C> EXC. RR BODY FLAT BED(RS6) 04.085 M10 FLANGE	0-91180-210-0	02	1	1501-	●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1206-1311	●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1206-1311		●
26	02.334 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	04	1	1312-1412	●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W) BATTERY NX200-10<S9C> 04.085 M10 FLANGE	0-91180-210-0	04	1	1312-1412	●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	04	1	1312-1412		●
26	02.334 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) BATTERY 95D31R<6DN> EXC. RR BODY FLAT BED(RS6) 04.085 M10 FLANGE	0-91180-210-0	04	1	1501-	●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	04	1	1501-	●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W) BATTERY NX200-10<S9C> EXC. RR BODY FLAT BED(RS6) 04.085 M10 FLANGE	0-91180-210-0	04	1	1501-	●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 04.085 M10 FLANGE	0-91180-210-0	04	1	1501-		●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	1206-	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1206-	●	●
37	02.333 BRACKET; BATTERY BATTERY NX200-10<S9C>	5-53613-024-3	01	1	1206-	●	●
37	02.333 BRACKET; BATTERY BATTERY 95D31R<6DN>	8-97072-544-0	01	1	1206-	●	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	1206-	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1206-	●	●
47	02.334 NUT; BRKT BATTERY NX200-10<S9C>,BATTERY 95D31R<6DN> M8	0-91110-508-0	04	1	1206-	●	●
51	02.335 COVER; BATTERY BATTERY NX200-10<S9C> 02.345	9-53612-046-2	01	1	1206-	●	●
51	02.335 COVER; BATTERY BATTERY 95D31R<6DN>	8-97313-780-0	01	1	1206-	●	●
52	02.335 NUT; WING,COVER FIX BATTERY NX200-10<S9C> M5 WING NUT	0-91118-405-0	02	1	1206-	●	●
165	02.334 WASHER; COVER BATTERY NX200-10<S9C> 02.335 ID=5.3 OD=16	0-91614-705-0	02	1	1206-	●	●
