Sayfa 5-01 - Isuzu EPC

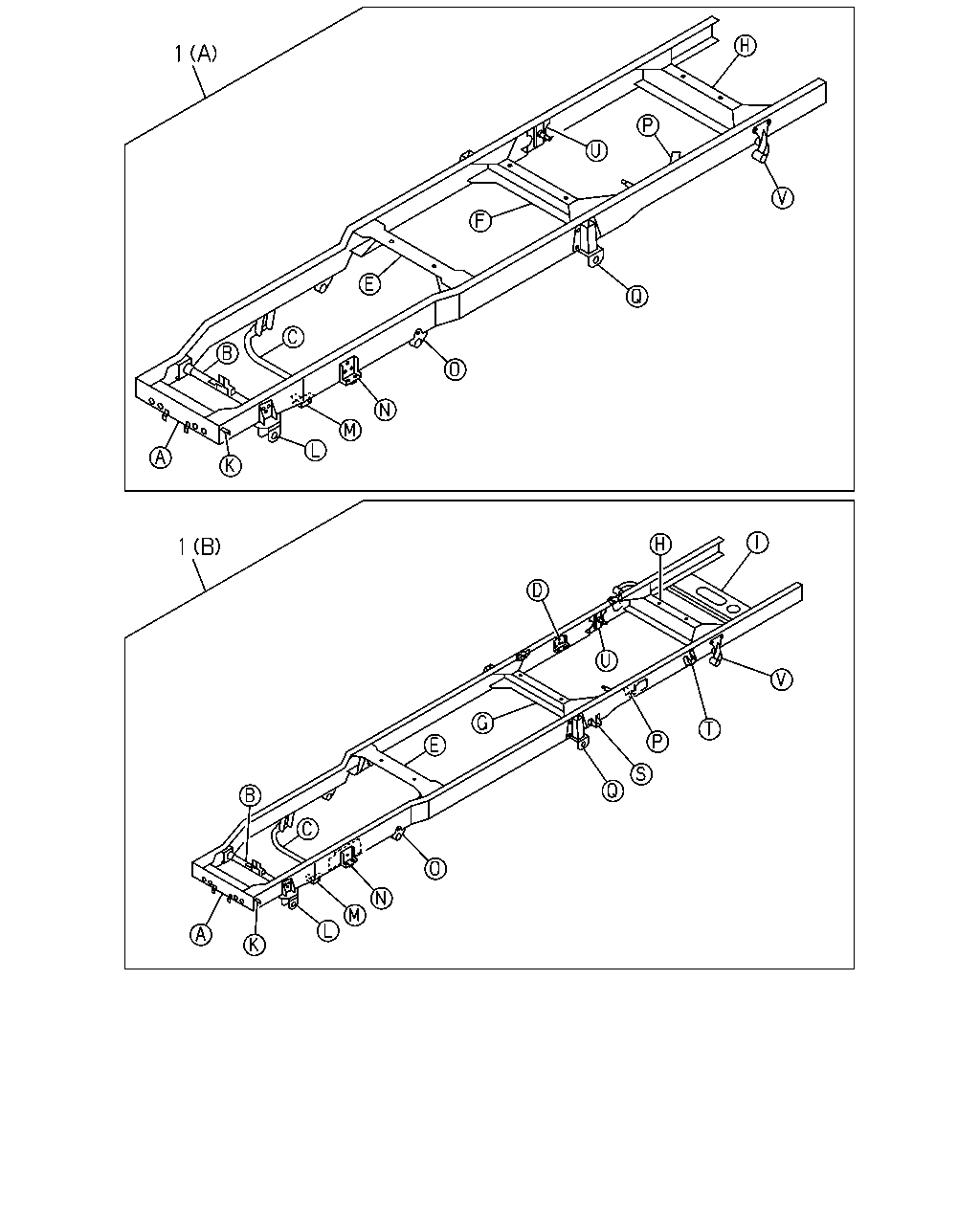

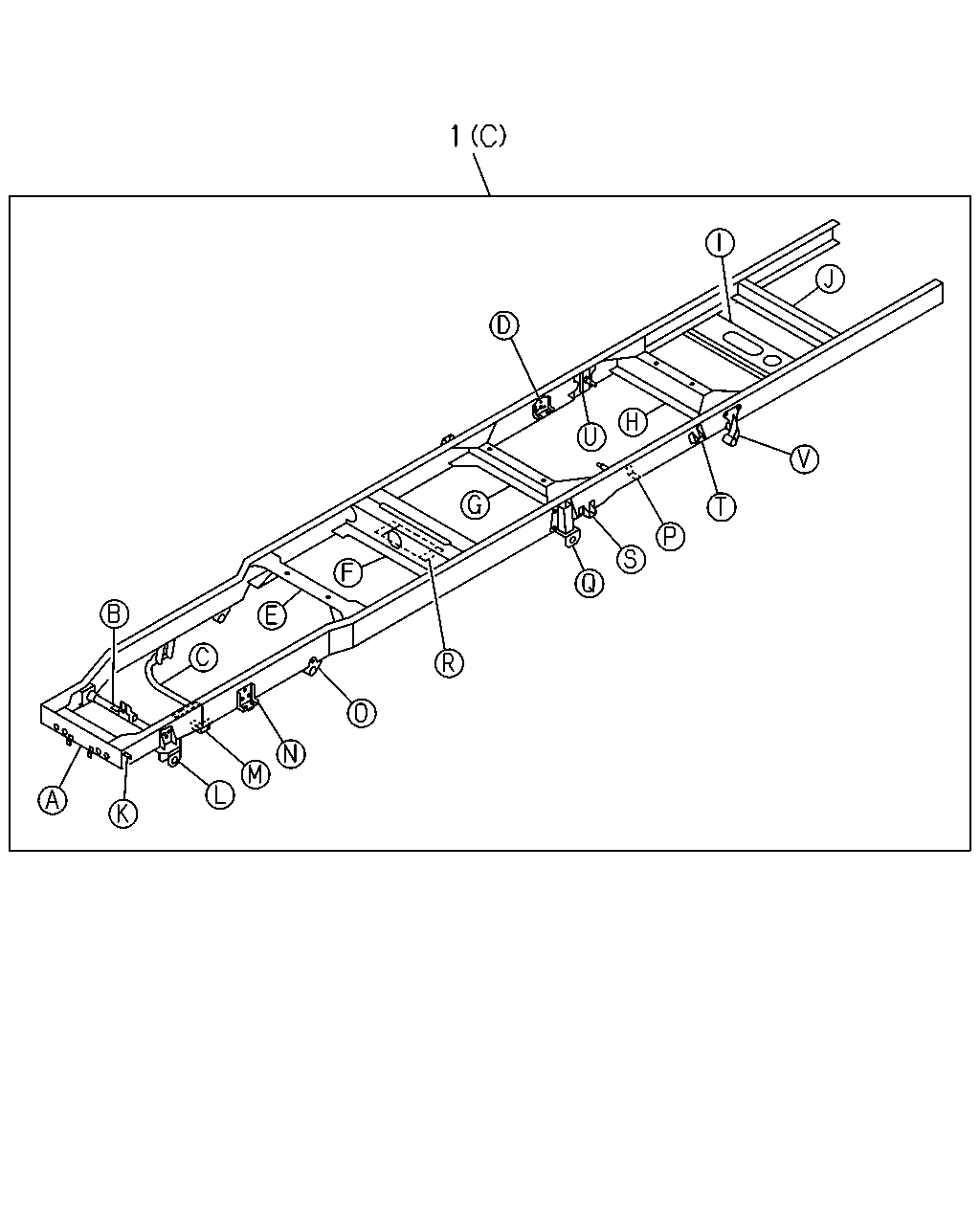

5-01 — FRAME AND OTHER PARTS (#95962) — 326 parça

20 217 75 345 75 74 74 344 34 42 17 17 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.010 MEMBER; CROSS,1ST	8-97034-332-2	01	1	1206-	●	●
17	07.039 GUSSET; 1ST C/MBR	8-97088-205-1	02	1	1206-	●	●
20	07.012 MEMBER; CROSS,2ND	8-97078-581-1	01	1	1206-	●	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97039-670-1	01	1	1206-	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97115-578-0	01	1	1206-1306	●
34	07.012 MEMBER; CROSS,3RD	8-97115-578-0	01	1	1206-1306		●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97115-578-0	01	1	1307-1411	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97115-578-0	01	1	1307-1411		●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97115-578-0	01	1	1307-1411		●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD)	8-97115-578-0	01	1	1412-1502	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97115-578-0	01	1	1412-1502		●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97115-578-0	01	1	1412-1502		●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97115-578-0	01	1	1503-	●
34	07.012 MEMBER; CROSS,3RD	8-97115-578-0	01	1	1503-		●
42	07.011 MEMBER; CROSS,ENG MTG	8-94246-127-7	01	1	1206-	●	●
74	07.039 GUSSET; 4TH C/MBR WHEEL BASE 3300MM(33W) RH-UPPER, LH-LOWER	8-97101-837-1	02	1	1206-		●
74	07.039 GUSSET; 4TH C/MBR WHEEL BASE 3300MM(33W) RH-LOWER, LH-UPPER	8-97101-838-1	02	1	1206-		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B)	8-94258-075-3	02	1	1206-	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97062-499-0	02	1	1206-1306	●
75	07.039 GUSSET; 5TH C/MBR (A)	8-97062-499-0	02	1	1206-1306		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97062-499-0	02	1	1307-1411	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97062-499-0	02	1	1307-1411		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-97062-499-0	02	1	1307-1411		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (A)	8-97062-499-0	02	1	1412-1502	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97062-499-0	02	1	1412-1502		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-97062-499-0	02	1	1412-1502		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97062-499-0	02	1	1503-	●
75	07.039 GUSSET; 5TH C/MBR (A)	8-97062-499-0	02	1	1503-		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97062-500-0	02	1	1206-1306	●
75	07.039 GUSSET; 5TH C/MBR (A)	8-97062-500-0	02	1	1206-1306		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97062-500-0	02	1	1307-1411	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97062-500-0	02	1	1307-1411		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-97062-500-0	02	1	1307-1411		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (A)	8-97062-500-0	02	1	1412-1502	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97062-500-0	02	1	1412-1502		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-97062-500-0	02	1	1412-1502		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97062-500-0	02	1	1503-	●
75	07.039 GUSSET; 5TH C/MBR (A)	8-97062-500-0	02	1	1503-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-94258-963-0	02	1	1206-1306	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-94258-963-0	02	1	1206-1306		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-94258-963-0	02	1	1307-1411	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-94258-963-0	02	1	1307-1411		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-94258-963-0	02	1	1307-1411		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD)	8-94258-963-0	02	1	1412-1502	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-94258-963-0	02	1	1412-1502		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-94258-963-0	02	1	1412-1502		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-94258-963-0	02	1	1503-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-94258-963-0	02	1	1503-		●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-97078-707-3	01	1	1206-		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-97081-061-2	01	1	1206-	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97062-497-3	01	1	1206-1306	●
345	07.012 MEMBER; CROSS,5TH (B)	8-97062-497-3	01	1	1206-1306		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97062-497-3	01	1	1307-1411	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B)	8-97062-497-3	01	1	1307-1411		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (B)	8-97062-497-3	01	1	1307-1411		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (B)	8-97062-497-3	01	1	1412-1502	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B)	8-97062-497-3	01	1	1412-1502		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (B)	8-97062-497-3	01	1	1412-1502		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97062-497-3	01	1	1503-	●
345	07.012 MEMBER; CROSS,5TH (B)	8-97062-497-3	01	1	1503-		●

376 376 376 376 376 376 376 376 376 376 376 376 376 176 81 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	07.039 BOLT; BRKT WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	1208-1306	●
81	07.039 BOLT; BRKT WHEEL BASE 2700MM(27W) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	1208-1306		●
81	07.039 BOLT; BRKT WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	1307-1411	●
81	07.039 BOLT; BRKT WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	1307-1411		●
81	07.039 BOLT; BRKT WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	1412-	●
81	07.039 BOLT; BRKT WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	1412-		●
118	07.529 NUT; STOPPER WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) M8 LOCK NUT	0-91370-008-0	04	1	1206-1306	●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	04	1	1206-1306		●
118	07.529 NUT; STOPPER WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) M8 LOCK NUT	0-91370-008-0	04	1	1307-1411	●
118	07.529 NUT; STOPPER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M8 LOCK NUT	0-91370-008-0	04	1	1307-1411		●
118	07.529 NUT; STOPPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) M8 LOCK NUT	0-91370-008-0	04	1	1307-1411		●
118	07.529 NUT; STOPPER WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) M8 LOCK NUT	0-91370-008-0	04	1	1412-1502	●
118	07.529 NUT; STOPPER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M8 LOCK NUT	0-91370-008-0	04	1	1412-1502		●
118	07.529 NUT; STOPPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) M8 LOCK NUT	0-91370-008-0	04	1	1412-1502		●
118	07.529 NUT; STOPPER WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) M8 LOCK NUT	0-91370-008-0	04	1	1503-	●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	04	1	1503-		●
176	04.085 BOLT; C/MBR,ENG MTG 09.171 M10X25 FLANGE	0-28051-025-0	08	1	1206-	●	●
376	07.039 RIVET; FRAME (A) D8X20 TAPER END	9-06750-820-0	AR	1	1206-	●	●
376	07.039 RIVET; FRAME 07.011 (B) D8X22 TAPER END	9-06750-822-0	AR	1	1206-	●	●
376	07.039 RIVET; FRAME 07.395 (C) D8X28 TAPER END	9-06750-828-0	AR	1	1206-	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	1206-	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	1206-	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	1206-	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	1206-	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	1206-	●	●
376	07.039 RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	1206-	●	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	1206-	●	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	1206-	●	●
376	07.039 RIVET; FRAME 07.535 (L) D12X34 TAPER END	9-06751-234-0	AR	1	1206-	●	●
376	07.039 RIVET; FRAME 07.112 (M) D12X38 TAPER END	9-06751-238-0	AR	1	1206-	●	●

140 140 140 147 103 147 103 105 215 215 105 101 101 188 142 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B)	8-94258-093-1	02	1	1206-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97034-156-1	02	1	1206-1306	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97034-156-1	02	1	1206-1306		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97034-156-1	02	1	1307-1411	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97034-156-1	02	1	1307-1411		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-97034-156-1	02	1	1307-1411		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (A)	8-97034-156-1	02	1	1412-1502	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97034-156-1	02	1	1412-1502		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-97034-156-1	02	1	1412-1502		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97034-156-1	02	1	1503-	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97034-156-1	02	1	1503-		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97223-748-0	02	1	1206-1306	●
103	07.420 STOPPER; SUB SPR (A)	8-97223-748-0	02	1	1206-1306		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97223-748-0	02	1	1307-1411	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97223-748-0	02	1	1307-1411		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-97223-748-0	02	1	1307-1411		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (A)	8-97223-748-0	02	1	1412-1502	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97223-748-0	02	1	1412-1502		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-97223-748-0	02	1	1412-1502		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97223-748-0	02	1	1503-	●
103	07.420 STOPPER; SUB SPR (A)	8-97223-748-0	02	1	1503-		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97223-750-0	02	1	1206-1306	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-750-0	02	1	1206-1306		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97223-750-0	02	1	1307-1411	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B)	8-97223-750-0	02	1	1307-1411		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (B)	8-97223-750-0	02	1	1307-1411		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (B)	8-97223-750-0	02	1	1412-1502	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B)	8-97223-750-0	02	1	1412-1502		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (B)	8-97223-750-0	02	1	1412-1502		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97223-750-0	02	1	1503-	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-750-0	02	1	1503-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B)	8-94126-620-1	01	1	1206-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B)	8-94126-621-1	01	1	1206-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-94459-511-1	01	1	1206-1306	●
105	07.112 BRACKET; RR SPR,RR (A)	8-94459-511-1	01	1	1206-1306		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-94459-511-1	01	1	1307-1411	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-94459-511-1	01	1	1307-1411		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-94459-511-1	01	1	1307-1411		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (A)	8-94459-511-1	01	1	1412-1502	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-94459-511-1	01	1	1412-1502		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-94459-511-1	01	1	1412-1502		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-94459-511-1	01	1	1503-	●
105	07.112 BRACKET; RR SPR,RR (A)	8-94459-511-1	01	1	1503-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-94459-512-1	01	1	1206-1306	●
105	07.112 BRACKET; RR SPR,RR (A)	8-94459-512-1	01	1	1206-1306		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-94459-512-1	01	1	1307-1411	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-94459-512-1	01	1	1307-1411		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-94459-512-1	01	1	1307-1411		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (A)	8-94459-512-1	01	1	1412-1502	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-94459-512-1	01	1	1412-1502		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-94459-512-1	01	1	1412-1502		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-94459-512-1	01	1	1503-	●
105	07.112 BRACKET; RR SPR,RR (A)	8-94459-512-1	01	1	1503-		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-94258-103-1	01	1	1206-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-94258-104-1	01	1	1206-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) 07.395 (C)	8-94101-303-0	01	1	1206-1306	●
140	07.112 BRACKET; S/ABS,RR 07.395 (C)	8-94101-303-0	01	1	1206-1306		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) 07.395 (C)	8-94101-303-0	01	1	1307-1411	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 07.395 (C)	8-94101-303-0	01	1	1307-1411		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) 07.395 (C)	8-94101-303-0	01	1	1307-1411		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) 07.395 (C)	8-94101-303-0	01	1	1412-1502	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 07.395 (C)	8-94101-303-0	01	1	1412-1502		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) 07.395 (C)	8-94101-303-0	01	1	1412-1502		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) 07.395 (C)	8-94101-303-0	01	1	1503-	●
140	07.112 BRACKET; S/ABS,RR 07.395 (C)	8-94101-303-0	01	1	1503-		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97012-285-0	01	1	1206-1306	●
140	07.112 BRACKET; S/ABS,RR (B)	8-97012-285-0	01	1	1206-1306		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97012-285-0	01	1	1307-1411	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B)	8-97012-285-0	01	1	1307-1411		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (B)	8-97012-285-0	01	1	1307-1411		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (B)	8-97012-285-0	01	1	1412-1502	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B)	8-97012-285-0	01	1	1412-1502		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (B)	8-97012-285-0	01	1	1412-1502		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97012-285-0	01	1	1503-	●
140	07.112 BRACKET; S/ABS,RR (B)	8-97012-285-0	01	1	1503-		●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-97047-775-1	01	1	1206-	●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97035-308-0	01	1	1206-1306	●
142	04.845 BRACKET; FLEX HOSE,BRAKE (B)	8-97035-308-0	01	1	1206-1306		●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97035-308-0	01	1	1307-1411	●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B)	8-97035-308-0	01	1	1307-1411		●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (B)	8-97035-308-0	01	1	1307-1411		●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (B)	8-97035-308-0	01	1	1412-1502	●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B)	8-97035-308-0	01	1	1412-1502		●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (B)	8-97035-308-0	01	1	1412-1502		●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97035-308-0	01	1	1503-	●
142	04.845 BRACKET; FLEX HOSE,BRAKE (B)	8-97035-308-0	01	1	1503-		●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97254-387-0	04	1	1206-1306	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	1206-1306		●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97254-387-0	04	1	1307-1411	●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97254-387-0	04	1	1307-1411		●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97254-387-0	04	1	1307-1411		●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD)	8-97254-387-0	04	1	1412-1502	●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97254-387-0	04	1	1412-1502		●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97254-387-0	04	1	1412-1502		●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97254-387-0	04	1	1503-	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	1503-		●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97078-869-1	01	1	1206-		●
215	07.524 BUSHING; BRKT,RR SPRING WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97184-699-1	04	1	1206-1306	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1206-1306		●
215	07.524 BUSHING; BRKT,RR SPRING WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97184-699-1	04	1	1307-1411	●
215	07.524 BUSHING; BRKT,RR SPRING WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97184-699-1	04	1	1307-1411		●
215	07.524 BUSHING; BRKT,RR SPRING WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97184-699-1	04	1	1307-1411		●
215	07.524 BUSHING; BRKT,RR SPRING WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD)	8-97184-699-1	04	1	1412-1502	●
215	07.524 BUSHING; BRKT,RR SPRING WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97184-699-1	04	1	1412-1502		●
215	07.524 BUSHING; BRKT,RR SPRING WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97184-699-1	04	1	1412-1502		●
215	07.524 BUSHING; BRKT,RR SPRING WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97184-699-1	04	1	1503-	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1503-		●

39 51 63 130 358 24 139 198 198 137 75 75 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-94366-818-1	01	1	1206-	●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97065-789-1	01	1	1206-	●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-94366-816-1	01	1	1206-1306	●
24	07.105 BRACKET; FRT SPR,FRT	8-94366-816-1	01	1	1206-1306		●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-94366-816-1	01	1	1307-1411	●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-94366-816-1	01	1	1307-1411		●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-94366-816-1	01	1	1307-1411		●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD)	8-94366-816-1	01	1	1412-1502	●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-94366-816-1	01	1	1412-1502		●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-94366-816-1	01	1	1412-1502		●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-94366-816-1	01	1	1503-	●
24	07.105 BRACKET; FRT SPR,FRT	8-94366-816-1	01	1	1503-		●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97065-788-1	01	1	1206-1306	●
24	07.105 BRACKET; FRT SPR,FRT	8-97065-788-1	01	1	1206-1306		●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97065-788-1	01	1	1307-1411	●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97065-788-1	01	1	1307-1411		●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97065-788-1	01	1	1307-1411		●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD)	8-97065-788-1	01	1	1412-1502	●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97065-788-1	01	1	1412-1502		●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97065-788-1	01	1	1412-1502		●
24	07.105 BRACKET; FRT SPR,FRT WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97065-788-1	01	1	1503-	●
24	07.105 BRACKET; FRT SPR,FRT	8-97065-788-1	01	1	1503-		●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1206-	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 00.029	8-94258-086-1	02	1	1206-	●	●
63	01.270 BRACKET; RAD MTG	8-94257-950-1	01	1	1206-	●	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B)	8-94258-075-3	02	1	1206-	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97062-499-0	02	1	1206-1306	●
75	07.039 GUSSET; 5TH C/MBR (A)	8-97062-499-0	02	1	1206-1306		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97062-499-0	02	1	1307-1411	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97062-499-0	02	1	1307-1411		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-97062-499-0	02	1	1307-1411		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (A)	8-97062-499-0	02	1	1412-1502	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97062-499-0	02	1	1412-1502		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-97062-499-0	02	1	1412-1502		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97062-499-0	02	1	1503-	●
75	07.039 GUSSET; 5TH C/MBR (A)	8-97062-499-0	02	1	1503-		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97062-500-0	02	1	1206-1306	●
75	07.039 GUSSET; 5TH C/MBR (A)	8-97062-500-0	02	1	1206-1306		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97062-500-0	02	1	1307-1411	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97062-500-0	02	1	1307-1411		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-97062-500-0	02	1	1307-1411		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (A)	8-97062-500-0	02	1	1412-1502	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97062-500-0	02	1	1412-1502		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (A)	8-97062-500-0	02	1	1412-1502		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (A)	8-97062-500-0	02	1	1503-	●
75	07.039 GUSSET; 5TH C/MBR (A)	8-97062-500-0	02	1	1503-		●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-97106-992-0	01	1	1206-		●
137	07.629 BRACKET; SPARE TIRE WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97076-885-1	01	1	1206-1306	●
137	07.629 BRACKET; SPARE TIRE	8-97076-885-1	01	1	1206-1306		●
137	07.629 BRACKET; SPARE TIRE WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97076-885-1	01	1	1307-1411	●
137	07.629 BRACKET; SPARE TIRE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97076-885-1	01	1	1307-1411		●
137	07.629 BRACKET; SPARE TIRE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97076-885-1	01	1	1307-1411		●
137	07.629 BRACKET; SPARE TIRE WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD)	8-97076-885-1	01	1	1412-1502	●
137	07.629 BRACKET; SPARE TIRE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97076-885-1	01	1	1412-1502		●
137	07.629 BRACKET; SPARE TIRE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97076-885-1	01	1	1412-1502		●
137	07.629 BRACKET; SPARE TIRE WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97076-885-1	01	1	1503-	●
137	07.629 BRACKET; SPARE TIRE	8-97076-885-1	01	1	1503-		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97045-542-2	01	1	1206-	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97062-498-1	01	1	1206-1306	●
139	07.012 MEMBER; CROSS,6TH	8-97062-498-1	01	1	1206-1306		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97062-498-1	01	1	1307-1411	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97062-498-1	01	1	1307-1411		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97062-498-1	01	1	1307-1411		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD)	8-97062-498-1	01	1	1412-1502	●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97062-498-1	01	1	1412-1502		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97062-498-1	01	1	1412-1502		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97062-498-1	01	1	1503-	●
139	07.012 MEMBER; CROSS,6TH	8-97062-498-1	01	1	1503-		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-94258-081-1	02	1	1206-	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) RH-LOWER,LH-UPPER	8-97062-499-0	02	1	1206-1306	●
198	07.039 GUSSET; 6TH C/MBR RH-LOWER,LH-UPPER	8-97062-499-0	02	1	1206-1306		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) RH-LOWER,LH-UPPER	8-97062-499-0	02	1	1307-1411	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) RH-LOWER,LH-UPPER	8-97062-499-0	02	1	1307-1411		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) RH-LOWER,LH-UPPER	8-97062-499-0	02	1	1307-1411		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD)	8-97062-499-0	02	1	1412-1502	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97062-499-0	02	1	1412-1502		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97062-499-0	02	1	1412-1502		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97062-499-0	02	1	1503-	●
198	07.039 GUSSET; 6TH C/MBR	8-97062-499-0	02	1	1503-		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) RH-UPPER,LH-LOWER	8-97062-500-0	02	1	1206-1306	●
198	07.039 GUSSET; 6TH C/MBR RH-UPPER,LH-LOWER	8-97062-500-0	02	1	1206-1306		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) RH-UPPER,LH-LOWER	8-97062-500-0	02	1	1307-1411	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) RH-UPPER,LH-LOWER	8-97062-500-0	02	1	1307-1411		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) RH-UPPER,LH-LOWER	8-97062-500-0	02	1	1307-1411		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD)	8-97062-500-0	02	1	1412-1502	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-97062-500-0	02	1	1412-1502		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6)	8-97062-500-0	02	1	1412-1502		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD)	8-97062-500-0	02	1	1503-	●
198	07.039 GUSSET; 6TH C/MBR	8-97062-500-0	02	1	1503-		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-97081-061-2	01	1	1206-	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97062-497-3	01	1	1206-1306	●
345	07.012 MEMBER; CROSS,5TH (B)	8-97062-497-3	01	1	1206-1306		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97062-497-3	01	1	1307-1411	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B)	8-97062-497-3	01	1	1307-1411		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (B)	8-97062-497-3	01	1	1307-1411		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (B)	8-97062-497-3	01	1	1412-1502	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B)	8-97062-497-3	01	1	1412-1502		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (B)	8-97062-497-3	01	1	1412-1502		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97062-497-3	01	1	1503-	●
345	07.012 MEMBER; CROSS,5TH (B)	8-97062-497-3	01	1	1503-		●
358	07.039 BRACKET; CAB EARTH	8-97210-488-0	01	1	1206-	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) SINGLE RR TIRE(6TD) (A)	8-98240-711-0	01	1	1503-	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD) (B)	8-98219-054-0	01	1	1503-	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (B)	8-98219-054-0	01	1	1503-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (C)	8-98219-055-1	01	1	1307-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-97205-869-2	01	1	1206-1502	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. RR BODY FLAT BED(RS6) (A)	8-97205-869-2	01	1	1503-	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97308-682-0	01	1	1206-1306	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) (B)	8-97308-682-0	01	1	1206-1306		●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97308-682-0	01	1	1307-1411	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6) (B)	8-97308-682-0	01	1	1307-1411		●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (B)	8-97308-682-0	01	1	1412-	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6) (B)	8-97308-682-0	01	1	1412-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) (C)	8-97205-879-3	01	1	1206-1306		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (C)	8-97205-879-3	01	1	1307-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) SINGLE RR TIRE(6TD) (A)	8-98240-711-0	01	1	1503-	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD) (B)	8-98219-054-0	01	1	1503-	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (B)	8-98219-054-0	01	1	1503-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (C)	8-98219-055-1	01	1	1307-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-97205-869-2	01	1	1206-1502	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. RR BODY FLAT BED(RS6) (A)	8-97205-869-2	01	1	1503-	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97308-682-0	01	1	1206-1306	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) (B)	8-97308-682-0	01	1	1206-1306		●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) EXC. SINGLE RR TIRE(6TD) (B)	8-97308-682-0	01	1	1307-1411	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6) (B)	8-97308-682-0	01	1	1307-1411		●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) (B)	8-97308-682-0	01	1	1412-	●
1	07.003 FRAME ASM WHEEL BASE 2700MM(27W) EXC. RR BODY FLAT BED(RS6) (B)	8-97308-682-0	01	1	1412-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) (C)	8-97205-879-3	01	1	1206-1306		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) (C)	8-97205-879-3	01	1	1307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
