◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#95961) — 142 parça

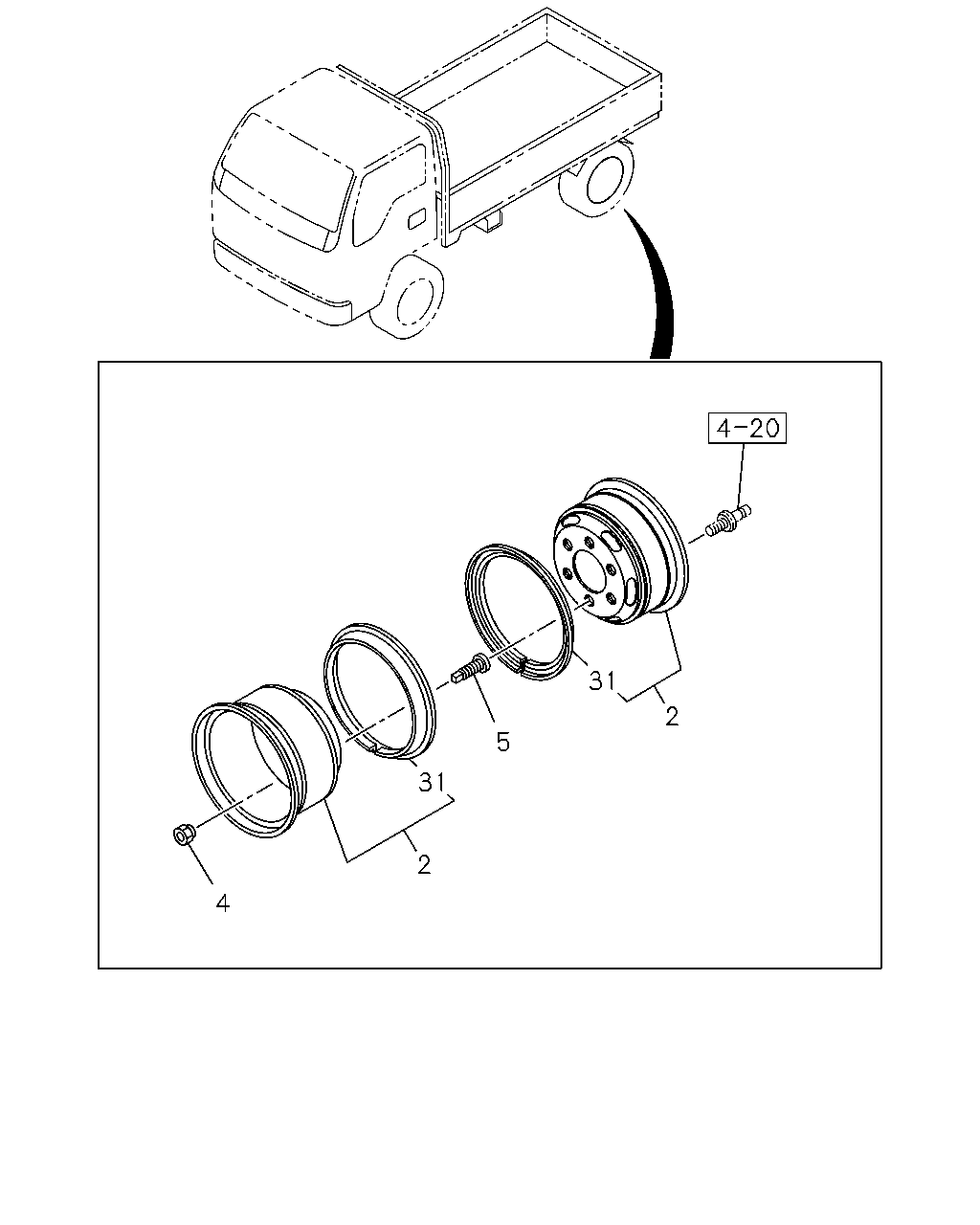

çizim 288530
2 31 5 31 2 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1206- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1206- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1206- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 1206- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 1206- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1206-1206 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1207- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1206-1206 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1207- ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 RH THREAD 		8-98007-905-0 06 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 LH THREAD 		8-98007-906-0 06 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD) M27 RH THREAD 		8-97693-148-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
IDENTIFICATION LABEL FOR KD<6UT> M27 RH THREAD 		8-97693-148-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD) M27 LH THREAD 		8-97693-149-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
IDENTIFICATION LABEL FOR KD<6UT> M27 LH THREAD 		8-97693-149-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD),IDENTIFICATION LABEL FOR KD<6UT> M27 RH THREAD 		8-98007-824-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. IDENTIFICATION LABEL FOR KD<6UT> M27 RH THREAD 		8-98007-824-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD),IDENTIFICATION LABEL FOR KD<6UT> M27 LH THREAD 		8-98007-825-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. IDENTIFICATION LABEL FOR KD<6UT> M27 LH THREAD 		8-98007-825-0 05 1 1206- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD) M18 RH THREAD 		8-97693-146-0 05 1 1206- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
IDENTIFICATION LABEL FOR KD<6UT> M18 RH THREAD 		8-97693-146-0 05 1 1206- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD) M18 LH THREAD 		8-97693-147-0 05 1 1206- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
IDENTIFICATION LABEL FOR KD<6UT> M18 LH THREAD 		8-97693-147-0 05 1 1206- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD),IDENTIFICATION LABEL FOR KD<6UT> OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1206- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. IDENTIFICATION LABEL FOR KD<6UT> OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1206- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD),IDENTIFICATION LABEL FOR KD<6UT> OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1206- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. IDENTIFICATION LABEL FOR KD<6UT> OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7R-15-8 5.5FX15-115(57H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H) REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 1206- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1206-1206 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1207- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1206-1206 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1206-1206 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1207- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1207- ●

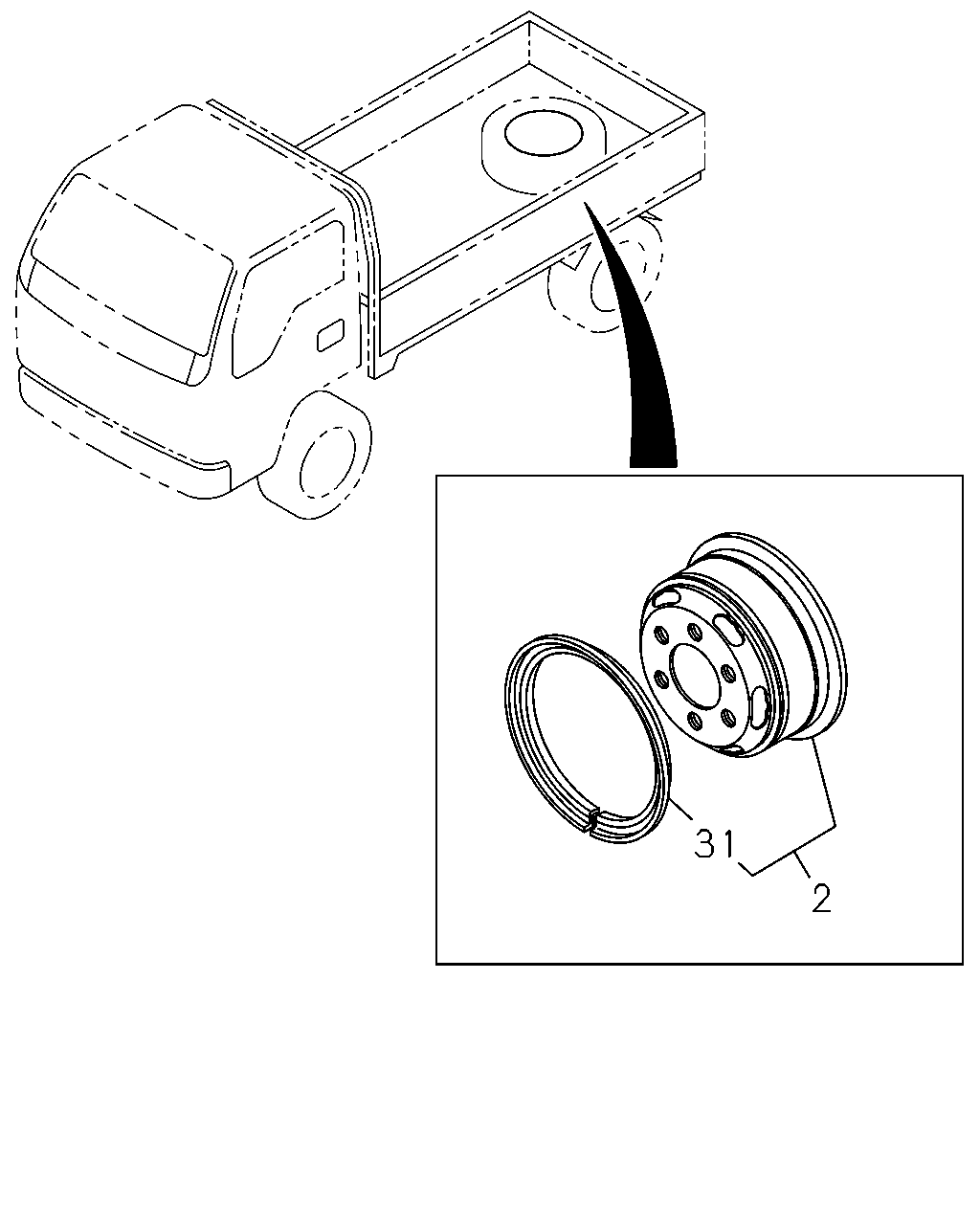

çizim 288532
2 31
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1206- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1206- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1206- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 1206- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 1206- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1206-1206 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1207- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1206-1206 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1207- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7R-15-8 5.5FX15-115(57H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H) REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 1206- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1206-1206 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1207- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1206-1206 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1206-1206 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1207- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1207- ●

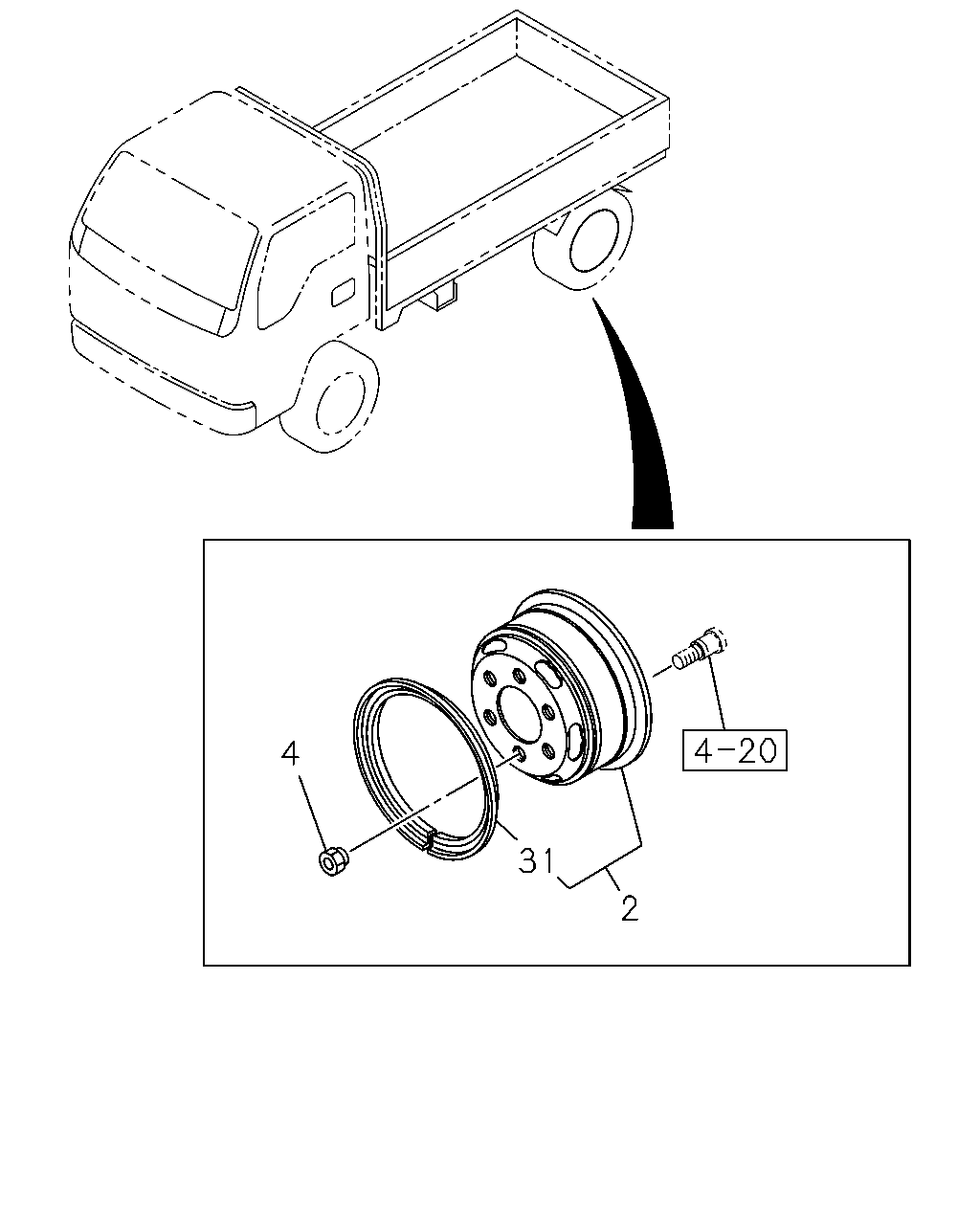

çizim 289604
4 31 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1206- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1206- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1206- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 1206- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 1206- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1206-1206 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1207- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1206-1206 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1207- ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 RH THREAD 		8-98007-905-0 06 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 LH THREAD 		8-98007-906-0 06 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD) M27 RH THREAD 		8-97693-148-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
IDENTIFICATION LABEL FOR KD<6UT> M27 RH THREAD 		8-97693-148-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD) M27 LH THREAD 		8-97693-149-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
IDENTIFICATION LABEL FOR KD<6UT> M27 LH THREAD 		8-97693-149-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD),IDENTIFICATION LABEL FOR KD<6UT> M27 RH THREAD 		8-98007-824-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. IDENTIFICATION LABEL FOR KD<6UT> M27 RH THREAD 		8-98007-824-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD),IDENTIFICATION LABEL FOR KD<6UT> M27 LH THREAD 		8-98007-825-0 05 1 1206- ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. IDENTIFICATION LABEL FOR KD<6UT> M27 LH THREAD 		8-98007-825-0 05 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7R-15-8 5.5FX15-115(57H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H) REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 1206- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1206-1206 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1207- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1206-1206 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1206-1206 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1207- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1207- ●

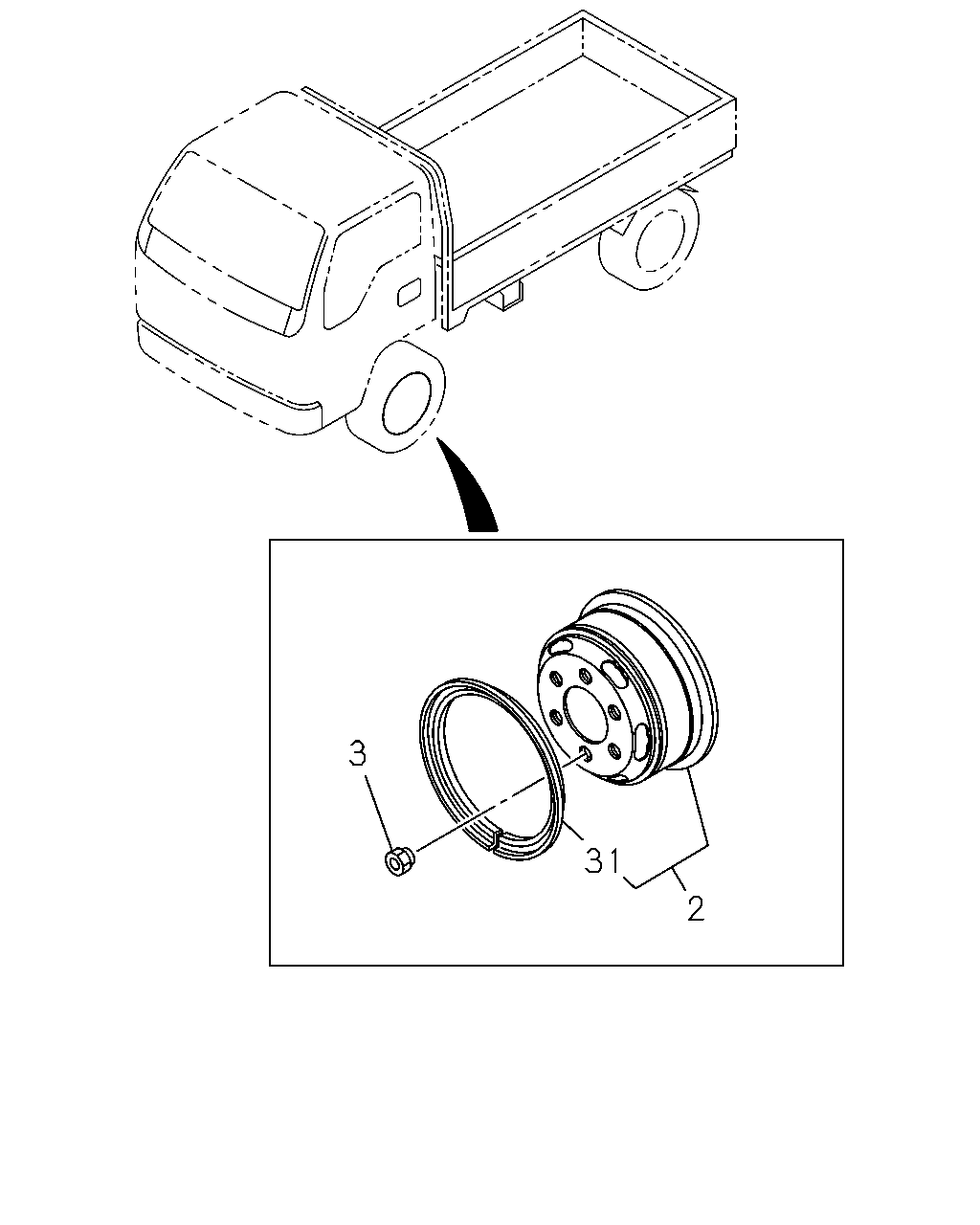

çizim 289622
2 31 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1206- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1206- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1206- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1206- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 1206- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 1206- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1206-1206 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1207- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1206-1206 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1207- ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD) M14 RH THREAD 		8-98007-905-0 06 1 1206- ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD) M14 LH THREAD 		8-98007-906-0 06 1 1206- ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD) M18 RH THREAD 		8-98007-907-0 05 1 1206- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 1206- ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD) M18 LH THREAD 		8-98007-908-0 05 1 1206- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7R-15-8 5.5FX15-115(57H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1206- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H) REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 1206- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1206-1206 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1207- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1206-1206 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1206-1206 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1207- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1207- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
