◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#9596) — 49 parça

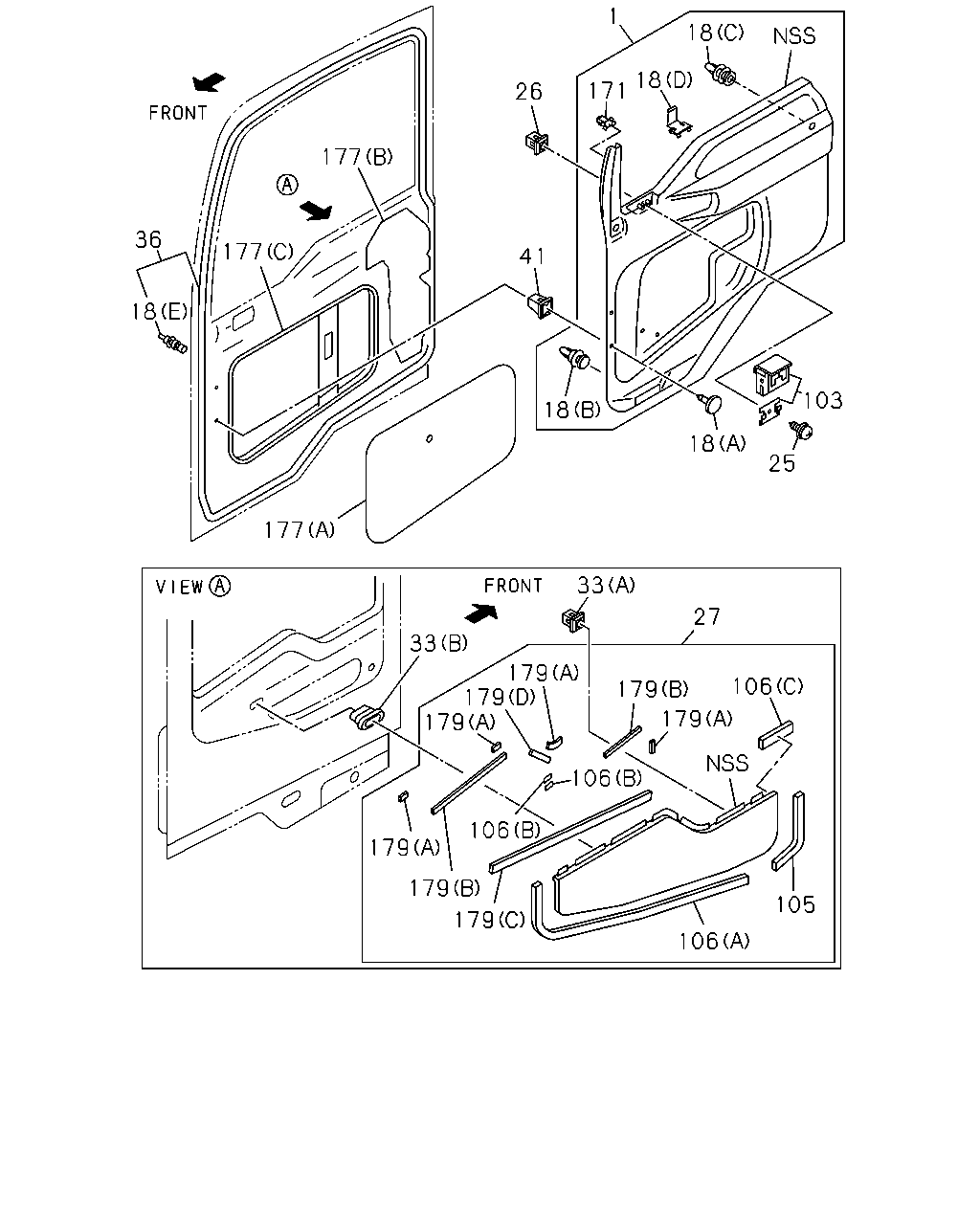

çizim 40461
18 18 1 171 26 177 177 36 18 41 18 18 25 103 177 33 33 27 106 179 179 179 179 179 179 179 179 106 106 106 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR 1-73338-539-0 01 1 0211-0702 ●
1 PAD; TRIM,FRT DOOR 1-73337-516-0 01 1 0703- ●
1 PAD; TRIM,FRT DOOR 1-73338-541-0 01 1 0211- ●
1 PAD; TRIM,FRT DOOR 1-73338-506-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-538-0 01 1 0101-0210 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-538-0 01 1 0211-0702 ●
1 PAD; TRIM,FRT DOOR 1-73337-515-0 01 1 0703- ●
1 PAD; TRIM,FRT DOOR 1-73338-512-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-540-0 01 1 0101-0210 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-540-0 01 1 0211- ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 0005-0005 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0005- ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 0005-0012 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0005- ● ●
18 CLIP; DOOR PAD
(E) 		1-09987-257-0 23 1 0005- ● ●
18 CLIP; DOOR PAD
(E) 		1-09987-257-0 23 1 0005- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0005- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0005- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 0005- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-7 01 1 0005-1210 ● ●
27 PANEL; ORNAMENT,DOOR 8-98229-328-0 01 1 1211- ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0005-0802 ● ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0005- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0005-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0005-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0005- ● ●
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0005-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112- ● ●
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0005-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 0005- ● ●
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 0005- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 04 1 0005- ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0005- ● ●
177 SEAL; WATER,DOOR
(C) 		1-76778-052-2 01 1 0211- ●
177 SEAL; WATER,DOOR
(C) 		1-76778-035-6 01 1 0211- ●
177 SEAL; WATER,DOOR
(A) 		1-76778-047-3 02 1 0005-0210 ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-047-3 02 1 0211- ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0005- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 0005- ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 02 1 0005- ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 02 1 0005- ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 04 1 0005- ● ●
