◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#95958) — 52 parça

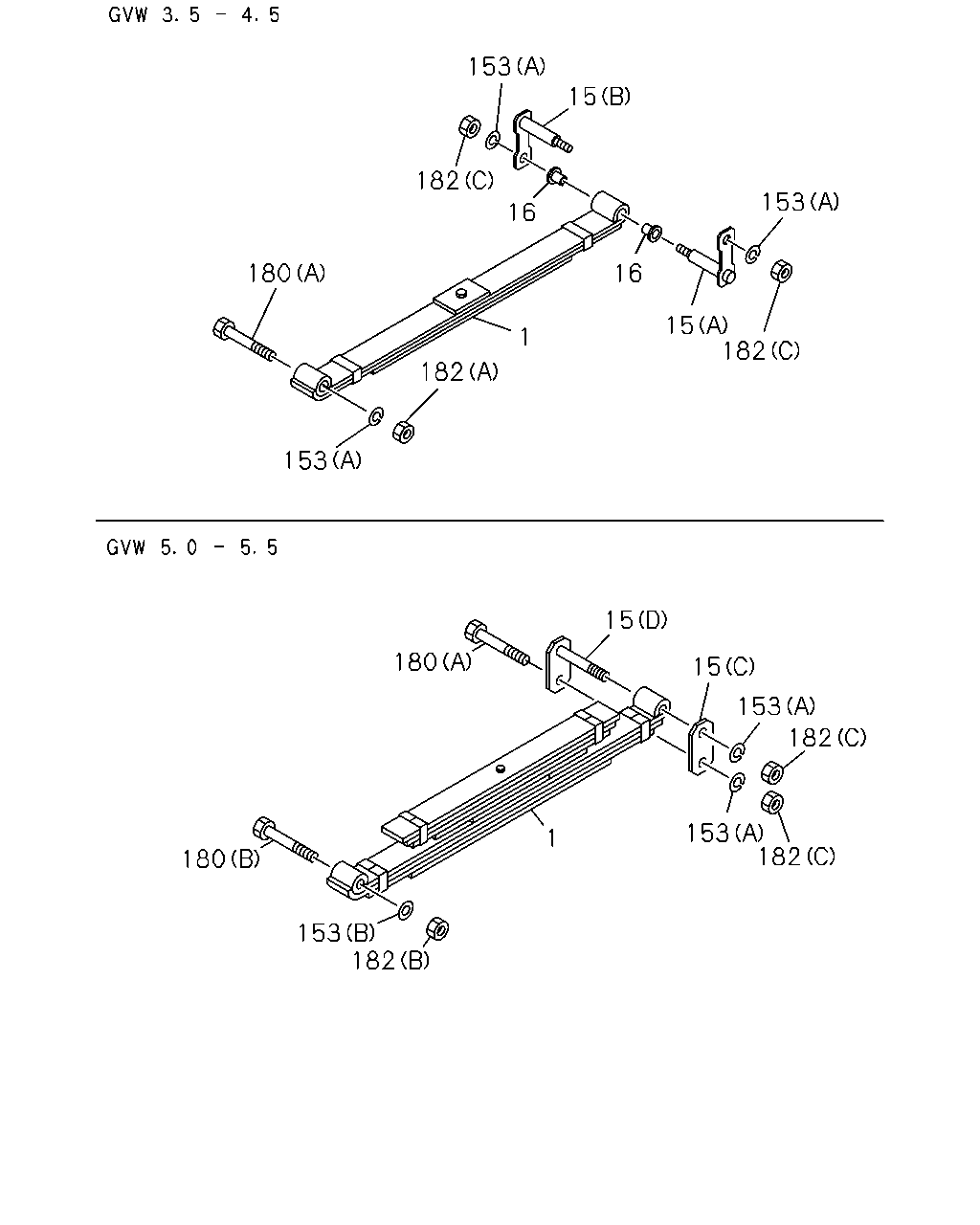

çizim 288497
182 153 180 182 153 1 180 182 153 15 15 153 182 180 1 182 15 16 16 182 153 15 153
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SINGLE RR TIRE(6TD) 5-LEAF 		8-97693-008-0 02 1 1206-1302 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 5-LEAF 		8-97693-008-0 02 1 1303- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SINGLE RR TIRE(6TD) 11-LEAF 		8-97693-009-0 02 1 1206-1302 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF 		8-97693-009-0 02 1 1206-1302 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 11-LEAF 		8-97693-009-0 02 1 1303- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF 		8-97693-009-0 02 1 1303- ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (A) 		8-94113-322-3 02 1 1206- ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (B) 		8-97033-966-1 02 1 1206- ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (C) 		8-94118-511-3 02 1 1206- ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 1206- ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (D) 		8-97360-011-0 02 1 1206- ●
15 07.523 SHACKLE; RR SPR
(D) 		8-97360-011-0 02 1 1206- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 1206- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 1206- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 04 1 1206- ● ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 07.427 (A) ID=16.5 		8-98011-489-0 02 1 1206- ●
153 07.529 WASHER; PL,SPRING PIN
EXC. SINGLE RR TIRE(6TD) (B) ID=19 		8-97360-119-0 02 1 1206- ●
153 07.529 WASHER; PL,SPRING PIN
(B) ID=19 		8-97360-119-0 02 1 1206- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1206- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD) (B) M18X130 		8-98011-488-0 02 1 1206- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1206- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1206- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>,SINGLE RR TIRE(6TD) (B) M18X130 FLANGE 		8-97360-112-0 02 1 1206- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1206- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 04 1 1206- ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 06.509 (A) M16 		0-91110-516-0 02 1 1206- ●
182 07.529 NUT; PIN,RR SPR
SINGLE RR TIRE(6TD) EXC. KD PREPARATORY PACK<6HF> 07.427 (C) M16 FLANGE 		8-97360-125-0 02 1 1206- ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (C) M16 FLANGE 		8-97360-125-0 04 1 1206- ● ●
182 07.529 NUT; PIN,RR SPR
EXC. SINGLE RR TIRE(6TD) (B) M18 		0-91110-518-0 02 1 1206- ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1206- ●
çizim 288500
4 1 465 502 6 227 5 225
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SINGLE RR TIRE(6TD) 5-LEAF 		8-97693-008-0 02 1 1206-1302 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 5-LEAF 		8-97693-008-0 02 1 1303- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SINGLE RR TIRE(6TD) 11-LEAF 		8-97693-009-0 02 1 1206-1302 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF 		8-97693-009-0 02 1 1206-1302 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 11-LEAF 		8-97693-009-0 02 1 1303- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF 		8-97693-009-0 02 1 1303- ●
4 07.516 U-BOLT; RR SPR
SINGLE RR TIRE(6TD) IDENTIFICATION LABEL FOR KD<6UT> L=235 		8-97693-075-0 04 1 1206- ●
4 07.516 U-BOLT; RR SPR
SINGLE RR TIRE(6TD) EXC. IDENTIFICATION LABEL FOR KD<6UT> L=235 		8-94127-920-3 04 1 1206- ●
4 07.516 U-BOLT; RR SPR
EXC. SINGLE RR TIRE(6TD) L=265 		8-94127-923-3 04 1 1206- ●
4 07.516 U-BOLT; RR SPR
L=265 		8-94127-923-3 04 1 1206- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1206- ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1206- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
SINGLE RR TIRE(6TD) 		8-97693-023-0 02 1 1206-1302 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-97693-023-0 02 1 1303- ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. SINGLE RR TIRE(6TD) 		8-97693-022-0 02 1 1206-1302 ●
225 07.535 RUBBER; CUSHION,RR SPR 8-97693-022-0 02 1 1206-1302 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-97693-022-0 02 1 1303- ●
225 07.535 RUBBER; CUSHION,RR SPR 8-97693-022-0 02 1 1303- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1206- ● ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED(RS6) 		8-97072-589-0 AR 1 1307-1411 ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED(RS6) 		8-97072-589-0 AR 1 1412- ● ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 1206- ● ●
