◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#95954) — 30 parça

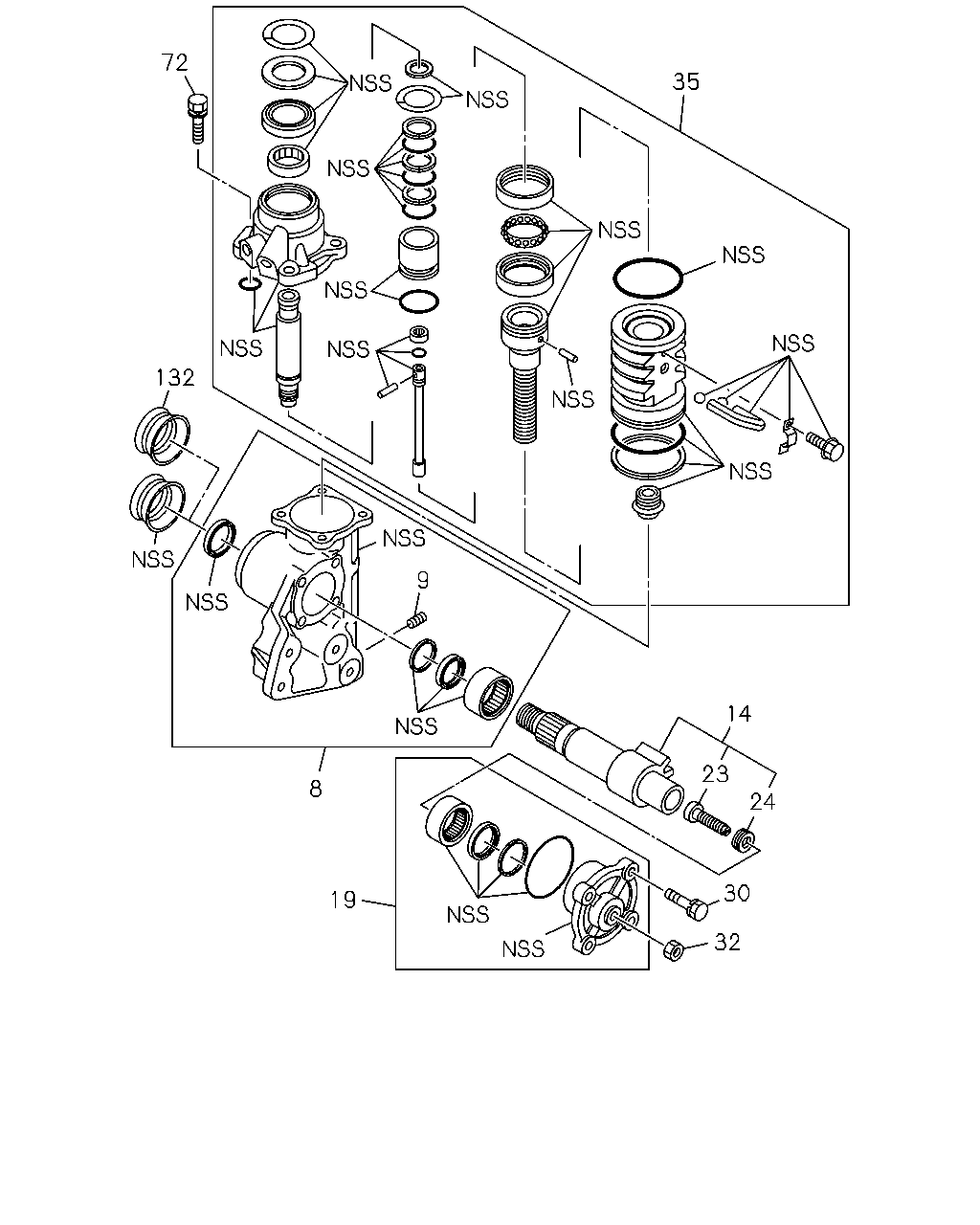

çizim 288471
72 35 132 8 9 14 23 24 30 32 19
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-97356-126-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-97014-820-0 02 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-97356-137-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-98036-333-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-472-0 AR 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-97014-842-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-478-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-479-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-98036-337-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-98112-932-3 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -

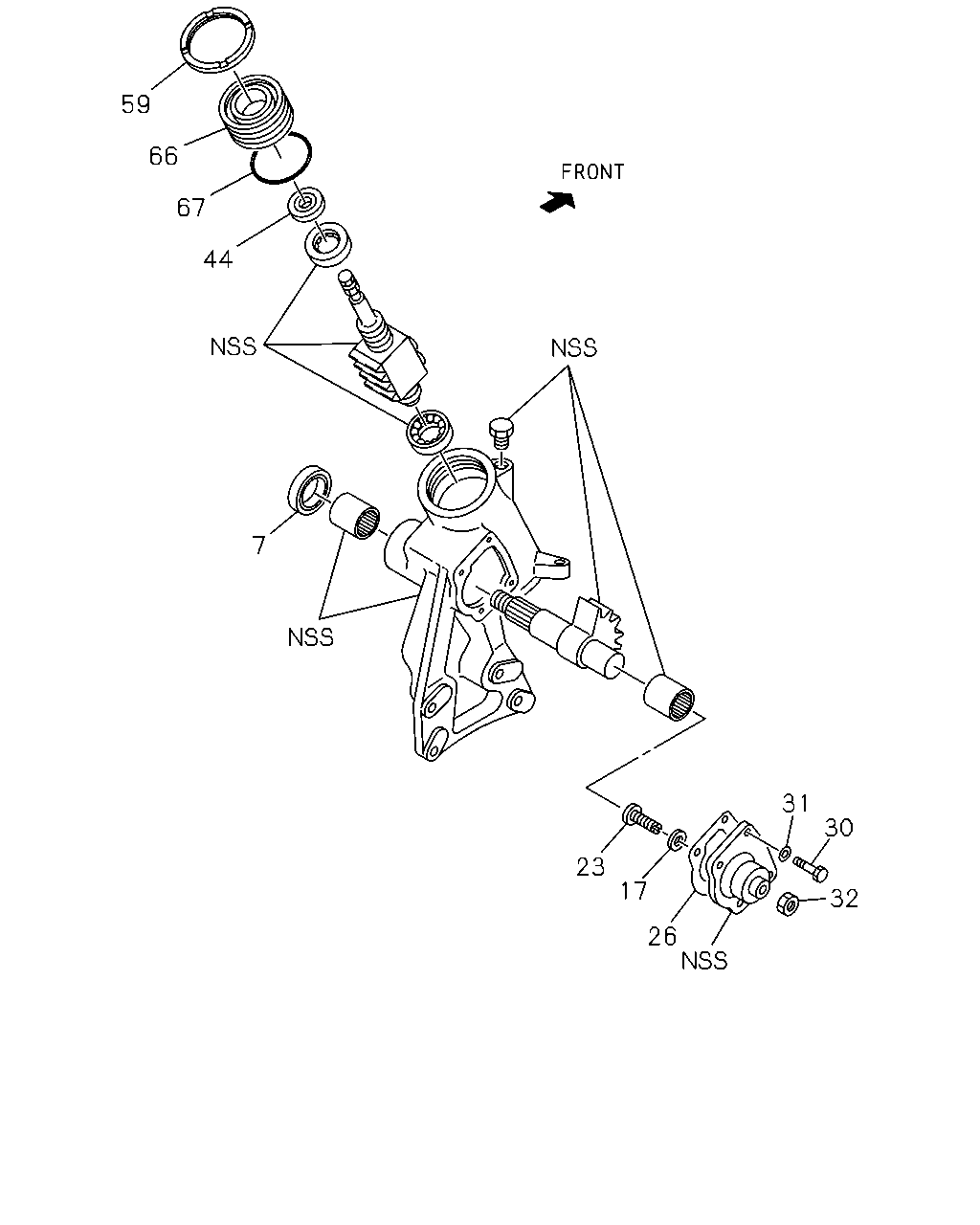

çizim 288480
59 66 67 44 7 31 30 23 17 26 32
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-464-0 01 1 -
17 06.822 NUT; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-473-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-472-0 AR 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-97014-842-0 01 1 -
26 06.521 GASKET; COVER,STRG UNIT
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-465-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-478-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
31 06.809 WASHER; COVER STRG UNIT
06.216 ASM PART: B = 8-97693-010-0, 97693010 		5-87220-064-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-479-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-98036-337-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-463-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-480-0 01 1 -
66 06.518 COVER; REAR STRG UNIT
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-481-0 01 1 -
67 06.825 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 8-97693-010-0, 97693010 		5-87220-466-0 01 1 -

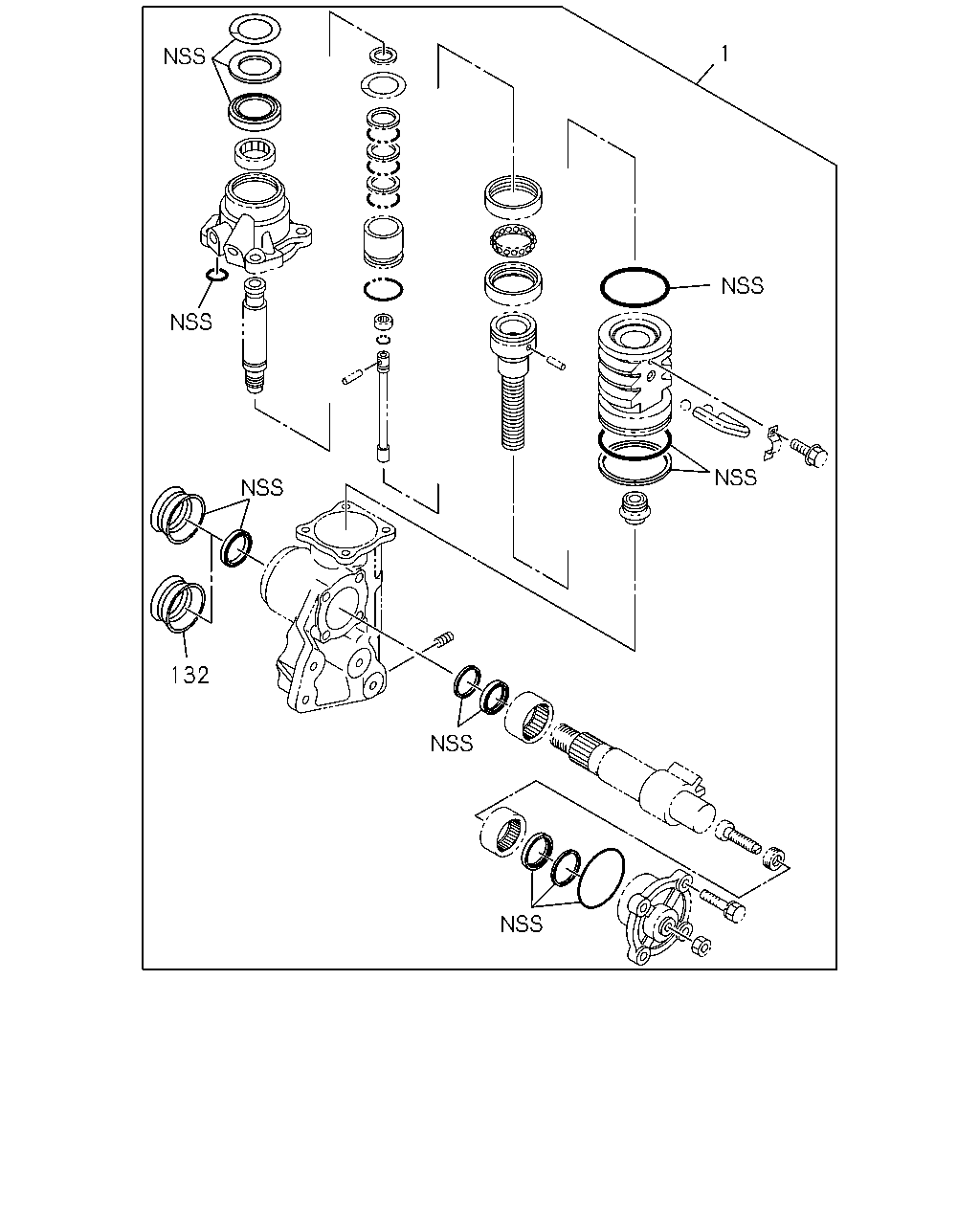

çizim 289594
132 1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97356-105-9, 97356105, C = 8-98251-947-0, 98251947 		8-98171-736-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -
