◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#95952) — 52 parça

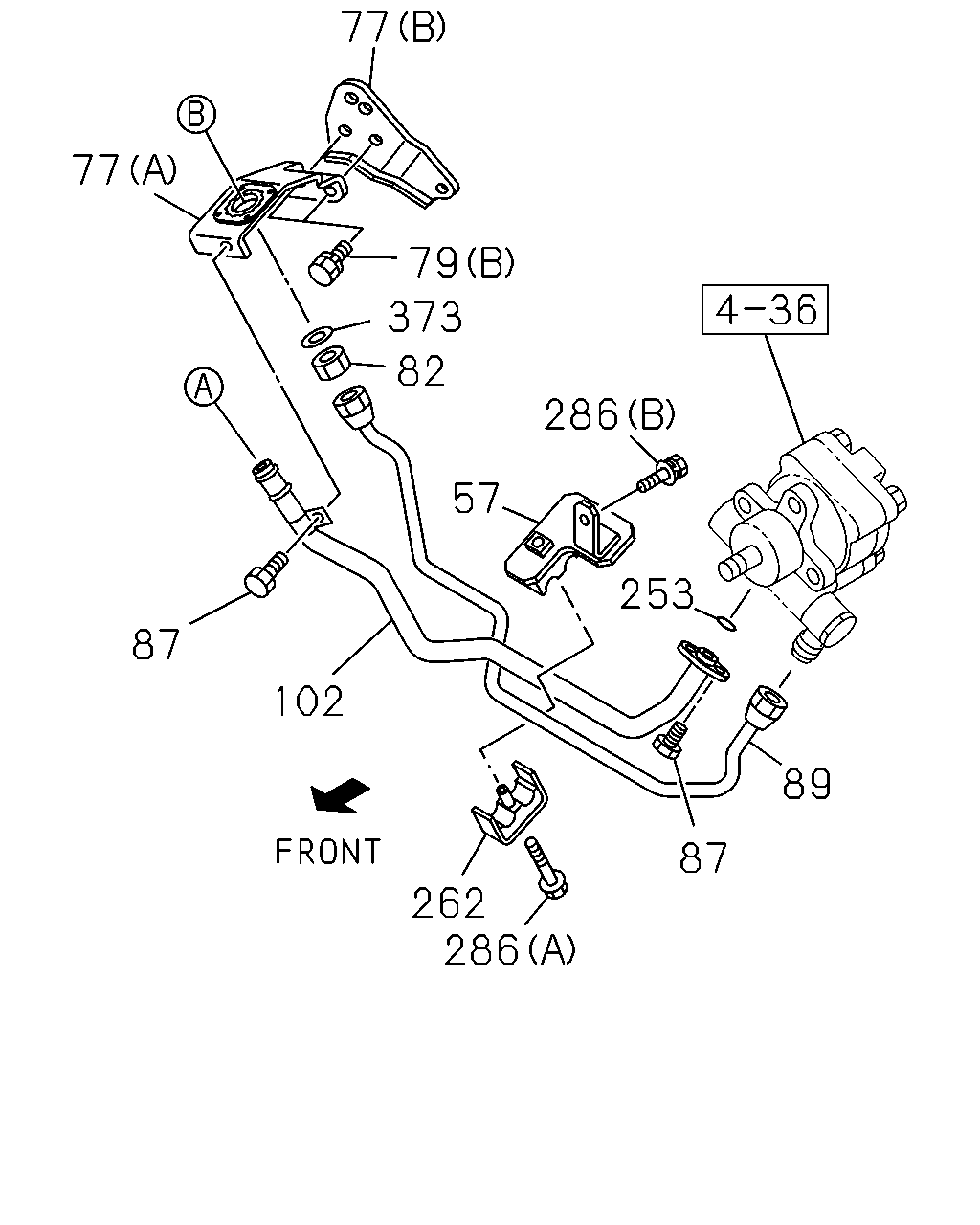

çizim 288466
77 79 373 82 57 286 253 89 87 286 262 102 87 77
BalonParca AdiParca NoAdetTipApplied Date A B
57 06.672 BRACKET; POWER STRG PIPE
POWER STEERING<N40> 		8-97312-558-3 01 1 1206- ● ●
77 06.672 BRACKET; POWER STEERING HOSE
(B) 		8-97075-615-0 01 1 1206- ● ●
77 06.672 BRACKET; POWER STEERING HOSE
(A) 		8-97208-424-0 01 1 1206- ● ●
79 06.672 BOLT; BRKT
POWER STEERING<N40> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1206- ● ●
79 06.672 BOLT; BRKT
00.206 (B) M8X20 W/LK WASHER 		0-50540-820-0 02 1 1206- ● ●
82 06.672 NUT; FLEX HOSE,P/S
POWER STEERING<N40> 06.897 M16 		8-94370-339-0 02 1 1206-1401 ● ●
82 06.672 NUT; FLEX HOSE,P/S
POWER STEERING<N40> 06.897 M16 		8-94370-339-0 01 1 1402- ● ●
87 06.672 BOLT; POWER STRG PIPE
POWER STEERING<N40> 00.206 M6X20 		8-94279-112-0 01 1 1206- ● ●
87 06.672 BOLT; POWER STRG PIPE
POWER STEERING<N40> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1206-1303 ● ●
87 06.672 BOLT; POWER STRG PIPE
POWER STEERING<N40> M8X14 FLANGE 		8-98219-171-0 02 1 1304- ● ●
89 06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H
POWER STEERING<N40> 		8-97312-556-0 01 1 1206-1303 ● ●
89 06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H
POWER STEERING<N40> 		8-98218-675-0 01 1 1304- ● ●
102 06.671 PIPE; SUCTION,P/S
POWER STEERING<N40> 		8-97312-557-1 01 1 1206-1303 ● ●
102 06.671 PIPE; SUCTION,P/S
POWER STEERING<N40> 		8-98218-669-0 01 1 1304- ● ●
253 06.673 GASKET; OIL PIPE
POWER STEERING<N40> 06.609 ID=11.0 		9-09561-111-0 01 1 1206- ● ●
262 06.672 CLIP; P/S PIPE
POWER STEERING<N40> 		8-97300-961-1 01 1 1206- ● ●
286 06.672 BOLT; CLIP,P/S HOSE
POWER STEERING<N40> 00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 1206- ● ●
286 06.672 BOLT; CLIP,P/S HOSE
POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 1206- ● ●
373 06.673 WASHER; HOSE,P/S
POWER STEERING<N40> 06.672 ID=16.5 TOOTH LK INT 		0-91541-216-0 02 1 1206- ● ●

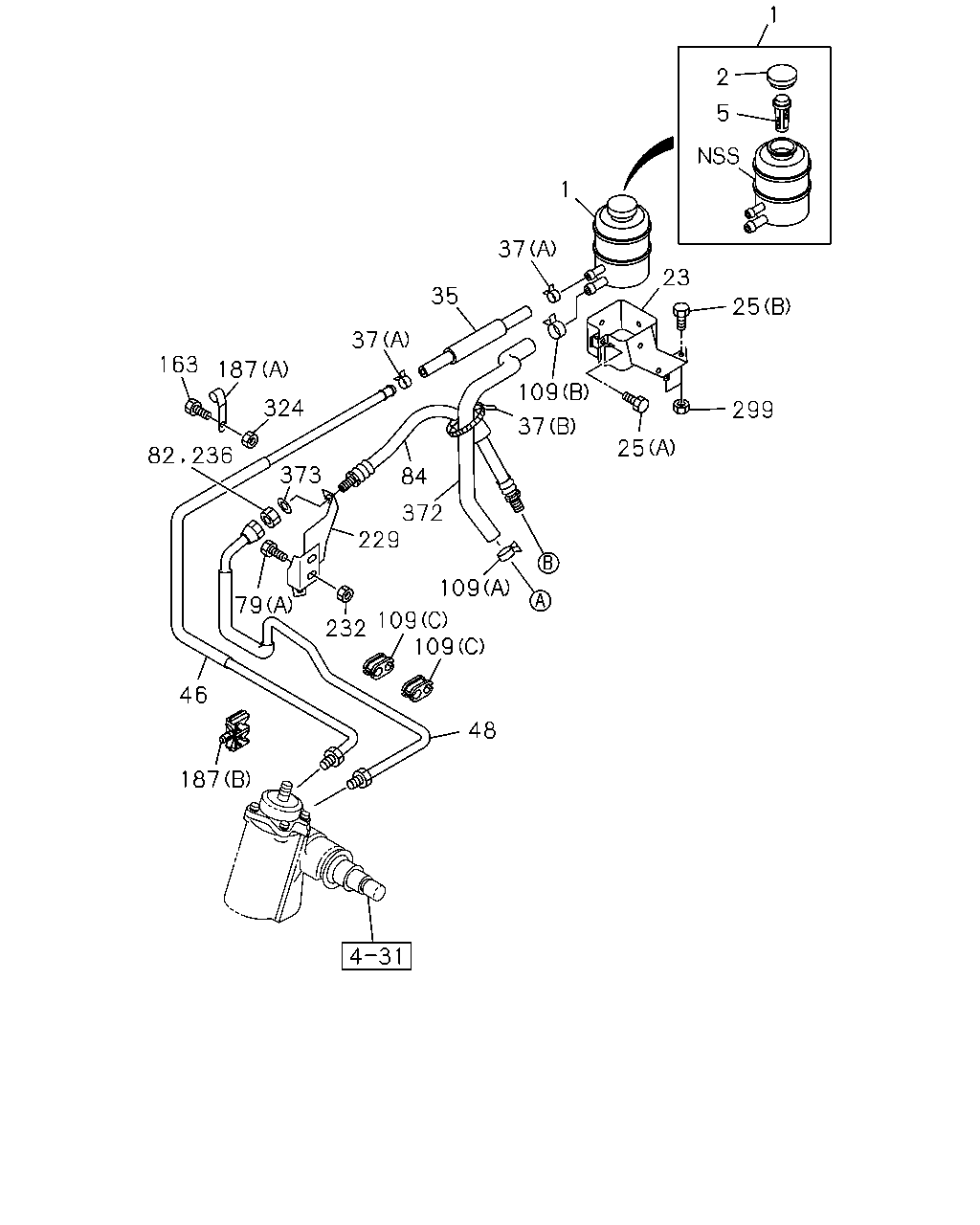

çizim 288467
1 5 2 1 23 25 299 25 37 109 37 35 37 84 372 109 109 109 48 232 229 373 324 187 163 82 236 46 79 187
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.635 TANK ASM; OIL,P/S
POWER STEERING<N40> 		8-97107-987-0 01 1 1206- ● ●
2 06.672 CAP; OIL TANK,P/S
POWER STEERING<N40> 06.635 		8-94146-153-2 01 1 1206- ● ●
5 06.600 STRAINER; OIL TANK,P/S
POWER STEERING<N40> 		8-97094-732-0 01 1 1206- ● ●
23 06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40> 		8-97066-500-3 01 1 1206-1211 ● ●
23 06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40> 		8-98215-043-0 01 1 1212- ● ●
25 06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40> 00.785 (A) M6X20 FLANGE 		0-28450-620-0 01 1 1206- ● ●
25 06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1206- ● ●
35 06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40> 		8-97081-444-3 01 1 1206- ● ●
37 01.762 CLIP; HOSE,P/S
POWER STEERING<N40> 02.559 (B) L=250 		5-09707-030-1 01 1 1206- ● ●
37 01.762 CLIP; HOSE,P/S
POWER STEERING<N40> 03.162 (A) ID=16 		8-98008-098-0 02 1 1206- ● ●
46 06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4JB1-TC ENG(RDT) POWER STEERING<N40> 		8-97356-185-0 01 1 1206- ● ●
46 06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4JB1-NA ENG(RLF) POWER STEERING<N40> 		8-97364-355-0 01 1 1206- ● ●
48 06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
4JB1-TC ENG(RDT) POWER STEERING<N40> 		8-97356-184-0 01 1 1206- ● ●
48 06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
4JB1-NA ENG(RLF) POWER STEERING<N40> 		8-97364-349-0 01 1 1206- ● ●
79 06.672 BOLT; BRKT
POWER STEERING<N40> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1206- ● ●
79 06.672 BOLT; BRKT
00.206 (B) M8X20 W/LK WASHER 		0-50540-820-0 02 1 1206- ● ●
82 06.672 NUT; FLEX HOSE,P/S
POWER STEERING<N40> 06.897 M16 		8-94370-339-0 02 1 1206-1401 ● ●
82 06.672 NUT; FLEX HOSE,P/S
POWER STEERING<N40> 06.897 M16 		8-94370-339-0 01 1 1402- ● ●
84 06.670 HOSE; FLEX,P/S
POWER STEERING<N40> 		8-97358-328-0 01 1 1206- ● ●
109 06.672 CLIP; RUBBER HOSE
POWER STEERING<N40> (C) ID=10X2 H=22 		8-94252-455-2 02 1 1206- ● ●
109 06.672 CLIP; RUBBER HOSE
POWER STEERING<N40> 03.278 (B) ID=22 		8-97359-141-0 01 1 1206- ● ●
109 06.672 CLIP; RUBBER HOSE
POWER STEERING<N40> 04.681 (A) ID=21 		8-98150-355-0 01 1 1206- ● ●
163 06.671 BOLT; OIL PIPE
POWER STEERING<N40> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1206- ● ●
187 03.162 CLIP; P/S OIL PIPE
POWER STEERING<N40> 06.672 (A) ID=11 L=40 		8-94259-342-0 01 1 1206- ● ●
187 03.162 CLIP; P/S OIL PIPE
POWER STEERING<N40> 04.930 (B) ID=10X2 H=37.5 		8-97018-546-0 01 1 1206- ● ●
229 06.606 BRACKET; HOSE,POWER STRG
POWER STEERING<N40> 		8-97092-085-1 01 1 1206- ● ●
232 06.672 NUT; BRKT
POWER STEERING<N40> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1206- ● ●
236 06.672 NUT; FLEX HOSE,P/S PIPING
POWER STEERING<N40> 06.897 M16 		8-94370-339-0 01 1 1402- ● ●
299 06.660 NUT; OIL TANK BRKT
POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1206- ● ●
324 06.660 NUT; OIL PIPE
POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1206- ● ●
372 06.673 HOSE; RUBBER
4JB1-TC ENG(RDT) POWER STEERING<N40> 06.672 		8-97205-635-0 01 1 1206- ● ●
372 06.673 HOSE; RUBBER
4JB1-NA ENG(RLF) POWER STEERING<N40> 06.672 		8-97062-797-1 01 1 1206- ● ●
373 06.673 WASHER; HOSE,P/S
POWER STEERING<N40> 06.672 ID=16.5 TOOTH LK INT 		0-91541-216-0 02 1 1206- ● ●
