4-25 — REAR FINAL DRIVE (#95948) — 146 parça

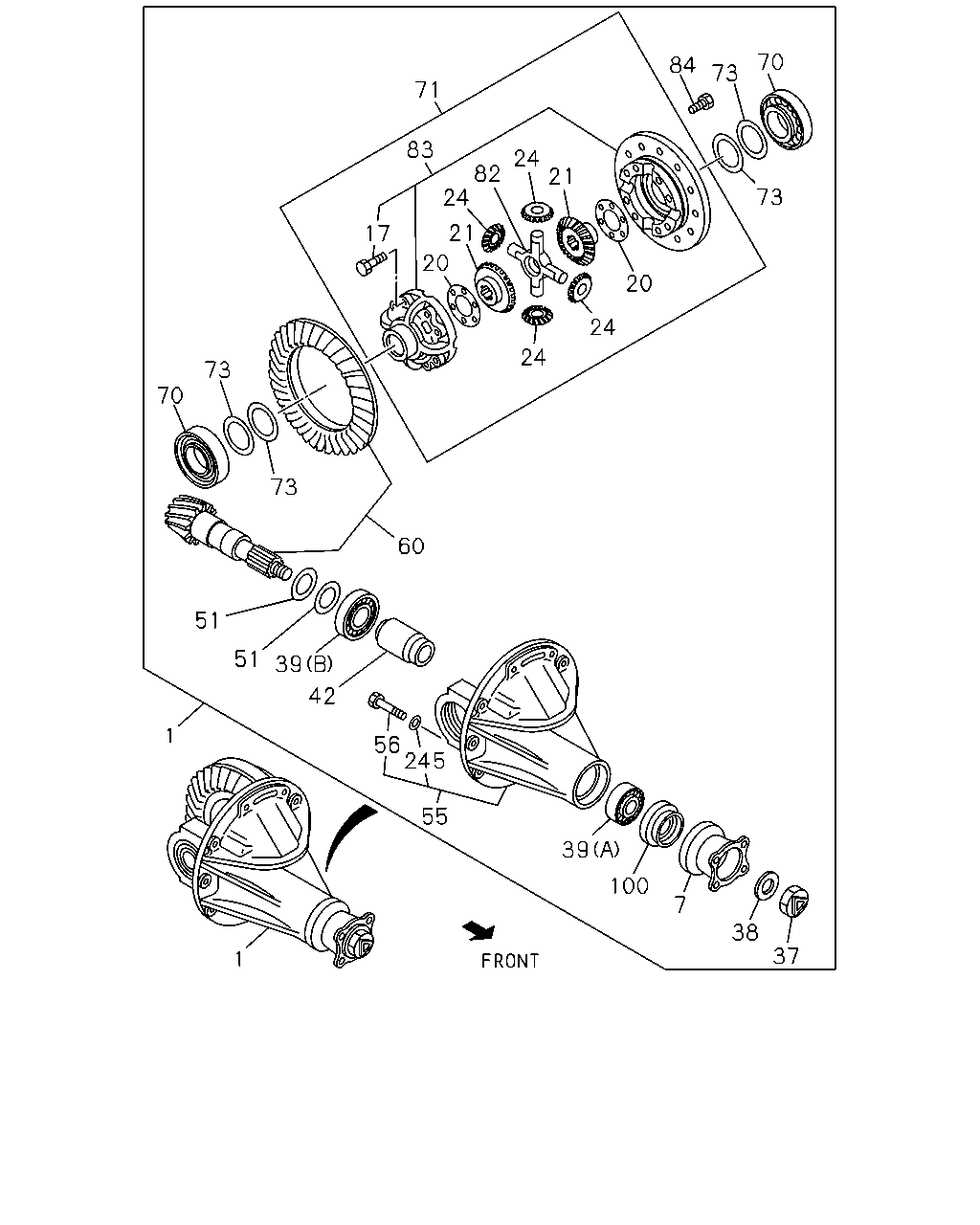

39 100 7 38 73 70 73 84 71 83 17 24 82 24 21 20 24 24 20 21 73 70 73 60 51 51 42 39 56 245 55 1 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41)	5-87220-178-0	01	1	1206-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42)	5-87220-177-0	01	1	1206-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39)	5-87220-170-0	01	1	1206-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-241-0	01	1	1206-	●
7	05.545 FLANGE; FINAL	5-87220-241-0	01	1	1206-		●
7	05.545 FLANGE; FINAL REAR AXLE STANDARD 244MM(R39)	5-87220-183-0	01	1	1206-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-180-0	12	1	1206-	●
17	05.510 BOLT; DIFF CAGE SETTING	5-87220-180-0	12	1	1206-		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE STANDARD 244MM(R39)	5-87220-208-0	08	1	1206-	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-203-0	02	1	1206-	●
20	05.543 WASHER; THRUST,SIDE GEAR	5-87220-203-0	02	1	1206-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE STANDARD 244MM(R39)	5-87220-213-0	02	1	1206-	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-205-0	02	1	1206-	●
21	05.528 GEAR; SIDE,DIFF	5-87220-205-0	02	1	1206-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39)	5-87220-218-0	02	1	1206-	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-209-0	04	1	1206-	●
24	05.526 GEAR; PINION,DIFF	5-87220-209-0	04	1	1206-		●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39)	5-87220-215-0	04	1	1206-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-242-0	01	1	1206-	●
37	05.595 NUT; DRIVING PINION	5-87220-242-0	01	1	1206-		●
37	05.595 NUT; DRIVING PINION REAR AXLE STANDARD 244MM(R39)	5-87220-179-0	01	1	1206-	●
38	05.595 WASHER; PL,DRIVING PINION REAR AXLE STANDARD 244MM(R39)	5-87220-181-0	01	1	1206-	●
39	05.484 BEARING; FINAL PINION REAR AXLE STANDARD 244MM(R39) (B)	5-87220-192-0	01	1	1206-	●
39	05.484 BEARING; FINAL PINION REAR AXLE STANDARD 244MM(R39) (A)	5-87220-185-0	01	1	1206-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-235-0	01	1	1206-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	5-87220-235-0	01	1	1206-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE STANDARD 244MM(R39)	5-87220-188-0	01	1	1206-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39)	5-87220-190-0	01	1	1206-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-223-0	01	1	1206-	●
55	05.505 CARRIER; DIFF	5-87220-223-0	01	1	1206-		●
55	05.505 CARRIER; DIFF REAR AXLE STANDARD 244MM(R39)	5-87220-194-0	01	1	1206-	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-219-0	04	1	1206-	●
56	05.506 BOLT; BRG CAP	5-87220-219-0	04	1	1206-		●
56	05.506 BOLT; BRG CAP REAR AXLE STANDARD 244MM(R39)	5-87220-219-0	02	1	1206-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41)	5-87220-200-0	01	1	1206-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42)	5-87220-199-0	01	1	1206-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39)	5-87220-201-0	01	1	1206-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-195-0	02	1	1206-	●
70	05.536 BEARING; DIFF CAGE	5-87220-195-0	02	1	1206-		●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) 1 SET=2 PIECE	5-87220-196-0	01	1	1206-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-191-0	01	1	1206-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	5-87220-191-0	01	1	1206-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39)	5-87220-204-0	01	1	1206-	●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39)	5-87220-198-0	02	1	1206-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-207-0	01	1	1206-	●
82	05.517 SPIDER; DIFF PINION	5-87220-207-0	01	1	1206-		●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39)	5-87220-220-0	01	1	1206-	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-189-0	01	1	1206-	●
83	05.510 CAGE ASM; DIFF	5-87220-189-0	01	1	1206-		●
83	05.510 CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39)	5-87220-222-0	01	1	1206-	●
84	05.531 BOLT; FINAL DRIVE GEAR 1 SET=12 PIECE	5-87220-206-0	01	1	1206-	●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-240-0	01	1	1206-	●
100	05.469 SEAL; OIL,FINAL PINION	5-87220-240-0	01	1	1206-		●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE STANDARD 244MM(R39)	5-87220-184-0	01	1	1206-	●
245	05.506 WASHER; PL,BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.453	5-87220-221-0	04	1	1206-	●
245	05.506 WASHER; PL,BRG CAP 05.453	5-87220-221-0	04	1	1206-		●
245	05.506 WASHER; PL,BRG CAP REAR AXLE STANDARD 244MM(R39)	5-87220-226-0	04	1	1206-	●

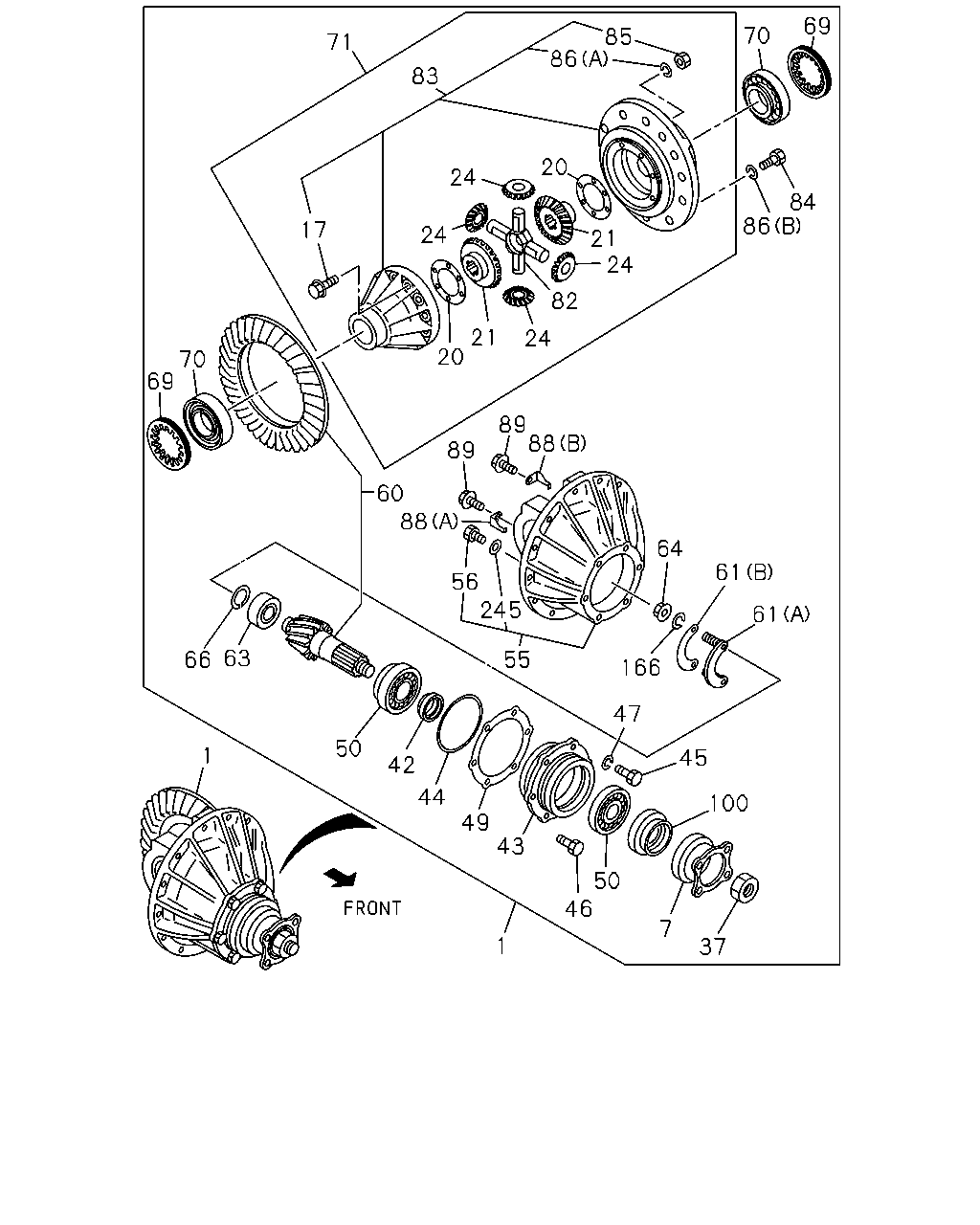

377 46 43 49 44 42 50 66 63 60 56 245 55 166 47 45 100 61 61 88 89 89 88 70 69 71 24 24 83 17 20 21 82 24 21 20 86 84 70 69 86 85 24 1 64 50 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41)	5-87220-178-0	01	1	1206-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42)	5-87220-177-0	01	1	1206-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39)	5-87220-170-0	01	1	1206-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-241-0	01	1	1206-	●
7	05.545 FLANGE; FINAL	5-87220-241-0	01	1	1206-		●
7	05.545 FLANGE; FINAL REAR AXLE STANDARD 244MM(R39)	5-87220-183-0	01	1	1206-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-180-0	12	1	1206-	●
17	05.510 BOLT; DIFF CAGE SETTING	5-87220-180-0	12	1	1206-		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE STANDARD 244MM(R39)	5-87220-208-0	08	1	1206-	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-203-0	02	1	1206-	●
20	05.543 WASHER; THRUST,SIDE GEAR	5-87220-203-0	02	1	1206-		●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE STANDARD 244MM(R39)	5-87220-213-0	02	1	1206-	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-205-0	02	1	1206-	●
21	05.528 GEAR; SIDE,DIFF	5-87220-205-0	02	1	1206-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39)	5-87220-218-0	02	1	1206-	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-209-0	04	1	1206-	●
24	05.526 GEAR; PINION,DIFF	5-87220-209-0	04	1	1206-		●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39)	5-87220-215-0	04	1	1206-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-235-0	01	1	1206-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	5-87220-235-0	01	1	1206-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE STANDARD 244MM(R39)	5-87220-188-0	01	1	1206-	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-238-0	01	1	1206-	●
43	05.453 CAGE; FINAL PINION	5-87220-238-0	01	1	1206-		●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-236-0	01	1	1206-	●
44	05.476 GASKET; PINION CAGE	5-87220-236-0	01	1	1206-		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-239-0	01	1	1206-	●
45	05.453 BOLT; FINAL PINION CAGE	5-87220-239-0	01	1	1206-		●
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-243-0	05	1	1206-	●
46	05.453 BOLT	5-87220-243-0	05	1	1206-		●
47	05.453 WASHER; LK REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-221-0	01	1	1206-	●
47	05.453 WASHER; LK	5-87220-221-0	01	1	1206-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-237-0	AR	1	1206-	●
49	05.458 SHIM; FINAL PINION CAGE	5-87220-237-0	AR	1	1206-		●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-234-0	02	1	1206-	●
50	05.447 BEARING; FINAL PINION	5-87220-234-0	02	1	1206-		●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-223-0	01	1	1206-	●
55	05.505 CARRIER; DIFF	5-87220-223-0	01	1	1206-		●
55	05.505 CARRIER; DIFF REAR AXLE STANDARD 244MM(R39)	5-87220-194-0	01	1	1206-	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-219-0	04	1	1206-	●
56	05.506 BOLT; BRG CAP	5-87220-219-0	04	1	1206-		●
56	05.506 BOLT; BRG CAP REAR AXLE STANDARD 244MM(R39)	5-87220-219-0	02	1	1206-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41)	5-87220-200-0	01	1	1206-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42)	5-87220-199-0	01	1	1206-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39)	5-87220-201-0	01	1	1206-	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	5-87220-229-0	02	1	1206-	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	5-87220-229-0	02	1	1206-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A)	5-87220-231-0	01	1	1206-	●
61	05.476 RETAINER; PILOT BRG,PINION (A)	5-87220-231-0	01	1	1206-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-233-0	01	1	1206-	●
63	05.447 BEARING; PINION PILOT	5-87220-233-0	01	1	1206-		●
64	05.476 NUT; RET REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-225-0	02	1	1206-	●
64	05.476 NUT; RET	5-87220-225-0	02	1	1206-		●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-232-0	01	1	1206-	●
66	05.476 RING; SNAP,PILOT BRG	5-87220-232-0	01	1	1206-		●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-193-0	02	1	1206-	●
69	05.506 NUT; ADJ,DIFF CAGE	5-87220-193-0	02	1	1206-		●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-195-0	02	1	1206-	●
70	05.536 BEARING; DIFF CAGE	5-87220-195-0	02	1	1206-		●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) 1 SET=2 PIECE	5-87220-196-0	01	1	1206-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-191-0	01	1	1206-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	5-87220-191-0	01	1	1206-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39)	5-87220-204-0	01	1	1206-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-207-0	01	1	1206-	●
82	05.517 SPIDER; DIFF PINION	5-87220-207-0	01	1	1206-		●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39)	5-87220-220-0	01	1	1206-	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-189-0	01	1	1206-	●
83	05.510 CAGE ASM; DIFF	5-87220-189-0	01	1	1206-		●
83	05.510 CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39)	5-87220-222-0	01	1	1206-	●
84	05.531 BOLT; FINAL DRIVE GEAR 1 SET=12 PIECE	5-87220-206-0	01	1	1206-	●	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 06.216	5-87220-063-0	12	1	1206-	●
85	05.510 NUT; DIFF CAGE SETTING 06.216	5-87220-063-0	12	1	1206-		●
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 05.815 (A)	5-87220-021-0	12	1	1206-	●
86	05.510 WASHER; PL,DIFF CAGE SETTING 05.815 (A)	5-87220-021-0	12	1	1206-		●
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (B)	5-87220-182-0	12	1	1206-	●
86	05.510 WASHER; PL,DIFF CAGE SETTING (B)	5-87220-182-0	12	1	1206-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	5-87220-216-0	01	1	1206-	●
88	05.506 PLATE; LK,ADJ NUT (B)	5-87220-216-0	01	1	1206-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	5-87220-217-0	01	1	1206-	●
88	05.506 PLATE; LK,ADJ NUT (A)	5-87220-217-0	01	1	1206-		●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-214-0	02	1	1206-	●
89	05.506 BOLT; LK PLATE	5-87220-214-0	02	1	1206-		●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-240-0	01	1	1206-	●
100	05.469 SEAL; OIL,FINAL PINION	5-87220-240-0	01	1	1206-		●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE STANDARD 244MM(R39)	5-87220-184-0	01	1	1206-	●
166	05.447 WASHER; PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-227-0	02	1	1206-	●
166	05.447 WASHER; PILOT BRG	5-87220-227-0	02	1	1206-		●
245	05.506 WASHER; PL,BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.453	5-87220-221-0	04	1	1206-	●
245	05.506 WASHER; PL,BRG CAP 05.453	5-87220-221-0	04	1	1206-		●
245	05.506 WASHER; PL,BRG CAP REAR AXLE STANDARD 244MM(R39)	5-87220-226-0	04	1	1206-	●
