4-20 — REAR AXLE CASE AND SHAFT (#95947) — 138 parça

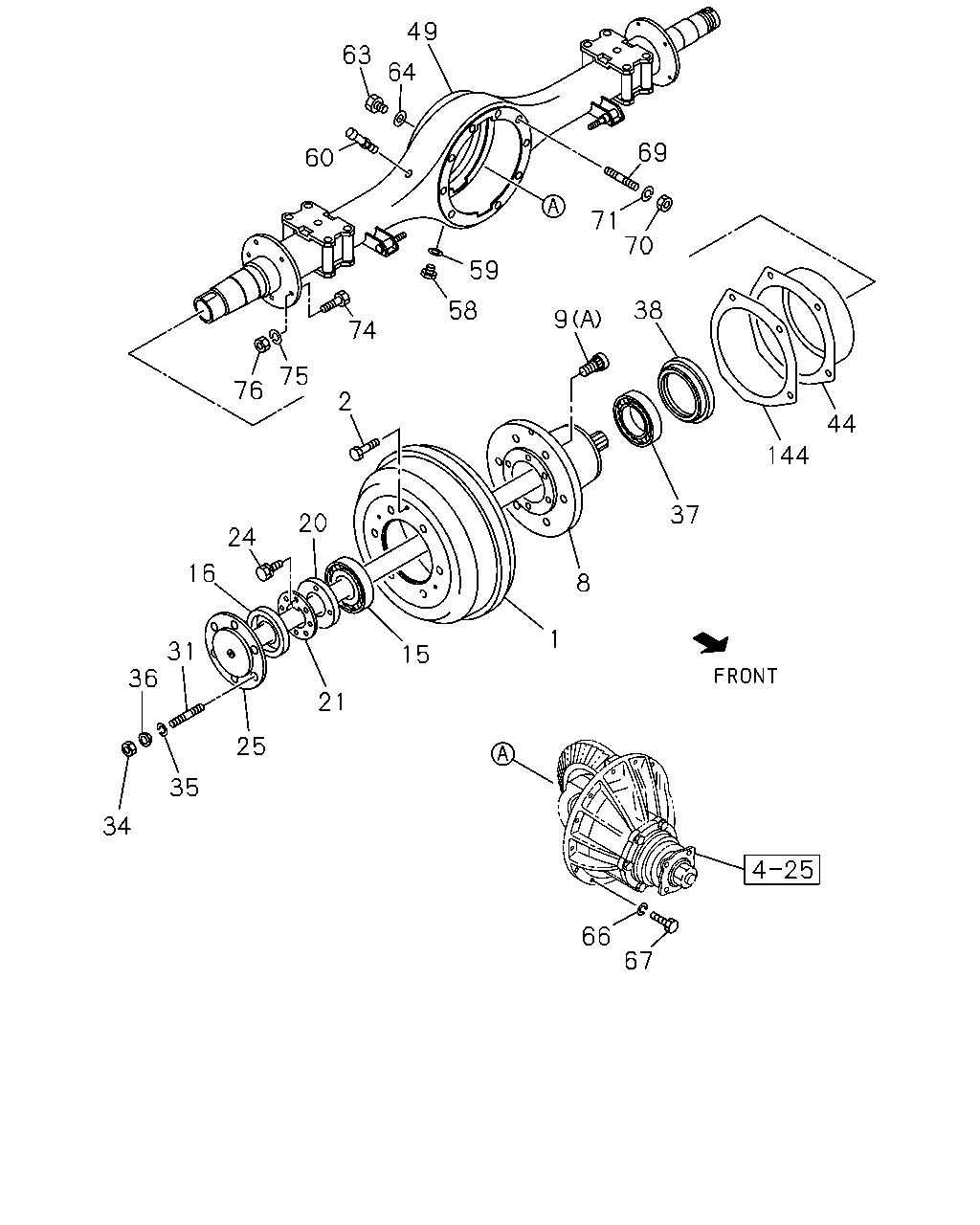

49 63 60 64 69 70 71 59 38 9 58 74 75 76 2 20 24 16 31 36 34 25 35 21 15 1 8 66 67 44 144 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-144-0	02	1	1206-	●
1	05.809 DRUM; BRK,RR	5-87220-144-0	02	1	1206-		●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39)	5-87220-145-0	02	1	1206-	●
2	05.812 BOLT; BRK DRUM REAR AXLE STANDARD 244MM(R39)	5-87220-149-0	02	1	1206-	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-146-0	02	1	1206-	●
8	05.809 HUB; RR AXLE	5-87220-146-0	02	1	1206-		●
8	05.809 HUB; RR AXLE REAR AXLE STANDARD 244MM(R39)	5-87220-143-0	02	1	1206-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (B)	5-87220-165-0	05	1	1206-	●
9	05.812 PIN; WHEEL,RR AXLE (B)	5-87220-165-0	05	1	1206-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (B)	5-87220-166-0	05	1	1206-	●
9	05.812 PIN; WHEEL,RR AXLE (B)	5-87220-166-0	05	1	1206-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) (A)	5-87220-134-0	06	1	1206-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) (A)	5-87220-135-0	06	1	1206-	●
15	05.855 BEARING; HUB OUTER,RR AXLE	5-87220-147-0	02	1	1206-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER	5-87220-155-0	02	1	1206-	●	●
20	05.830 NUT; BRG,RR HUB	5-87220-151-0	02	1	1206-	●	●
21	05.830 WASHER; LK,BRG NUT	5-87220-153-0	02	1	1206-	●	●
24	05.830 BOLT; LK WASHER REAR AXLE STANDARD 244MM(R39)	5-87220-551-0	04	1	1206-	●
24	05.830 BOLT; LK WASHER REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-150-0	04	1	1206-	●
24	05.830 BOLT; LK WASHER	5-87220-150-0	04	1	1206-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-157-0	02	1	1206-	●
25	05.420 SHAFT; AXLE,RR	5-87220-157-0	02	1	1206-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39)	5-87220-158-0	02	1	1206-	●
31	05.422 STUD; AXLE SHAFT TO HUB	5-87220-159-0	12	1	1206-	●	●
34	05.387 NUT; AXLE SHAFT REAR AXLE STANDARD 244MM(R39)	5-87220-550-0	12	1	1206-	●
34	05.387 NUT; AXLE SHAFT REAR AXLE HEAVY DUTY 292MM(G73) 06.216	5-87220-063-0	12	1	1206-	●
34	05.387 NUT; AXLE SHAFT 06.216	5-87220-063-0	12	1	1206-		●
35	05.830 WASHER; LK,HUB CAP	5-87220-161-0	12	1	1206-	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT 05.815	5-87220-021-0	12	1	1206-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE	5-87220-141-0	02	1	1206-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER	5-87220-139-0	02	1	1206-	●	●
44	05.815 CATCHER; OIL,RR AXLE SHAFT REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-133-0	02	1	1206-	●
44	05.815 CATCHER; OIL,RR AXLE SHAFT	5-87220-133-0	02	1	1206-		●
44	05.815 CATCHER; OIL,RR AXLE SHAFT REAR AXLE STANDARD 244MM(R39)	5-87220-131-0	01	1	1206-	●
44	05.815 CATCHER; OIL,RR AXLE SHAFT REAR AXLE STANDARD 244MM(R39)	5-87220-132-0	01	1	1206-	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-121-0	01	1	1206-	●
49	05.387 CASE; RR AXLE	5-87220-121-0	01	1	1206-		●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39)	5-87220-120-0	01	1	1206-	●
58	05.508 PLUG; DRAIN,AXLE CASE	5-87220-124-0	01	1	1206-	●	●
59	05.400 GASKET; DRAIN PLUG	5-87220-122-0	01	1	1206-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1206-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE	5-87220-112-0	01	1	1206-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE	5-87220-114-0	01	1	1206-	●	●
66	05.387 WASHER; LK REAR AXLE HEAVY DUTY 292MM(G73) 05.815	5-87220-021-0	13	1	1206-	●
66	05.387 WASHER; LK 05.815	5-87220-021-0	13	1	1206-		●
66	05.387 WASHER; LK REAR AXLE STANDARD 244MM(R39) 06.216	5-87220-064-0	08	1	1206-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-167-0	04	1	1206-	●
67	05.387 BOLT; FINAL DRIVE SETTING	5-87220-167-0	04	1	1206-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-168-0	07	1	1206-	●
67	05.387 BOLT; FINAL DRIVE SETTING	5-87220-168-0	07	1	1206-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) L=32	5-87220-167-0	07	1	1206-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) L=38	5-87220-168-0	01	1	1206-	●
69	05.387 STUD; AXLE CASE	5-87220-118-0	02	1	1206-	●	●
70	05.387 NUT; CARRIER 06.216	5-87220-063-0	02	1	1206-	●	●
71	05.389 WASHER; LK,FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39)	5-87220-549-0	02	1	1206-	●
71	05.389 WASHER; LK,FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 05.815	5-87220-021-0	02	1	1206-	●
71	05.389 WASHER; LK,FINAL DRIVE SETTING 05.815	5-87220-021-0	02	1	1206-		●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-127-0	12	1	1206-	●
74	05.002 BOLT; RR BRK ASM SETTING	5-87220-127-0	12	1	1206-		●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39)	5-87220-126-0	12	1	1206-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73) 05.815	5-87220-021-0	12	1	1206-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 05.815	5-87220-021-0	12	1	1206-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) 06.216	5-87220-064-0	12	1	1206-	●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) 05.387	5-87220-550-0	12	1	1206-	●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73) 06.216	5-87220-063-0	12	1	1206-	●
76	05.002 NUT; RR BRK ASM SETTING 06.216	5-87220-063-0	12	1	1206-		●
144	05.830 GASKET; OIL CATCHER REAR AXLE STANDARD 244MM(R39)	5-87220-129-0	02	1	1206-	●

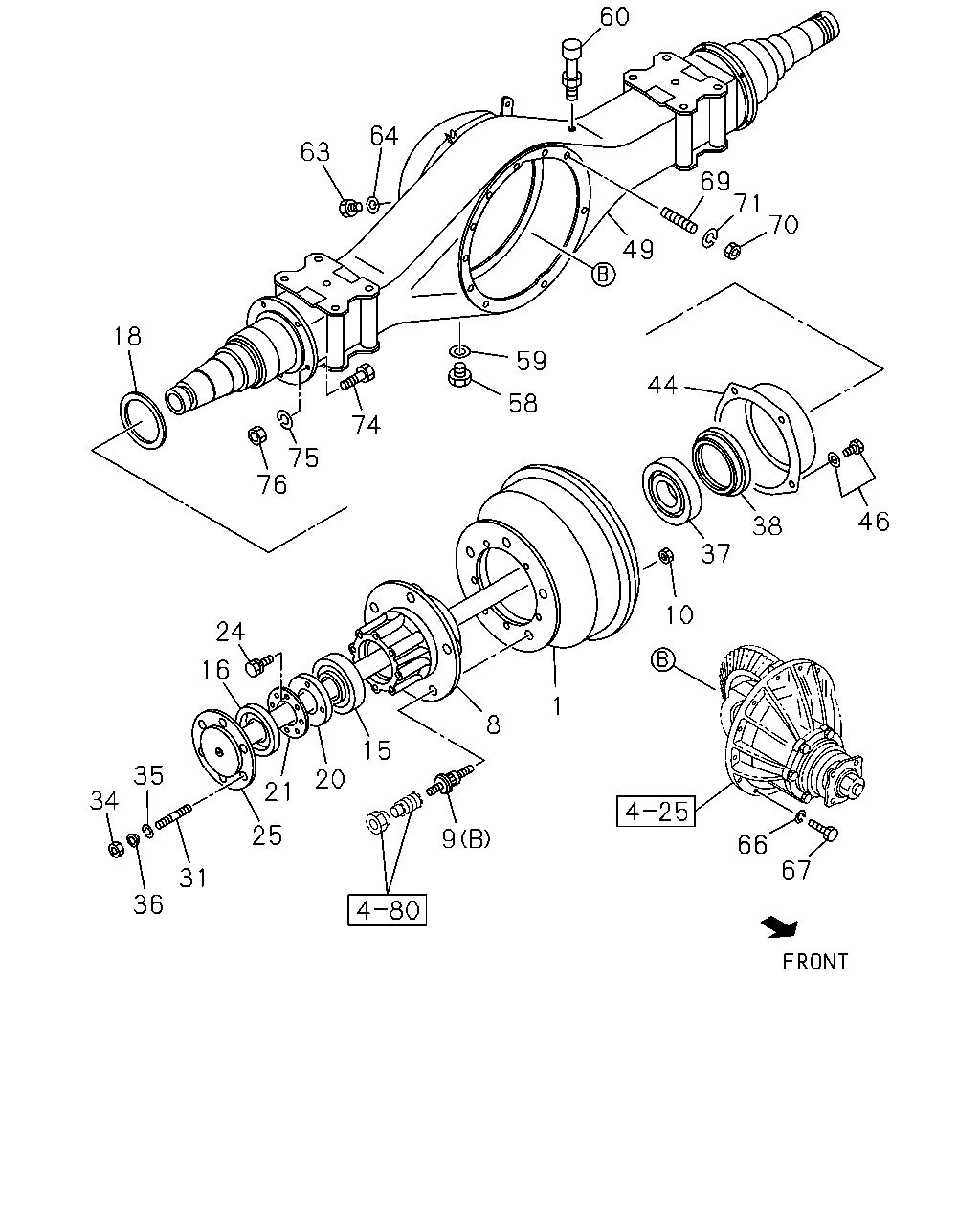

36 31 25 21 20 34 35 16 24 15 9 8 1 66 67 10 37 38 46 44 58 59 74 75 76 18 63 64 60 69 71 70 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-144-0	02	1	1206-	●
1	05.809 DRUM; BRK,RR	5-87220-144-0	02	1	1206-		●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39)	5-87220-145-0	02	1	1206-	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-146-0	02	1	1206-	●
8	05.809 HUB; RR AXLE	5-87220-146-0	02	1	1206-		●
8	05.809 HUB; RR AXLE REAR AXLE STANDARD 244MM(R39)	5-87220-143-0	02	1	1206-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (B)	5-87220-165-0	05	1	1206-	●
9	05.812 PIN; WHEEL,RR AXLE (B)	5-87220-165-0	05	1	1206-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (B)	5-87220-166-0	05	1	1206-	●
9	05.812 PIN; WHEEL,RR AXLE (B)	5-87220-166-0	05	1	1206-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) (A)	5-87220-134-0	06	1	1206-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) (A)	5-87220-135-0	06	1	1206-	●
10	05.813 NUT; WHEEL PIN,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-169-0	10	1	1206-	●
10	05.813 NUT; WHEEL PIN,RR AXLE	5-87220-169-0	10	1	1206-		●
15	05.855 BEARING; HUB OUTER,RR AXLE	5-87220-147-0	02	1	1206-	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER	5-87220-155-0	02	1	1206-	●	●
18	05.822 RETAINER; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 05.387	5-87220-130-0	02	1	1206-	●
18	05.822 RETAINER; RR AXLE 05.387	5-87220-130-0	02	1	1206-		●
20	05.830 NUT; BRG,RR HUB	5-87220-151-0	02	1	1206-	●	●
21	05.830 WASHER; LK,BRG NUT	5-87220-153-0	02	1	1206-	●	●
24	05.830 BOLT; LK WASHER REAR AXLE STANDARD 244MM(R39)	5-87220-551-0	04	1	1206-	●
24	05.830 BOLT; LK WASHER REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-150-0	04	1	1206-	●
24	05.830 BOLT; LK WASHER	5-87220-150-0	04	1	1206-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-157-0	02	1	1206-	●
25	05.420 SHAFT; AXLE,RR	5-87220-157-0	02	1	1206-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39)	5-87220-158-0	02	1	1206-	●
31	05.422 STUD; AXLE SHAFT TO HUB	5-87220-159-0	12	1	1206-	●	●
34	05.387 NUT; AXLE SHAFT REAR AXLE STANDARD 244MM(R39)	5-87220-550-0	12	1	1206-	●
34	05.387 NUT; AXLE SHAFT REAR AXLE HEAVY DUTY 292MM(G73) 06.216	5-87220-063-0	12	1	1206-	●
34	05.387 NUT; AXLE SHAFT 06.216	5-87220-063-0	12	1	1206-		●
35	05.830 WASHER; LK,HUB CAP	5-87220-161-0	12	1	1206-	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT 05.815	5-87220-021-0	12	1	1206-	●	●
37	05.855 BEARING; HUB INNER,RR AXLE	5-87220-141-0	02	1	1206-	●	●
38	05.822 SEAL; OIL,RR HUB,INNER	5-87220-139-0	02	1	1206-	●	●
44	05.815 CATCHER; OIL,RR AXLE SHAFT REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-133-0	02	1	1206-	●
44	05.815 CATCHER; OIL,RR AXLE SHAFT	5-87220-133-0	02	1	1206-		●
44	05.815 CATCHER; OIL,RR AXLE SHAFT REAR AXLE STANDARD 244MM(R39)	5-87220-131-0	01	1	1206-	●
44	05.815 CATCHER; OIL,RR AXLE SHAFT REAR AXLE STANDARD 244MM(R39)	5-87220-132-0	01	1	1206-	●
46	05.815 BOLT; OIL CATCHER,RR AXLE SHAFT REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-138-0	10	1	1206-	●
46	05.815 BOLT; OIL CATCHER,RR AXLE SHAFT	5-87220-138-0	10	1	1206-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-121-0	01	1	1206-	●
49	05.387 CASE; RR AXLE	5-87220-121-0	01	1	1206-		●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39)	5-87220-120-0	01	1	1206-	●
58	05.508 PLUG; DRAIN,AXLE CASE	5-87220-124-0	01	1	1206-	●	●
59	05.400 GASKET; DRAIN PLUG	5-87220-122-0	01	1	1206-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1206-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE	5-87220-112-0	01	1	1206-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE	5-87220-114-0	01	1	1206-	●	●
66	05.387 WASHER; LK REAR AXLE HEAVY DUTY 292MM(G73) 05.815	5-87220-021-0	13	1	1206-	●
66	05.387 WASHER; LK 05.815	5-87220-021-0	13	1	1206-		●
66	05.387 WASHER; LK REAR AXLE STANDARD 244MM(R39) 06.216	5-87220-064-0	08	1	1206-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-167-0	04	1	1206-	●
67	05.387 BOLT; FINAL DRIVE SETTING	5-87220-167-0	04	1	1206-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-168-0	07	1	1206-	●
67	05.387 BOLT; FINAL DRIVE SETTING	5-87220-168-0	07	1	1206-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) L=32	5-87220-167-0	07	1	1206-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) L=38	5-87220-168-0	01	1	1206-	●
69	05.387 STUD; AXLE CASE	5-87220-118-0	02	1	1206-	●	●
70	05.387 NUT; CARRIER 06.216	5-87220-063-0	02	1	1206-	●	●
71	05.389 WASHER; LK,FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39)	5-87220-549-0	02	1	1206-	●
71	05.389 WASHER; LK,FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 05.815	5-87220-021-0	02	1	1206-	●
71	05.389 WASHER; LK,FINAL DRIVE SETTING 05.815	5-87220-021-0	02	1	1206-		●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73)	5-87220-127-0	12	1	1206-	●
74	05.002 BOLT; RR BRK ASM SETTING	5-87220-127-0	12	1	1206-		●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39)	5-87220-126-0	12	1	1206-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73) 05.815	5-87220-021-0	12	1	1206-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 05.815	5-87220-021-0	12	1	1206-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) 06.216	5-87220-064-0	12	1	1206-	●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) 05.387	5-87220-550-0	12	1	1206-	●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73) 06.216	5-87220-063-0	12	1	1206-	●
76	05.002 NUT; RR BRK ASM SETTING 06.216	5-87220-063-0	12	1	1206-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
