◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#95946) — 29 parça

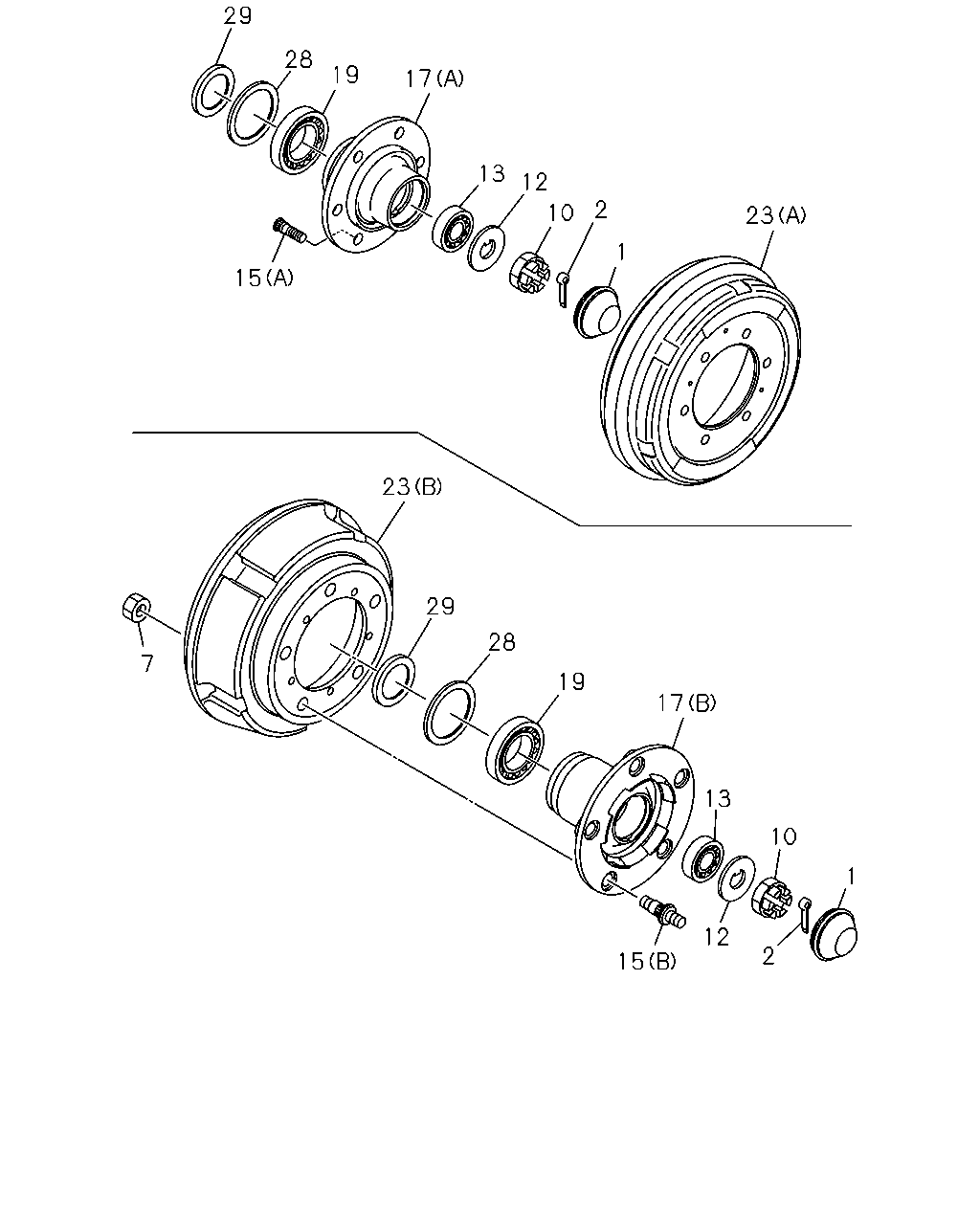

çizim 288425
29 28 19 17 15 13 12 10 2 1 23 23 7 29 28 19 17 13 10 1 12 2 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.330 CAP; HUB,FRT AXLE 5-87220-079-0 02 1 1206- ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT 5-87220-080-0 02 1 1206- ● ●
7 05.812 NUT; FRT HUB 5-87220-081-0 10 1 1206- ● ●
10 05.812 NUT; FRT HUB BRG 5-87220-082-0 02 1 1206- ● ●
12 06.321 WASHER; LK,FRT HUB BRG 5-87220-083-0 02 1 1206- ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE 5-87220-084-0 02 1 1206- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) 		5-87220-085-0 06 1 1206- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) 		5-87220-086-0 06 1 1206- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 7R-15-8 5.5FX15-115(57H) (B) 		5-87220-087-0 05 1 1206-1206 ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) 		5-87220-087-0 05 1 1206-1206 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-15-8 5.5FX15-115(57H) (B) 		5-87220-087-0 05 1 1207- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) 		5-87220-087-0 05 1 1207- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 7R-15-8 5.5FX15-115(57H) (B) 		5-87220-088-0 05 1 1206-1206 ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) 		5-87220-088-0 05 1 1206-1206 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-15-8 5.5FX15-115(57H) (B) 		5-87220-088-0 05 1 1207- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) 		5-87220-088-0 05 1 1207- ●
17 06.307 HUB; FRT AXLE
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) 		5-87220-089-0 02 1 1206- ●
17 06.307 HUB; FRT AXLE
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 7R-15-8 5.5FX15-115(57H) (B) 		5-87220-090-0 02 1 1206-1206 ●
17 06.307 HUB; FRT AXLE
(B) 		5-87220-090-0 02 1 1206-1206 ●
17 06.307 HUB; FRT AXLE
FRT&RR 7R-15-8 5.5FX15-115(57H) (B) 		5-87220-090-0 02 1 1207- ●
17 06.307 HUB; FRT AXLE
(B) 		5-87220-090-0 02 1 1207- ●
19 06.311 BEARING; HUB INNER,FRT AXLE 5-87220-091-0 02 1 1206- ● ●
23 05.809 DRUM; BRK,FRT
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) 		5-87220-093-0 02 1 1206- ●
23 05.809 DRUM; BRK,FRT
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 7R-15-8 5.5FX15-115(57H) (B) 		5-87220-094-0 02 1 1206-1206 ●
23 05.809 DRUM; BRK,FRT
(B) 		5-87220-094-0 02 1 1206-1206 ●
23 05.809 DRUM; BRK,FRT
FRT&RR 7R-15-8 5.5FX15-115(57H) (B) 		5-87220-094-0 02 1 1207- ●
23 05.809 DRUM; BRK,FRT
(B) 		5-87220-094-0 02 1 1207- ●
28 06.326 SEAL; OIL,FRT HUB 5-87220-095-0 02 1 1206- ● ●
29 06.326 DISTANCE PIECE; HUB BRKT 5-87220-096-0 02 1 1206- ● ●
