Isuzu WW
▶
TRUCKS
▶
QKR
▶
51422 - QKR LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-10 - FRONT AXLE
▶
4-10 — FRONT AXLE
(#95945) — 39 parça
Tümü
A - NKR6SE
B - NKR6SN
◀

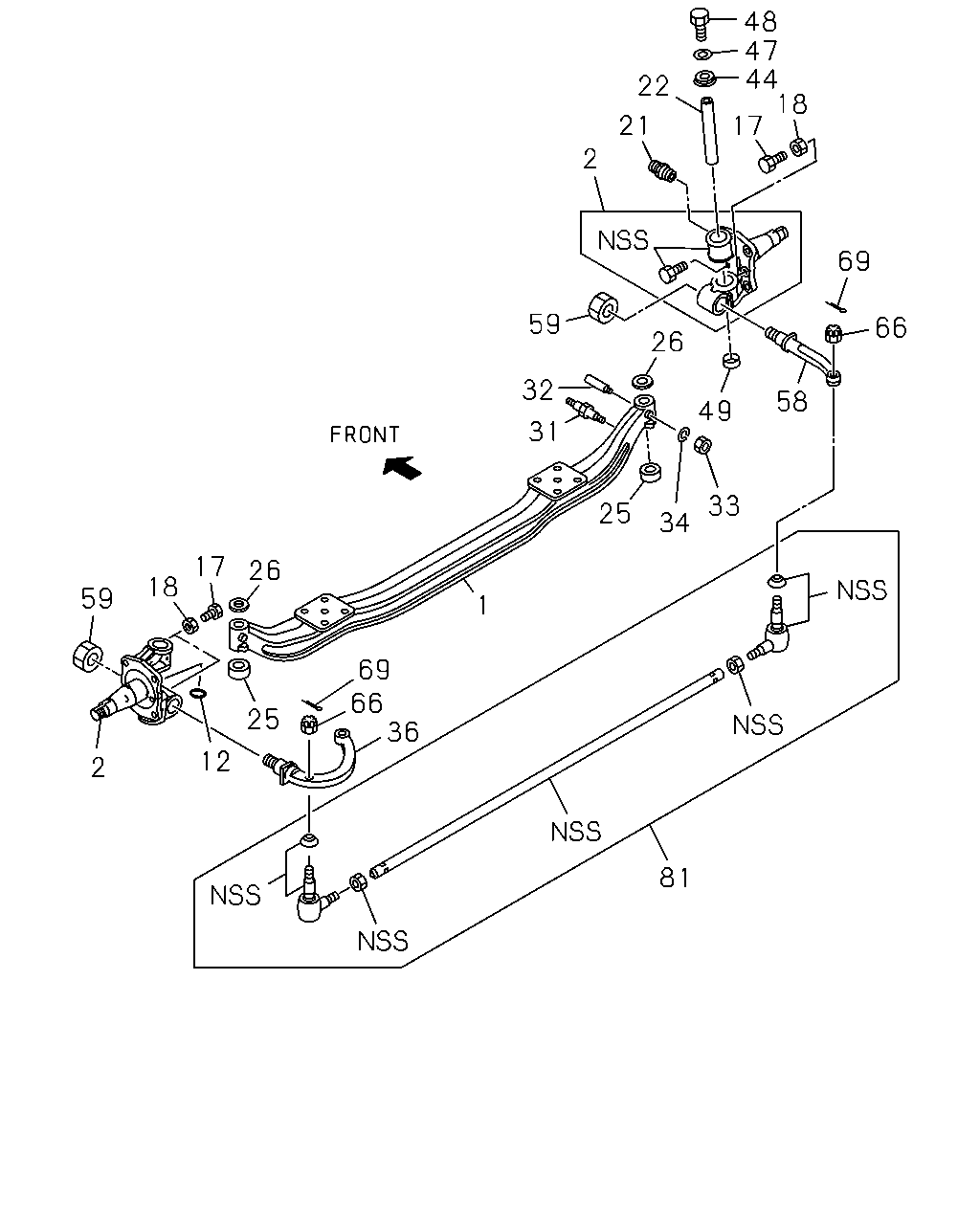

[410A] FRONT AXLE (26 parça)

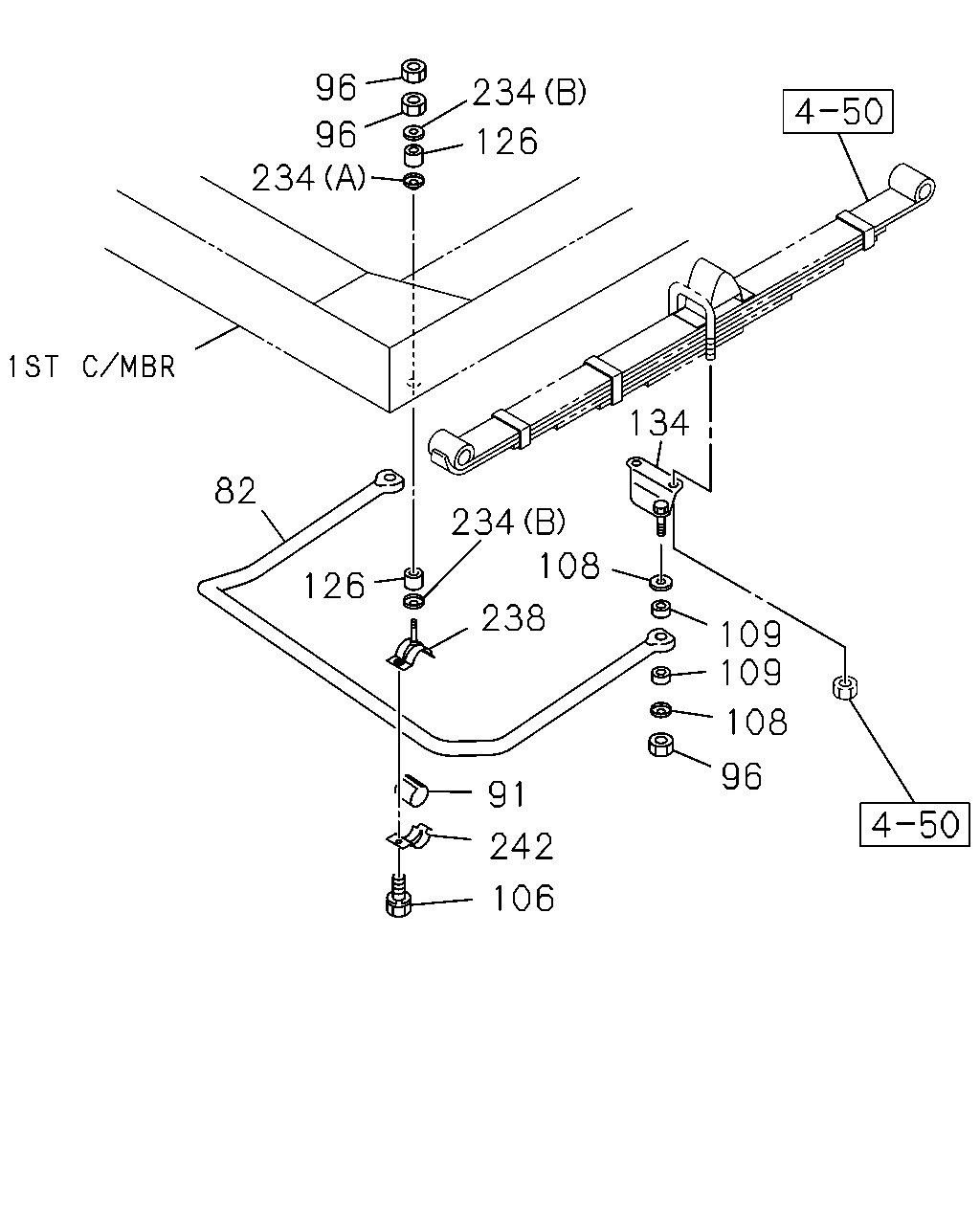

[410A] FRONT STABILIZER (13 parça)
▶
81
33
34
25
49
58
69
66
26
31
32
59
36
66
69
1
26
17
25
18
59
2
12
17
18
44
47
48
22
21
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
06.008 AXLE; FRT
5-87220-050-0
01
1
1206-
●
●
2
06.020 KNUCKLE; FRT AXLE
5-87220-051-0
01
1
1206-
●
●
2
06.020 KNUCKLE; FRT AXLE
5-87220-052-0
01
1
1206-
●
●
12
06.021 GASKET; KNUCKLE
5-87220-054-0
02
1
1206-
●
●
17
06.009 BOLT; STOPPER KNUCKLE
5-87220-056-0
03
1
1206-
●
●
18
06.216 NUT; STOPPER BOLT,KNUCKLE
5-87220-057-0
03
1
1206-
●
●
21
06.166 NIPPLE; GREASE,KING PIN
5-87220-058-0
04
1
1206-
●
●
22
06.203 PIN; KING,FRT AXLE
5-87220-471-0
02
1
1206-
●
●
25
06.210 BEARING; THRUST,KING PIN
5-87220-059-0
01
1
1206-
●
●
26
06.022 SHIM; KING PIN,BRG
T=0.6
5-87220-531-0
AR
1
1206-
●
●
26
06.022 SHIM; KING PIN,BRG
T=0.7
5-87220-532-0
AR
1
1206-
●
●
26
06.022 SHIM; KING PIN,BRG
T=0.5
5-87220-060-0
AR
1
1206-
●
●
31
07.347 PIN; S/ABS,LWR
5-87220-061-0
02
1
1206-
●
●
32
06.216 BOLT; KEY,KING PIN
5-87220-062-0
02
1
1206-
●
●
33
06.216 NUT; KEY BOLT
5-87220-063-0
02
1
1206-
●
●
34
06.216 WASHER; LK,KEY BOLT
5-87220-064-0
02
1
1206-
●
●
36
06.103 ARM; KNUCKLE
5-87220-065-0
01
1
1206-
●
●
44
06.225 COVER; KING PIN
5-87220-066-0
02
1
1206-
●
●
47
06.225 WASHER; PL,COVER,KING PIN
5-87220-067-0
02
1
1206-
●
●
48
06.225 BOLT; COVER
5-87220-068-0
02
1
1206-
●
●
49
06.225 CAP; KNUCKLE
5-87220-069-0
02
1
1206-
●
●
58
06.103 ARM; TIE ROD
5-87220-070-0
01
1
1206-
●
●
59
06.104 NUT; TIE ROD ARM
5-87220-071-0
02
1
1206-
●
●
66
06.234 NUT; TIE ROD END
5-87220-074-0
02
1
1206-
●
●
69
06.255 PIN; SPLIT,TIE ROD END
5-87220-075-0
02
1
1206-
●
●
81
06.230 ROD; TIE
5-87220-078-0
01
1
1206-
●
●
106
242
91
96
108
109
109
238
108
234
126
82
134
126
234
96
96
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
82
07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD)
8-97170-624-1
01
1
1206-
●
91
07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD)
8-97170-752-0
02
1
1206-
●
96
07.242 NUT; STAB BAR TO CONT ARM
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) 03.704 M10 LOCK NUT
0-91370-010-0
02
1
1206-
●
106
06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) 04.439 M10X30 W/LK WASHER
0-50541-030-0
02
1
1206-
●
108
07.242 CAP
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD)
8-97170-631-0
04
1
1206-
●
109
07.244 BUFFER; STAB BAR
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD)
8-97170-622-0
04
1
1206-
●
126
07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) 07.244
5-51631-017-0
04
1
1206-
●
134
07.242 BRACKET; STAB TO AXLE
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD)
8-97304-055-0
01
1
1206-
●
134
07.242 BRACKET; STAB TO AXLE
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD)
8-97304-056-0
01
1
1206-
●
234
07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) (A) ID=15.0 OD=32
8-97387-669-0
02
1
1206-
●
234
07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) 07.245 (B)
9-51779-027-0
04
1
1206-
●
238
07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) 07.242
8-97170-751-0
02
1
1206-
●
242
07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD)
8-97170-746-0
02
1
1206-
●
