4-01 — PROPELLER SHAFT (#95944) — 79 parça

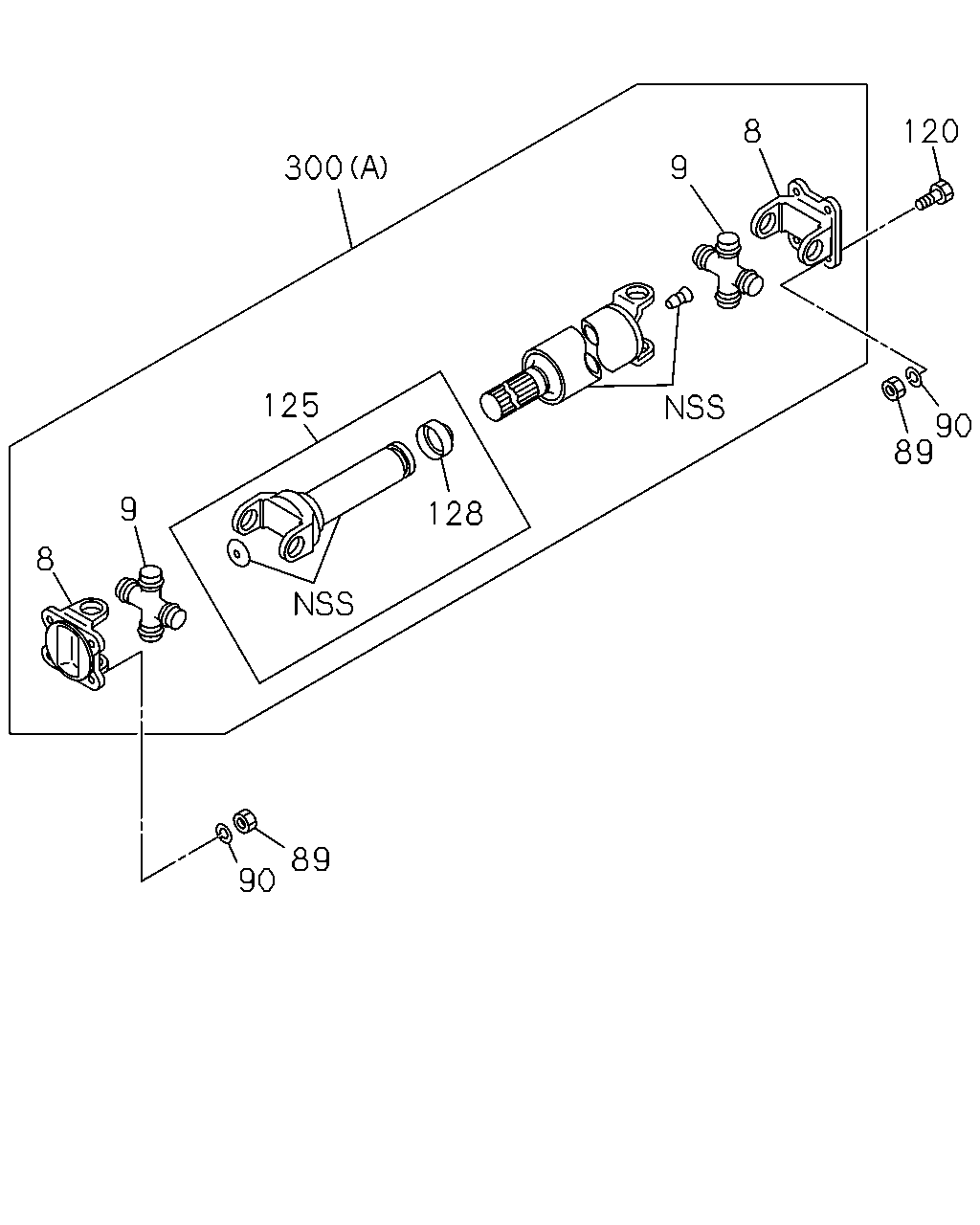

120 90 89 9 8 300 125 128 9 8 90 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W)	5-87220-027-0	AR	1	1206-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-027-0	AR	1	1206-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-027-0	AR	1	1206-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2700MM(27W)	8-97211-116-0	02	1	1206-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 2400MM(24W)	5-87220-028-0	AR	1	1206-	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-028-0	AR	1	1206-		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-028-0	AR	1	1206-		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 2700MM(27W)	8-97211-135-0	02	1	1206-	●	●
89	05.586 NUT; YOKE TO RR AXLE M10	8-98056-949-0	08	1	1206-	●	●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W) M10	8-98056-949-0	04	1	1206-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	0-91510-610-0	08	1	1206-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 3300MM(33W) 00.002 ID=10.2	0-91510-610-0	04	1	1206-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	04	1	1206-	●	●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W) M10X29	8-98056-948-0	04	1	1206-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2700MM(27W) L=177	8-97211-131-0	01	1	1206-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	5-87220-042-0	01	1	1206-	●	●
128	05.586 SEAL; SLEEVE WHEEL BASE 2700MM(27W) 05.545	8-97020-597-1	01	1	1206-	●	●
128	05.586 SEAL; SLEEVE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	5-87220-045-0	01	1	1206-	●	●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2700MM(27W) (B) L=1374	8-97287-574-0	01	1	1206-	●	●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) (A) L=1084	8-97693-025-0	01	1	1206-	●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=908	8-97693-026-0	01	1	1206-		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (D) L=1044	8-97693-027-0	01	1	1206-		●

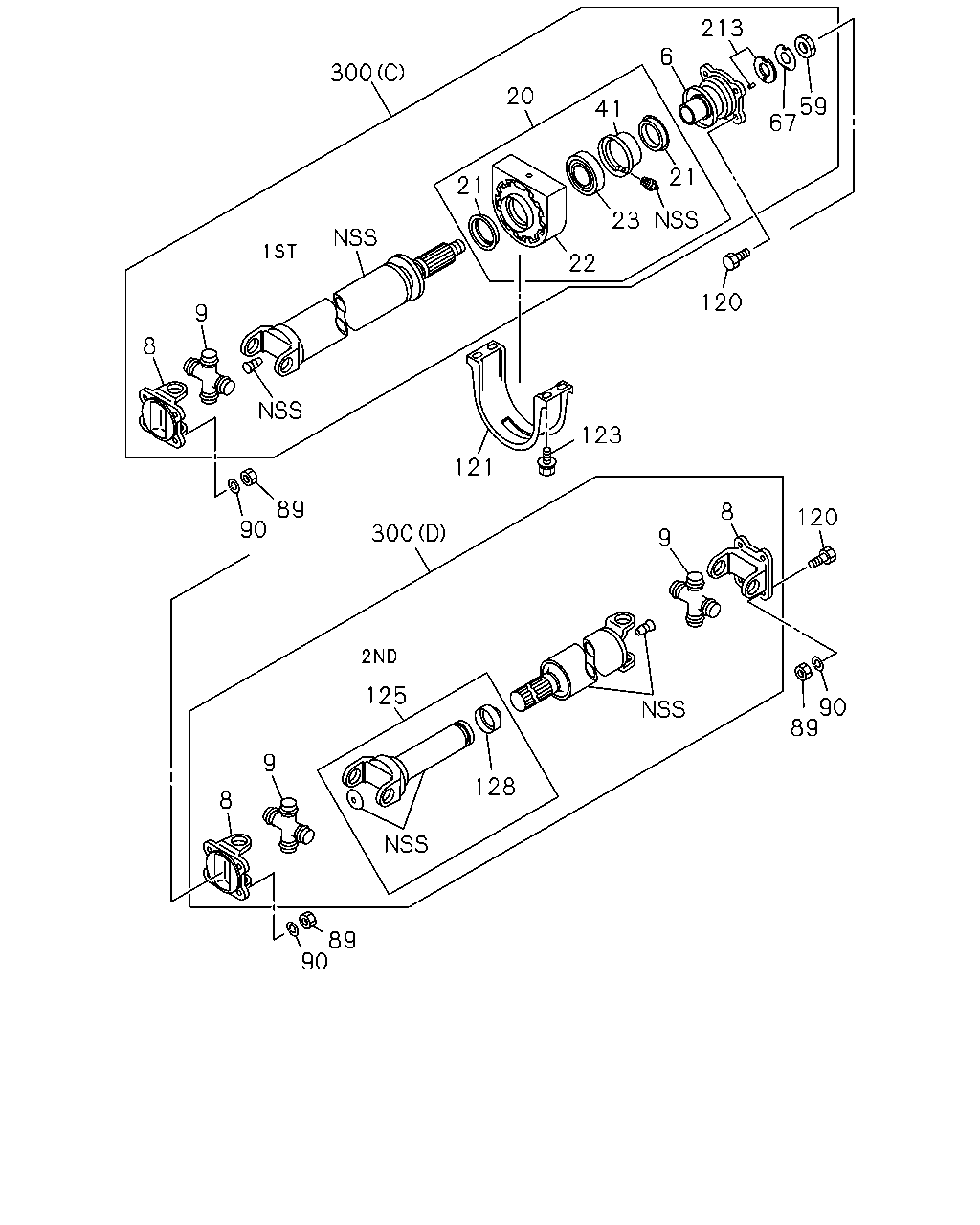

90 89 128 125 9 8 9 8 120 89 90 123 121 300 89 90 8 9 21 22 23 120 21 41 20 300 6 213 67 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-026-0	01	1	1206-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W)	5-87220-027-0	AR	1	1206-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-027-0	AR	1	1206-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-027-0	AR	1	1206-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2700MM(27W)	8-97211-116-0	02	1	1206-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 2400MM(24W)	5-87220-028-0	AR	1	1206-	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-028-0	AR	1	1206-		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-028-0	AR	1	1206-		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 2700MM(27W)	8-97211-135-0	02	1	1206-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-030-0	01	1	1206-		●
21	05.590 SEAL; OIL,CENTER BRG WHEEL BASE 3300MM(33W)	5-87220-031-0	02	1	1206-		●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST WHEEL BASE 3300MM(33W)	5-87220-032-0	01	1	1206-		●
23	05.600 BEARING; CENTER,PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-033-0	01	1	1206-		●
41	05.601 COVER; CENTER BRG,PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-034-0	01	1	1206-		●
59	05.586 NUT; RET TO SUPPORT WHEEL BASE 3300MM(33W)	5-87220-035-0	01	1	1206-		●
67	05.586 WASHER; PROP SHAFT TO COUPLING D WHEEL BASE 3300MM(33W)	5-87220-036-0	01	1	1206-		●
89	05.586 NUT; YOKE TO RR AXLE M10	8-98056-949-0	08	1	1206-	●	●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W) M10	8-98056-949-0	04	1	1206-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	0-91510-610-0	08	1	1206-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 3300MM(33W) 00.002 ID=10.2	0-91510-610-0	04	1	1206-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	04	1	1206-	●	●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W) M10X29	8-98056-948-0	04	1	1206-		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	1206-		●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1206-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2700MM(27W) L=177	8-97211-131-0	01	1	1206-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	5-87220-042-0	01	1	1206-	●	●
128	05.586 SEAL; SLEEVE WHEEL BASE 2700MM(27W) 05.545	8-97020-597-1	01	1	1206-	●	●
128	05.586 SEAL; SLEEVE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	5-87220-045-0	01	1	1206-	●	●
213	05.586 WASHER ASM; PROP SHAFT TO COUPLI WHEEL BASE 3300MM(33W)	5-87220-046-0	01	1	1206-		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2700MM(27W) (B) L=1374	8-97287-574-0	01	1	1206-	●	●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) (A) L=1084	8-97693-025-0	01	1	1206-	●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=908	8-97693-026-0	01	1	1206-		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (D) L=1044	8-97693-027-0	01	1	1206-		●

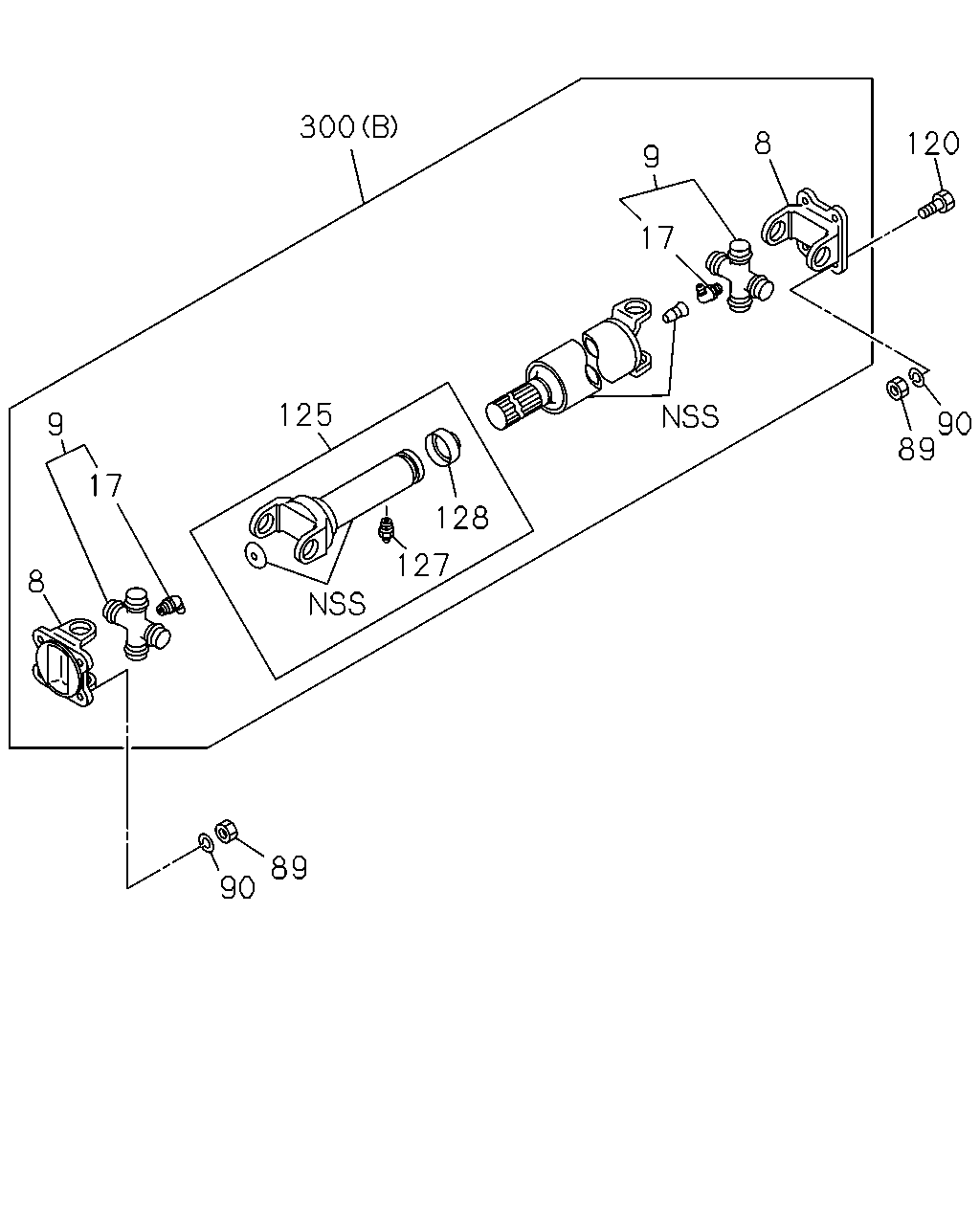

300 125 9 17 8 90 89 127 128 17 9 8 89 90 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W)	5-87220-027-0	AR	1	1206-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-027-0	AR	1	1206-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-027-0	AR	1	1206-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2700MM(27W)	8-97211-116-0	02	1	1206-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 2400MM(24W)	5-87220-028-0	AR	1	1206-	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-028-0	AR	1	1206-		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	5-87220-028-0	AR	1	1206-		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 2700MM(27W)	8-97211-135-0	02	1	1206-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 2700MM(27W) M6 STRAIGHT	0-90301-406-0	02	1	1206-	●	●
89	05.586 NUT; YOKE TO RR AXLE M10	8-98056-949-0	08	1	1206-	●	●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W) M10	8-98056-949-0	04	1	1206-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	0-91510-610-0	08	1	1206-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 3300MM(33W) 00.002 ID=10.2	0-91510-610-0	04	1	1206-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	04	1	1206-	●	●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W) M10X29	8-98056-948-0	04	1	1206-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2700MM(27W) L=177	8-97211-131-0	01	1	1206-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	5-87220-042-0	01	1	1206-	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2700MM(27W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1206-	●	●
128	05.586 SEAL; SLEEVE WHEEL BASE 2700MM(27W) 05.545	8-97020-597-1	01	1	1206-	●	●
128	05.586 SEAL; SLEEVE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	5-87220-045-0	01	1	1206-	●	●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2700MM(27W) (B) L=1374	8-97287-574-0	01	1	1206-	●	●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) (A) L=1084	8-97693-025-0	01	1	1206-	●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=908	8-97693-026-0	01	1	1206-		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (D) L=1044	8-97693-027-0	01	1	1206-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
