3-58 — FIXING PARTS; OIL PIPING (#95942) — 21 parça

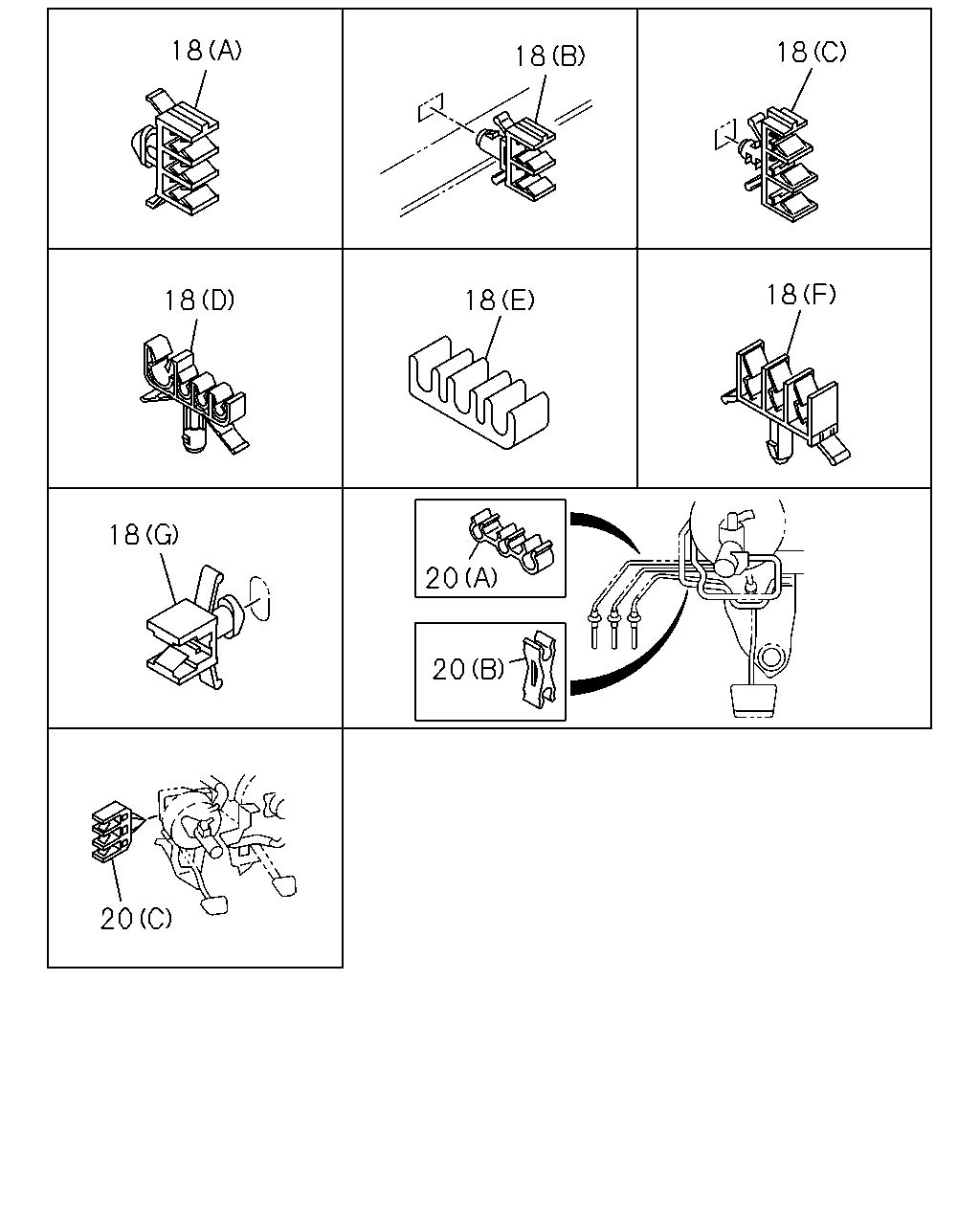

çizim 288397
18 18 18 18 18 18 18 20 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B) ID=4.8X2 		8-94316-410-0 02 1 1206- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (D) ID=10 & 4.76X3 		8-97168-820-0 02 1 1206- ●
18 04.686 CLIP; BRK PIPE
03.162 (C) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1206- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.162 (C) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1206- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W) 03.162 (C) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1206- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (C) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1206- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W) (B) ID=4.8X2 		8-94316-410-0 03 1 1206- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W) (B) ID=4.8X2 		8-94316-410-0 01 1 1206- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) ID=4.8X2 		8-94316-410-0 01 1 1206- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W) (G) ID=4.8 H=26 		8-94249-685-0 02 1 1206- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (G) ID=4.8 H=26 		8-94249-685-0 02 1 1206- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (G) ID=4.8 H=26 		8-94249-685-0 02 1 1206- ●
18 04.686 CLIP; BRK PIPE
(G) ID=4.8 H=26 		8-94249-685-0 01 1 1206- ● ●
18 04.686 CLIP; BRK PIPE
(G) ID=4.8 H=26 		8-94249-685-0 01 1 1206- ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 1206- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (F) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 1206- ●
18 04.686 CLIP; BRK PIPE
04.685 (E) ID=4.76X3 		8-94122-333-0 01 1 1206- ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 1206- ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 1206- ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 1206- ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 1206- ● ●
