3-55 — BRAKE PIPING; OIL,REAR (#95941) — 13 parça

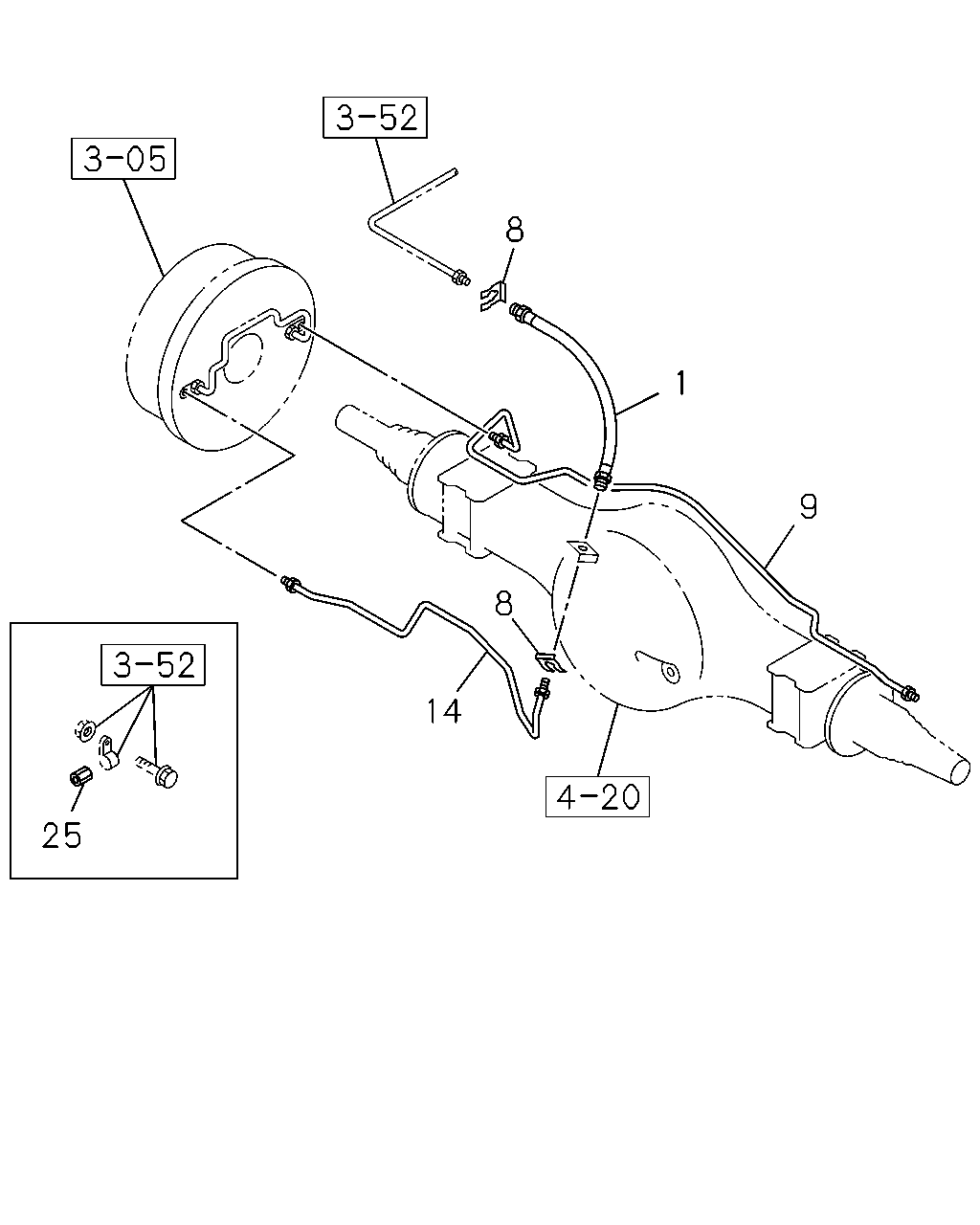

çizim 288389
8 1 9 8 14 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 1206- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1206- ● ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. SINGLE RR TIRE(6TD) 		8-97034-530-0 01 1 1206-1307 ●
9 04.685 PIPE; BRK,RR AXLE 8-97034-530-0 01 1 1206-1307 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-97034-530-0 01 1 1308- ●
9 04.685 PIPE; BRK,RR AXLE 8-97034-530-0 01 1 1308- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98179-690-0 01 1 1206- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. SINGLE RR TIRE(6TD) 		8-97070-590-0 01 1 1206-1307 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 1206-1307 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) EXC. SINGLE RR TIRE(6TD) 		8-97070-590-0 01 1 1308- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 1308- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98179-689-0 01 1 1206- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1206- ● ●
