◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#95940) — 17 parça

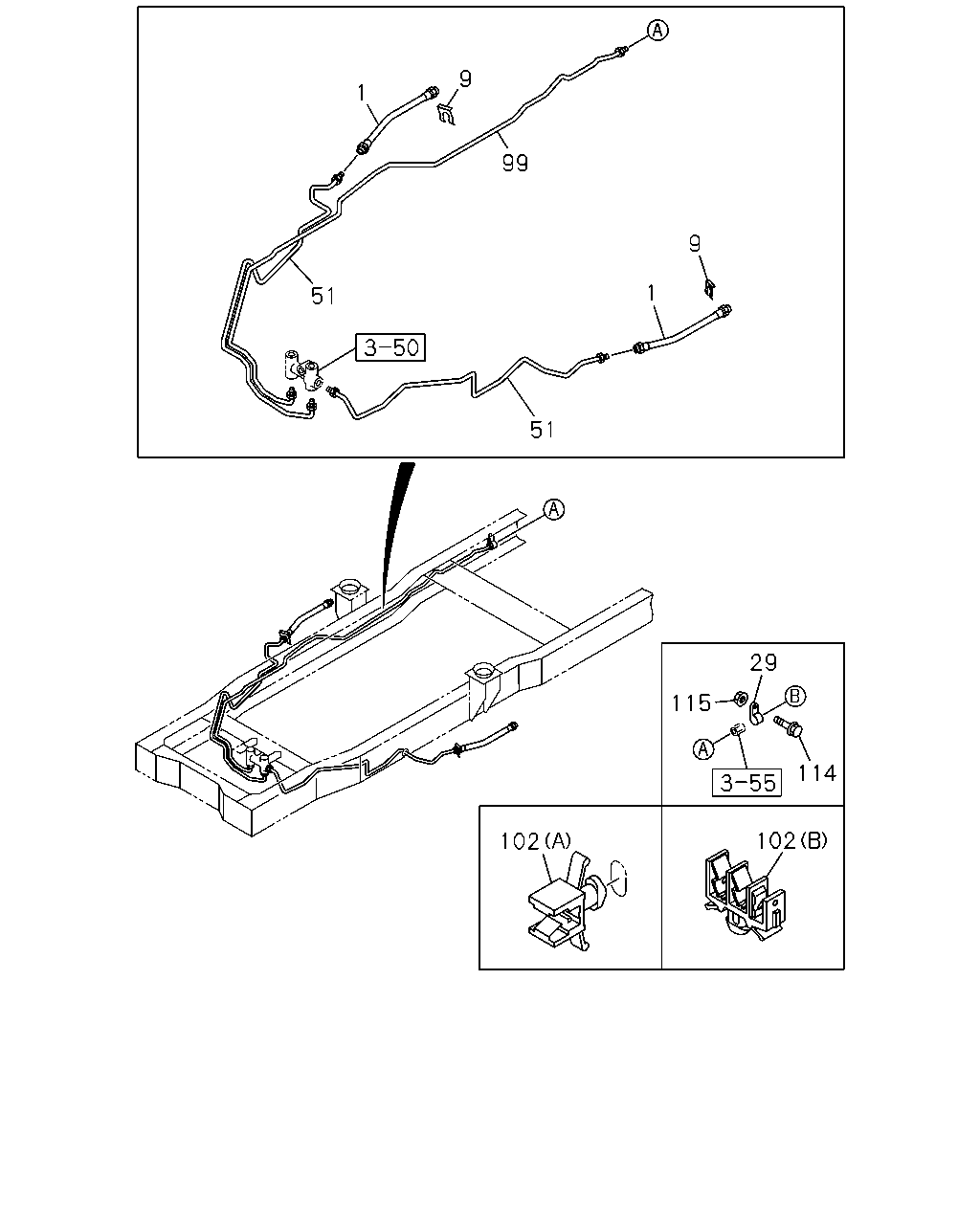

çizim 288383
1 9 99 51 9 1 51 102 102 114 115 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 1206- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1206- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1206- ● ●
29 04.686 CLIP; UNION
ID=16 L=20 		0-95235-532-0 01 1 1206- ● ●
51 04.685 PIPE; BRK 8-97077-519-3 01 1 1206- ● ●
51 04.685 PIPE; BRK 8-97091-666-3 01 1 1206- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 05.476 		8-97300-283-0 01 1 1206- ●
99 04.686 PIPE ASM; 4/5/6 WAY
WHEEL BASE 2700MM(27W) 05.476 		8-97070-368-3 01 1 1206- ●
99 04.686 PIPE ASM; 4/5/6 WAY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 05.476 		8-97070-368-3 01 1 1206- ●
102 04.686 CLIP; PIPE
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 1206- ●
102 04.686 CLIP; PIPE
WHEEL BASE 2700MM(27W) (A) ID=4.8 H=26 		8-94249-685-0 01 1 1206- ●
102 04.686 CLIP; PIPE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A) ID=4.8 H=26 		8-94249-685-0 01 1 1206- ●
114 04.685 BOLT; CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1206- ● ●
115 04.680 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1206- ● ●
çizim 289587
52
BalonParca AdiParca NoAdetTipApplied Date A B
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 		8-97300-213-0 01 1 1206- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) L=2132 		8-98187-160-1 01 1 1206- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 		8-97178-897-0 01 1 1206- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
