3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶

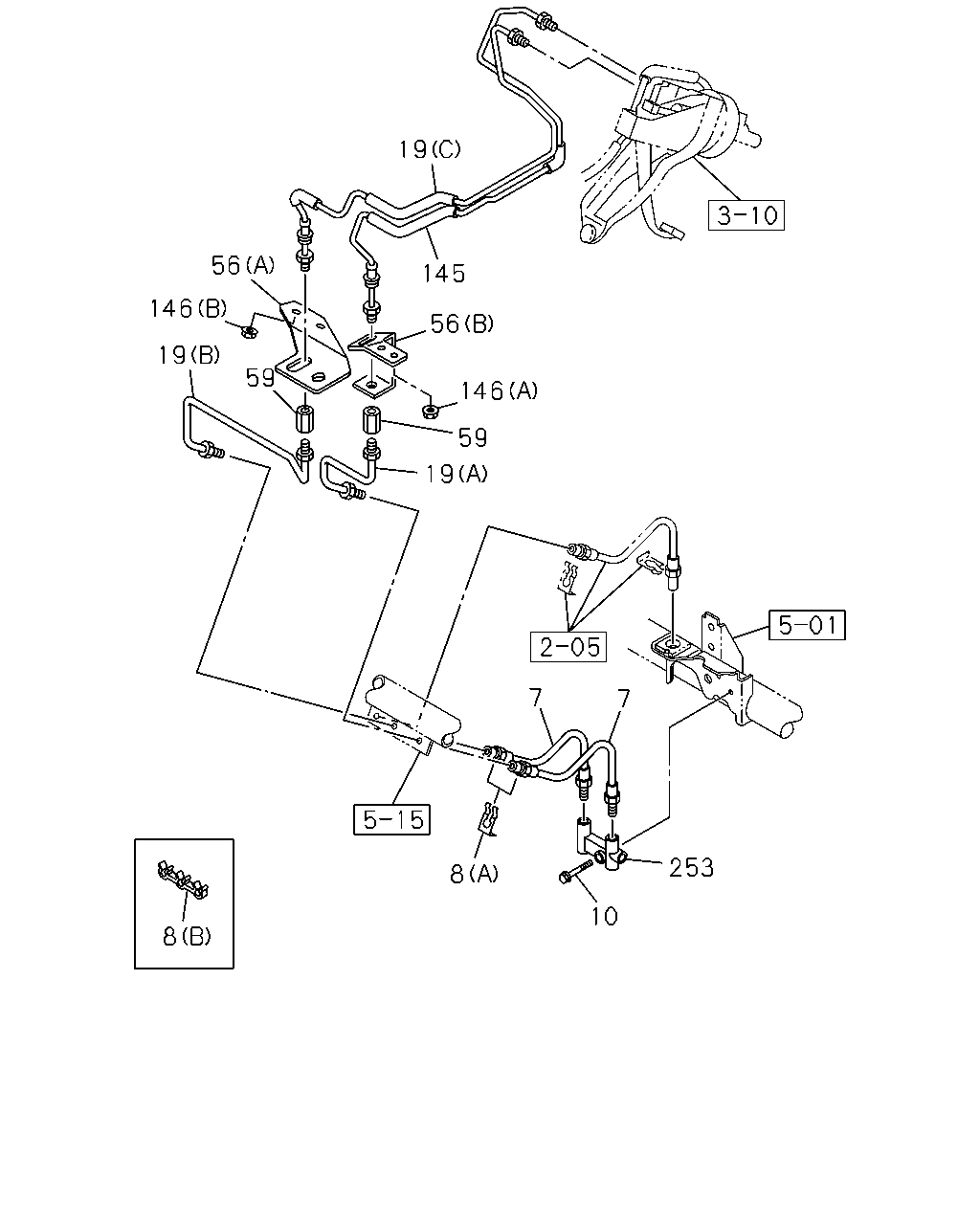

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#95939) — 14 parça
Tümü
A - NKR6SE
B - NKR6SN
19
145
56
146
56
19
59
146
59
19
7
7
253
10
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
8-97171-031-0
02
1
1206-
●
●
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B)
8-97076-471-0
01
1
1206-
●
●
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
1206-
●
●
10
04.686 BOLT; JOINT
00.685 M6X40 FLANGE
0-28650-640-0
01
1
1206-
●
●
19
04.685 PIPE; BRK,M/CYL TO UNION
(A) REAR
8-97070-296-2
01
1
1206-
●
●
19
04.685 PIPE; BRK,M/CYL TO UNION
(B) FRONT
5-47411-763-0
01
1
1206-
●
●
19
04.685 PIPE; BRK,M/CYL TO UNION
(C)
8-97314-591-0
01
1
1206-
●
●
56
04.686 BRACKET; UNION,BRK
(A)
8-97102-365-0
01
1
1206-
●
●
56
04.686 BRACKET; UNION,BRK
(B)
8-97102-366-2
01
1
1206-
●
●
59
04.686 UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
02
1
1206-
●
●
145
04.685 PIPE; BRK,METERING VLV TO UNION
8-97314-584-0
01
1
1206-
●
●
146
04.685 NUT; BRKT
01.062 (A) M6 FLANGE
0-91180-106-0
02
1
1206-
●
●
146
04.685 NUT; BRKT
01.062 (B) M8 FLANGE
0-91180-108-0
02
1
1206-
●
●
253
04.840 JOINT
04.686
5-47456-009-1
01
1
1206-
●
●
