3-01 — FRONT WHEEL BRAKE (#95931) — 35 parça

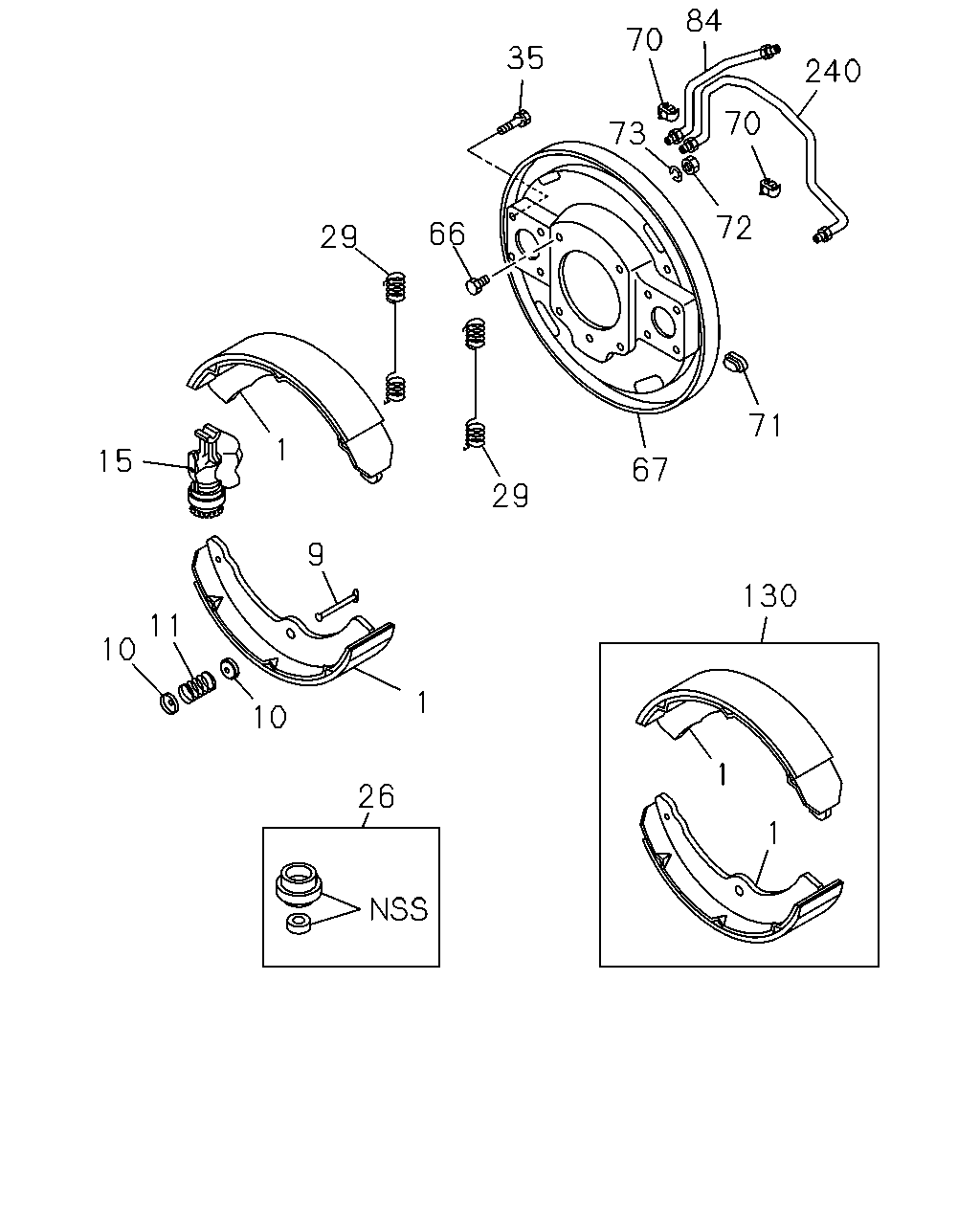

çizim 288342
26 1 10 10 11 9 1 15 29 66 35 70 84 240 70 73 72 71 67 29 130 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.017 SHOE; BRK,FRT 5-87220-001-0 04 1 1206- ● ●
9 05.026 PIN; SHOE HOLDER
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		5-87220-530-0 04 1 1206- ●
9 05.026 PIN; SHOE HOLDER
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 7R-15-8 5.5FX15-115(57H) 		5-87220-002-0 04 1 1206-1206 ●
9 05.026 PIN; SHOE HOLDER 5-87220-002-0 04 1 1206-1206 ●
9 05.026 PIN; SHOE HOLDER
FRT&RR 7R-15-8 5.5FX15-115(57H) 		5-87220-002-0 04 1 1207- ●
9 05.026 PIN; SHOE HOLDER 5-87220-002-0 04 1 1207- ●
10 05.043 CUP; SHOE HOLDING 5-87220-003-0 08 1 1206- ● ●
11 05.027 SPRING; SHOE HOLDING 5-87220-004-0 04 1 1206- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		5-87220-005-0 01 1 1206- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		5-87220-006-0 01 1 1206- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		5-87220-007-0 01 1 1206- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		5-87220-008-0 01 1 1206- ● ●
26 04.667 CUP SET; FRT WHEEL CYL 5-87220-500-0 04 1 1206- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 5-87220-009-0 04 1 1206- ● ●
35 04.665 BOLT; FRT WHEEL CYL 5-87220-010-0 16 1 1206- ● ●
66 05.815 BOLT; OIL SHIELD COVER 5-87220-011-0 08 1 1206- ● ●
67 05.001 PLATE; BACK,FRT BRK
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		5-87220-013-0 01 1 1206- ●
67 05.001 PLATE; BACK,FRT BRK
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		5-87220-015-0 01 1 1206- ●
67 05.001 PLATE; BACK,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 7R-15-8 5.5FX15-115(57H) 		5-87220-012-0 01 1 1206-1206 ●
67 05.001 PLATE; BACK,FRT BRK 5-87220-012-0 01 1 1206-1206 ●
67 05.001 PLATE; BACK,FRT BRK
FRT&RR 7R-15-8 5.5FX15-115(57H) 		5-87220-012-0 01 1 1207- ●
67 05.001 PLATE; BACK,FRT BRK 5-87220-012-0 01 1 1207- ●
67 05.001 PLATE; BACK,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 7R-15-8 5.5FX15-115(57H) 		5-87220-014-0 01 1 1206-1206 ●
67 05.001 PLATE; BACK,FRT BRK 5-87220-014-0 01 1 1206-1206 ●
67 05.001 PLATE; BACK,FRT BRK
FRT&RR 7R-15-8 5.5FX15-115(57H) 		5-87220-014-0 01 1 1207- ●
67 05.001 PLATE; BACK,FRT BRK 5-87220-014-0 01 1 1207- ●
70 04.685 CLIP; PIPE HOLD 5-87220-016-0 04 1 1206- ● ●
71 05.002 GROMMET; CHECK HOLE 5-87220-017-0 04 1 1206- ● ●
72 05.815 NUT; OIL SHIELD COVER 5-87220-019-0 12 1 1206- ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER 5-87220-020-0 08 1 1206- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 5-87220-022-0 01 1 1206- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 5-87220-023-0 01 1 1206- ● ●
130 05.017 SHOE KIT; BRK,FRT 5-87220-533-0 01 1 1206- ● ●
240 04.685 PIPE; OIL,FRT BRK 5-87220-024-0 01 1 1206- ● ●
240 04.685 PIPE; OIL,FRT BRK 5-87220-025-0 01 1 1206- ● ●
