◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#95927) — 22 parça

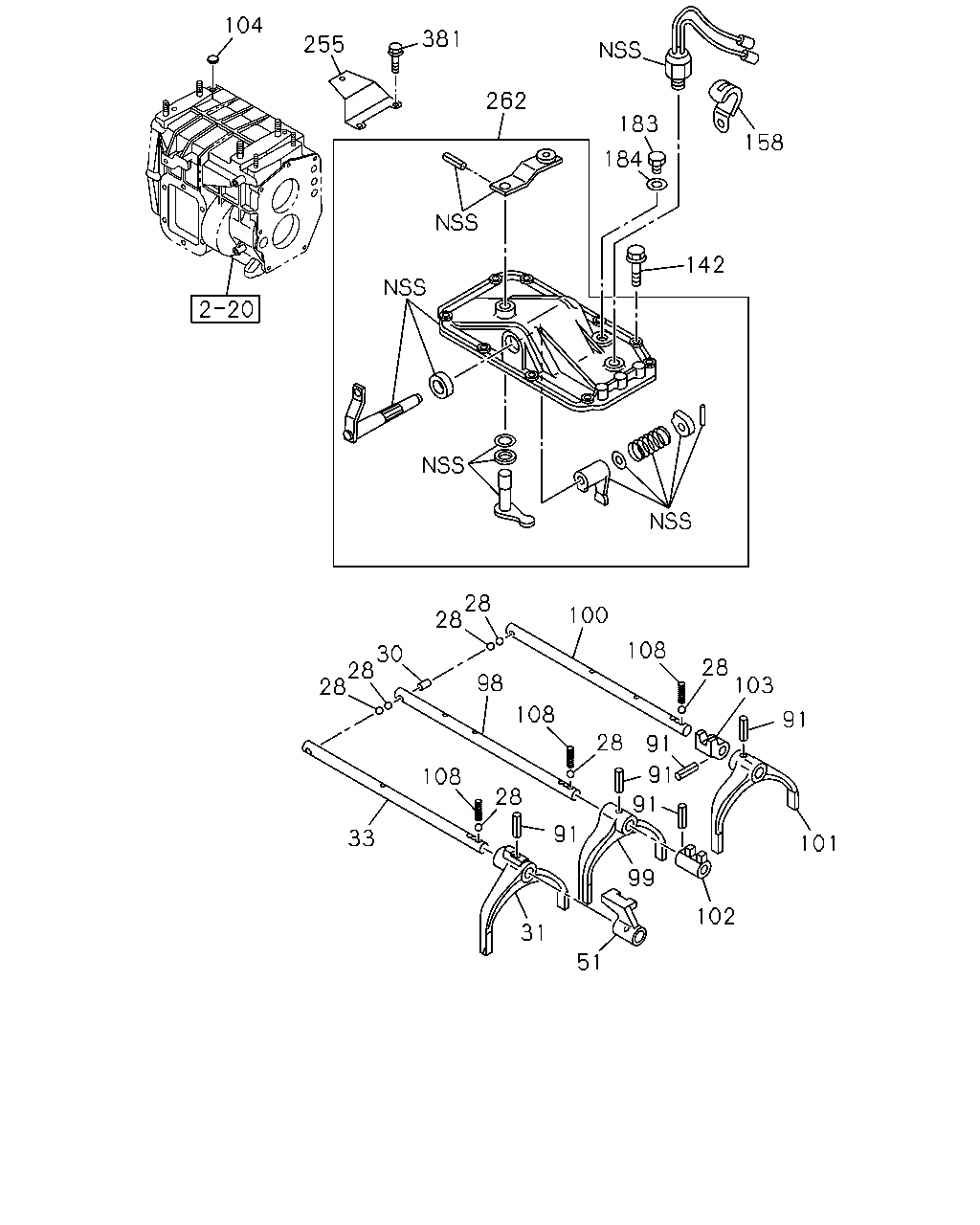

çizim 289586
104 255 381 262 183 184 158 142 28 28 30 28 28 33 108 98 100 108 108 28 91 31 51 99 91 91 28 91 28 103 91 101 102
BalonParca AdiParca NoAdetTipApplied Date A B
28 04.311 BALL; INTER LK 5-87220-295-0 07 1 1206- ● ●
30 04.307 PIN; INTER LK 5-87220-296-0 01 1 1206- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 5-87220-302-0 01 1 1206- ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 5-87220-299-0 01 1 1206- ● ●
51 04.303 BLOCK; SHIFT,1ST & 2ND 5-87220-303-0 01 1 1206- ● ●
91 04.302 PIN; SPR,SHIFT ARM 5-87220-301-0 06 1 1206- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 5-87220-297-0 01 1 1206- ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 5-87220-304-0 01 1 1206- ● ●
100 04.309 ROD; SHIFT,REV & 5TH 5-87220-294-0 01 1 1206- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 5-87220-306-0 01 1 1206- ● ●
102 04.303 BLOCK; SHIFT,3RD & 4TH 5-87220-305-0 01 1 1206- ● ●
103 04.303 BLOCK; SHIFT,REV TO OD 5-87220-307-0 01 1 1206- ● ●
104 04.311 PLUG; PLATE 5-87220-298-0 01 1 1206- ● ●
108 04.311 SPRING; LOCK BALL 5-87220-300-0 03 1 1206- ● ●
142 04.012 BOLT; QUAD BOX
04.317 		5-87220-283-0 08 1 1206- ● ●
158 04.105 CLIP; HARNESS 5-87220-312-0 01 1 1206- ● ●
183 04.105 PLUG; SCREW,OIL FILTER 5-87220-314-0 01 1 1206- ● ●
184 04.105 GASKET; FILLER PLUG 5-87220-281-0 01 1 1206- ● ●
255 04.105 PLATE; DIST,QUAD BOX 5-87220-543-0 01 1 1206- ● ●
262 04.105 BOX ASM; SHIFT CONT
EXHAUST BRAKE<NF8> 		5-87220-540-0 01 1 1206- ● ●
262 04.105 BOX ASM; SHIFT CONT
EXC. EXHAUST BRAKE<NF8> 		5-87220-535-0 01 1 1206- ● ●
381 04.105 BOLT 5-87220-544-0 02 1 1206- ● ●
