◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#95924) — 30 parça

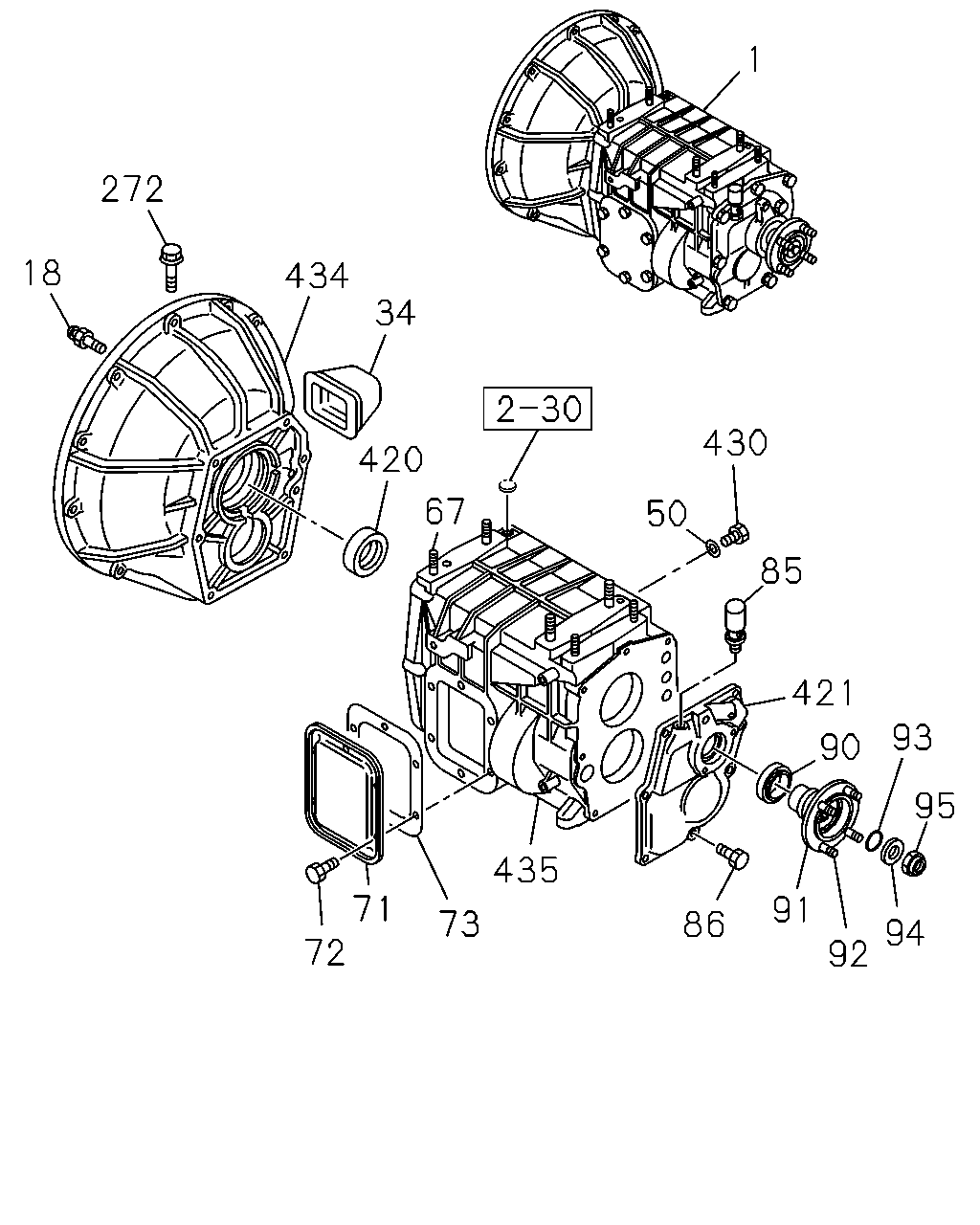

çizim 288321
1 272 18 434 34 420 67 50 430 85 421 90 93 95 94 92 91 86 435 73 71 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.003 TRANSMISSION ASM; MANUAL
EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97693-032-0 01 1 1206-1206 ●
1 04.003 TRANSMISSION ASM; MANUAL
EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97693-031-0 01 1 1206-1302 ●
1 04.003 TRANSMISSION ASM; MANUAL
EXHAUST BRAKE<NF8> 		8-97693-170-0 01 1 1206- ●
1 04.003 TRANSMISSION ASM; MANUAL
EXHAUST BRAKE<NF8> 		8-97693-169-0 01 1 1206- ●
1 04.003 TRANSMISSION ASM; MANUAL
IDENTIFICATION LABEL FOR KD<6UT> EXC. EXHAUST BRAKE<NF8> 		8-97693-043-0 01 1 1206-1206 ●
1 04.003 TRANSMISSION ASM; MANUAL
EXC. EXHAUST BRAKE<NF8> 		8-97693-043-0 01 1 1207- ●
1 04.003 TRANSMISSION ASM; MANUAL
IDENTIFICATION LABEL FOR KD<6UT> EXC. EXHAUST BRAKE<NF8> 		8-97693-042-0 01 1 1206-1302 ●
1 04.003 TRANSMISSION ASM; MANUAL
EXC. EXHAUST BRAKE<NF8> 		8-97693-042-0 01 1 1303- ●
18 00.683 SUPPORT; DRAW LEVER 5-87220-275-0 01 1 1206- ● ●
34 00.686 COVER; DUST,SHIFT FORK 5-87220-373-0 01 1 1206- ● ●
50 04.105 GASKET; DRAIN PLUG 5-87220-281-0 01 1 1206- ● ●
67 04.105 STUD; CASE TRANS 5-87220-278-0 04 1 1206- ●
67 04.105 STUD; CASE TRANS 5-87220-277-0 04 1 1206- ●
71 04.439 COVER; SIDE,TRANS CASE 5-87220-287-0 01 1 1206- ● ●
72 04.439 BOLT; SIDE COVER 5-87220-286-0 06 1 1206- ● ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE 5-87220-285-0 01 1 1206- ● ●
85 04.104 BREATHER; RR COVER 5-87220-282-0 01 1 1206- ● ●
86 04.317 BOLT; RR COVER 5-87220-283-0 07 1 1206- ● ●
90 04.318 SEAL; OIL,RR COVER 5-87220-289-0 01 1 1206- ● ●
91 05.605 DRIVER; COUPLING 5-87220-288-0 01 1 1206- ● ●
92 05.605 BOLT; COUPLING DRIVER 5-87220-290-0 04 1 1206- ● ●
93 05.595 GASKET; COUPLING DRIVER 5-87220-291-0 01 1 1206- ● ●
94 05.595 WASHER; COUPLING DRIVER 5-87220-293-0 01 1 1206- ● ●
95 05.595 NUT; MAINSHAFT 5-87220-292-0 01 1 1206- ● ●
272 00.683 BOLT 5-87220-545-0 01 1 1206- ● ●
420 04.354 SEAL; OIL,FRT COVER,T/M 5-87220-276-0 01 1 1206- ● ●
421 04.317 COVER; RR,TRANS 5-87220-284-0 01 1 1206- ● ●
430 04.105 PLUG; OIL DRAIN 5-87220-280-0 01 1 1206- ● ●
434 00.683 HOUSING; CLU 5-87220-274-0 01 1 1206- ● ●
435 04.103 CASE; TRANS 5-87220-279-0 01 1 1206- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
