◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#95921) — 39 parça

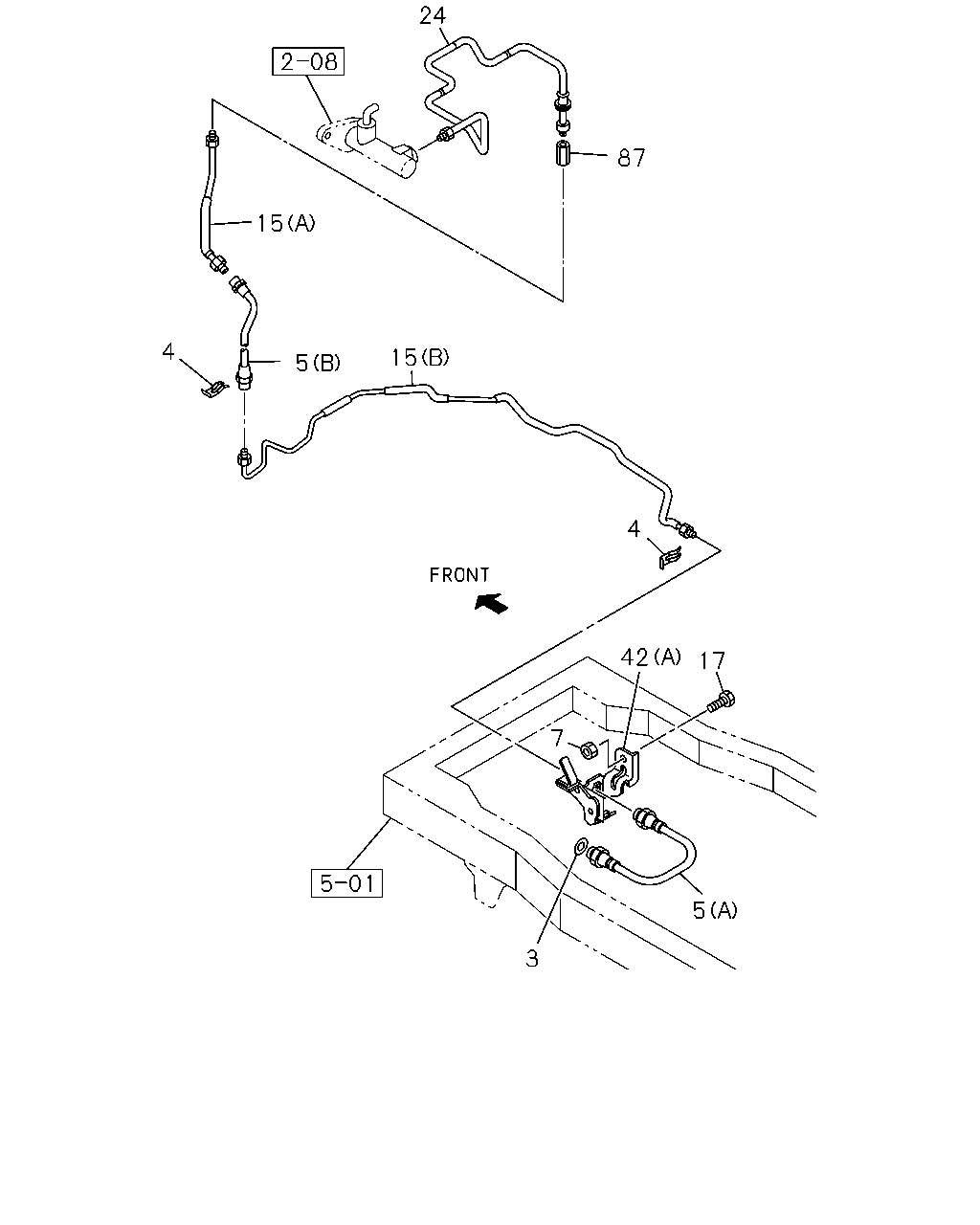

çizim 288305
24 87 15 15 5 4 4 17 42 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 00.785 GASKET; FLEX HOSE,CLU
4JB1-NA ENG(RLF) 		9-09920-873-1 01 1 1206- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT) 04.681 		8-97365-304-0 01 1 1206- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 03 1 1206- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) (A) 		8-94374-552-1 01 1 1206- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-NA ENG(RLF) (A) 		8-97064-108-1 01 1 1206- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 1206- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1206- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (C) 		8-97063-756-2 01 1 1206- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (D) 		8-98204-484-0 01 1 1206- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-NA ENG(RLF) (B) 		8-97070-380-4 01 1 1206- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-481-0 01 1 1206- ● ●
17 00.785 BOLT; BRKT
4JB1-TC ENG(RDT) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1206- ● ●
17 00.785 BOLT; BRKT
4JB1-NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1206- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION 8-97094-343-2 01 1 1206- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT) (B) 		8-97090-299-0 01 1 1206- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT) (C) 		8-98110-199-0 01 1 1206- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-NA ENG(RLF) (A) 		8-94411-135-0 01 1 1206- ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 1206- ● ●

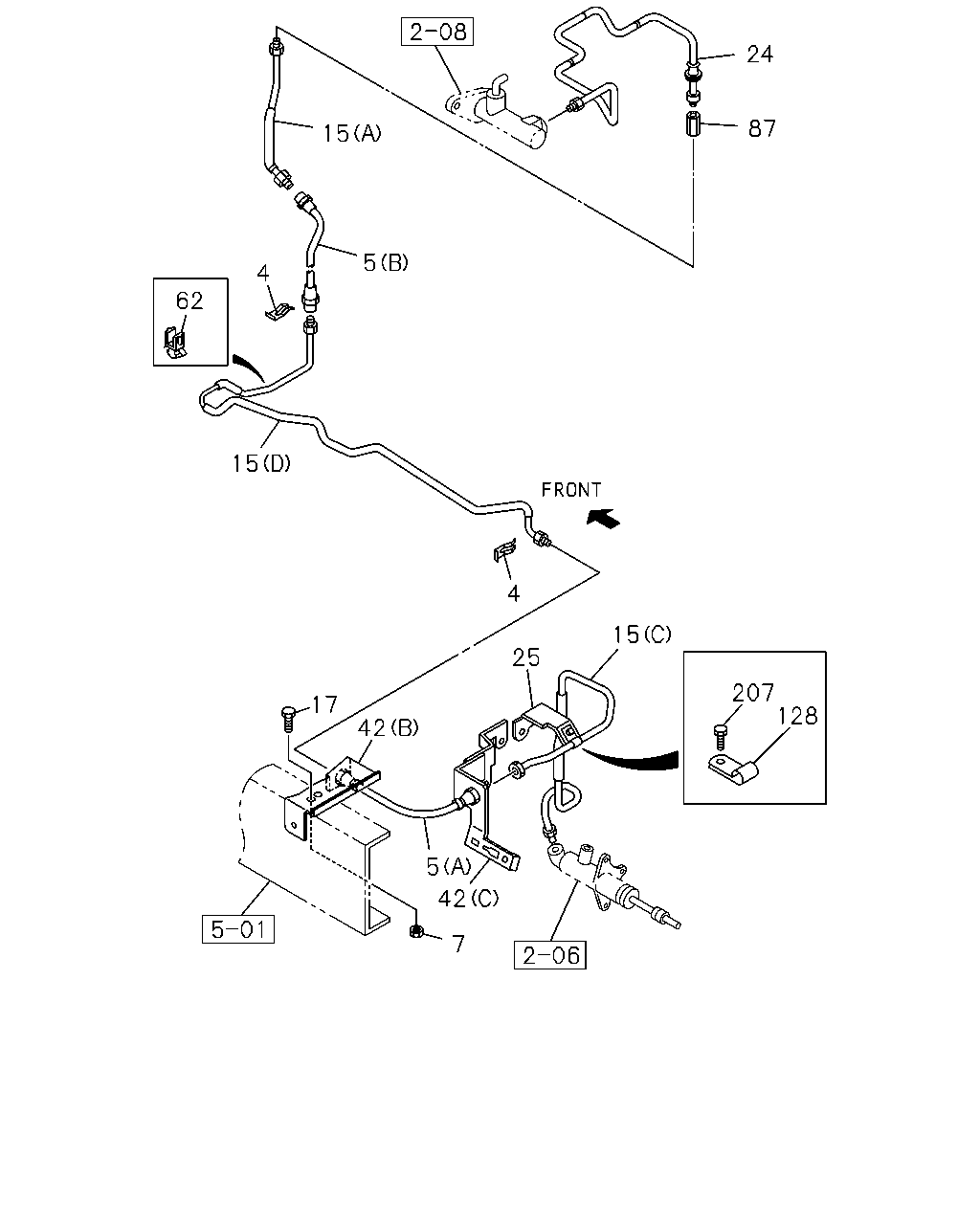

çizim 288306
15 5 4 62 24 87 4 15 207 128 25 42 17 42 5 7 15
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT) 04.681 		8-97365-304-0 01 1 1206- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 03 1 1206- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) (A) 		8-94374-552-1 01 1 1206- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-NA ENG(RLF) (A) 		8-97064-108-1 01 1 1206- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 1206- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1206- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (C) 		8-97063-756-2 01 1 1206- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (D) 		8-98204-484-0 01 1 1206- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-NA ENG(RLF) (B) 		8-97070-380-4 01 1 1206- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-481-0 01 1 1206- ● ●
17 00.785 BOLT; BRKT
4JB1-TC ENG(RDT) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1206- ● ●
17 00.785 BOLT; BRKT
4JB1-NA ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1206- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION 8-97094-343-2 01 1 1206- ● ●
25 00.785 BRACKET; OIL PIPE
4JB1-TC ENG(RDT) 		8-97013-211-1 01 1 1206- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT) (B) 		8-97090-299-0 01 1 1206- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT) (C) 		8-98110-199-0 01 1 1206- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-NA ENG(RLF) (A) 		8-94411-135-0 01 1 1206- ● ●
62 00.785 CLIP; CLU PIPE
4JB1-TC ENG(RDT) 03.162 H=28.5 		8-94486-808-0 02 1 1206- ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 1206- ● ●
128 00.785 CLIP; AIR PIPE
4JB1-TC ENG(RDT) ID=7 L=16 		0-95234-622-0 02 1 1206- ● ●
207 00.785 BOLT; CLIP
4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1206- ● ●
