Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#95916) — 599 parça

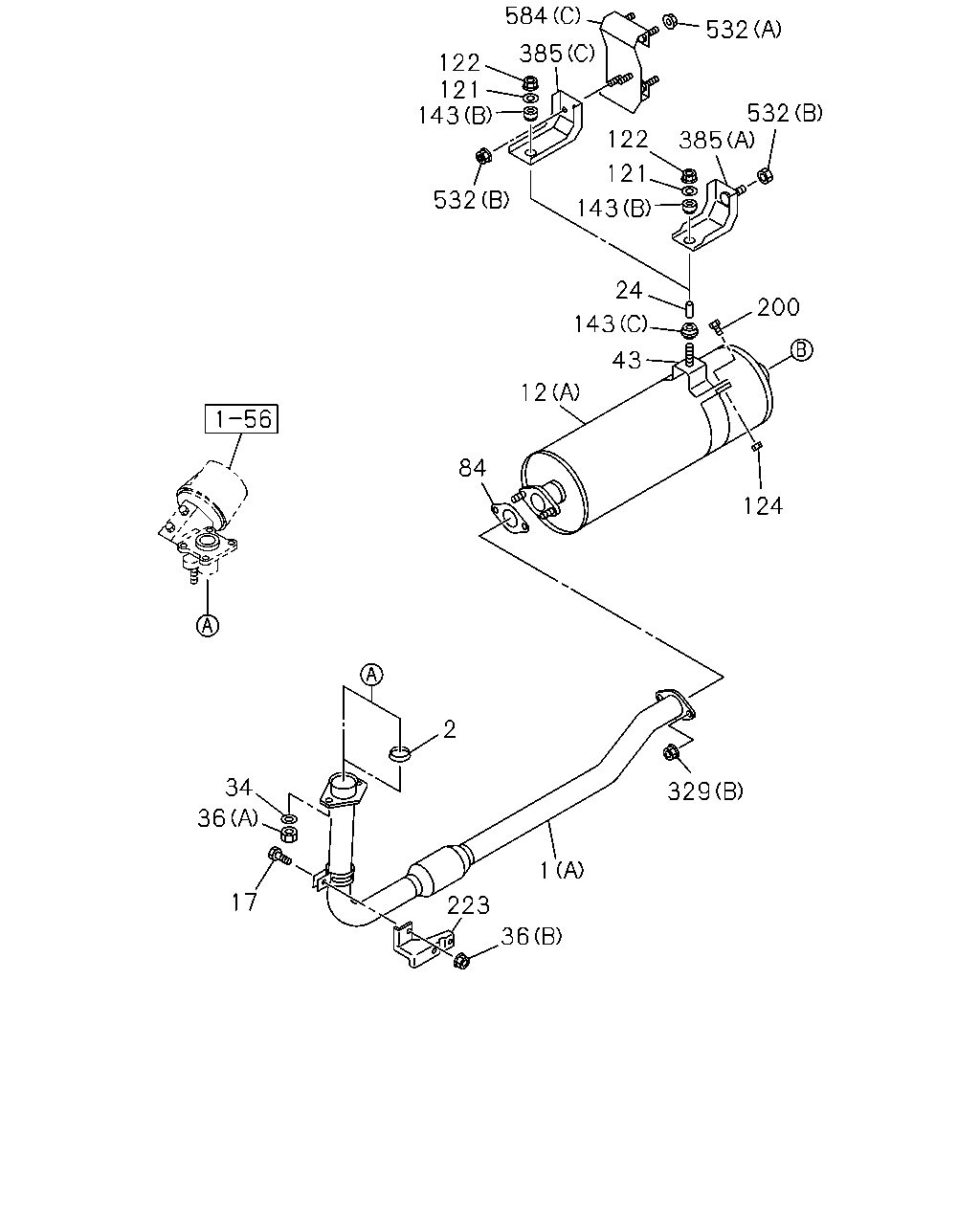

584 385 122 121 143 532 532 532 385 122 121 143 24 143 43 200 12 124 84 2 1 329 223 36 17 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (D)	8-97212-561-2	01	1	1206-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> (B)	8-97212-759-3	01	1	1206-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> (E)	8-98187-194-0	01	1	1206-	●	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXC. EXHAUST BRAKE<NF8> (C)	8-98187-195-0	01	1	1206-	●	●
1	03.609 PIPE; EXH 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> (A)	8-97102-669-0	01	1	1206-	●	●
1	03.609 PIPE; EXH 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97102-668-0	01	1	1206-	●	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (E)	8-97206-026-1	01	1	1206-		●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXC. EXHAUST BRAKE<NF8> (C)	8-97206-027-0	01	1	1206-		●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT)	8-97381-456-0	01	1	1206-	●	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97381-456-0	01	1	1206-	●	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98224-810-0	01	1	1303-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) (B)	8-97221-923-0	01	1	1206-1302	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B)	8-97221-923-0	01	1	1303-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> EXC. EXHAUST BRAKE<NF8> (B)	8-97221-923-0	01	1	1303-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (C)	8-97206-036-0	01	1	1206-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (C)	8-97206-036-0	01	1	1206-		●
12	03.701 SILENCER ASM; EXH 4JB1-NA ENG(RLF) (A)	8-97049-721-0	01	1	1206-	●	●
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1206-	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1206-	●	●
34	03.613 WASHER; EXH PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> ID=10.5	5-09500-013-0	02	1	1206-	●	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (A) M10 FLANGE	8-97096-192-1	02	1	1206-	●	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A) M10 FLANGE	8-97096-192-1	02	1	1206-	●	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1206-	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) 02.334 (B) M8	0-91110-508-0	01	1	1206-	●	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> (A) M10 H=18	9-09640-014-0	02	1	1206-	●	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.706	8-97076-018-0	01	1	1206-	●
43	03.611 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) 03.706	8-97081-457-0	01	1	1206-	●	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.706	8-97081-457-0	01	1	1206-	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.706	8-97081-457-0	01	1	1206-		●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 03.634 ID=54	8-94328-354-0	01	1	1206-	●
84	03.611 GASKET; EXH PIPE 4JB1-NA ENG(RLF) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1206-	●	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1206-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1206-		●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1206-	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1206-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 M8	0-91110-508-0	01	1	1206-	●	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1206-1501	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1206-1501		●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (A)	8-97371-655-1	01	1	1206-1501		●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) (A)	8-97371-655-1	01	1	1502-	●	●
143	03.704 RUBBER; SUPPORT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1502-	●
143	03.704 RUBBER; SUPPORT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-97371-655-1	01	1	1502-		●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	01	1	1206-	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	01	1	1206-	●	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	01	1	1206-	●	●
223	03.706 BRACKET; EXH PIPE 4JB1-TC ENG(RDT) 03.613	8-97084-346-2	01	1	1206-	●	●
223	03.706 BRACKET; EXH PIPE 4JB1-NA ENG(RLF) 03.613	8-94445-704-0	01	1	1206-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1206-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-NA ENG(RLF) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1206-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1206-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1206-		●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) (B)	8-97073-758-0	01	1	1206-	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (C)	8-97172-313-0	01	1	1206-1501	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (C)	8-97172-313-0	01	1	1502-	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-NA ENG(RLF) (A)	8-94329-856-0	01	1	1206-1501	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (A)	8-94329-856-0	01	1	1206-1501		●
385	03.704 BRACKET; SILENCER MTG 4JB1-NA ENG(RLF) WHEEL BASE 2400MM(24W) (A)	8-94329-856-0	01	1	1502-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (A)	8-94329-856-0	01	1	1502-		●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1206-1210	●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1211-1501	●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1211-1501		●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1502-	●
532	03.704 NUT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1502-	●
532	03.704 NUT WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1502-		●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	03	1	1206-1210	●	●
532	03.704 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
584	03.706 SPACER; EXH SILENCER 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (C)	8-98303-688-0	01	1	1502-	●	●
584	03.706 SPACER; EXH SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.704 (A)	8-94378-511-1	01	1	1206-	●
584	03.706 SPACER; EXH SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.704 (B)	8-97351-812-0	01	1	1206-1210	●	●
584	03.706 SPACER; EXH SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.704 (B)	8-97254-980-1	01	1	1211-	●	●

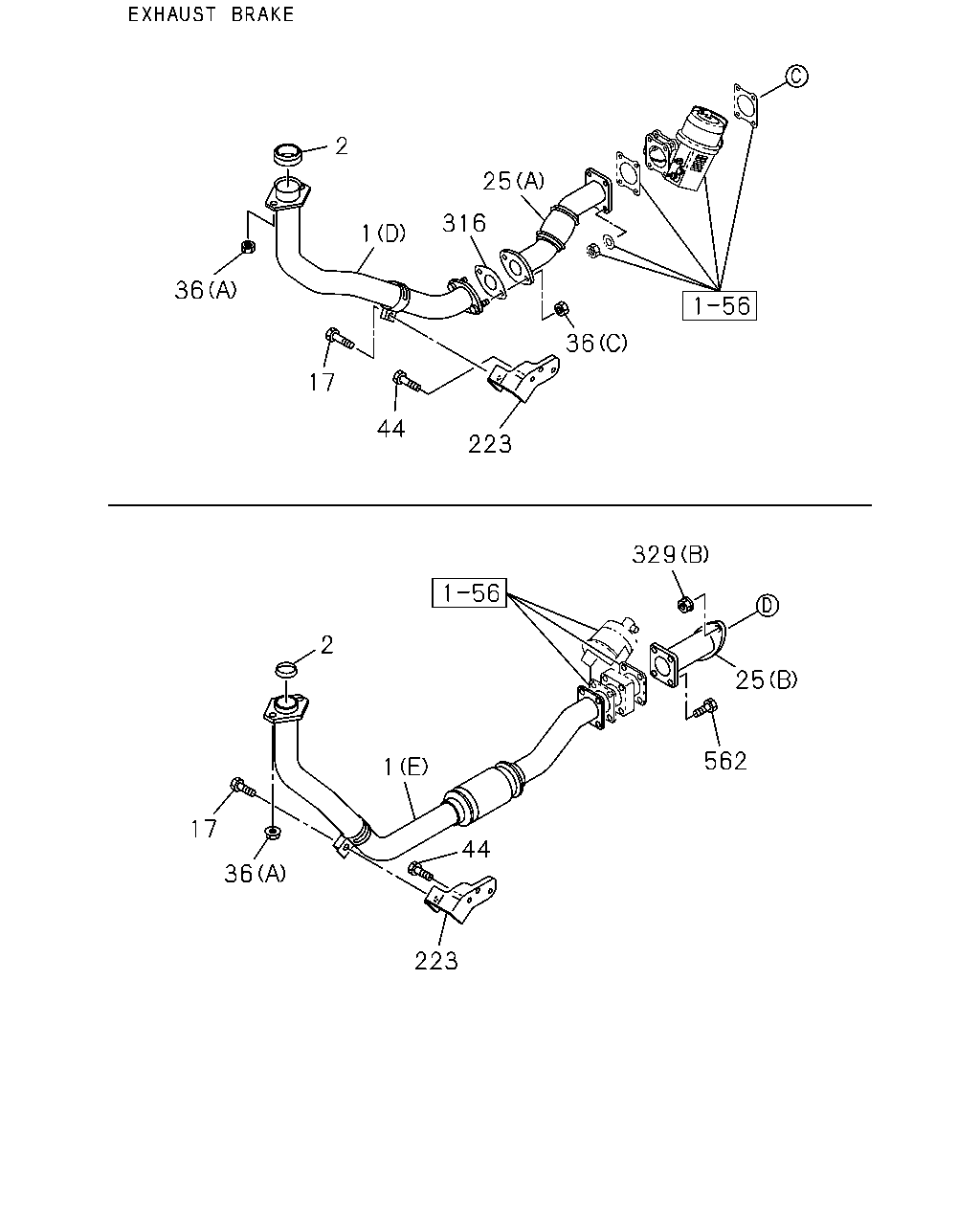

36 2 1 17 44 223 328 84 2 17 36 223 44 1 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (D)	8-97212-561-2	01	1	1206-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> (B)	8-97212-759-3	01	1	1206-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> (E)	8-98187-194-0	01	1	1206-	●	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXC. EXHAUST BRAKE<NF8> (C)	8-98187-195-0	01	1	1206-	●	●
1	03.609 PIPE; EXH 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> (A)	8-97102-669-0	01	1	1206-	●	●
1	03.609 PIPE; EXH 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97102-668-0	01	1	1206-	●	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (E)	8-97206-026-1	01	1	1206-		●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXC. EXHAUST BRAKE<NF8> (C)	8-97206-027-0	01	1	1206-		●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT)	8-97381-456-0	01	1	1206-	●	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97381-456-0	01	1	1206-	●	●
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1206-	●	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (A) M10 FLANGE	8-97096-192-1	02	1	1206-	●	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A) M10 FLANGE	8-97096-192-1	02	1	1206-	●	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1206-	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) 02.334 (B) M8	0-91110-508-0	01	1	1206-	●	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> (A) M10 H=18	9-09640-014-0	02	1	1206-	●	●
44	03.613 BOLT; BRKT 4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1206-	●	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 03.634 ID=54	8-94328-354-0	01	1	1206-	●
84	03.611 GASKET; EXH PIPE 4JB1-NA ENG(RLF) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1206-	●	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1206-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1206-		●
223	03.706 BRACKET; EXH PIPE 4JB1-TC ENG(RDT) 03.613	8-97084-346-2	01	1	1206-	●	●
223	03.706 BRACKET; EXH PIPE 4JB1-NA ENG(RLF) 03.613	8-94445-704-0	01	1	1206-	●	●
328	03.613 BOLT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1206-1302	●
328	03.613 BOLT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> EXC. EXHAUST BRAKE<NF8> 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1303-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1206-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-NA ENG(RLF) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1206-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1206-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1206-		●

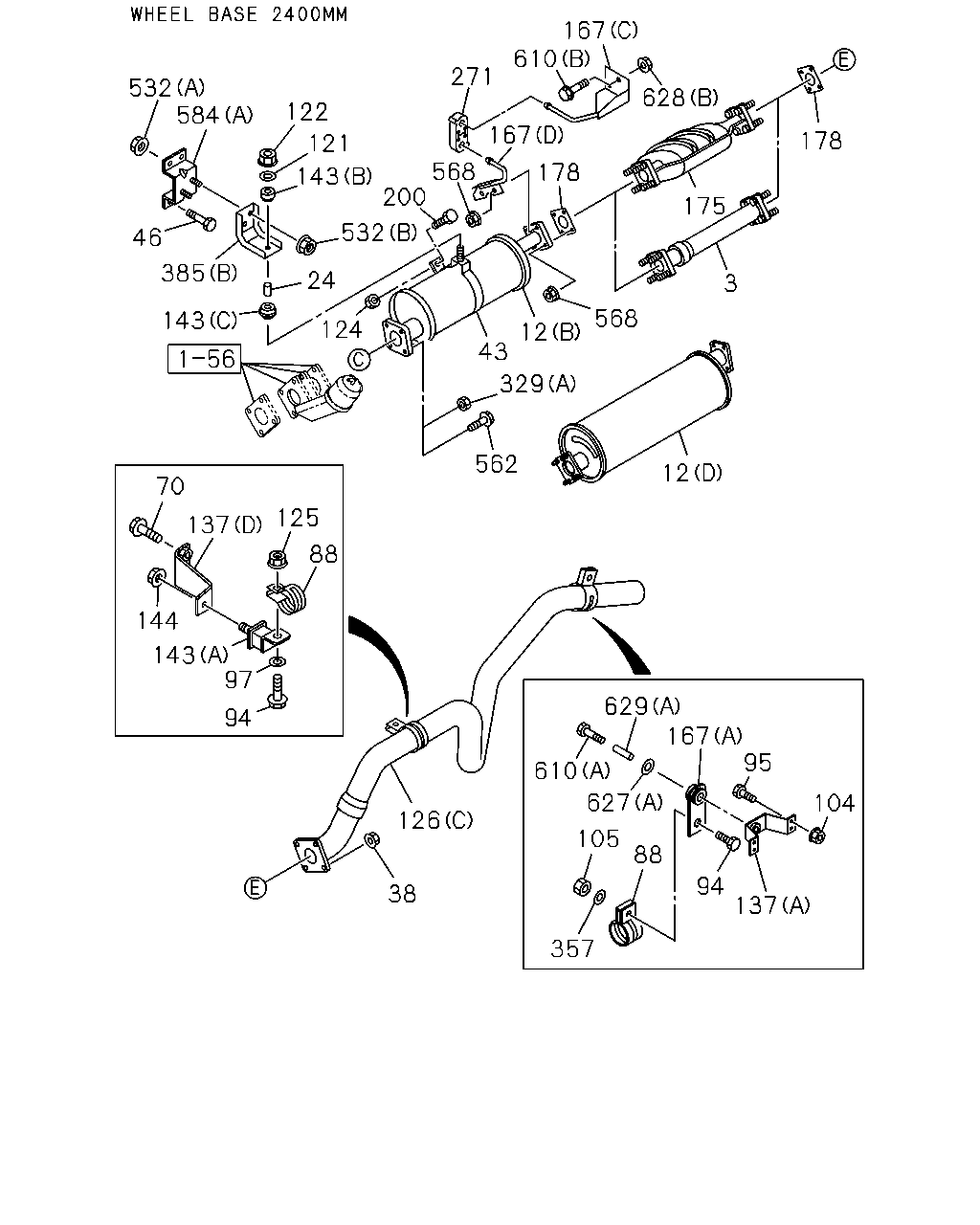

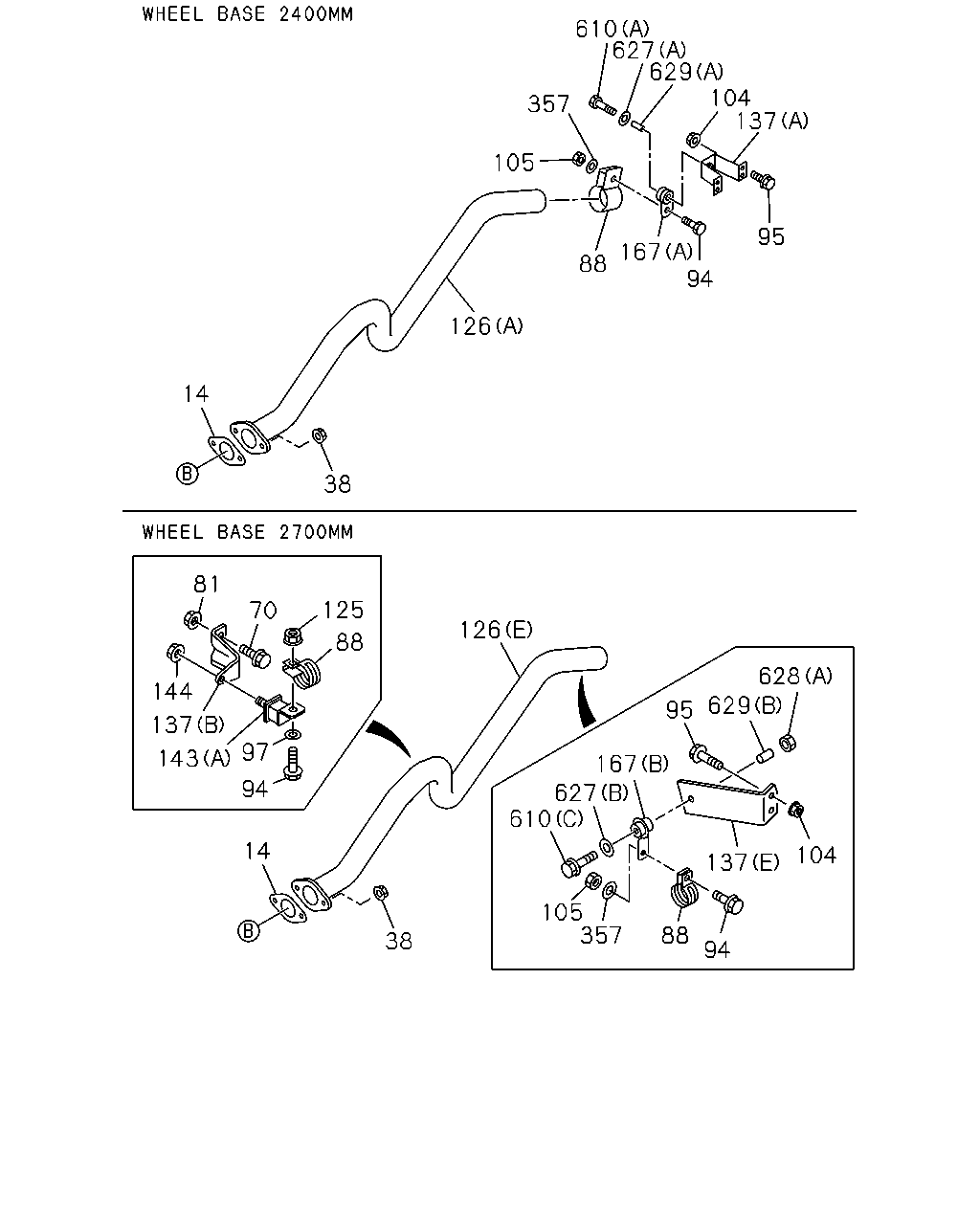

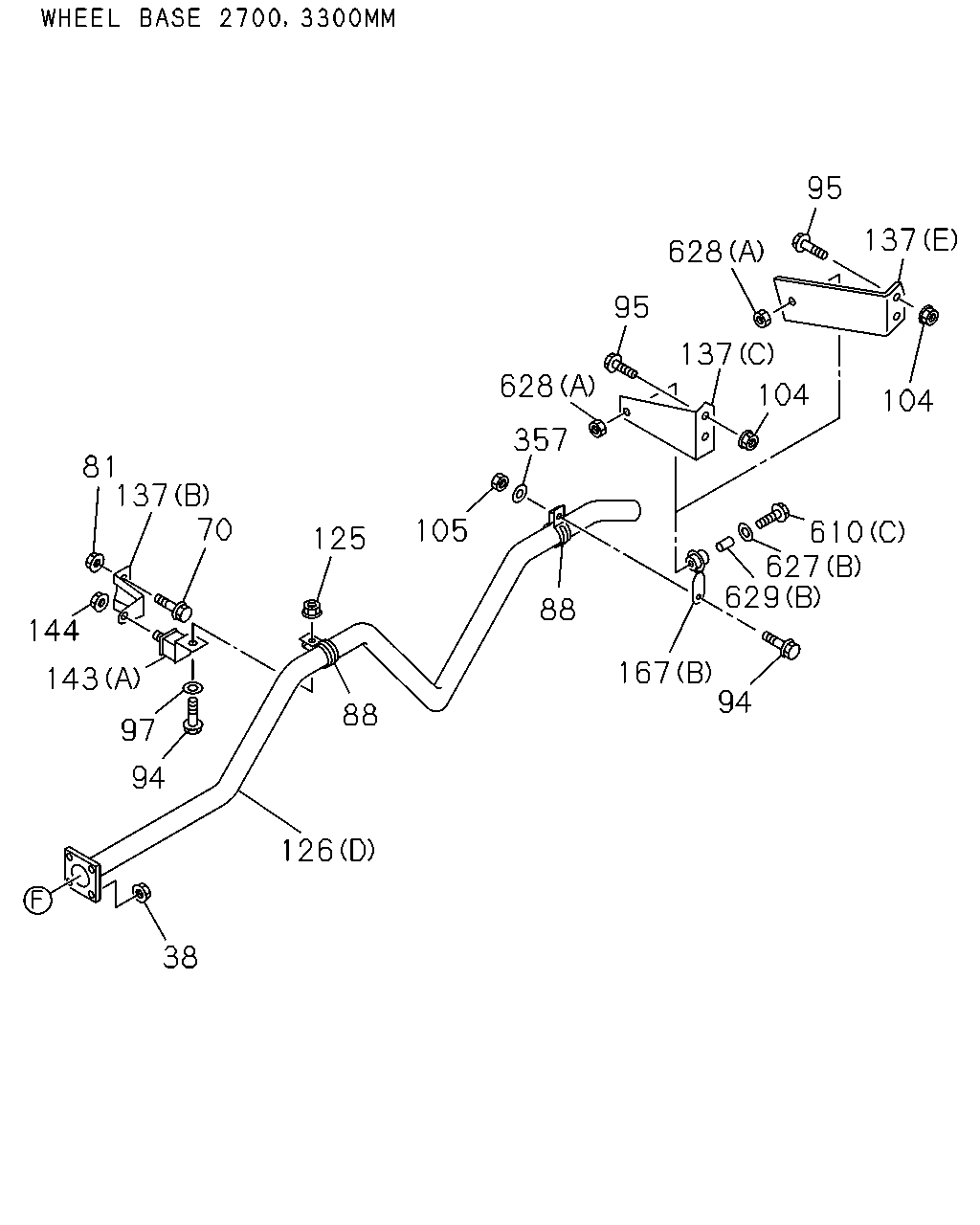

610 629 137 167 627 628 105 357 88 94 104 95 126 38 14 94 97 143 137 144 81 70 125 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1-NA ENG(RLF) ID=64.7	8-94328-352-0	01	1	1206-	●	●
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	1206-	●	●
38	00.002 NUT; SILENCER 4JB1-NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1206-	●	●
70	03.706 BOLT; BRKT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1206-	●
70	03.706 BOLT; BRKT WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1206-	●
70	03.706 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1206-		●
81	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-	●
81	03.704 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1206-1501	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) ID=51.5	8-97325-352-0	01	1	1206-1501	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) ID=51.5	8-97325-352-0	01	1	1206-1501		●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) ID=51.5	8-97325-352-0	01	1	1206-1501		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1502-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	01	1	1502-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) ID=51.5	8-97325-352-0	01	1	1502-	●
88	03.708 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) ID=51.5	8-97325-352-0	01	1	1502-		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1206-1501	●	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 03.708 M8X45	0-20800-845-0	01	1	1206-1501	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.708 M8X45	0-20800-845-0	01	1	1206-1501		●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 03.708 M8X45	0-20800-845-0	01	1	1206-1501		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1502-	●	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 03.708 M8X45	0-20800-845-0	01	1	1502-	●	●
94	03.704 BOLT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 03.708 M8X45	0-20800-845-0	01	1	1502-	●
94	03.704 BOLT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.708 M8X45	0-20800-845-0	01	1	1502-		●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1206-	●	●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-1501	●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-1501		●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-1501		●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1502-	●	●
97	03.708 WASHER; PL,CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1502-	●
97	03.708 WASHER; PL,CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1502-		●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
105	03.704 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	1206-	●	●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 02.334 M8	0-91110-508-0	01	1	1206-1501	●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 02.334 M8	0-91110-508-0	01	1	1206-1501		●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) 02.334 M8	0-91110-508-0	01	1	1206-1501		●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) 02.334 M8	0-91110-508-0	01	1	1502-	●	●
125	03.708 NUT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 02.334 M8	0-91110-508-0	01	1	1502-	●
125	03.708 NUT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 02.334 M8	0-91110-508-0	01	1	1502-		●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (E)	8-98303-687-0	01	1	1502-	●	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C)	8-97258-860-0	01	1	1206-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (D)	8-98207-967-0	01	1	1206-	●	●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-97081-460-0	01	1	1206-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (D)	8-97144-949-0	01	1	1206-		●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) WHEEL BASE 3300MM(33W) (B)	8-98181-840-0	01	1	1206-		●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.613 (D)	8-97210-476-0	01	1	1206-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (A)	9-22121-146-1	01	1	1206-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) (E)	8-97252-492-0	01	1	1206-	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) 03.704 (B)	8-94468-174-1	01	1	1206-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.704 (B)	8-94468-174-1	01	1	1206-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (C)	8-98096-331-0	01	1	1206-		●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1206-1501	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1206-1501		●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (A)	8-97371-655-1	01	1	1206-1501		●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) (A)	8-97371-655-1	01	1	1502-	●	●
143	03.704 RUBBER; SUPPORT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1502-	●
143	03.704 RUBBER; SUPPORT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-97371-655-1	01	1	1502-		●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	01	1	1206-	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	01	1	1206-	●	●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-1501	●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-1501		●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-1501		●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	1502-	●	●
144	03.613 NUT; MTG RUBBER 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1502-	●
144	03.613 NUT; MTG RUBBER 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1502-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) (D)	8-97206-510-1	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) (C)	8-97144-952-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (C)	8-97144-952-0	01	1	1206-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (D)	8-97144-955-1	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D)	8-97144-955-1	01	1	1206-		●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2400MM(24W) (A) L=180	8-97222-646-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2700MM(27W) (B) L=115	8-94156-256-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=115	8-94156-256-0	01	1	1206-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (C)	8-97144-953-0	01	1	1206-		●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-	●	●
610	03.704 BOLT; HANGER 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-	●	●
610	03.704 BOLT; HANGER WHEEL BASE 2400MM(24W) 09.173 (A) M8X45 FLANGE	0-28050-845-0	01	1	1206-	●
610	03.704 BOLT; HANGER WHEEL BASE 2700MM(27W) 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1206-	●
610	03.704 BOLT; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1206-		●
627	03.706 WASHER; HANGER WHEEL BASE 2400MM(24W) (A) ID=8.4 OD=26	0-91614-808-0	01	1	1206-	●
627	03.706 WASHER; HANGER WHEEL BASE 2700MM(27W) 00.002 (B) ID=10.5 OD=32	0-91614-810-0	01	1	1206-	●
627	03.706 WASHER; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.002 (B) ID=10.5 OD=32	0-91614-810-0	01	1	1206-		●
628	03.275 NUT; HANGER 4JB1-TC ENG(RDT) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
628	03.275 NUT; HANGER WHEEL BASE 2700MM(27W) 00.833 (A) M10	0-91110-510-0	01	1	1206-	●
628	03.275 NUT; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.833 (A) M10	0-91110-510-0	01	1	1206-		●
629	03.706 SPACER; HANGER WHEEL BASE 2400MM(24W) 03.616 (A) L=23	9-22151-175-0	01	1	1206-	●
629	03.706 SPACER; HANGER WHEEL BASE 2700MM(27W) (B) L=37.5	9-22151-217-0	01	1	1206-	●
629	03.706 SPACER; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	1206-		●

81 144 143 97 94 38 126 88 125 70 137 105 88 167 94 629 627 610 357 628 95 137 628 104 137 104 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	1206-	●	●
38	00.002 NUT; SILENCER 4JB1-NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1206-	●	●
70	03.706 BOLT; BRKT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1206-	●
70	03.706 BOLT; BRKT WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1206-	●
70	03.706 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1206-		●
81	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-	●
81	03.704 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1206-1501	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) ID=51.5	8-97325-352-0	01	1	1206-1501	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) ID=51.5	8-97325-352-0	01	1	1206-1501		●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) ID=51.5	8-97325-352-0	01	1	1206-1501		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1502-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	01	1	1502-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) ID=51.5	8-97325-352-0	01	1	1502-	●
88	03.708 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) ID=51.5	8-97325-352-0	01	1	1502-		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1206-1501	●	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 03.708 M8X45	0-20800-845-0	01	1	1206-1501	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.708 M8X45	0-20800-845-0	01	1	1206-1501		●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 03.708 M8X45	0-20800-845-0	01	1	1206-1501		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1502-	●	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 03.708 M8X45	0-20800-845-0	01	1	1502-	●	●
94	03.704 BOLT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 03.708 M8X45	0-20800-845-0	01	1	1502-	●
94	03.704 BOLT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.708 M8X45	0-20800-845-0	01	1	1502-		●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1206-	●	●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-1501	●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-1501		●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-1501		●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1502-	●	●
97	03.708 WASHER; PL,CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1502-	●
97	03.708 WASHER; PL,CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1502-		●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
105	03.704 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	1206-	●	●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 02.334 M8	0-91110-508-0	01	1	1206-1501	●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 02.334 M8	0-91110-508-0	01	1	1206-1501		●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) 02.334 M8	0-91110-508-0	01	1	1206-1501		●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) 02.334 M8	0-91110-508-0	01	1	1502-	●	●
125	03.708 NUT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 02.334 M8	0-91110-508-0	01	1	1502-	●
125	03.708 NUT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 02.334 M8	0-91110-508-0	01	1	1502-		●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (E)	8-98303-687-0	01	1	1502-	●	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C)	8-97258-860-0	01	1	1206-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (D)	8-98207-967-0	01	1	1206-	●	●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-97081-460-0	01	1	1206-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (D)	8-97144-949-0	01	1	1206-		●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) WHEEL BASE 3300MM(33W) (B)	8-98181-840-0	01	1	1206-		●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.613 (D)	8-97210-476-0	01	1	1206-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (A)	9-22121-146-1	01	1	1206-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) (E)	8-97252-492-0	01	1	1206-	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) 03.704 (B)	8-94468-174-1	01	1	1206-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.704 (B)	8-94468-174-1	01	1	1206-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (C)	8-98096-331-0	01	1	1206-		●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1206-1501	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1206-1501		●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (A)	8-97371-655-1	01	1	1206-1501		●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) (A)	8-97371-655-1	01	1	1502-	●	●
143	03.704 RUBBER; SUPPORT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1502-	●
143	03.704 RUBBER; SUPPORT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-97371-655-1	01	1	1502-		●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	01	1	1206-	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	01	1	1206-	●	●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-1501	●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-1501		●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-1501		●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	1502-	●	●
144	03.613 NUT; MTG RUBBER 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1502-	●
144	03.613 NUT; MTG RUBBER 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1502-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) (D)	8-97206-510-1	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) (C)	8-97144-952-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (C)	8-97144-952-0	01	1	1206-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (D)	8-97144-955-1	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D)	8-97144-955-1	01	1	1206-		●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2400MM(24W) (A) L=180	8-97222-646-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2700MM(27W) (B) L=115	8-94156-256-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=115	8-94156-256-0	01	1	1206-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (C)	8-97144-953-0	01	1	1206-		●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-	●	●
610	03.704 BOLT; HANGER 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-	●	●
610	03.704 BOLT; HANGER WHEEL BASE 2400MM(24W) 09.173 (A) M8X45 FLANGE	0-28050-845-0	01	1	1206-	●
610	03.704 BOLT; HANGER WHEEL BASE 2700MM(27W) 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1206-	●
610	03.704 BOLT; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1206-		●
627	03.706 WASHER; HANGER WHEEL BASE 2400MM(24W) (A) ID=8.4 OD=26	0-91614-808-0	01	1	1206-	●
627	03.706 WASHER; HANGER WHEEL BASE 2700MM(27W) 00.002 (B) ID=10.5 OD=32	0-91614-810-0	01	1	1206-	●
627	03.706 WASHER; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.002 (B) ID=10.5 OD=32	0-91614-810-0	01	1	1206-		●
628	03.275 NUT; HANGER 4JB1-TC ENG(RDT) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
628	03.275 NUT; HANGER WHEEL BASE 2700MM(27W) 00.833 (A) M10	0-91110-510-0	01	1	1206-	●
628	03.275 NUT; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.833 (A) M10	0-91110-510-0	01	1	1206-		●
629	03.706 SPACER; HANGER WHEEL BASE 2400MM(24W) 03.616 (A) L=23	9-22151-175-0	01	1	1206-	●
629	03.706 SPACER; HANGER WHEEL BASE 2700MM(27W) (B) L=37.5	9-22151-217-0	01	1	1206-	●
629	03.706 SPACER; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	1206-		●

36 2 1 316 25 36 223 44 17 2 17 36 223 44 1 562 25 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (D)	8-97212-561-2	01	1	1206-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> (B)	8-97212-759-3	01	1	1206-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> (E)	8-98187-194-0	01	1	1206-	●	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXC. EXHAUST BRAKE<NF8> (C)	8-98187-195-0	01	1	1206-	●	●
1	03.609 PIPE; EXH 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> (A)	8-97102-669-0	01	1	1206-	●	●
1	03.609 PIPE; EXH 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97102-668-0	01	1	1206-	●	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (E)	8-97206-026-1	01	1	1206-		●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXC. EXHAUST BRAKE<NF8> (C)	8-97206-027-0	01	1	1206-		●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT)	8-97381-456-0	01	1	1206-	●	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97381-456-0	01	1	1206-	●	●
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1206-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (A)	8-97206-030-1	01	1	1206-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> (B)	8-97206-031-0	01	1	1206-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (B)	8-97206-031-0	01	1	1206-		●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (A) M10 FLANGE	8-97096-192-1	02	1	1206-	●	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A) M10 FLANGE	8-97096-192-1	02	1	1206-	●	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1206-	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) 02.334 (B) M8	0-91110-508-0	01	1	1206-	●	●
36	03.613 NUT; EXH PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> (A) M10 H=18	9-09640-014-0	02	1	1206-	●	●
44	03.613 BOLT; BRKT 4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1206-	●	●
223	03.706 BRACKET; EXH PIPE 4JB1-TC ENG(RDT) 03.613	8-97084-346-2	01	1	1206-	●	●
223	03.706 BRACKET; EXH PIPE 4JB1-NA ENG(RLF) 03.613	8-94445-704-0	01	1	1206-	●	●
316	03.613 GASKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1206-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1206-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-NA ENG(RLF) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1206-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1206-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1206-		●
562	03.690 PLATE; STUD,BOLT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.632 M8X70	0-10855-870-0	04	1	1206-	●	●

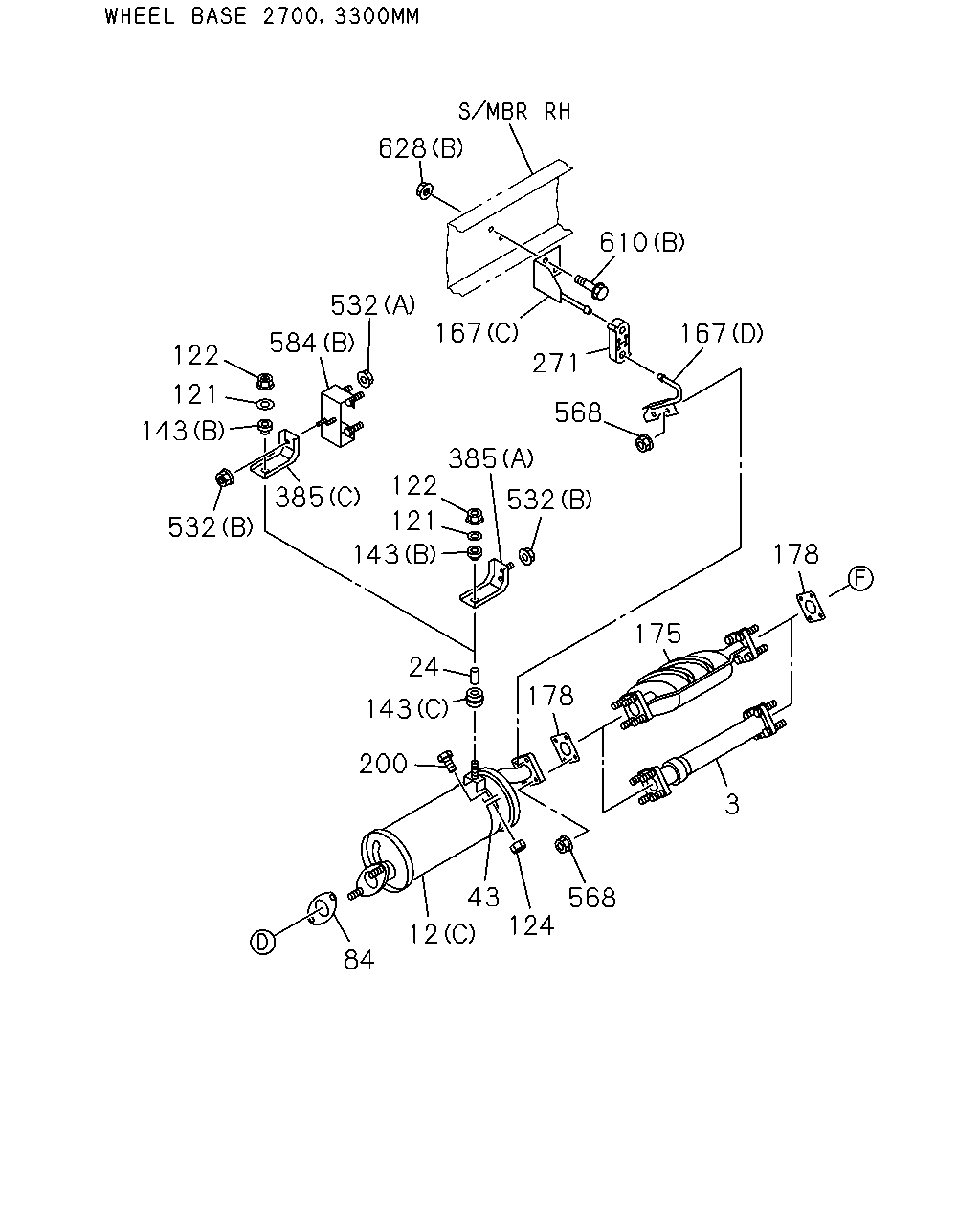

178 175 178 3 568 124 43 12 84 200 143 143 24 121 122 385 385 532 143 121 122 584 532 532 568 271 167 610 167 628

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER 4JB1-TC ENG(RDT) VIETNAM EQUIPMENT(SGX) IDENTIFICATION LABEL FOR KD<6UT>	8-98122-678-1	01	1	1206-1206	●	●
3	03.609 PIPE; EXH,CENTER 4JB1-TC ENG(RDT)	8-98122-678-1	01	1	1207-1210	●
3	03.609 PIPE; EXH,CENTER 4JB1-TC ENG(RDT) EXC. COUNTRY ALGERIA<D2G>	8-98122-678-1	01	1	1207-1210		●
3	03.609 PIPE; EXH,CENTER 4JB1-TC ENG(RDT)	8-98122-678-1	01	1	1211-	●	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98224-810-0	01	1	1303-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) (B)	8-97221-923-0	01	1	1206-1302	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B)	8-97221-923-0	01	1	1303-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> EXC. EXHAUST BRAKE<NF8> (B)	8-97221-923-0	01	1	1303-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (C)	8-97206-036-0	01	1	1206-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (C)	8-97206-036-0	01	1	1206-		●
12	03.701 SILENCER ASM; EXH 4JB1-NA ENG(RLF) (A)	8-97049-721-0	01	1	1206-	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1206-	●	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.706	8-97076-018-0	01	1	1206-	●
43	03.611 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) 03.706	8-97081-457-0	01	1	1206-	●	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.706	8-97081-457-0	01	1	1206-	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.706	8-97081-457-0	01	1	1206-		●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 03.634 ID=54	8-94328-354-0	01	1	1206-	●
84	03.611 GASKET; EXH PIPE 4JB1-NA ENG(RLF) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1206-	●	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1206-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1206-		●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1206-	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1206-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 M8	0-91110-508-0	01	1	1206-	●	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1206-1501	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1206-1501		●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (A)	8-97371-655-1	01	1	1206-1501		●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) (A)	8-97371-655-1	01	1	1502-	●	●
143	03.704 RUBBER; SUPPORT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1502-	●
143	03.704 RUBBER; SUPPORT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-97371-655-1	01	1	1502-		●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	01	1	1206-	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	01	1	1206-	●	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) (D)	8-97206-510-1	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) (C)	8-97144-952-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (C)	8-97144-952-0	01	1	1206-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (D)	8-97144-955-1	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D)	8-97144-955-1	01	1	1206-		●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2400MM(24W) (A) L=180	8-97222-646-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2700MM(27W) (B) L=115	8-94156-256-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=115	8-94156-256-0	01	1	1206-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (C)	8-97144-953-0	01	1	1206-		●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98118-541-0	01	1	1206-1206	●	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. VIETNAM EQUIPMENT(SGX)	8-98118-541-0	01	1	1206-1206	●	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) COUNTRY ALGERIA<D2G>	8-98118-541-0	01	1	1207-1210		●
178	03.611 GASKET; CONV TO MANIF 4JB1-TC ENG(RDT) ID=71	8-94324-194-1	02	1	1206-	●	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	01	1	1206-	●	●
271	03.704 RUBBER; HANGER,RR PIPE 4JB1-TC ENG(RDT) 03.613	8-97166-498-1	01	1	1206-	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) (B)	8-97073-758-0	01	1	1206-	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (C)	8-97172-313-0	01	1	1206-1501	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (C)	8-97172-313-0	01	1	1502-	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-NA ENG(RLF) (A)	8-94329-856-0	01	1	1206-1501	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (A)	8-94329-856-0	01	1	1206-1501		●
385	03.704 BRACKET; SILENCER MTG 4JB1-NA ENG(RLF) WHEEL BASE 2400MM(24W) (A)	8-94329-856-0	01	1	1502-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (A)	8-94329-856-0	01	1	1502-		●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1206-1210	●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1211-1501	●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1211-1501		●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1502-	●
532	03.704 NUT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1502-	●
532	03.704 NUT WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1502-		●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	03	1	1206-1210	●	●
532	03.704 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
568	03.704 NUT; DPD 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	1206-	●	●
584	03.706 SPACER; EXH SILENCER 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (C)	8-98303-688-0	01	1	1502-	●	●
584	03.706 SPACER; EXH SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.704 (A)	8-94378-511-1	01	1	1206-	●
584	03.706 SPACER; EXH SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.704 (B)	8-97351-812-0	01	1	1206-1210	●	●
584	03.706 SPACER; EXH SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.704 (B)	8-97254-980-1	01	1	1211-	●	●
610	03.704 BOLT; HANGER 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-	●	●
610	03.704 BOLT; HANGER WHEEL BASE 2400MM(24W) 09.173 (A) M8X45 FLANGE	0-28050-845-0	01	1	1206-	●
610	03.704 BOLT; HANGER WHEEL BASE 2700MM(27W) 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1206-	●
610	03.704 BOLT; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1206-		●
628	03.275 NUT; HANGER 4JB1-TC ENG(RDT) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
628	03.275 NUT; HANGER WHEEL BASE 2700MM(27W) 00.833 (A) M10	0-91110-510-0	01	1	1206-	●
628	03.275 NUT; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.833 (A) M10	0-91110-510-0	01	1	1206-		●

610 627 629 104 137 95 94 167 357 105 88 126 14 38 81 70 125 88 144 137 143 97 94 14 38 126 628 629 95 167 627 610 137 104 88 94 357 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1-NA ENG(RLF) ID=64.7	8-94328-352-0	01	1	1206-	●	●
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	1206-	●	●
38	00.002 NUT; SILENCER 4JB1-NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1206-	●	●
70	03.706 BOLT; BRKT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1206-	●
70	03.706 BOLT; BRKT WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1206-	●
70	03.706 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1206-		●
81	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-	●
81	03.704 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1206-1501	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) ID=51.5	8-97325-352-0	01	1	1206-1501	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) ID=51.5	8-97325-352-0	01	1	1206-1501		●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) ID=51.5	8-97325-352-0	01	1	1206-1501		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1502-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	01	1	1502-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) ID=51.5	8-97325-352-0	01	1	1502-	●
88	03.708 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) ID=51.5	8-97325-352-0	01	1	1502-		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1206-1501	●	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 03.708 M8X45	0-20800-845-0	01	1	1206-1501	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.708 M8X45	0-20800-845-0	01	1	1206-1501		●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 03.708 M8X45	0-20800-845-0	01	1	1206-1501		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1502-	●	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 03.708 M8X45	0-20800-845-0	01	1	1502-	●	●
94	03.704 BOLT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 03.708 M8X45	0-20800-845-0	01	1	1502-	●
94	03.704 BOLT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.708 M8X45	0-20800-845-0	01	1	1502-		●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1206-	●	●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-1501	●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-1501		●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-1501		●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1502-	●	●
97	03.708 WASHER; PL,CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1502-	●
97	03.708 WASHER; PL,CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1502-		●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
105	03.704 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	1206-	●	●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 02.334 M8	0-91110-508-0	01	1	1206-1501	●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 02.334 M8	0-91110-508-0	01	1	1206-1501		●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) 02.334 M8	0-91110-508-0	01	1	1206-1501		●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) 02.334 M8	0-91110-508-0	01	1	1502-	●	●
125	03.708 NUT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 02.334 M8	0-91110-508-0	01	1	1502-	●
125	03.708 NUT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 02.334 M8	0-91110-508-0	01	1	1502-		●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (E)	8-98303-687-0	01	1	1502-	●	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C)	8-97258-860-0	01	1	1206-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (D)	8-98207-967-0	01	1	1206-	●	●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-97081-460-0	01	1	1206-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (D)	8-97144-949-0	01	1	1206-		●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) WHEEL BASE 3300MM(33W) (B)	8-98181-840-0	01	1	1206-		●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.613 (D)	8-97210-476-0	01	1	1206-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (A)	9-22121-146-1	01	1	1206-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) (E)	8-97252-492-0	01	1	1206-	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) 03.704 (B)	8-94468-174-1	01	1	1206-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.704 (B)	8-94468-174-1	01	1	1206-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (C)	8-98096-331-0	01	1	1206-		●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1206-1501	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1206-1501		●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (A)	8-97371-655-1	01	1	1206-1501		●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) (A)	8-97371-655-1	01	1	1502-	●	●
143	03.704 RUBBER; SUPPORT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1502-	●
143	03.704 RUBBER; SUPPORT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-97371-655-1	01	1	1502-		●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	01	1	1206-	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	01	1	1206-	●	●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-1501	●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-1501		●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-1501		●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	1502-	●	●
144	03.613 NUT; MTG RUBBER 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1502-	●
144	03.613 NUT; MTG RUBBER 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1502-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) (D)	8-97206-510-1	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) (C)	8-97144-952-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (C)	8-97144-952-0	01	1	1206-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (D)	8-97144-955-1	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D)	8-97144-955-1	01	1	1206-		●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2400MM(24W) (A) L=180	8-97222-646-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2700MM(27W) (B) L=115	8-94156-256-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=115	8-94156-256-0	01	1	1206-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (C)	8-97144-953-0	01	1	1206-		●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-	●	●
610	03.704 BOLT; HANGER 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-	●	●
610	03.704 BOLT; HANGER WHEEL BASE 2400MM(24W) 09.173 (A) M8X45 FLANGE	0-28050-845-0	01	1	1206-	●
610	03.704 BOLT; HANGER WHEEL BASE 2700MM(27W) 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1206-	●
610	03.704 BOLT; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1206-		●
627	03.706 WASHER; HANGER WHEEL BASE 2400MM(24W) (A) ID=8.4 OD=26	0-91614-808-0	01	1	1206-	●
627	03.706 WASHER; HANGER WHEEL BASE 2700MM(27W) 00.002 (B) ID=10.5 OD=32	0-91614-810-0	01	1	1206-	●
627	03.706 WASHER; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.002 (B) ID=10.5 OD=32	0-91614-810-0	01	1	1206-		●
628	03.275 NUT; HANGER 4JB1-TC ENG(RDT) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
628	03.275 NUT; HANGER WHEEL BASE 2700MM(27W) 00.833 (A) M10	0-91110-510-0	01	1	1206-	●
628	03.275 NUT; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.833 (A) M10	0-91110-510-0	01	1	1206-		●
629	03.706 SPACER; HANGER WHEEL BASE 2400MM(24W) 03.616 (A) L=23	9-22151-175-0	01	1	1206-	●
629	03.706 SPACER; HANGER WHEEL BASE 2700MM(27W) (B) L=37.5	9-22151-217-0	01	1	1206-	●
629	03.706 SPACER; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	1206-		●

137 104 95 167 627 88 94 105 357 610 629 126 38 94 97 88 125 137 143 144 70 12 3 175 178 628 178 568 12 329 562 43 167 167 610 271 568 200 532 24 124 143 121 122 584 532 46 143 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER 4JB1-TC ENG(RDT) VIETNAM EQUIPMENT(SGX) IDENTIFICATION LABEL FOR KD<6UT>	8-98122-678-1	01	1	1206-1206	●	●
3	03.609 PIPE; EXH,CENTER 4JB1-TC ENG(RDT)	8-98122-678-1	01	1	1207-1210	●
3	03.609 PIPE; EXH,CENTER 4JB1-TC ENG(RDT) EXC. COUNTRY ALGERIA<D2G>	8-98122-678-1	01	1	1207-1210		●
3	03.609 PIPE; EXH,CENTER 4JB1-TC ENG(RDT)	8-98122-678-1	01	1	1211-	●	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98224-810-0	01	1	1303-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) (B)	8-97221-923-0	01	1	1206-1302	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B)	8-97221-923-0	01	1	1303-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> EXC. EXHAUST BRAKE<NF8> (B)	8-97221-923-0	01	1	1303-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (C)	8-97206-036-0	01	1	1206-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (C)	8-97206-036-0	01	1	1206-		●
12	03.701 SILENCER ASM; EXH 4JB1-NA ENG(RLF) (A)	8-97049-721-0	01	1	1206-	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1206-	●	●
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	1206-	●	●
38	00.002 NUT; SILENCER 4JB1-NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1206-	●	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.706	8-97076-018-0	01	1	1206-	●
43	03.611 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) 03.706	8-97081-457-0	01	1	1206-	●	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.706	8-97081-457-0	01	1	1206-	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.706	8-97081-457-0	01	1	1206-		●
46	03.704 BOLT; BRKT,EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1206-	●
70	03.706 BOLT; BRKT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1206-	●
70	03.706 BOLT; BRKT WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1206-	●
70	03.706 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1206-		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1206-1501	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) ID=51.5	8-97325-352-0	01	1	1206-1501	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) ID=51.5	8-97325-352-0	01	1	1206-1501		●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) ID=51.5	8-97325-352-0	01	1	1206-1501		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1502-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	01	1	1502-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) ID=51.5	8-97325-352-0	01	1	1502-	●
88	03.708 CLAMP; EXH PIPE 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) ID=51.5	8-97325-352-0	01	1	1502-		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1206-1501	●	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 03.708 M8X45	0-20800-845-0	01	1	1206-1501	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.708 M8X45	0-20800-845-0	01	1	1206-1501		●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 03.708 M8X45	0-20800-845-0	01	1	1206-1501		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1502-	●	●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 03.708 M8X45	0-20800-845-0	01	1	1502-	●	●
94	03.704 BOLT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 03.708 M8X45	0-20800-845-0	01	1	1502-	●
94	03.704 BOLT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.708 M8X45	0-20800-845-0	01	1	1502-		●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1206-	●	●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-1501	●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-1501		●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-1501		●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1502-	●	●
97	03.708 WASHER; PL,CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1502-	●
97	03.708 WASHER; PL,CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1502-		●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
105	03.704 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	1206-	●	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1206-	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1206-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 M8	0-91110-508-0	01	1	1206-	●	●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 02.334 M8	0-91110-508-0	01	1	1206-1501	●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 02.334 M8	0-91110-508-0	01	1	1206-1501		●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) 02.334 M8	0-91110-508-0	01	1	1206-1501		●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) 02.334 M8	0-91110-508-0	01	1	1502-	●	●
125	03.708 NUT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 02.334 M8	0-91110-508-0	01	1	1502-	●
125	03.708 NUT; CLAMP 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 02.334 M8	0-91110-508-0	01	1	1502-		●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (E)	8-98303-687-0	01	1	1502-	●	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C)	8-97258-860-0	01	1	1206-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (D)	8-98207-967-0	01	1	1206-	●	●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-97081-460-0	01	1	1206-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (D)	8-97144-949-0	01	1	1206-		●
126	03.705 PIPE; EXH,RR 4JB1-NA ENG(RLF) WHEEL BASE 3300MM(33W) (B)	8-98181-840-0	01	1	1206-		●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.613 (D)	8-97210-476-0	01	1	1206-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (A)	9-22121-146-1	01	1	1206-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) (E)	8-97252-492-0	01	1	1206-	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) 03.704 (B)	8-94468-174-1	01	1	1206-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.704 (B)	8-94468-174-1	01	1	1206-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (C)	8-98096-331-0	01	1	1206-		●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1206-1501	●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1206-1501		●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (A)	8-97371-655-1	01	1	1206-1501		●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) (A)	8-97371-655-1	01	1	1502-	●	●
143	03.704 RUBBER; SUPPORT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (A)	8-97371-655-1	01	1	1502-	●
143	03.704 RUBBER; SUPPORT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-97371-655-1	01	1	1502-		●
143	03.704 RUBBER; SUPPORT (B)	8-94457-277-1	01	1	1206-	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-278-1	01	1	1206-	●	●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-1501	●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-1501		●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-1501		●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	1502-	●	●
144	03.613 NUT; MTG RUBBER 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1502-	●
144	03.613 NUT; MTG RUBBER 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1502-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) (D)	8-97206-510-1	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) (C)	8-97144-952-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (C)	8-97144-952-0	01	1	1206-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (D)	8-97144-955-1	01	1	1206-	●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D)	8-97144-955-1	01	1	1206-		●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2400MM(24W) (A) L=180	8-97222-646-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2700MM(27W) (B) L=115	8-94156-256-0	01	1	1206-	●
167	03.706 HANGER; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=115	8-94156-256-0	01	1	1206-		●
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (C)	8-97144-953-0	01	1	1206-		●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98118-541-0	01	1	1206-1206	●	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. VIETNAM EQUIPMENT(SGX)	8-98118-541-0	01	1	1206-1206	●	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) COUNTRY ALGERIA<D2G>	8-98118-541-0	01	1	1207-1210		●
178	03.611 GASKET; CONV TO MANIF 4JB1-TC ENG(RDT) ID=71	8-94324-194-1	02	1	1206-	●	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	01	1	1206-	●	●
271	03.704 RUBBER; HANGER,RR PIPE 4JB1-TC ENG(RDT) 03.613	8-97166-498-1	01	1	1206-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1206-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-NA ENG(RLF) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1206-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1206-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1206-		●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1206-	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) (B)	8-97073-758-0	01	1	1206-	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) (C)	8-97172-313-0	01	1	1206-1501	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (C)	8-97172-313-0	01	1	1502-	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-NA ENG(RLF) (A)	8-94329-856-0	01	1	1206-1501	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (A)	8-94329-856-0	01	1	1206-1501		●
385	03.704 BRACKET; SILENCER MTG 4JB1-NA ENG(RLF) WHEEL BASE 2400MM(24W) (A)	8-94329-856-0	01	1	1502-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (A)	8-94329-856-0	01	1	1502-		●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1206-1210	●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1211-1501	●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1211-1501		●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W),WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1502-	●
532	03.704 NUT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1502-	●
532	03.704 NUT WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1502-		●
532	03.704 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.162 (A) M10 FLANGE	0-91180-110-0	03	1	1206-1210	●	●
532	03.704 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
562	03.690 PLATE; STUD,BOLT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.632 M8X70	0-10855-870-0	04	1	1206-	●	●
568	03.704 NUT; DPD 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	1206-	●	●
584	03.706 SPACER; EXH SILENCER 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) (C)	8-98303-688-0	01	1	1502-	●	●
584	03.706 SPACER; EXH SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 03.704 (A)	8-94378-511-1	01	1	1206-	●
584	03.706 SPACER; EXH SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.704 (B)	8-97351-812-0	01	1	1206-1210	●	●
584	03.706 SPACER; EXH SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) 03.704 (B)	8-97254-980-1	01	1	1211-	●	●
610	03.704 BOLT; HANGER 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-	●	●
610	03.704 BOLT; HANGER WHEEL BASE 2400MM(24W) 09.173 (A) M8X45 FLANGE	0-28050-845-0	01	1	1206-	●
610	03.704 BOLT; HANGER WHEEL BASE 2700MM(27W) 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1206-	●
610	03.704 BOLT; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1206-		●
627	03.706 WASHER; HANGER WHEEL BASE 2400MM(24W) (A) ID=8.4 OD=26	0-91614-808-0	01	1	1206-	●
627	03.706 WASHER; HANGER WHEEL BASE 2700MM(27W) 00.002 (B) ID=10.5 OD=32	0-91614-810-0	01	1	1206-	●
627	03.706 WASHER; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.002 (B) ID=10.5 OD=32	0-91614-810-0	01	1	1206-		●
628	03.275 NUT; HANGER 4JB1-TC ENG(RDT) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1206-	●	●
628	03.275 NUT; HANGER WHEEL BASE 2700MM(27W) 00.833 (A) M10	0-91110-510-0	01	1	1206-	●
628	03.275 NUT; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.833 (A) M10	0-91110-510-0	01	1	1206-		●
629	03.706 SPACER; HANGER WHEEL BASE 2400MM(24W) 03.616 (A) L=23	9-22151-175-0	01	1	1206-	●
629	03.706 SPACER; HANGER WHEEL BASE 2700MM(27W) (B) L=37.5	9-22151-217-0	01	1	1206-	●
629	03.706 SPACER; HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	1206-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
