◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#95904) — 29 parça

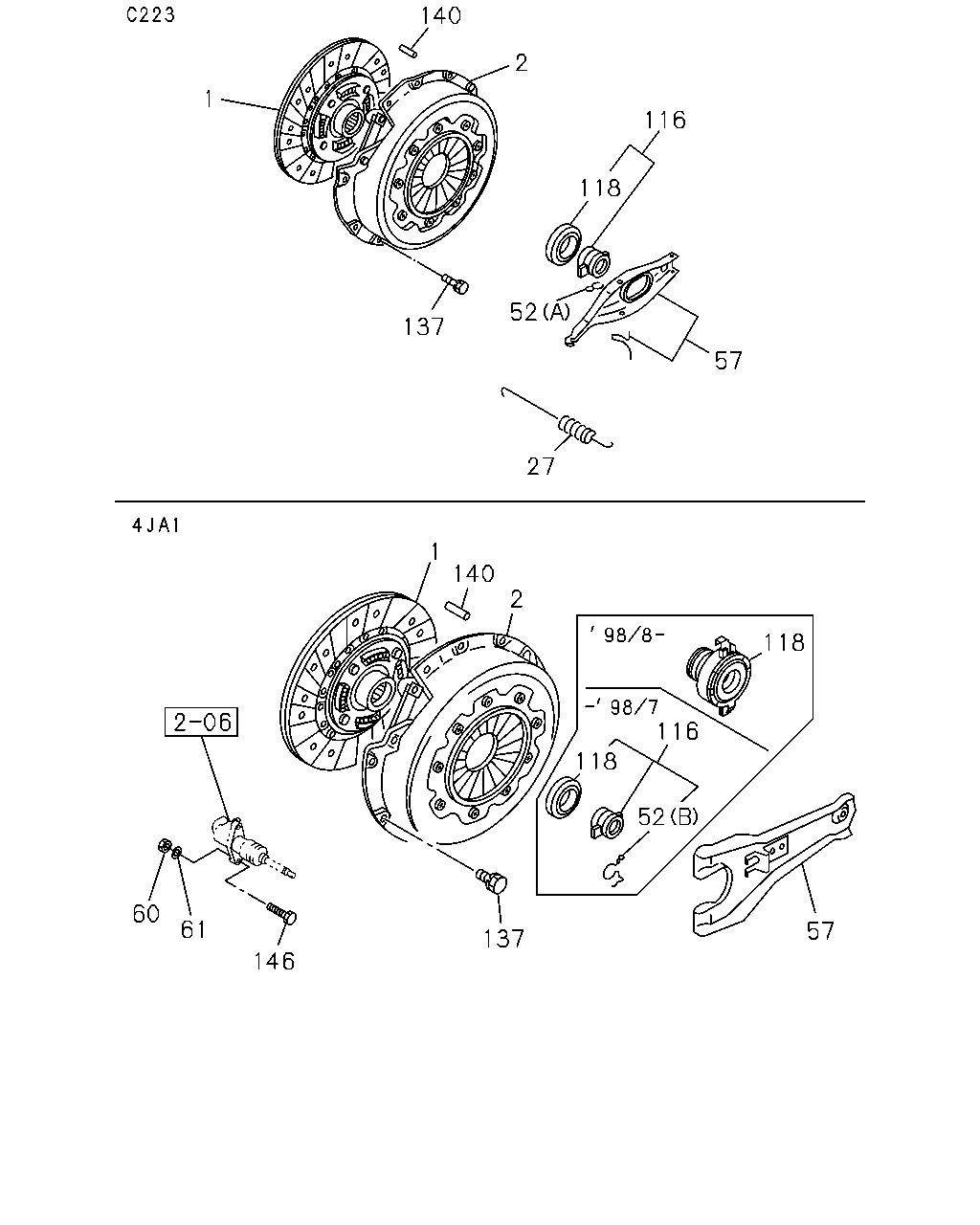

çizim 289792
1 140 2 137 116 118 52 57 27 1 140 2 118 116 118 52 57 137 146 61 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
DELETION 8.5" 		8-94314-676-0 01 1 9009-9601 ●
1 DISC; CLUTCH 8-94453-749-1 01 1 9602-9605 ●
1 DISC; CLUTCH
IDN 		8-97143-203-0 01 1 9606-0308 ●
1 DISC; CLUTCH
IDN 		8-97368-061-0 01 1 0309- ●
2 PLATE ASM; PRESSURE,CLU
DELETION 		8-94105-062-0 01 1 9009-9601 ●
2 PLATE ASM; PRESSURE,CLU
IDN 		8-94435-011-1 01 1 9602- ●
27 SPRING; RETURN,SHIFT FORK 5-09583-020-0 01 1 9009-9601 ●
52 SPRING; SHIFT BLOCK TO FORK
(A) 		5-31329-003-0 02 1 9009-9601 ●
52 SPRING; SHIFT BLOCK TO FORK
(B) 		9-31329-010-0 01 1 9602-9807 ●
57 FORK; SHIFT,CLU 8-94235-755-0 01 1 9009-9601 ●
57 FORK; SHIFT,CLU 8-94167-751-0 01 1 9602- ●
60 NUT; SLAVE CYL
M12 		9-99110-412-0 01 1 9602-0512 ●
60 NUT; SLAVE CYL
M12 		0-91110-512-0 01 1 0601- ●
61 WASHER; PL,SLAVE CYL,CLU
ID=12.5 		9-09160-512-0 01 1 9602-0302 ●
61 WASHER; PL,SLAVE CYL,CLU
ID=12.5 		9-09164-512-0 01 1 0303- ●
116 BLOCK; SHIFT,CLU 5-31321-003-3 01 1 9009-9601 ●
116 BLOCK; SHIFT,CLU 8-94438-300-0 01 1 9602-9807 ●
118 BEARING; CLU RELEASE
NSK ID=38 OD=67 		9-00095-040-1 01 1 9009-9601 ●
118 BEARING; CLU RELEASE
NSK ID=43 OD=66.6 		8-94101-243-0 01 1 9602-9807 ●
118 BEARING; CLU RELEASE
NSK ID=56 OD=71.7 		8-97209-197-0 01 1 9808- ●
137 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9009-9601 ●
137 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9602-9611 ●
137 BOLT; CLU COVER
M8X16 FLANGE 		0-28080-816-0 06 1 9612-0512 ●
137 BOLT; CLU COVER
M8X16 FLANGE 		0-28050-816-0 06 1 0601- ●
140 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 9009-9601 ●
140 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 9602- ●
146 BOLT; SLAVE CYL TO TRANS CASE
M12X90 		8-94475-060-1 01 1 9602-9703 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M12X90 		0-28081-290-0 01 1 9704-0512 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M12X90 FLANGE 		0-28051-290-0 01 1 0601- ●
