1-50 — EXHAUST PIPE AND SILENCER (#95903) — 95 parça

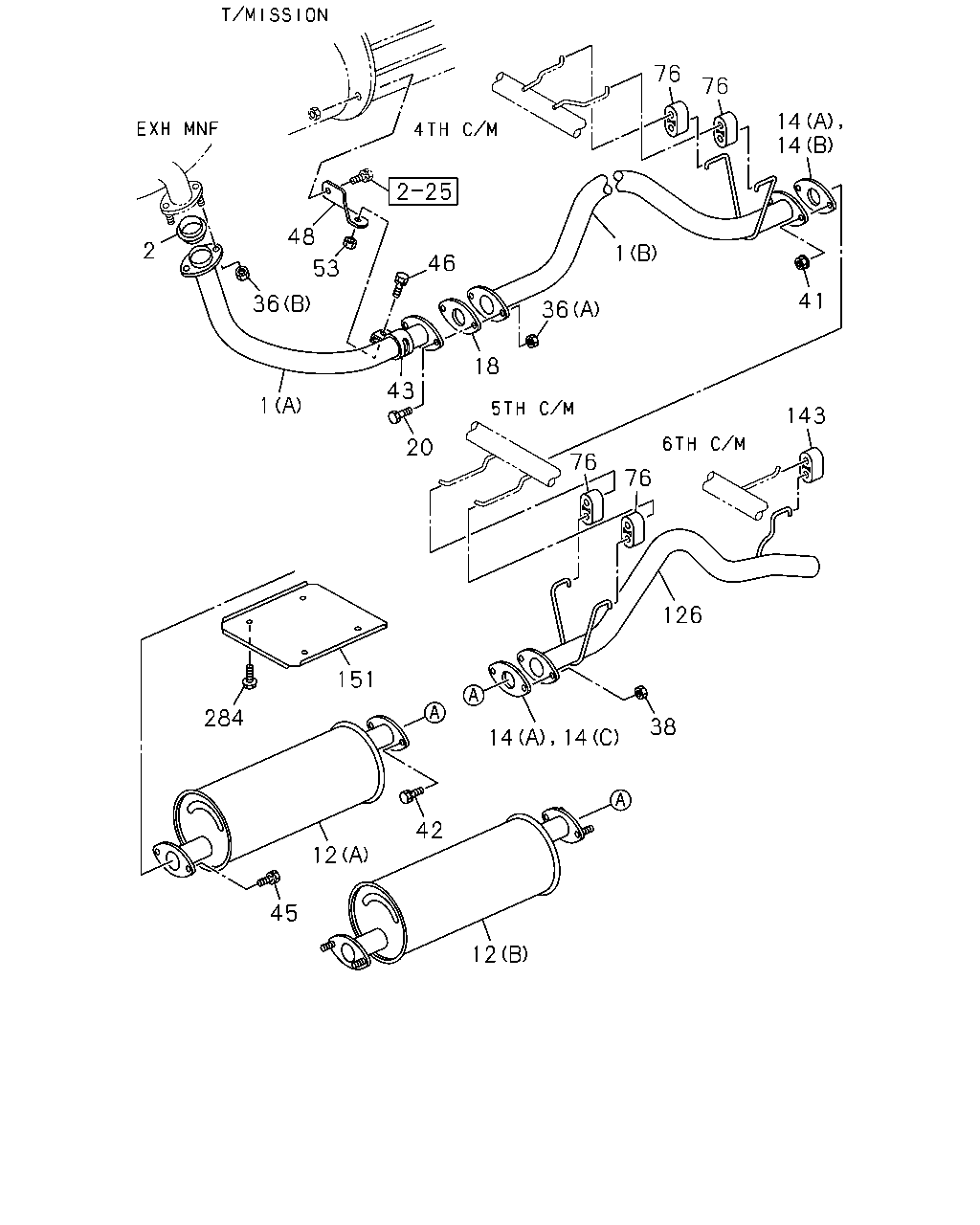

çizim 289023
2 48 53 36 1 43 20 46 76 76 14 14 41 1 36 18 76 76 143 284 151 14 14 38 126 12 12 42 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; EXH
(A) DELETION 		8-94367-993-0 01 1 9009-9601 ● ● ● ●
1 PIPE; EXH
(C) DELETION IDN 		8-97123-641-0 01 1 9602- ● ● ● ●
1 PIPE; EXH
(B) DELETION 		8-94367-994-0 01 1 9009-9601 ● ●
1 PIPE; EXH
(D) DELETION IDN 		8-97123-642-0 01 1 9602-9602 ● ●
1 PIPE; EXH
(D) DELETION IDN 		8-97148-734-0 01 1 9603- ● ●
1 PIPE; EXH
(B) DELETION 		8-94367-995-0 01 1 9009-9601 ● ●
1 PIPE; EXH
(D) DELETION IDN 		8-97123-643-0 01 1 9602-9602 ● ●
1 PIPE; EXH
(D) DELETION IDN 		8-97148-735-0 01 1 9603- ● ●
2 GASKET; PIPE TO MANIF
ID=44 		9-22116-021-0 01 1 9009-9601 ● ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9602- ● ● ● ●
12 SILENCER ASM; EXH
(A) DELETION 		8-94368-325-0 01 1 9009-9408 ● ● ● ●
12 SILENCER ASM; EXH
(B) DELETION 		8-97022-464-1 01 1 9409-9601 ● ● ● ●
12 SILENCER ASM; EXH
(C) DELETION IDN 		8-97022-461-1 01 1 9602- ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=53 		5-22116-003-0 02 1 9009-9402 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=55 		8-97093-574-0 02 1 9403-9408 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=55 		8-97093-574-1 01 1 9409- ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(C) ID=64.7 		8-94328-352-0 01 1 9409- ● ● ● ●
18 GASKET; EXH PIPE TO PIPE
ID=53 		5-22116-003-0 01 1 9009-9402 ● ● ● ●
18 GASKET; EXH PIPE TO PIPE
ID=55 		8-97093-574-1 01 1 9403- ● ● ● ●
20 BOLT; FLANGE,EXH PIPE
M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9009-9601 ● ● ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9009-0602 ● ● ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-94156-626-0 02 1 9009-9402 ● ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 9403- ● ● ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9009-0602 ● ● ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9009-0602 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9009-9408 ● ● ● ●
43 CLAMP; EXH PIPE
DELETION 		8-94473-416-0 01 1 9009-9601 ● ● ● ●
45 BOLT; BRKT
M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9009-9408 ● ● ● ●
46 BOLT; BRKT,EXH PIPE
M8X40 W/LK WASHER 		9-01900-840-0 01 1 9009-9204 ● ● ● ●
46 BOLT; BRKT,EXH PIPE
M8X40 W/LK WASHER 		0-50040-840-0 01 1 9205-9410 ● ● ● ●
46 BOLT; BRKT,EXH PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 9411-0512 ● ● ● ●
46 BOLT; BRKT,EXH PIPE
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ● ● ● ●
48 BRACKET; EXH PIPE TO MTG
DELETION 		8-94170-998-0 01 1 9009-9601 ● ● ● ●
48 BRACKET; EXH PIPE TO MTG
DELETION IDN 		8-97131-747-0 01 1 9602- ● ● ● ●
53 NUT; BRKT TO CLAMP
M8 FLANGE 		0-91150-108-0 01 1 9009-0602 ● ● ● ●
53 NUT; BRKT TO CLAMP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
76 SUPPORT; BRKT
DELETION T=28 		8-94139-493-1 04 1 9009-9402 ● ● ● ●
76 SUPPORT; BRKT
DELETION T=28 D=55 IDN 		8-97023-183-0 04 1 9403- ● ● ● ●
126 PIPE; EXH,RR
DELETION 		8-94367-996-2 01 1 9009-9408 ● ● ● ●
126 PIPE; EXH,RR
DELETION 		8-97109-932-0 01 1 9409-9601 ● ● ● ●
126 PIPE; EXH,RR
DELETION IDN 		8-97123-689-0 01 1 9602- ● ● ● ●
143 RUBBER; SUPPORT
DELETION T=28 		8-94139-493-1 01 1 9009-9402 ● ● ● ●
143 RUBBER; SUPPORT
DELETION T=28 D=55 IDN 		8-97023-183-0 01 1 9403- ● ● ● ●
151 PROTECTOR; HEAT,EXH PIPE
DELETION IDN 		8-97028-222-0 01 1 9009- ●
284 BOLT; HEAT PROTECTOR
DELETION M6X16 W/PL WASHER IDN 		8-94204-636-0 04 1 9009- ●

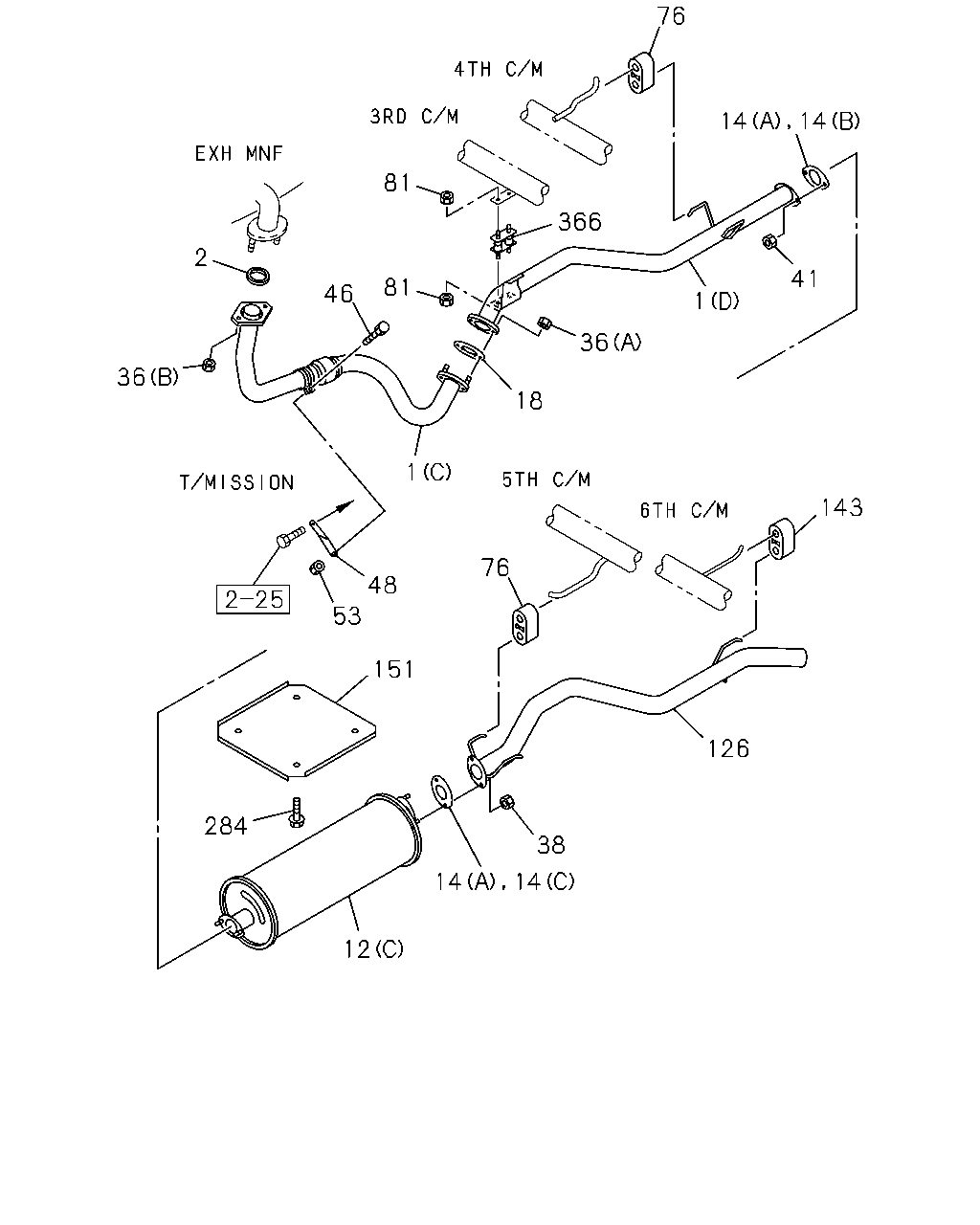

çizim 289129
2 46 81 81 36 1 18 36 366 76 14 14 41 1 143 76 48 53 151 38 14 14 12 284 126
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; EXH
(A) DELETION 		8-94367-993-0 01 1 9009-9601 ● ● ● ●
1 PIPE; EXH
(C) DELETION IDN 		8-97123-641-0 01 1 9602- ● ● ● ●
1 PIPE; EXH
(B) DELETION 		8-94367-994-0 01 1 9009-9601 ● ●
1 PIPE; EXH
(D) DELETION IDN 		8-97123-642-0 01 1 9602-9602 ● ●
1 PIPE; EXH
(D) DELETION IDN 		8-97148-734-0 01 1 9603- ● ●
1 PIPE; EXH
(B) DELETION 		8-94367-995-0 01 1 9009-9601 ● ●
1 PIPE; EXH
(D) DELETION IDN 		8-97123-643-0 01 1 9602-9602 ● ●
1 PIPE; EXH
(D) DELETION IDN 		8-97148-735-0 01 1 9603- ● ●
2 GASKET; PIPE TO MANIF
ID=44 		9-22116-021-0 01 1 9009-9601 ● ● ● ●
2 GASKET; PIPE TO MANIF 8-97069-287-0 01 1 9602- ● ● ● ●
12 SILENCER ASM; EXH
(A) DELETION 		8-94368-325-0 01 1 9009-9408 ● ● ● ●
12 SILENCER ASM; EXH
(B) DELETION 		8-97022-464-1 01 1 9409-9601 ● ● ● ●
12 SILENCER ASM; EXH
(C) DELETION IDN 		8-97022-461-1 01 1 9602- ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=53 		5-22116-003-0 02 1 9009-9402 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=55 		8-97093-574-0 02 1 9403-9408 ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=55 		8-97093-574-1 01 1 9409- ● ● ● ●
14 GASKET; SILENCER TO EXH PIPE
(C) ID=64.7 		8-94328-352-0 01 1 9409- ● ● ● ●
18 GASKET; EXH PIPE TO PIPE
ID=53 		5-22116-003-0 01 1 9009-9402 ● ● ● ●
18 GASKET; EXH PIPE TO PIPE
ID=55 		8-97093-574-1 01 1 9403- ● ● ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9009-0602 ● ● ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-94156-626-0 02 1 9009-9402 ● ● ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 9403- ● ● ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9009-0602 ● ● ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9009-0602 ● ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ● ●
46 BOLT; BRKT,EXH PIPE
M8X40 W/LK WASHER 		9-01900-840-0 01 1 9009-9204 ● ● ● ●
46 BOLT; BRKT,EXH PIPE
M8X40 W/LK WASHER 		0-50040-840-0 01 1 9205-9410 ● ● ● ●
46 BOLT; BRKT,EXH PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 9411-0512 ● ● ● ●
46 BOLT; BRKT,EXH PIPE
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ● ● ● ●
48 BRACKET; EXH PIPE TO MTG
DELETION 		8-94170-998-0 01 1 9009-9601 ● ● ● ●
48 BRACKET; EXH PIPE TO MTG
DELETION IDN 		8-97131-747-0 01 1 9602- ● ● ● ●
53 NUT; BRKT TO CLAMP
M8 FLANGE 		0-91150-108-0 01 1 9009-0602 ● ● ● ●
53 NUT; BRKT TO CLAMP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
76 SUPPORT; BRKT
DELETION T=28 		8-94139-493-1 04 1 9009-9402 ● ● ● ●
76 SUPPORT; BRKT
DELETION T=28 D=55 IDN 		8-97023-183-0 04 1 9403- ● ● ● ●
81 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9602-0602 ● ● ● ●
81 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
126 PIPE; EXH,RR
DELETION 		8-94367-996-2 01 1 9009-9408 ● ● ● ●
126 PIPE; EXH,RR
DELETION 		8-97109-932-0 01 1 9409-9601 ● ● ● ●
126 PIPE; EXH,RR
DELETION IDN 		8-97123-689-0 01 1 9602- ● ● ● ●
143 RUBBER; SUPPORT
DELETION T=28 		8-94139-493-1 01 1 9009-9402 ● ● ● ●
143 RUBBER; SUPPORT
DELETION T=28 D=55 IDN 		8-97023-183-0 01 1 9403- ● ● ● ●
151 PROTECTOR; HEAT,EXH PIPE
DELETION IDN 		8-97028-222-0 01 1 9009- ●
284 BOLT; HEAT PROTECTOR
DELETION M6X16 W/PL WASHER IDN 		8-94204-636-0 04 1 9009- ●
366 RUBBER; SUPPORT,EXH PIPE 8-97038-816-2 01 1 9602- ● ● ● ●
