◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#95900) — 358 parça

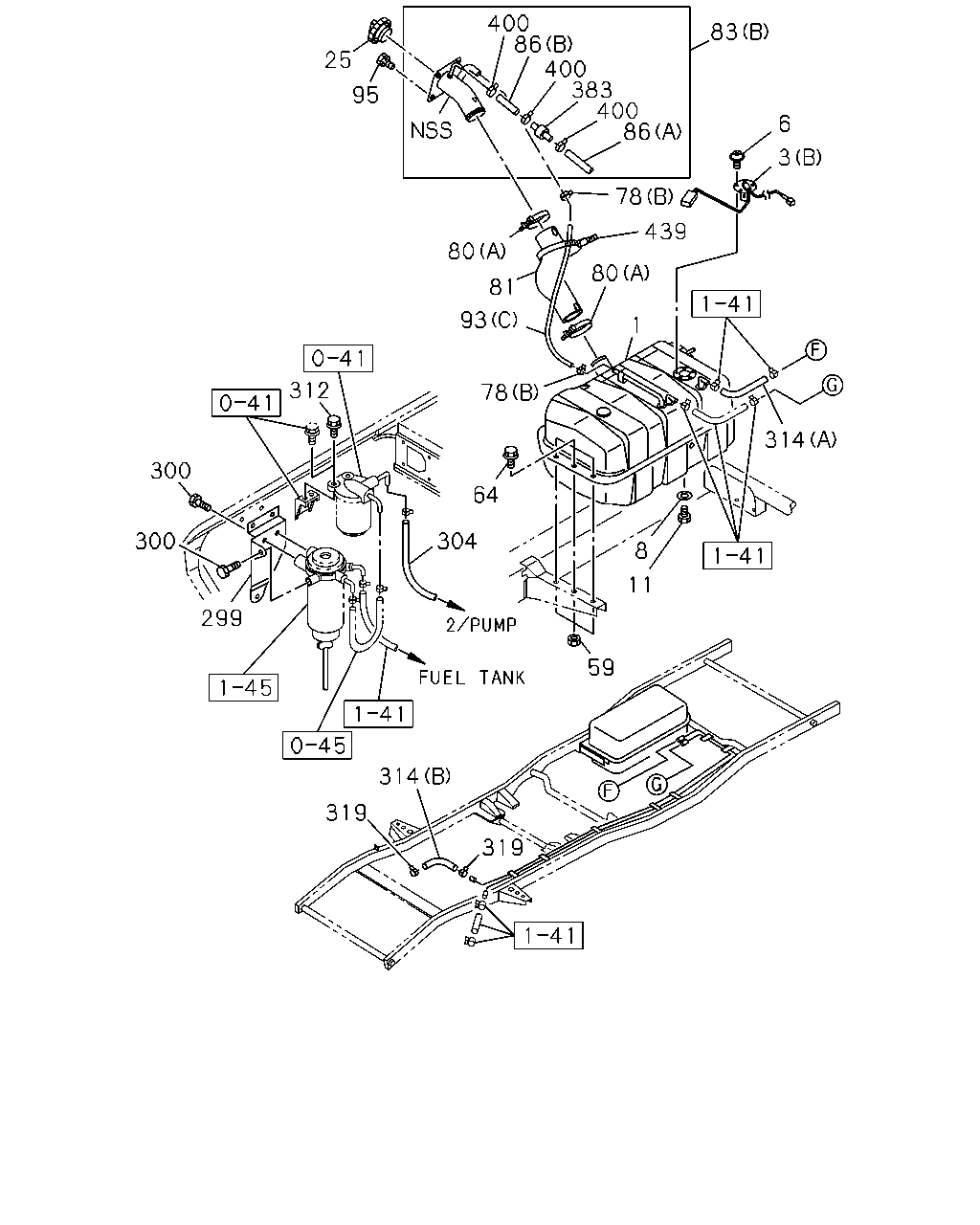

çizim 289411
25 95 400 86 400 383 400 86 6 3 83 78 439 80 80 81 93 78 1 314 8 11 59 304 64 300 300 299 319 314 319 312
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
PICK UP(TB**S*) DELETION 		8-97017-560-2 01 1 9009-9601 ●
1 TANK; FUEL
PICK UP(TB**S*) DELETION IDN 		8-97142-414-0 01 1 9602- ●
1 TANK; FUEL
WAGON(TB**V*) DELETION 		8-97017-561-1 01 1 9009-9601 ●
1 TANK; FUEL
WAGON(TB**V*) DELETION IDN 		8-97142-415-0 01 1 9602-9603 ●
1 TANK; FUEL
WAGON(TB**V*) DELETION IDN 		8-97160-366-0 01 1 9604- ●
3 UNIT; FUEL TANK,SUB
(A) 		8-94341-682-0 01 1 9009-9204 ●
3 UNIT; FUEL TANK,SUB
(B) 		8-97021-139-0 01 1 9205-9601 ●
3 UNIT; FUEL TANK,SUB
(B) 		8-97021-139-0 01 1 9602- ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		9-03910-510-0 05 1 9009-9601 ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		9-03910-510-0 05 1 9602-0604 ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		0-36220-510-0 05 1 0605- ●
8 GASKET; DRAIN PLUG,FUEL TANK
DELETION IDN 		9-09920-624-0 01 1 9009-9601 ●
8 GASKET; DRAIN PLUG,FUEL TANK
DELETION IDN 		9-09920-624-0 01 1 9602-9603 ●
8 GASKET; DRAIN PLUG,FUEL TANK
PICK UP(TB**S*) DELETION IDN 		9-09920-624-0 01 1 9604- ●
11 PLUG; DRAIN,FUEL TANK
DELETION M14X14 IDN 		9-09862-156-0 01 1 9009-9601 ●
11 PLUG; DRAIN,FUEL TANK
DELETION M14X14 IDN 		9-09862-156-0 01 1 9602-9603 ●
11 PLUG; DRAIN,FUEL TANK
PICK UP(TB**S*) DELETION M14X14 IDN 		9-09862-156-0 01 1 9604- ●
25 CAP; FILLER,FUEL TANK 8-97026-336-1 01 1 9009-9601 ●
25 CAP; FILLER,FUEL TANK 8-97026-336-1 01 1 9602- ●
59 NUT; FUEL TANK
M8X20 FLANGE 		0-28080-820-0 06 1 9009-9601 ●
59 NUT; FUEL TANK
M8X20 FLANGE 		0-28080-820-0 06 1 9602-9603 ●
59 NUT; FUEL TANK
M8 FLANGE IDN 		0-91150-208-0 06 1 9604-0602 ●
59 NUT; FUEL TANK
M8 FLANGE IDN 		0-91180-208-0 06 1 0603- ●
64 BOLT; FUEL TANK
M8 FLANGE 		0-91150-108-0 06 1 9009-9601 ●
64 BOLT; FUEL TANK
M8 FLANGE 		0-91150-108-0 06 1 9602-9603 ●
64 BOLT; FUEL TANK
M8X20 FLANGE 		0-28680-820-0 06 1 9604-0512 ●
64 BOLT; FUEL TANK
M8X20 FLANGE IDN 		0-28650-820-0 06 1 0601- ●
78 CLIP; BREATHER HOSE
(A) ID=8.5 		8-94166-071-0 03 1 9009-9601 ●
78 CLIP; BREATHER HOSE
(B) ID=16 IDN 		8-94238-568-0 02 1 9009-9601 ●
78 CLIP; BREATHER HOSE
(B) ID=16 IDN 		8-94238-568-0 02 1 9602- ●
80 CLIP; FILLER HOSE
PICK UP(TB**S*) (A) DELETION ID=60 IDN 		9-09915-265-1 02 1 9009-9601 ●
80 CLIP; FILLER HOSE
PICK UP(TB**S*) (A) DELETION ID=60 IDN 		9-09915-265-1 02 1 9602- ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (A) DELETION ID=60 IDN 		9-09915-265-1 01 1 9009-9601 ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (A) DELETION ID=60 IDN 		9-09915-265-1 01 1 9602- ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (B) DELETION ID=45 IDN 		9-09915-281-1 03 1 9009-9601 ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (B) DELETION ID=45 IDN 		9-09915-281-1 03 1 9602-0001 ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (B) DELETION ID=42 IDN 		9-09915-042-1 03 1 0002- ●
81 HOSE; FUEL FILLER
PICK UP(TB**S*) IDN 		8-97022-612-0 01 1 9009-9601 ●
81 HOSE; FUEL FILLER
PICK UP(TB**S*) IDN 		8-97022-612-0 01 1 9602- ●
83 NECK; FUEL FILLER
WAGON(TB**V*) (C) DELETION IDN 		8-97017-383-2 01 1 9009-9601 ●
83 NECK; FUEL FILLER
WAGON(TB**V*) (C) DELETION IDN 		8-97017-383-2 01 1 9602- ●
83 NECK; FUEL FILLER
(A) 		8-97017-385-0 01 1 9009-9206 ●
83 NECK; FUEL FILLER
(A) 		8-97081-015-0 01 1 9207-9601 ●
83 NECK; FUEL FILLER
(B) 		8-97081-015-1 01 1 9602- ●
86 HOSE; EVAP
(A) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9602- ●
86 HOSE; EVAP
(B) L=60 SERVICED BY L=3000 		8-94128-826-0 01 1 9602- ●
93 HOSE; BREATHER,FUEL TANK
(A) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
(B) L=60 SERVICED BY L=3000 		8-94128-826-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
PICK UP(TB**S*) (C) ID=9.3 L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 9009-9106 ●
93 HOSE; BREATHER,FUEL TANK
PICK UP(TB**S*) (C) ID=9.3 L=460 SERVICED BY L=3000 		0-01259-300-0 01 1 9107-9601 ●
93 HOSE; BREATHER,FUEL TANK
PICK UP(TB**S*) (C) ID=9.3 L=460 SERVICED BY L=3000 		0-01259-300-0 01 1 9602- ●
93 HOSE; BREATHER,FUEL TANK
WAGON(TB**V*) (C) ID=9.3 L=960 L=960 SERVICED BY L=3000 		0-01259-300-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
WAGON(TB**V*) (C) ID=9.3 L=960 L=960 SERVICED BY L=3000 		0-01259-300-0 01 1 9602- ●
95 SCREW; FILLER NECK
M6X16 		8-94381-646-0 03 1 9009-9601 ●
95 SCREW; FILLER NECK
M6X16 		8-94381-646-0 03 1 9602-0703 ●
95 SCREW; FILLER NECK
M6X16 		8-98022-271-0 03 1 0704- ●
299 BRACKET; FUEL FILTER
DELETION IDN 		8-97012-362-0 01 1 9009-9601 ●
299 BRACKET; FUEL FILTER
IDN 		8-97012-362-0 01 1 9602- ●
300 BOLT; BRKT TO BODY
M8X12 W/LK WASHER 		0-50040-812-0 03 1 9009-9010 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		9-01900-816-0 03 1 9011-9204 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		0-50040-816-0 03 1 9205-9411 ●
300 BOLT; BRKT TO BODY
M8X16 FLANGE 		0-28080-816-0 03 1 9412-9601 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		0-50040-816-0 03 1 9602-0512 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		0-50540-816-0 03 1 0601- ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
L=700 SERVICED BY L=3000 		0-01158-300-0 01 1 9009-9307 ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
L=700 SERVICED BY L=3000 		0-01258-300-0 01 1 9308-9601 ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
L=700 SERVICED BY L=3000 		0-01258-300-0 01 1 9602- ●
312 BOLT; FUEL FILTER CLAMP
M10X32 W/LK WASHER 		9-01901-032-0 02 1 9009-9204 ●
312 BOLT; FUEL FILTER CLAMP
M10X32 W/LK WASHER 		0-50041-032-0 02 1 9205-9409 ●
312 BOLT; FUEL FILTER CLAMP
M10X35 FLANGE IDN 		0-28681-035-0 02 1 9410-9501 ●
312 BOLT; FUEL FILTER CLAMP
M10X30 FLANGE 		0-28681-030-0 02 1 9502-9601 ●
312 BOLT; FUEL FILTER CLAMP
M10X35 FLANGE IDN 		0-28681-035-0 02 1 9602-9608 ●
314 HOSE; RUBBER,FUEL RETURN
(B) 		8-97147-634-0 01 1 9602-9603 ●
314 HOSE; RUBBER,FUEL RETURN
(B) L=500 SERVICED BY L=3000 		0-01254-300-0 01 1 9604- ●
314 HOSE; RUBBER,FUEL RETURN
(B) L=400 SERVICED BY L=3000 		0-01154-300-0 01 1 9009-9307 ●
314 HOSE; RUBBER,FUEL RETURN
(B) L=400 SERVICED BY L=3000 		0-01254-300-0 01 1 9308-9601 ●
314 HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000 		0-01254-300-0 01 1 9009-9307 ●
314 HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000 		0-01254-300-0 01 1 9308-9601 ●
314 HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000 		0-01254-300-0 01 1 9602- ●
319 CLIP; RUBBER HOSE
ID=11 		8-94238-570-0 02 1 9009-9601 ●
319 CLIP; RUBBER HOSE
ID=11 		8-94238-570-0 02 1 9602-9711 ●
319 CLIP; RUBBER HOSE
ID=11 		8-97173-219-0 02 1 9712- ●
383 VALVE; 2 WAY 8-94151-559-1 01 1 9009-9206 ●
383 VALVE; 2 WAY 8-97076-391-0 01 1 9207-9601 ●
383 VALVE; 2 WAY 8-97178-373-0 01 1 9602- ●
400 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 03 1 9602-0105 ●
400 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 02 1 0106- ●
439 CLIP; BAND,FUEL TANK UNIT
L=100 		5-09707-036-0 01 1 9009-9601 ●
439 CLIP; BAND,FUEL TANK UNIT
L=100 		5-09707-036-1 01 1 9602- ●

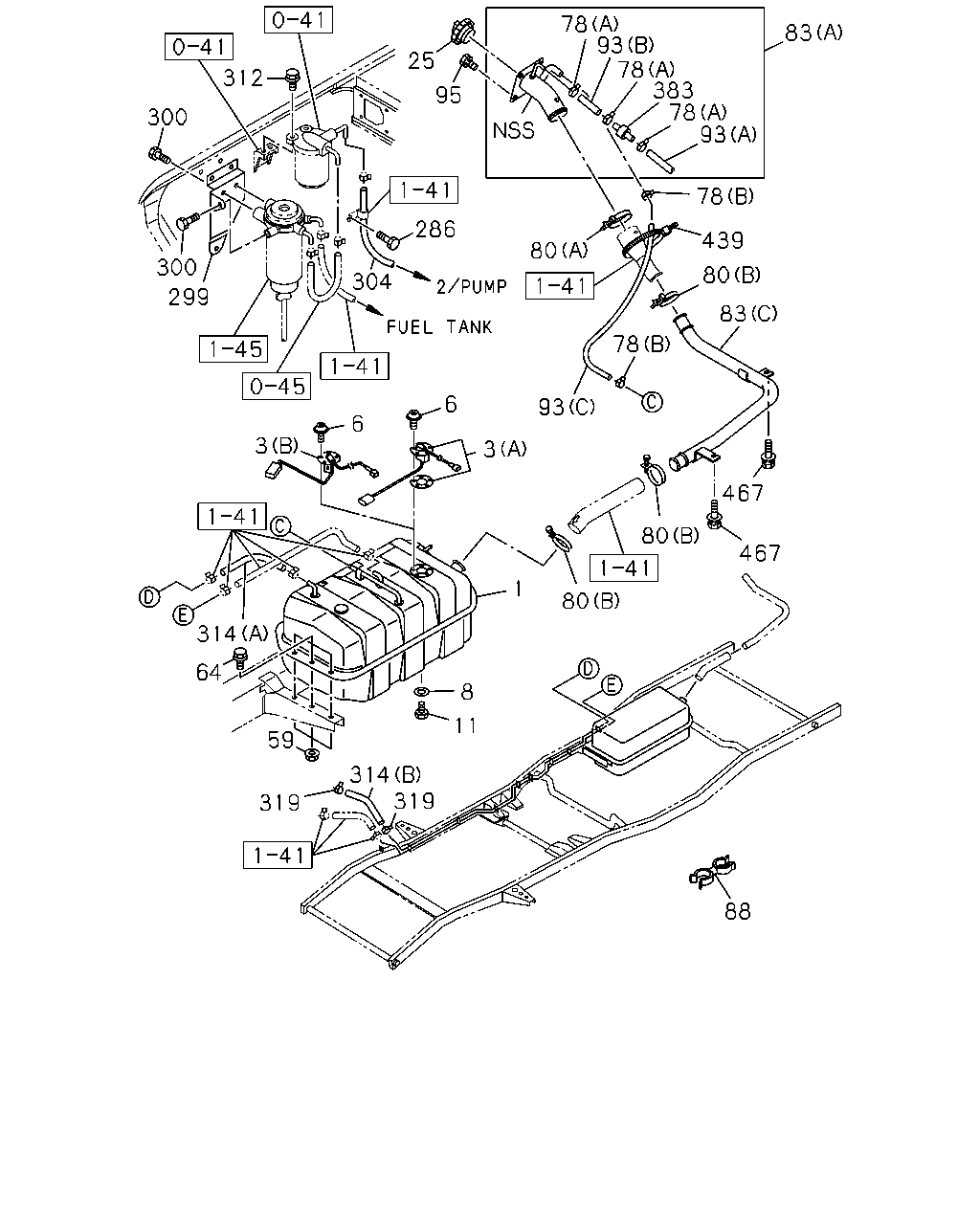

çizim 289789
78 439 80 83 93 78 383 78 93 78 83 95 25 286 80 304 299 300 300 312 6 93 3 3 6 78 467 476 80 1 80 8 11 88 319 314 319 59 64 314
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
PICK UP(TB**S*) DELETION 		8-97017-560-2 01 1 9009-9601 ●
1 TANK; FUEL
PICK UP(TB**S*) DELETION IDN 		8-97142-414-0 01 1 9602- ●
1 TANK; FUEL
WAGON(TB**V*) DELETION 		8-97017-561-1 01 1 9009-9601 ●
1 TANK; FUEL
WAGON(TB**V*) DELETION IDN 		8-97142-415-0 01 1 9602-9603 ●
1 TANK; FUEL
WAGON(TB**V*) DELETION IDN 		8-97160-366-0 01 1 9604- ●
3 UNIT; FUEL TANK,SUB
(A) 		8-94341-682-0 01 1 9009-9204 ●
3 UNIT; FUEL TANK,SUB
(B) 		8-97021-139-0 01 1 9205-9601 ●
3 UNIT; FUEL TANK,SUB
(B) 		8-97021-139-0 01 1 9602- ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		9-03910-510-0 05 1 9009-9601 ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		9-03910-510-0 05 1 9602-0604 ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		0-36220-510-0 05 1 0605- ●
8 GASKET; DRAIN PLUG,FUEL TANK
DELETION IDN 		9-09920-624-0 01 1 9009-9601 ●
8 GASKET; DRAIN PLUG,FUEL TANK
DELETION IDN 		9-09920-624-0 01 1 9602-9603 ●
8 GASKET; DRAIN PLUG,FUEL TANK
PICK UP(TB**S*) DELETION IDN 		9-09920-624-0 01 1 9604- ●
11 PLUG; DRAIN,FUEL TANK
DELETION M14X14 IDN 		9-09862-156-0 01 1 9009-9601 ●
11 PLUG; DRAIN,FUEL TANK
DELETION M14X14 IDN 		9-09862-156-0 01 1 9602-9603 ●
11 PLUG; DRAIN,FUEL TANK
PICK UP(TB**S*) DELETION M14X14 IDN 		9-09862-156-0 01 1 9604- ●
25 CAP; FILLER,FUEL TANK 8-97026-336-1 01 1 9009-9601 ●
25 CAP; FILLER,FUEL TANK 8-97026-336-1 01 1 9602- ●
59 NUT; FUEL TANK
M8X20 FLANGE 		0-28080-820-0 06 1 9009-9601 ●
59 NUT; FUEL TANK
M8X20 FLANGE 		0-28080-820-0 06 1 9602-9603 ●
59 NUT; FUEL TANK
M8 FLANGE IDN 		0-91150-208-0 06 1 9604-0602 ●
59 NUT; FUEL TANK
M8 FLANGE IDN 		0-91180-208-0 06 1 0603- ●
64 BOLT; FUEL TANK
M8 FLANGE 		0-91150-108-0 06 1 9009-9601 ●
64 BOLT; FUEL TANK
M8 FLANGE 		0-91150-108-0 06 1 9602-9603 ●
64 BOLT; FUEL TANK
M8X20 FLANGE 		0-28680-820-0 06 1 9604-0512 ●
64 BOLT; FUEL TANK
M8X20 FLANGE IDN 		0-28650-820-0 06 1 0601- ●
78 CLIP; BREATHER HOSE
(A) ID=8.5 		8-94166-071-0 03 1 9009-9601 ●
78 CLIP; BREATHER HOSE
(B) ID=16 IDN 		8-94238-568-0 02 1 9009-9601 ●
78 CLIP; BREATHER HOSE
(B) ID=16 IDN 		8-94238-568-0 02 1 9602- ●
80 CLIP; FILLER HOSE
PICK UP(TB**S*) (A) DELETION ID=60 IDN 		9-09915-265-1 02 1 9009-9601 ●
80 CLIP; FILLER HOSE
PICK UP(TB**S*) (A) DELETION ID=60 IDN 		9-09915-265-1 02 1 9602- ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (A) DELETION ID=60 IDN 		9-09915-265-1 01 1 9009-9601 ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (A) DELETION ID=60 IDN 		9-09915-265-1 01 1 9602- ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (B) DELETION ID=45 IDN 		9-09915-281-1 03 1 9009-9601 ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (B) DELETION ID=45 IDN 		9-09915-281-1 03 1 9602-0001 ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (B) DELETION ID=42 IDN 		9-09915-042-1 03 1 0002- ●
83 NECK; FUEL FILLER
WAGON(TB**V*) (C) DELETION IDN 		8-97017-383-2 01 1 9009-9601 ●
83 NECK; FUEL FILLER
WAGON(TB**V*) (C) DELETION IDN 		8-97017-383-2 01 1 9602- ●
83 NECK; FUEL FILLER
(A) 		8-97017-385-0 01 1 9009-9206 ●
83 NECK; FUEL FILLER
(A) 		8-97081-015-0 01 1 9207-9601 ●
83 NECK; FUEL FILLER
(B) 		8-97081-015-1 01 1 9602- ●
88 CLIP; FUEL HOSE 8-94155-296-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
(A) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
(B) L=60 SERVICED BY L=3000 		8-94128-826-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
PICK UP(TB**S*) (C) ID=9.3 L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 9009-9106 ●
93 HOSE; BREATHER,FUEL TANK
PICK UP(TB**S*) (C) ID=9.3 L=460 SERVICED BY L=3000 		0-01259-300-0 01 1 9107-9601 ●
93 HOSE; BREATHER,FUEL TANK
PICK UP(TB**S*) (C) ID=9.3 L=460 SERVICED BY L=3000 		0-01259-300-0 01 1 9602- ●
93 HOSE; BREATHER,FUEL TANK
WAGON(TB**V*) (C) ID=9.3 L=960 L=960 SERVICED BY L=3000 		0-01259-300-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
WAGON(TB**V*) (C) ID=9.3 L=960 L=960 SERVICED BY L=3000 		0-01259-300-0 01 1 9602- ●
95 SCREW; FILLER NECK
M6X16 		8-94381-646-0 03 1 9009-9601 ●
95 SCREW; FILLER NECK
M6X16 		8-94381-646-0 03 1 9602-0703 ●
95 SCREW; FILLER NECK
M6X16 		8-98022-271-0 03 1 0704- ●
286 BOLT; CLIP
M6X14 W/LK&PL WASHER 		9-01960-614-0 01 1 9009-9204 ●
286 BOLT; CLIP
M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9205-9601 ●
299 BRACKET; FUEL FILTER
DELETION IDN 		8-97012-362-0 01 1 9009-9601 ●
299 BRACKET; FUEL FILTER
IDN 		8-97012-362-0 01 1 9602- ●
300 BOLT; BRKT TO BODY
M8X12 W/LK WASHER 		0-50040-812-0 03 1 9009-9010 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		9-01900-816-0 03 1 9011-9204 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		0-50040-816-0 03 1 9205-9411 ●
300 BOLT; BRKT TO BODY
M8X16 FLANGE 		0-28080-816-0 03 1 9412-9601 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		0-50040-816-0 03 1 9602-0512 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		0-50540-816-0 03 1 0601- ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
L=700 SERVICED BY L=3000 		0-01158-300-0 01 1 9009-9307 ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
L=700 SERVICED BY L=3000 		0-01258-300-0 01 1 9308-9601 ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
L=700 SERVICED BY L=3000 		0-01258-300-0 01 1 9602- ●
312 BOLT; FUEL FILTER CLAMP
M10X32 W/LK WASHER 		9-01901-032-0 02 1 9009-9204 ●
312 BOLT; FUEL FILTER CLAMP
M10X32 W/LK WASHER 		0-50041-032-0 02 1 9205-9409 ●
312 BOLT; FUEL FILTER CLAMP
M10X35 FLANGE IDN 		0-28681-035-0 02 1 9410-9501 ●
312 BOLT; FUEL FILTER CLAMP
M10X30 FLANGE 		0-28681-030-0 02 1 9502-9601 ●
312 BOLT; FUEL FILTER CLAMP
M10X35 FLANGE IDN 		0-28681-035-0 02 1 9602-9608 ●
314 HOSE; RUBBER,FUEL RETURN
(B) 		8-97147-634-0 01 1 9602-9603 ●
314 HOSE; RUBBER,FUEL RETURN
(B) L=500 SERVICED BY L=3000 		0-01254-300-0 01 1 9604- ●
314 HOSE; RUBBER,FUEL RETURN
(B) L=400 SERVICED BY L=3000 		0-01154-300-0 01 1 9009-9307 ●
314 HOSE; RUBBER,FUEL RETURN
(B) L=400 SERVICED BY L=3000 		0-01254-300-0 01 1 9308-9601 ●
314 HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000 		0-01254-300-0 01 1 9009-9307 ●
314 HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000 		0-01254-300-0 01 1 9308-9601 ●
314 HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000 		0-01254-300-0 01 1 9602- ●
319 CLIP; RUBBER HOSE
ID=11 		8-94238-570-0 02 1 9009-9601 ●
319 CLIP; RUBBER HOSE
ID=11 		8-94238-570-0 02 1 9602-9711 ●
319 CLIP; RUBBER HOSE
ID=11 		8-97173-219-0 02 1 9712- ●
383 VALVE; 2 WAY 8-94151-559-1 01 1 9009-9206 ●
383 VALVE; 2 WAY 8-97076-391-0 01 1 9207-9601 ●
383 VALVE; 2 WAY 8-97178-373-0 01 1 9602- ●
439 CLIP; BAND,FUEL TANK UNIT
L=100 		5-09707-036-0 01 1 9009-9601 ●
439 CLIP; BAND,FUEL TANK UNIT
L=100 		5-09707-036-1 01 1 9602- ●
467 BOLT
WAGON(TB**V*) M8X25 		8-97017-390-0 02 1 9009-9308 ●
467 BOLT
WAGON(TB**V*) M8X25 		8-97091-076-0 02 1 9309-9601 ●
467 BOLT
WAGON(TB**V*) M8X25 		8-97091-076-0 02 1 9602-0203 ●
467 BOLT
WAGON(TB**V*) M8X25 		8-97327-634-0 02 1 0204- ●

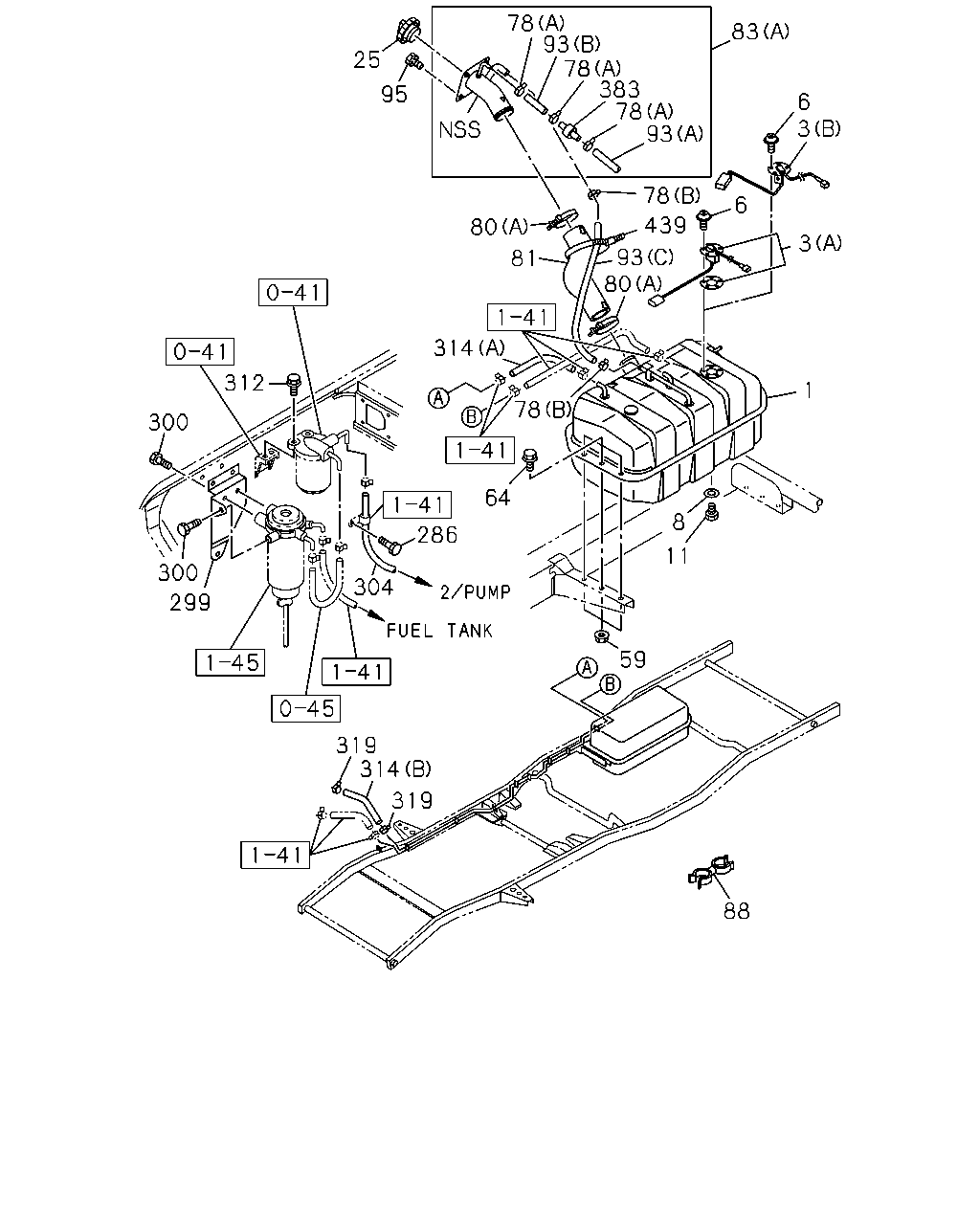

çizim 289790
95 25 78 93 78 383 78 93 83 6 3 3 78 439 93 80 81 80 314 78 64 286 11 8 1 312 300 304 300 299 319 314 319 59 88 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
PICK UP(TB**S*) DELETION 		8-97017-560-2 01 1 9009-9601 ●
1 TANK; FUEL
PICK UP(TB**S*) DELETION IDN 		8-97142-414-0 01 1 9602- ●
1 TANK; FUEL
WAGON(TB**V*) DELETION 		8-97017-561-1 01 1 9009-9601 ●
1 TANK; FUEL
WAGON(TB**V*) DELETION IDN 		8-97142-415-0 01 1 9602-9603 ●
1 TANK; FUEL
WAGON(TB**V*) DELETION IDN 		8-97160-366-0 01 1 9604- ●
3 UNIT; FUEL TANK,SUB
(A) 		8-94341-682-0 01 1 9009-9204 ●
3 UNIT; FUEL TANK,SUB
(B) 		8-97021-139-0 01 1 9205-9601 ●
3 UNIT; FUEL TANK,SUB
(B) 		8-97021-139-0 01 1 9602- ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		9-03910-510-0 05 1 9009-9601 ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		9-03910-510-0 05 1 9602-0604 ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		0-36220-510-0 05 1 0605- ●
8 GASKET; DRAIN PLUG,FUEL TANK
DELETION IDN 		9-09920-624-0 01 1 9009-9601 ●
8 GASKET; DRAIN PLUG,FUEL TANK
DELETION IDN 		9-09920-624-0 01 1 9602-9603 ●
8 GASKET; DRAIN PLUG,FUEL TANK
PICK UP(TB**S*) DELETION IDN 		9-09920-624-0 01 1 9604- ●
11 PLUG; DRAIN,FUEL TANK
DELETION M14X14 IDN 		9-09862-156-0 01 1 9009-9601 ●
11 PLUG; DRAIN,FUEL TANK
DELETION M14X14 IDN 		9-09862-156-0 01 1 9602-9603 ●
11 PLUG; DRAIN,FUEL TANK
PICK UP(TB**S*) DELETION M14X14 IDN 		9-09862-156-0 01 1 9604- ●
25 CAP; FILLER,FUEL TANK 8-97026-336-1 01 1 9009-9601 ●
25 CAP; FILLER,FUEL TANK 8-97026-336-1 01 1 9602- ●
59 NUT; FUEL TANK
M8X20 FLANGE 		0-28080-820-0 06 1 9009-9601 ●
59 NUT; FUEL TANK
M8X20 FLANGE 		0-28080-820-0 06 1 9602-9603 ●
59 NUT; FUEL TANK
M8 FLANGE IDN 		0-91150-208-0 06 1 9604-0602 ●
59 NUT; FUEL TANK
M8 FLANGE IDN 		0-91180-208-0 06 1 0603- ●
64 BOLT; FUEL TANK
M8 FLANGE 		0-91150-108-0 06 1 9009-9601 ●
64 BOLT; FUEL TANK
M8 FLANGE 		0-91150-108-0 06 1 9602-9603 ●
64 BOLT; FUEL TANK
M8X20 FLANGE 		0-28680-820-0 06 1 9604-0512 ●
64 BOLT; FUEL TANK
M8X20 FLANGE IDN 		0-28650-820-0 06 1 0601- ●
78 CLIP; BREATHER HOSE
(A) ID=8.5 		8-94166-071-0 03 1 9009-9601 ●
78 CLIP; BREATHER HOSE
(B) ID=16 IDN 		8-94238-568-0 02 1 9009-9601 ●
78 CLIP; BREATHER HOSE
(B) ID=16 IDN 		8-94238-568-0 02 1 9602- ●
80 CLIP; FILLER HOSE
PICK UP(TB**S*) (A) DELETION ID=60 IDN 		9-09915-265-1 02 1 9009-9601 ●
80 CLIP; FILLER HOSE
PICK UP(TB**S*) (A) DELETION ID=60 IDN 		9-09915-265-1 02 1 9602- ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (A) DELETION ID=60 IDN 		9-09915-265-1 01 1 9009-9601 ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (A) DELETION ID=60 IDN 		9-09915-265-1 01 1 9602- ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (B) DELETION ID=45 IDN 		9-09915-281-1 03 1 9009-9601 ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (B) DELETION ID=45 IDN 		9-09915-281-1 03 1 9602-0001 ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (B) DELETION ID=42 IDN 		9-09915-042-1 03 1 0002- ●
81 HOSE; FUEL FILLER
PICK UP(TB**S*) IDN 		8-97022-612-0 01 1 9009-9601 ●
81 HOSE; FUEL FILLER
PICK UP(TB**S*) IDN 		8-97022-612-0 01 1 9602- ●
83 NECK; FUEL FILLER
WAGON(TB**V*) (C) DELETION IDN 		8-97017-383-2 01 1 9009-9601 ●
83 NECK; FUEL FILLER
WAGON(TB**V*) (C) DELETION IDN 		8-97017-383-2 01 1 9602- ●
83 NECK; FUEL FILLER
(A) 		8-97017-385-0 01 1 9009-9206 ●
83 NECK; FUEL FILLER
(A) 		8-97081-015-0 01 1 9207-9601 ●
83 NECK; FUEL FILLER
(B) 		8-97081-015-1 01 1 9602- ●
88 CLIP; FUEL HOSE 8-94155-296-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
(A) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
(B) L=60 SERVICED BY L=3000 		8-94128-826-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
PICK UP(TB**S*) (C) ID=9.3 L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 9009-9106 ●
93 HOSE; BREATHER,FUEL TANK
PICK UP(TB**S*) (C) ID=9.3 L=460 SERVICED BY L=3000 		0-01259-300-0 01 1 9107-9601 ●
93 HOSE; BREATHER,FUEL TANK
PICK UP(TB**S*) (C) ID=9.3 L=460 SERVICED BY L=3000 		0-01259-300-0 01 1 9602- ●
93 HOSE; BREATHER,FUEL TANK
WAGON(TB**V*) (C) ID=9.3 L=960 L=960 SERVICED BY L=3000 		0-01259-300-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
WAGON(TB**V*) (C) ID=9.3 L=960 L=960 SERVICED BY L=3000 		0-01259-300-0 01 1 9602- ●
95 SCREW; FILLER NECK
M6X16 		8-94381-646-0 03 1 9009-9601 ●
95 SCREW; FILLER NECK
M6X16 		8-94381-646-0 03 1 9602-0703 ●
95 SCREW; FILLER NECK
M6X16 		8-98022-271-0 03 1 0704- ●
286 BOLT; CLIP
M6X14 W/LK&PL WASHER 		9-01960-614-0 01 1 9009-9204 ●
286 BOLT; CLIP
M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9205-9601 ●
299 BRACKET; FUEL FILTER
DELETION IDN 		8-97012-362-0 01 1 9009-9601 ●
299 BRACKET; FUEL FILTER
IDN 		8-97012-362-0 01 1 9602- ●
300 BOLT; BRKT TO BODY
M8X12 W/LK WASHER 		0-50040-812-0 03 1 9009-9010 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		9-01900-816-0 03 1 9011-9204 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		0-50040-816-0 03 1 9205-9411 ●
300 BOLT; BRKT TO BODY
M8X16 FLANGE 		0-28080-816-0 03 1 9412-9601 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		0-50040-816-0 03 1 9602-0512 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		0-50540-816-0 03 1 0601- ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
L=700 SERVICED BY L=3000 		0-01158-300-0 01 1 9009-9307 ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
L=700 SERVICED BY L=3000 		0-01258-300-0 01 1 9308-9601 ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
L=700 SERVICED BY L=3000 		0-01258-300-0 01 1 9602- ●
312 BOLT; FUEL FILTER CLAMP
M10X32 W/LK WASHER 		9-01901-032-0 02 1 9009-9204 ●
312 BOLT; FUEL FILTER CLAMP
M10X32 W/LK WASHER 		0-50041-032-0 02 1 9205-9409 ●
312 BOLT; FUEL FILTER CLAMP
M10X35 FLANGE IDN 		0-28681-035-0 02 1 9410-9501 ●
312 BOLT; FUEL FILTER CLAMP
M10X30 FLANGE 		0-28681-030-0 02 1 9502-9601 ●
312 BOLT; FUEL FILTER CLAMP
M10X35 FLANGE IDN 		0-28681-035-0 02 1 9602-9608 ●
314 HOSE; RUBBER,FUEL RETURN
(B) 		8-97147-634-0 01 1 9602-9603 ●
314 HOSE; RUBBER,FUEL RETURN
(B) L=500 SERVICED BY L=3000 		0-01254-300-0 01 1 9604- ●
314 HOSE; RUBBER,FUEL RETURN
(B) L=400 SERVICED BY L=3000 		0-01154-300-0 01 1 9009-9307 ●
314 HOSE; RUBBER,FUEL RETURN
(B) L=400 SERVICED BY L=3000 		0-01254-300-0 01 1 9308-9601 ●
314 HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000 		0-01254-300-0 01 1 9009-9307 ●
314 HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000 		0-01254-300-0 01 1 9308-9601 ●
314 HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000 		0-01254-300-0 01 1 9602- ●
319 CLIP; RUBBER HOSE
ID=11 		8-94238-570-0 02 1 9009-9601 ●
319 CLIP; RUBBER HOSE
ID=11 		8-94238-570-0 02 1 9602-9711 ●
319 CLIP; RUBBER HOSE
ID=11 		8-97173-219-0 02 1 9712- ●
383 VALVE; 2 WAY 8-94151-559-1 01 1 9009-9206 ●
383 VALVE; 2 WAY 8-97076-391-0 01 1 9207-9601 ●
383 VALVE; 2 WAY 8-97178-373-0 01 1 9602- ●
439 CLIP; BAND,FUEL TANK UNIT
L=100 		5-09707-036-0 01 1 9009-9601 ●
439 CLIP; BAND,FUEL TANK UNIT
L=100 		5-09707-036-1 01 1 9602- ●

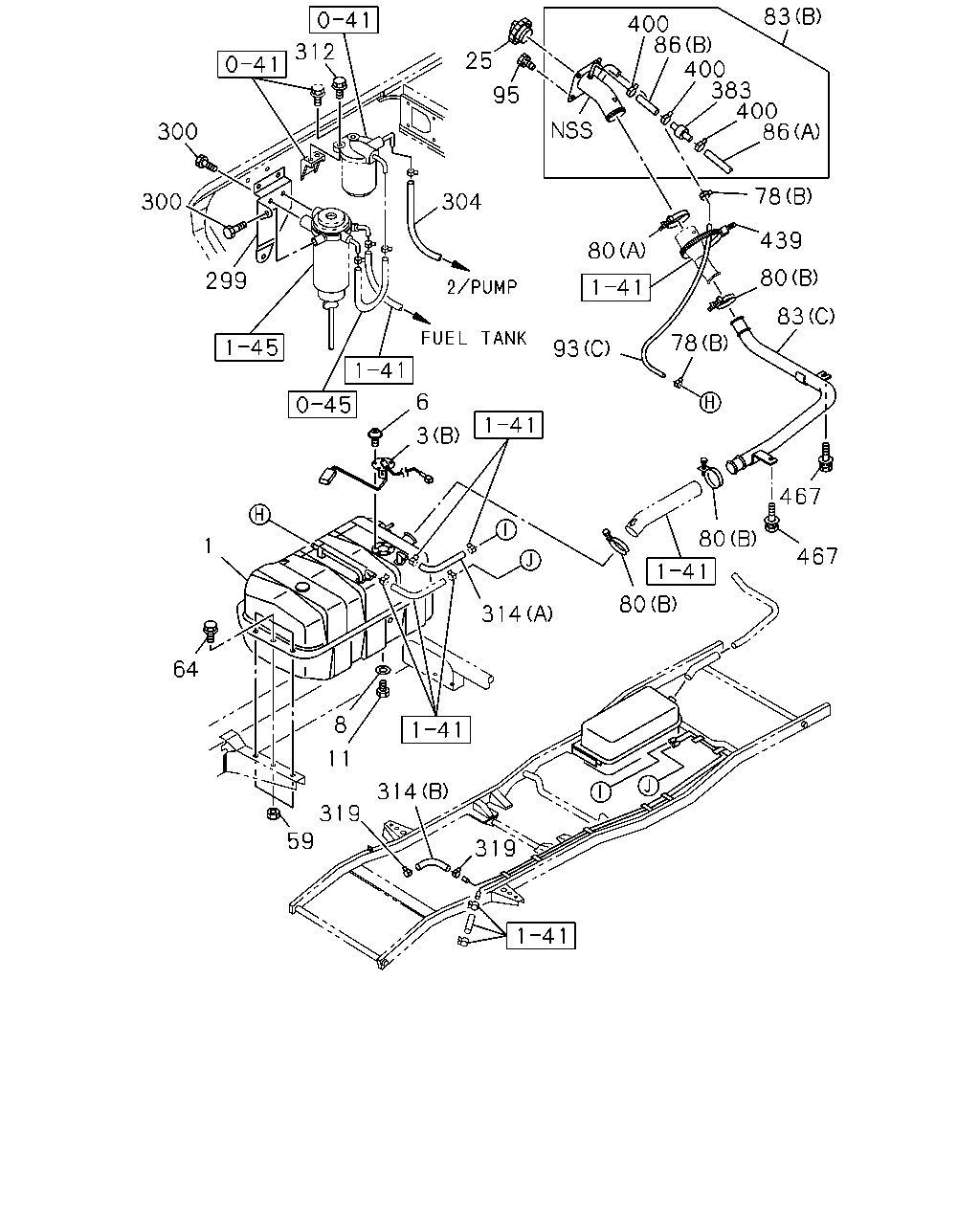

çizim 289793
80 304 95 25 400 86 400 383 400 86 78 439 80 83 78 93 299 300 300 6 3 314 467 467 80 1 64 8 11 314 319 319 59 83 312 80
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
PICK UP(TB**S*) DELETION 		8-97017-560-2 01 1 9009-9601 ●
1 TANK; FUEL
PICK UP(TB**S*) DELETION IDN 		8-97142-414-0 01 1 9602- ●
1 TANK; FUEL
WAGON(TB**V*) DELETION 		8-97017-561-1 01 1 9009-9601 ●
1 TANK; FUEL
WAGON(TB**V*) DELETION IDN 		8-97142-415-0 01 1 9602-9603 ●
1 TANK; FUEL
WAGON(TB**V*) DELETION IDN 		8-97160-366-0 01 1 9604- ●
3 UNIT; FUEL TANK,SUB
(A) 		8-94341-682-0 01 1 9009-9204 ●
3 UNIT; FUEL TANK,SUB
(B) 		8-97021-139-0 01 1 9205-9601 ●
3 UNIT; FUEL TANK,SUB
(B) 		8-97021-139-0 01 1 9602- ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		9-03910-510-0 05 1 9009-9601 ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		9-03910-510-0 05 1 9602-0604 ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		0-36220-510-0 05 1 0605- ●
8 GASKET; DRAIN PLUG,FUEL TANK
DELETION IDN 		9-09920-624-0 01 1 9009-9601 ●
8 GASKET; DRAIN PLUG,FUEL TANK
DELETION IDN 		9-09920-624-0 01 1 9602-9603 ●
8 GASKET; DRAIN PLUG,FUEL TANK
PICK UP(TB**S*) DELETION IDN 		9-09920-624-0 01 1 9604- ●
11 PLUG; DRAIN,FUEL TANK
DELETION M14X14 IDN 		9-09862-156-0 01 1 9009-9601 ●
11 PLUG; DRAIN,FUEL TANK
DELETION M14X14 IDN 		9-09862-156-0 01 1 9602-9603 ●
11 PLUG; DRAIN,FUEL TANK
PICK UP(TB**S*) DELETION M14X14 IDN 		9-09862-156-0 01 1 9604- ●
25 CAP; FILLER,FUEL TANK 8-97026-336-1 01 1 9009-9601 ●
25 CAP; FILLER,FUEL TANK 8-97026-336-1 01 1 9602- ●
59 NUT; FUEL TANK
M8X20 FLANGE 		0-28080-820-0 06 1 9009-9601 ●
59 NUT; FUEL TANK
M8X20 FLANGE 		0-28080-820-0 06 1 9602-9603 ●
59 NUT; FUEL TANK
M8 FLANGE IDN 		0-91150-208-0 06 1 9604-0602 ●
59 NUT; FUEL TANK
M8 FLANGE IDN 		0-91180-208-0 06 1 0603- ●
64 BOLT; FUEL TANK
M8 FLANGE 		0-91150-108-0 06 1 9009-9601 ●
64 BOLT; FUEL TANK
M8 FLANGE 		0-91150-108-0 06 1 9602-9603 ●
64 BOLT; FUEL TANK
M8X20 FLANGE 		0-28680-820-0 06 1 9604-0512 ●
64 BOLT; FUEL TANK
M8X20 FLANGE IDN 		0-28650-820-0 06 1 0601- ●
78 CLIP; BREATHER HOSE
(A) ID=8.5 		8-94166-071-0 03 1 9009-9601 ●
78 CLIP; BREATHER HOSE
(B) ID=16 IDN 		8-94238-568-0 02 1 9009-9601 ●
78 CLIP; BREATHER HOSE
(B) ID=16 IDN 		8-94238-568-0 02 1 9602- ●
80 CLIP; FILLER HOSE
PICK UP(TB**S*) (A) DELETION ID=60 IDN 		9-09915-265-1 02 1 9009-9601 ●
80 CLIP; FILLER HOSE
PICK UP(TB**S*) (A) DELETION ID=60 IDN 		9-09915-265-1 02 1 9602- ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (A) DELETION ID=60 IDN 		9-09915-265-1 01 1 9009-9601 ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (A) DELETION ID=60 IDN 		9-09915-265-1 01 1 9602- ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (B) DELETION ID=45 IDN 		9-09915-281-1 03 1 9009-9601 ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (B) DELETION ID=45 IDN 		9-09915-281-1 03 1 9602-0001 ●
80 CLIP; FILLER HOSE
WAGON(TB**V*) (B) DELETION ID=42 IDN 		9-09915-042-1 03 1 0002- ●
83 NECK; FUEL FILLER
WAGON(TB**V*) (C) DELETION IDN 		8-97017-383-2 01 1 9009-9601 ●
83 NECK; FUEL FILLER
WAGON(TB**V*) (C) DELETION IDN 		8-97017-383-2 01 1 9602- ●
83 NECK; FUEL FILLER
(A) 		8-97017-385-0 01 1 9009-9206 ●
83 NECK; FUEL FILLER
(A) 		8-97081-015-0 01 1 9207-9601 ●
83 NECK; FUEL FILLER
(B) 		8-97081-015-1 01 1 9602- ●
86 HOSE; EVAP
(A) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9602- ●
86 HOSE; EVAP
(B) L=60 SERVICED BY L=3000 		8-94128-826-0 01 1 9602- ●
93 HOSE; BREATHER,FUEL TANK
(A) L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
(B) L=60 SERVICED BY L=3000 		8-94128-826-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
PICK UP(TB**S*) (C) ID=9.3 L=420 SERVICED BY L=3000 		0-01259-300-0 01 1 9009-9106 ●
93 HOSE; BREATHER,FUEL TANK
PICK UP(TB**S*) (C) ID=9.3 L=460 SERVICED BY L=3000 		0-01259-300-0 01 1 9107-9601 ●
93 HOSE; BREATHER,FUEL TANK
PICK UP(TB**S*) (C) ID=9.3 L=460 SERVICED BY L=3000 		0-01259-300-0 01 1 9602- ●
93 HOSE; BREATHER,FUEL TANK
WAGON(TB**V*) (C) ID=9.3 L=960 L=960 SERVICED BY L=3000 		0-01259-300-0 01 1 9009-9601 ●
93 HOSE; BREATHER,FUEL TANK
WAGON(TB**V*) (C) ID=9.3 L=960 L=960 SERVICED BY L=3000 		0-01259-300-0 01 1 9602- ●
95 SCREW; FILLER NECK
M6X16 		8-94381-646-0 03 1 9009-9601 ●
95 SCREW; FILLER NECK
M6X16 		8-94381-646-0 03 1 9602-0703 ●
95 SCREW; FILLER NECK
M6X16 		8-98022-271-0 03 1 0704- ●
299 BRACKET; FUEL FILTER
DELETION IDN 		8-97012-362-0 01 1 9009-9601 ●
299 BRACKET; FUEL FILTER
IDN 		8-97012-362-0 01 1 9602- ●
300 BOLT; BRKT TO BODY
M8X12 W/LK WASHER 		0-50040-812-0 03 1 9009-9010 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		9-01900-816-0 03 1 9011-9204 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		0-50040-816-0 03 1 9205-9411 ●
300 BOLT; BRKT TO BODY
M8X16 FLANGE 		0-28080-816-0 03 1 9412-9601 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		0-50040-816-0 03 1 9602-0512 ●
300 BOLT; BRKT TO BODY
M8X16 W/LK WASHER 		0-50540-816-0 03 1 0601- ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
L=700 SERVICED BY L=3000 		0-01158-300-0 01 1 9009-9307 ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
L=700 SERVICED BY L=3000 		0-01258-300-0 01 1 9308-9601 ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
L=700 SERVICED BY L=3000 		0-01258-300-0 01 1 9602- ●
312 BOLT; FUEL FILTER CLAMP
M10X32 W/LK WASHER 		9-01901-032-0 02 1 9009-9204 ●
312 BOLT; FUEL FILTER CLAMP
M10X32 W/LK WASHER 		0-50041-032-0 02 1 9205-9409 ●
312 BOLT; FUEL FILTER CLAMP
M10X35 FLANGE IDN 		0-28681-035-0 02 1 9410-9501 ●
312 BOLT; FUEL FILTER CLAMP
M10X30 FLANGE 		0-28681-030-0 02 1 9502-9601 ●
312 BOLT; FUEL FILTER CLAMP
M10X35 FLANGE IDN 		0-28681-035-0 02 1 9602-9608 ●
314 HOSE; RUBBER,FUEL RETURN
(B) 		8-97147-634-0 01 1 9602-9603 ●
314 HOSE; RUBBER,FUEL RETURN
(B) L=500 SERVICED BY L=3000 		0-01254-300-0 01 1 9604- ●
314 HOSE; RUBBER,FUEL RETURN
(B) L=400 SERVICED BY L=3000 		0-01154-300-0 01 1 9009-9307 ●
314 HOSE; RUBBER,FUEL RETURN
(B) L=400 SERVICED BY L=3000 		0-01254-300-0 01 1 9308-9601 ●
314 HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000 		0-01254-300-0 01 1 9009-9307 ●
314 HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000 		0-01254-300-0 01 1 9308-9601 ●
314 HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000 		0-01254-300-0 01 1 9602- ●
319 CLIP; RUBBER HOSE
ID=11 		8-94238-570-0 02 1 9009-9601 ●
319 CLIP; RUBBER HOSE
ID=11 		8-94238-570-0 02 1 9602-9711 ●
319 CLIP; RUBBER HOSE
ID=11 		8-97173-219-0 02 1 9712- ●
383 VALVE; 2 WAY 8-94151-559-1 01 1 9009-9206 ●
383 VALVE; 2 WAY 8-97076-391-0 01 1 9207-9601 ●
383 VALVE; 2 WAY 8-97178-373-0 01 1 9602- ●
400 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 03 1 9602-0105 ●
400 CLIP; HOSE,EVAP
ID=8.5 		8-94166-071-0 02 1 0106- ●
439 CLIP; BAND,FUEL TANK UNIT
L=100 		5-09707-036-0 01 1 9009-9601 ●
439 CLIP; BAND,FUEL TANK UNIT
L=100 		5-09707-036-1 01 1 9602- ●
467 BOLT
WAGON(TB**V*) M8X25 		8-97017-390-0 02 1 9009-9308 ●
467 BOLT
WAGON(TB**V*) M8X25 		8-97091-076-0 02 1 9309-9601 ●
467 BOLT
WAGON(TB**V*) M8X25 		8-97091-076-0 02 1 9602-0203 ●
467 BOLT
WAGON(TB**V*) M8X25 		8-97327-634-0 02 1 0204- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
