◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#9590) — 293 parça

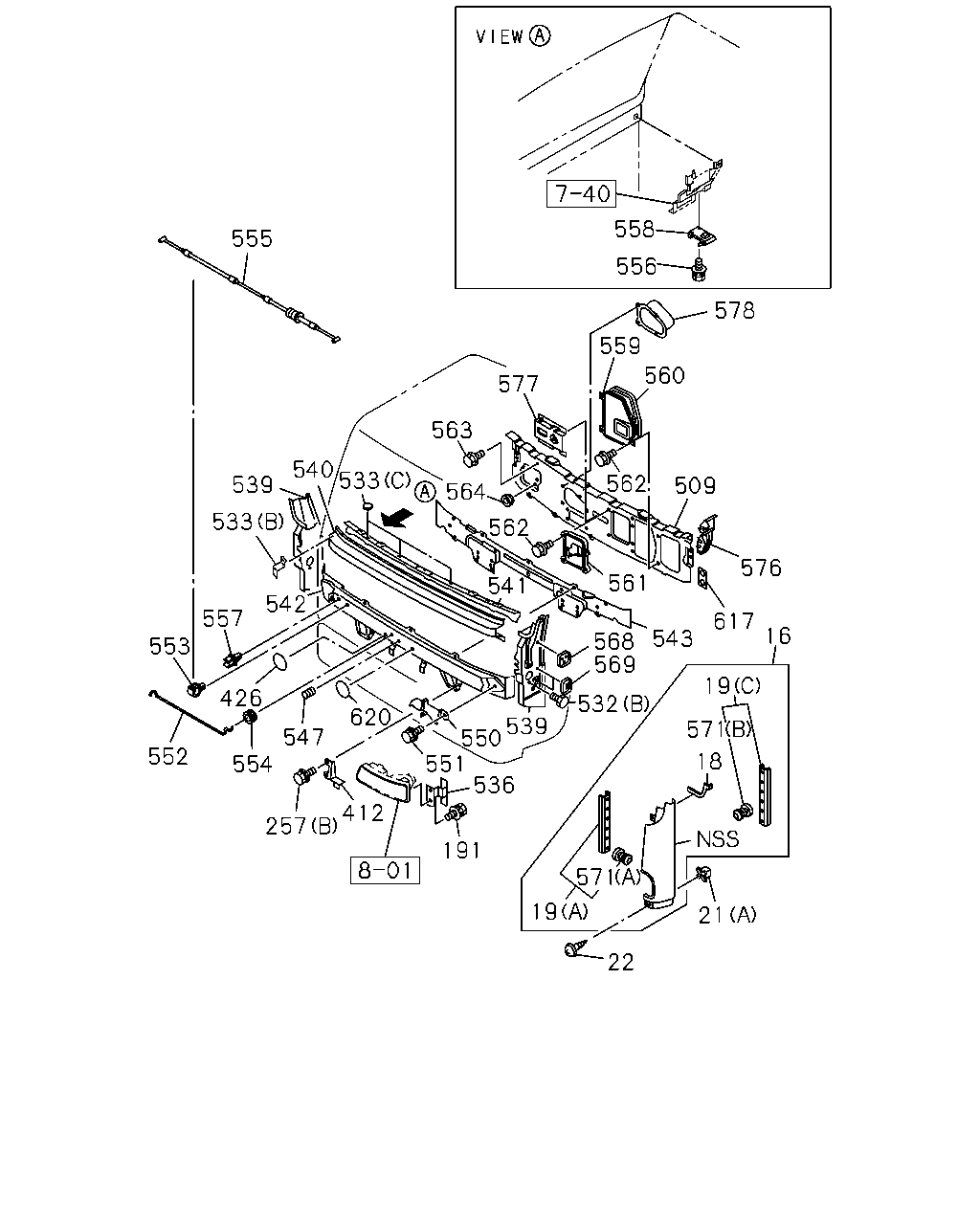

çizim 100097
558 555 556 578 559 560 577 563 540 533 562 539 509 564 533 562 541 576 561 542 557 617 16 543 568 569 553 19 426 532 620 539 550 551 571 547 552 18 554 536 412 257 191 571 19 21 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-1 01 1 0005- ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-1 01 1 0005- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0005- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0005- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0005- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0005- ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0005-0810 ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010 ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011- ● ●
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0708 ● ●
191 BOLT; HINGE
M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0005-0411 ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412- ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0904 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0005- ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0005- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 04 1 0005- ● ●
509 PANEL; DASH 1-62280-213-2 01 1 0005- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0005- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0005- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0211-0406 ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0005- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0005- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0005- ● ●
536 HINGE 1-86830-004-5 01 1 0005- ● ●
536 HINGE 1-86830-003-5 01 1 0005- ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 0005- ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 0005- ● ●
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 0005- ● ●
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 0005- ● ●
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 0005- ● ●
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 0005- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0005- ● ●
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0005- ● ●
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0005- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0005- ● ●
552 STAY; FRT LID 1-71998-810-2 01 1 0005-0205 ● ●
552 STAY; FRT LID 1-71996-310-0 01 1 0206-0706 ● ●
552 STAY; FRT LID 1-71996-352-0 01 1 0707- ● ●
553 CLIP; STAY 8-97031-428-0 01 1 0005- ● ●
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0005- ● ●
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 0005- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0005- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0005- ● ●
558 LEVER; FRT LID 1-79338-003-1 01 1 0005-0212 ● ●
558 LEVER; FRT LID 1-79338-007-0 01 1 0301- ● ●
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0005- ● ●
560 SEAL; COVER 1-71998-827-1 01 1 0005- ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 0005- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 0005-0202 ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0005- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 0005- ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0005- ● ●
569 PATCH; LWR GRIP 1-61480-689-2 01 1 0005- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 12 1 0005- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0005- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0005- ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 0005- ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 0005- ● ●
577 BRACKET; IDLER 1-62280-195-0 01 1 0005- ● ●
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0005- ● ●
617 SEAL; DASH 1-61281-497-1 02 1 0005- ● ●
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ●

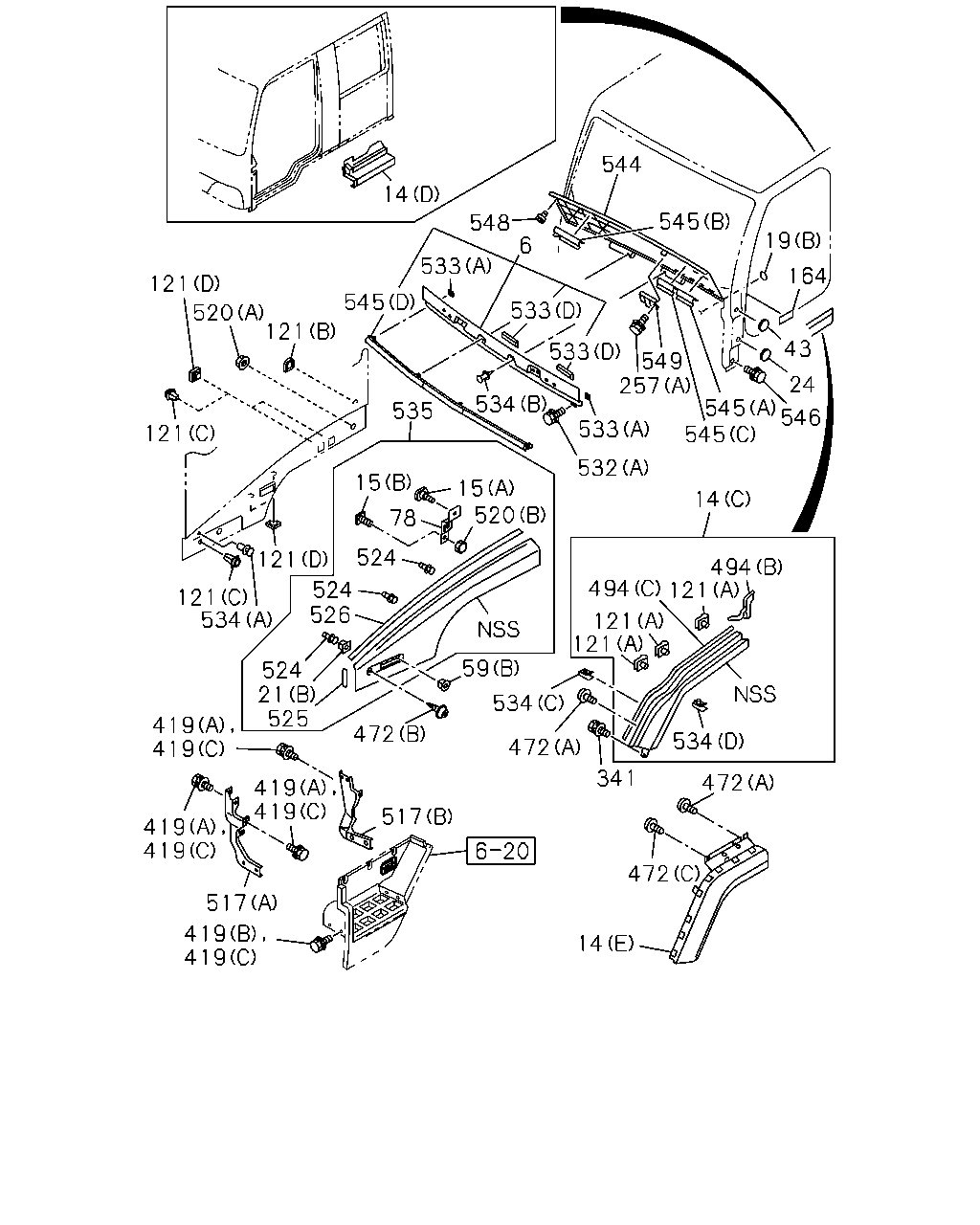

çizim 100145
544 14 545 548 19 6 533 164 121 545 533 520 121 533 43 549 257 534 24 545 545 546 535 533 121 532 15 15 520 14 524 121 494 121 494 524 526 121 534 121 121 59 524 21 525 534 419 419 472 534 472 419 419 419 419 341 472 517 472 517 419 419 14 78
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65481-744-2 01 1 0005- ● ●
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 0005-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-045-0 01 1 0210- ●
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 0005- ●
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 0005-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-044-0 01 1 0210- ●
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 0005- ●
14 FENDER; FRT
(C) 		1-65481-668-0 01 1 0005-0209 ●
14 FENDER; FRT
(C) 		1-65482-057-0 01 1 0210- ●
14 FENDER; FRT
(D) 		1-65481-782-0 01 1 0005-0008 ●
14 FENDER; FRT
(D) 		1-65481-900-0 01 1 0009- ●
14 FENDER; FRT
(E) 		1-71996-182-2 01 1 0005- ●
14 FENDER; FRT
(C) 		1-65481-667-0 01 1 0005-0209 ●
14 FENDER; FRT
(C) 		1-65482-056-0 01 1 0210- ●
14 FENDER; FRT
(D) 		1-65481-781-0 01 1 0005-0008 ●
14 FENDER; FRT
(D) 		1-65481-899-0 01 1 0009- ●
14 FENDER; FRT
(E) 		1-71996-181-2 01 1 0005- ●
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0005- ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0005- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0005- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0005- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 0211- ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 0211- ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0005- ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0005- ●
59 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 04 1 0005- ●
78 BRACKET; FENDER 1-71268-323-0 01 1 0005- ● ●
78 BRACKET; FENDER 1-71268-322-0 01 1 0005- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0005- ●
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0005-1009 ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0005-0304 ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305- ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 0005-0304 ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 0005- ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0005- ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0005-0411 ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412- ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0904 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		8-94279-203-0 14 1 0005- ●
419 BOLT; STEP
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 0005-0009 ● ●
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904 ● ●
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ●
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204 ● ●
419 BOLT; STEP
(B) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301 ● ●
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 0005- ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 0005- ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0005- ● ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0005- ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 12 1 0005- ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0005-0210 ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (A) 		1-71998-999-0 02 1 0211-0611 ●
494 FINISHER; FENDER
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) (A) 		1-71998-999-0 02 1 0612-0705 ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0706- ●
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 0005-0610 ● ●
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0005- ● ●
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0005- ● ●
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0005- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 0005- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0005- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0005- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0005- ● ●
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0005- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0005- ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0005-0409 ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410- ● ●
526 FINISHER; FENDER 1-71268-275-1 02 1 0005- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0005- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0005- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0211-0406 ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0005- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0005- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0005- ● ●
534 FASTENER
(D) 		1-71996-035-1 20 1 0005- ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0005-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(C) 		1-71996-035-1 04 1 0005-0404 ● ●
534 FASTENER
(C) 		1-71996-035-1 06 1 0405- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0005- ● ●
534 FASTENER
(D) 		1-71996-035-1 10 1 0005- ●
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 0005-0209 ● ●
535 FENDER; BLISTER
WHITE 		1-71268-429-0 01 1 0210- ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 0005-0209 ● ●
535 FENDER; BLISTER
WHITE 		1-71268-428-0 01 1 0210- ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> HITACHI KASEI 		1-71108-152-0 01 1 0005-0210 ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> MITRAS 		1-71108-116-0 01 1 0007-0210 ● ●
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-235-3 01 1 0005-0210 ● ●
544 LID; FRT 1-71108-235-3 01 1 0211- ● ●
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0005-0411 ● ●
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0412- ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0005-0411 ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0412- ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0005- ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0005-0411 ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0412- ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0005- ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-0 02 1 0005-0411 ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0412- ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 0005-0301 ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302-0411 ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0412- ● ●

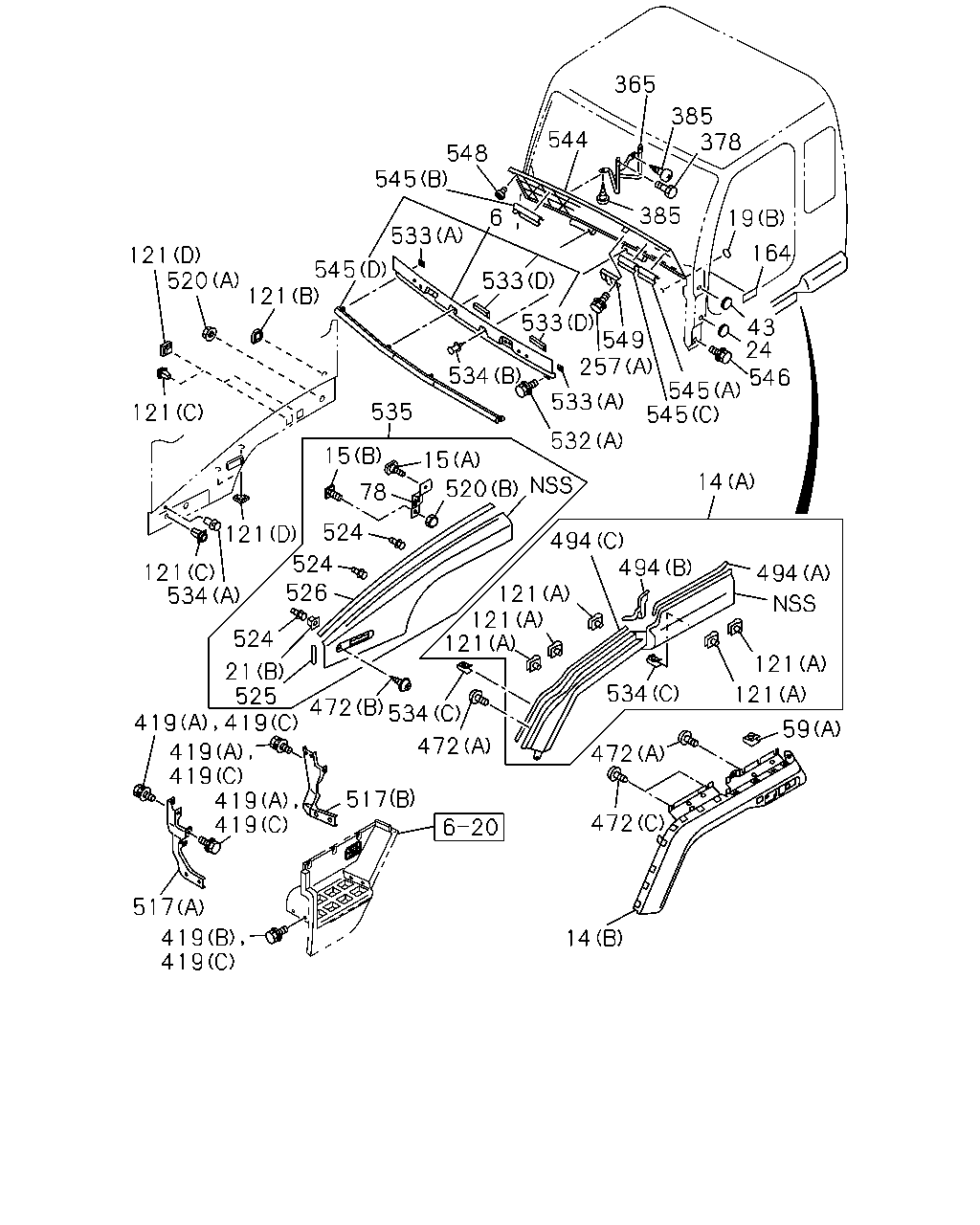

çizim 100151
365 385 378 544 548 545 385 6 19 533 164 121 520 545 121 533 533 549 257 534 43 24 546 545 545 533 535 121 532 15 15 78 14 520 524 121 494 494 524 526 121 534 494 121 121 121 524 121 21 525 534 121 472 534 419 59 472 419 419 419 419 472 517 472 419 419 14 517 419
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65481-744-2 01 1 0005- ● ●
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 0005-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-045-0 01 1 0210- ●
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 0005- ●
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 0005-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-044-0 01 1 0210- ●
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 0005- ●
14 FENDER; FRT
(C) 		1-65481-668-0 01 1 0005-0209 ●
14 FENDER; FRT
(C) 		1-65482-057-0 01 1 0210- ●
14 FENDER; FRT
(D) 		1-65481-782-0 01 1 0005-0008 ●
14 FENDER; FRT
(D) 		1-65481-900-0 01 1 0009- ●
14 FENDER; FRT
(E) 		1-71996-182-2 01 1 0005- ●
14 FENDER; FRT
(C) 		1-65481-667-0 01 1 0005-0209 ●
14 FENDER; FRT
(C) 		1-65482-056-0 01 1 0210- ●
14 FENDER; FRT
(D) 		1-65481-781-0 01 1 0005-0008 ●
14 FENDER; FRT
(D) 		1-65481-899-0 01 1 0009- ●
14 FENDER; FRT
(E) 		1-71996-181-2 01 1 0005- ●
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0005- ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0005- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0005- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0005- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0005- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 0211- ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 0211- ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0005- ● ●
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0005- ●
59 GROMMET; SCREW
(B) D=8.6X7.7 L=7.5 		1-09983-177-0 04 1 0005- ●
78 BRACKET; FENDER 1-71268-323-0 01 1 0005- ● ●
78 BRACKET; FENDER 1-71268-322-0 01 1 0005- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0005- ●
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0005-1009 ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0005-0304 ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305- ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 0005-0304 ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 0005- ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0005- ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0005-0411 ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412- ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0904 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
365 SUPPORT; FENDER 1-71996-147-1 01 1 0005- ●
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0005- ●
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 0005- ●
419 BOLT; STEP
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 0005-0009 ● ●
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904 ● ●
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ●
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204 ● ●
419 BOLT; STEP
(B) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301 ● ●
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 0005- ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 0005- ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0005- ● ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0005- ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 12 1 0005- ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0005-0210 ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (A) 		1-71998-999-0 02 1 0211-0611 ●
494 FINISHER; FENDER
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) (A) 		1-71998-999-0 02 1 0612-0705 ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0706- ●
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 0005-0610 ● ●
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0005- ● ●
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0005- ● ●
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0005- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 0005- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0005- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0005- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0005- ● ●
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0005- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0005- ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0005-0409 ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410- ● ●
526 FINISHER; FENDER 1-71268-275-1 02 1 0005- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0005- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0005- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0211-0406 ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0005- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0005- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0005- ● ●
534 FASTENER
(D) 		1-71996-035-1 20 1 0005- ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0005-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(C) 		1-71996-035-1 04 1 0005-0404 ● ●
534 FASTENER
(C) 		1-71996-035-1 06 1 0405- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0005- ● ●
534 FASTENER
(D) 		1-71996-035-1 10 1 0005- ●
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 0005-0209 ● ●
535 FENDER; BLISTER
WHITE 		1-71268-429-0 01 1 0210- ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 0005-0209 ● ●
535 FENDER; BLISTER
WHITE 		1-71268-428-0 01 1 0210- ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> HITACHI KASEI 		1-71108-152-0 01 1 0005-0210 ● ●
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> MITRAS 		1-71108-116-0 01 1 0007-0210 ● ●
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-235-3 01 1 0005-0210 ● ●
544 LID; FRT 1-71108-235-3 01 1 0211- ● ●
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0005-0411 ● ●
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0412- ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0005-0411 ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0412- ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0005- ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0005-0411 ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0412- ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0005- ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-0 02 1 0005-0411 ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0412- ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 0005-0301 ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302-0411 ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0412- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
