Isuzu WW
▶
AUV
▶
TBR
▶
50663 - TBR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶
1-30 — AIR CLEANER
(#95898) — 50 parça
Tümü
A - C223 ENG
B - 4JA1 ENG
◀

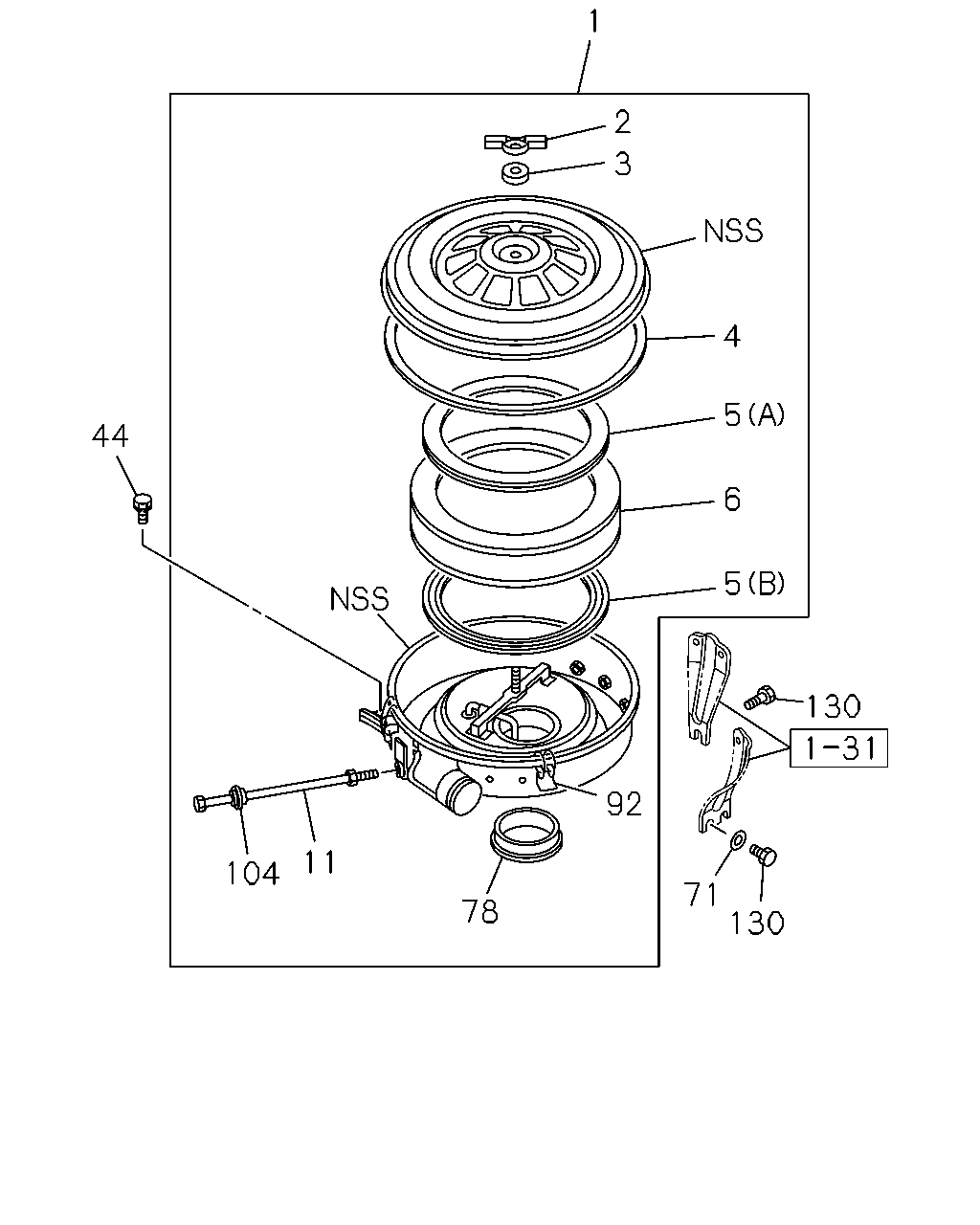

[130A] C223 ENG (23 parça)
[130A] 4JA1 ENG (27 parça)
▶
44
104
11
78
92
71
130
130
5
6
5
4
3
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLEANER ASM; AIR
8-94403-218-2
01
1
9009-9601
●
1
CLEANER ASM; AIR
IDN
8-94320-726-1
01
1
9602-9604
●
1
CLEANER ASM; AIR
IDN
8-97143-610-2
01
1
9605-
●
2
NUT; WING,ELEMENT
8-94103-513-0
01
1
9009-9601
●
3
WASHER; SEAL,WING NUT
9-14239-065-0
01
1
9009-9601
●
4
GASKET; COVER TO BODY
5-14213-003-0
01
1
9009-9601
●
4
GASKET; COVER TO BODY
IDN
8-94334-908-0
01
1
9602-
●
5
GASKET; ELEMENT
(B)
9-14213-095-0
01
1
9009-9601
●
5
GASKET; ELEMENT
(C) IDN
8-94334-910-0
01
1
9602-
●
5
GASKET; ELEMENT
(A)
9-14213-125-0
01
1
9009-9601
●
6
FILTER; ACL
8-94246-699-0
01
1
9009-9601
●
6
FILTER; ACL
IDN
8-94334-906-0
01
1
9602-
●
11
BOLT; ACL
5-09000-249-0
01
1
9009-9601
●
44
BOLT; ACL
M6X16 W/LK WASHER
0-50040-616-0
04
1
9009-9601
●
44
BOLT; ACL
M6X30
8-97032-128-0
03
1
9602-
●
71
WASHER; PL,BRKT
8-94114-052-0
02
1
9009-9601
●
71
WASHER; PL,BRKT
ID=8.4 OD=18
9-09160-608-0
03
1
9602-0605
●
71
WASHER; PL,BRKT
ID=8.4 OD=18
0-91610-608-0
03
1
0606-
●
78
GROMMET; ACL
5-14239-055-0
01
1
9009-9601
●
92
CLIP; WIRE,ACL
9-14219-149-0
04
1
9009-9601
●
104
GROMMET; CLAMP BOLT,ACL
5-14219-047-0
01
1
9009-9601
●
130
BOLT; BRKT TO ACL
M6X14 W/LK WASHER
0-50040-614-0
06
1
9009-9601
●
130
BOLT; BRKT TO ACL
M8X16 W/LK&PL WASHER
0-50140-816-0
05
1
9009-9601
●
1
8
4
6
5
229
25
44
79
37
94
145
71
224
145
71
224
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLEANER ASM; AIR
8-94403-218-2
01
1
9009-9601
●
1
CLEANER ASM; AIR
IDN
8-94320-726-1
01
1
9602-9604
●
1
CLEANER ASM; AIR
IDN
8-97143-610-2
01
1
9605-
●
4
GASKET; COVER TO BODY
5-14213-003-0
01
1
9009-9601
●
4
GASKET; COVER TO BODY
IDN
8-94334-908-0
01
1
9602-
●
5
GASKET; ELEMENT
(B)
9-14213-095-0
01
1
9009-9601
●
5
GASKET; ELEMENT
(C) IDN
8-94334-910-0
01
1
9602-
●
5
GASKET; ELEMENT
(A)
9-14213-125-0
01
1
9009-9601
●
6
FILTER; ACL
8-94246-699-0
01
1
9009-9601
●
6
FILTER; ACL
IDN
8-94334-906-0
01
1
9602-
●
8
COVER ASM; ACL
IDN
8-94334-905-0
01
1
9602-
●
25
GASKET; CASE,ACL
IDN
8-94334-909-0
01
1
9602-
●
37
RUBBER; MTG,ACL
IDN
8-94334-912-0
03
1
9602-9604
●
37
RUBBER; MTG,ACL
IDN
8-97112-955-0
03
1
9605-0210
●
37
RUBBER; MTG,ACL
8-97146-135-0
03
1
0211-
●
44
BOLT; ACL
M6X16 W/LK WASHER
0-50040-616-0
04
1
9009-9601
●
44
BOLT; ACL
M6X30
8-97032-128-0
03
1
9602-
●
71
WASHER; PL,BRKT
8-94114-052-0
02
1
9009-9601
●
71
WASHER; PL,BRKT
ID=8.4 OD=18
9-09160-608-0
03
1
9602-0605
●
71
WASHER; PL,BRKT
ID=8.4 OD=18
0-91610-608-0
03
1
0606-
●
79
NUT; WING,ACL
IDN
8-94334-913-0
01
1
9602-9604
●
94
VALVE; VACUATOR
8-94447-157-0
01
1
9602-
●
145
BOLT; BRKT TO FRAME
M8X16 FLANGE
0-28080-816-0
03
1
9602-0512
●
145
BOLT; BRKT TO FRAME
M8X16 FLANGE
0-28050-816-0
03
1
0601-
●
224
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
9602-0602
●
224
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
229
BODY ASM; ACL
8-94337-445-1
01
1
9605-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
