1-11 — RADIATOR HOSE AND SUB TANK (#95897) — 19 parça

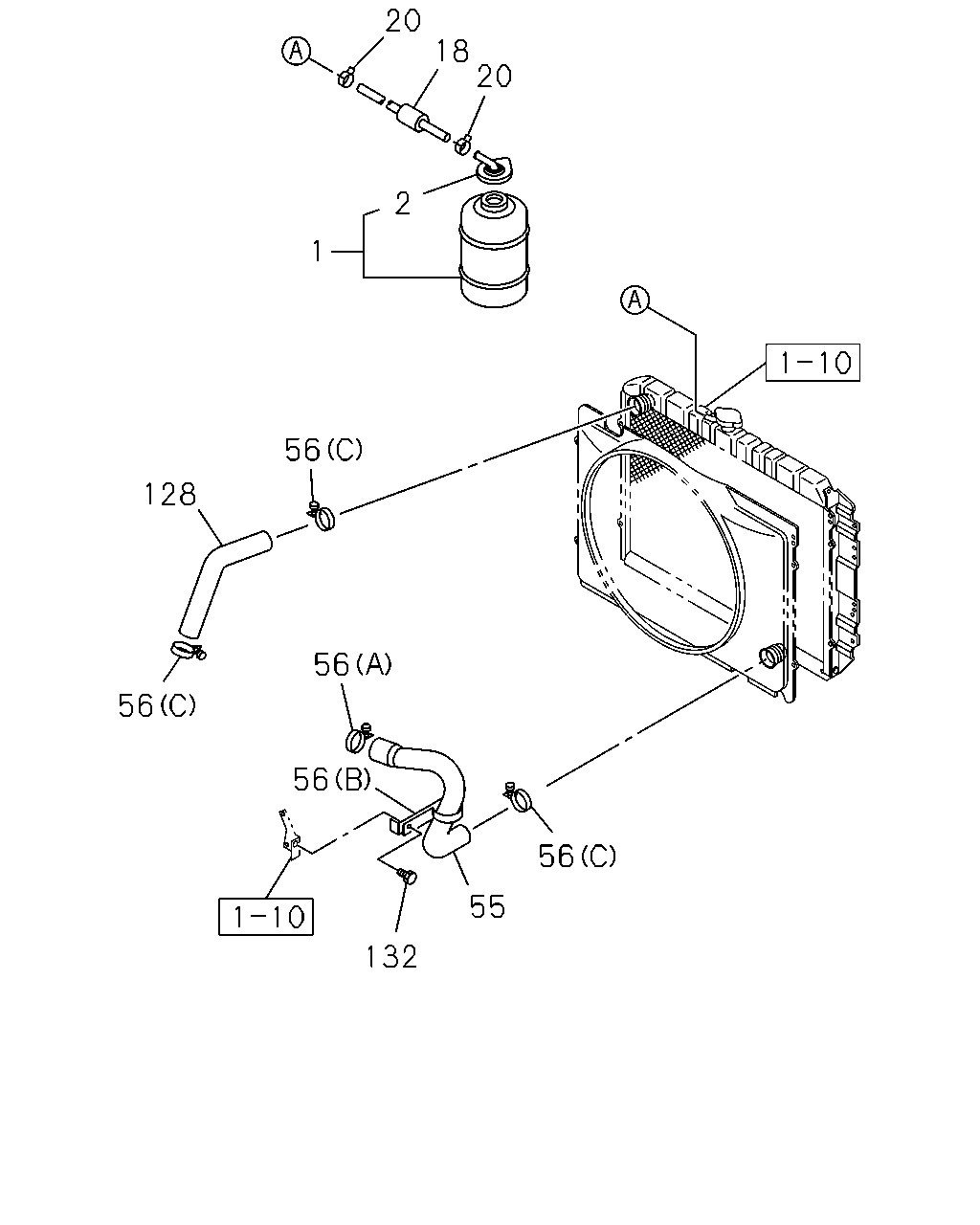

çizim 289227
20 18 20 2 1 56 128 56 56 56 56 55 132
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD
DELETION IDN 		8-94370-450-0 01 1 9009-9601 ●
1 TANK; SURGE,RAD
DELETION IDN 		8-94370-450-0 01 1 9602- ●
2 CAP; SURGE TANK
DELETION IDN 		8-94370-522-0 01 1 9009-9601 ●
2 CAP; SURGE TANK
DELETION IDN 		8-94370-522-0 01 1 9602- ●
18 HOSE; RAD TO SURGE TANK
DELETION 		8-94386-857-0 01 1 9009-9601 ●
18 HOSE; RAD TO SURGE TANK
DELETION L=630 SERVICED BY L=3000 		0-03157-300-0 01 1 9602- ●
20 CLIP; HOSE,RAD
ID=12 IDN 		8-94238-610-0 02 1 9009-9601 ●
20 CLIP; HOSE,RAD
ID=12 IDN 		8-94238-610-0 02 1 9602- ●
55 HOSE; WATER,RAD OUTLET
DELETION 		8-97019-352-1 01 1 9009-9601 ●
55 HOSE; WATER,RAD OUTLET
DELETION IDN 		8-97123-624-0 01 1 9602- ●
56 CLIP; WATER HOSE,RAD
(A) DELETION ID=46 		8-94160-650-0 01 1 9009-9601 ●
56 CLIP; WATER HOSE,RAD
(A) DELETION ID=48 IDN 		9-09915-512-1 01 1 9602- ●
56 CLIP; WATER HOSE,RAD
(B) 		8-97019-257-1 01 1 9009-9601 ●
56 CLIP; WATER HOSE,RAD
(C) DELETION ID=42 IDN 		9-09915-042-1 03 1 9009-9601 ●
56 CLIP; WATER HOSE,RAD
(C) DELETION ID=42 IDN 		9-09915-042-1 03 1 9602- ●
128 HOSE; WATER,RAD INL
DELETION 		8-94368-822-0 01 1 9009-9601 ●
128 HOSE; WATER,RAD INL
DELETION IDN 		8-97123-623-0 01 1 9602- ●
132 BOLT; CLIP,WATER HOSE,OUTLET
M8X12 		0-28010-812-0 01 1 9009-9204 ●
132 BOLT; CLIP,WATER HOSE,OUTLET
M8X12 FLANGE 		0-28080-812-0 01 1 9205-9601 ●
