Isuzu WW
▶
AUV
▶
TBR
▶
50663 - TBR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

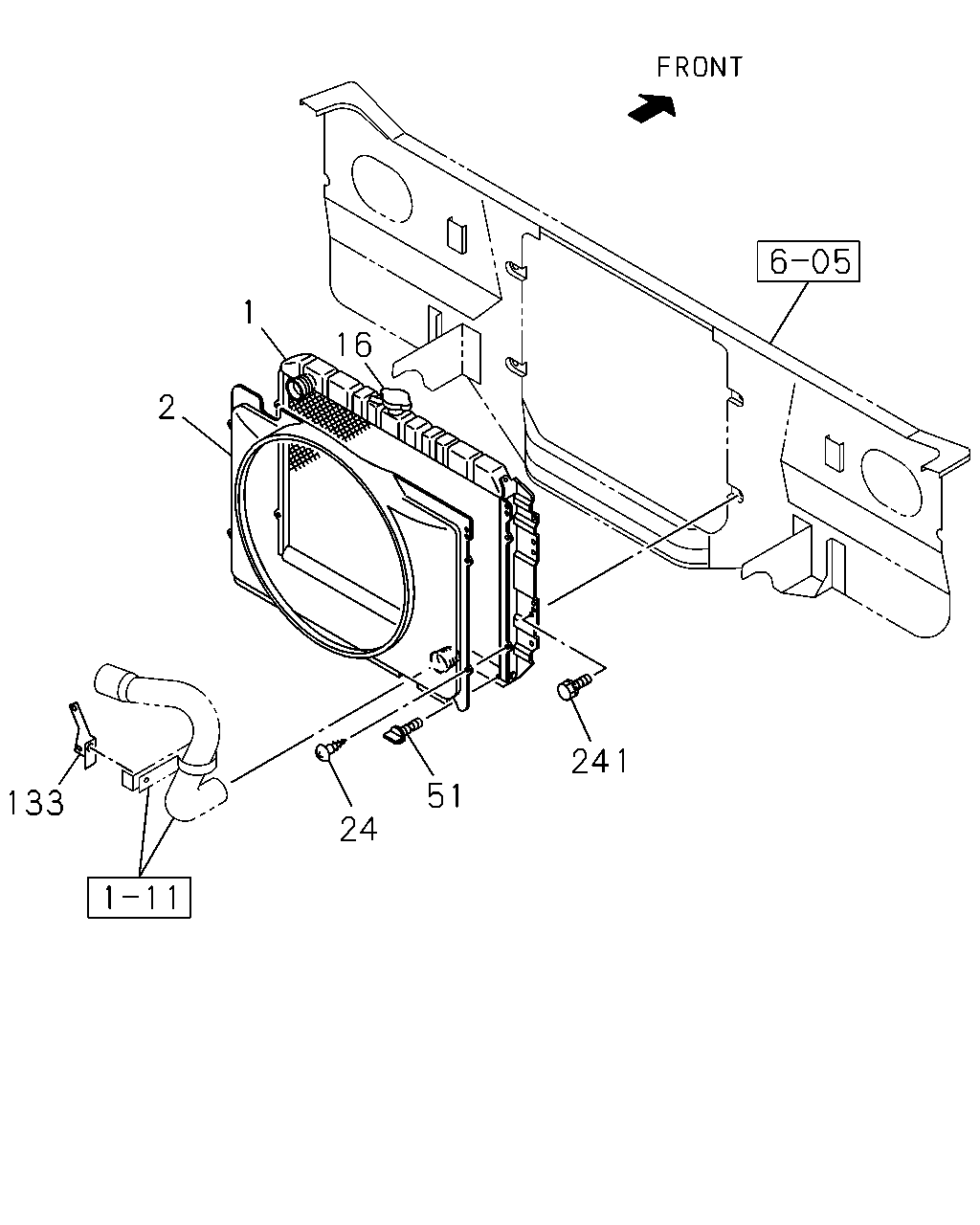

1-10 - RADIATOR
▶
1-10 — RADIATOR
(#95896) — 17 parça
Tümü
A - C223 ENG
B - 4JA1 ENG
16
1
2
241
51
24
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
DELETION IDN
8-94368-831-0
01
1
9009-9601
●
1
RADIATOR ASM
DELETION IDN
8-94368-831-0
01
1
9602-
●
2
GUIDE; FAN
DELETION
8-97011-991-0
01
1
9009-9601
●
2
GUIDE; FAN
DELETION IDN
8-97123-557-4
01
1
9602-
●
16
CAP; RAD
DELETION IDN
8-94228-748-1
01
1
9009-9601
●
16
CAP; RAD
DELETION IDN
8-94228-748-1
01
1
9602-
●
24
SCREW; RAD FAN GUIDE
DELETION M5X8 TAPPING
9-07066-508-0
04
1
9009-9601
●
24
SCREW; RAD FAN GUIDE
DELETION M5X8 TAPPING
9-07066-508-0
04
1
9602-0604
●
24
SCREW; RAD FAN GUIDE
M5X8 TAPPING
0-71040-508-0
04
1
0605-
●
51
PLUG; DRAIN
DELETION IDN
9-09809-098-0
01
1
9009-9601
●
51
PLUG; DRAIN
DELETION IDN
9-09809-098-0
01
1
9602-
●
133
BRACKET; WATER HOSE
8-97019-242-0
01
1
9009-9601
●
241
BOLT; RAD TO BODY
M8X24
8-94328-244-2
04
1
9009-9106
●
241
BOLT; RAD TO BODY
M8X24
8-97034-130-0
04
1
9107-9402
●
241
BOLT; RAD TO BODY
M8X16 FLANGE
0-28080-816-0
04
1
9403-9601
●
241
BOLT; RAD TO BODY
M8X16 FLANGE
0-28080-816-0
04
1
9602-0512
●
241
BOLT; RAD TO BODY
M8X16 FLANGE
0-28050-816-0
04
1
0601-
●
