Isuzu WW
▶
AUV
▶
TBR
▶
50663 - TBR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶

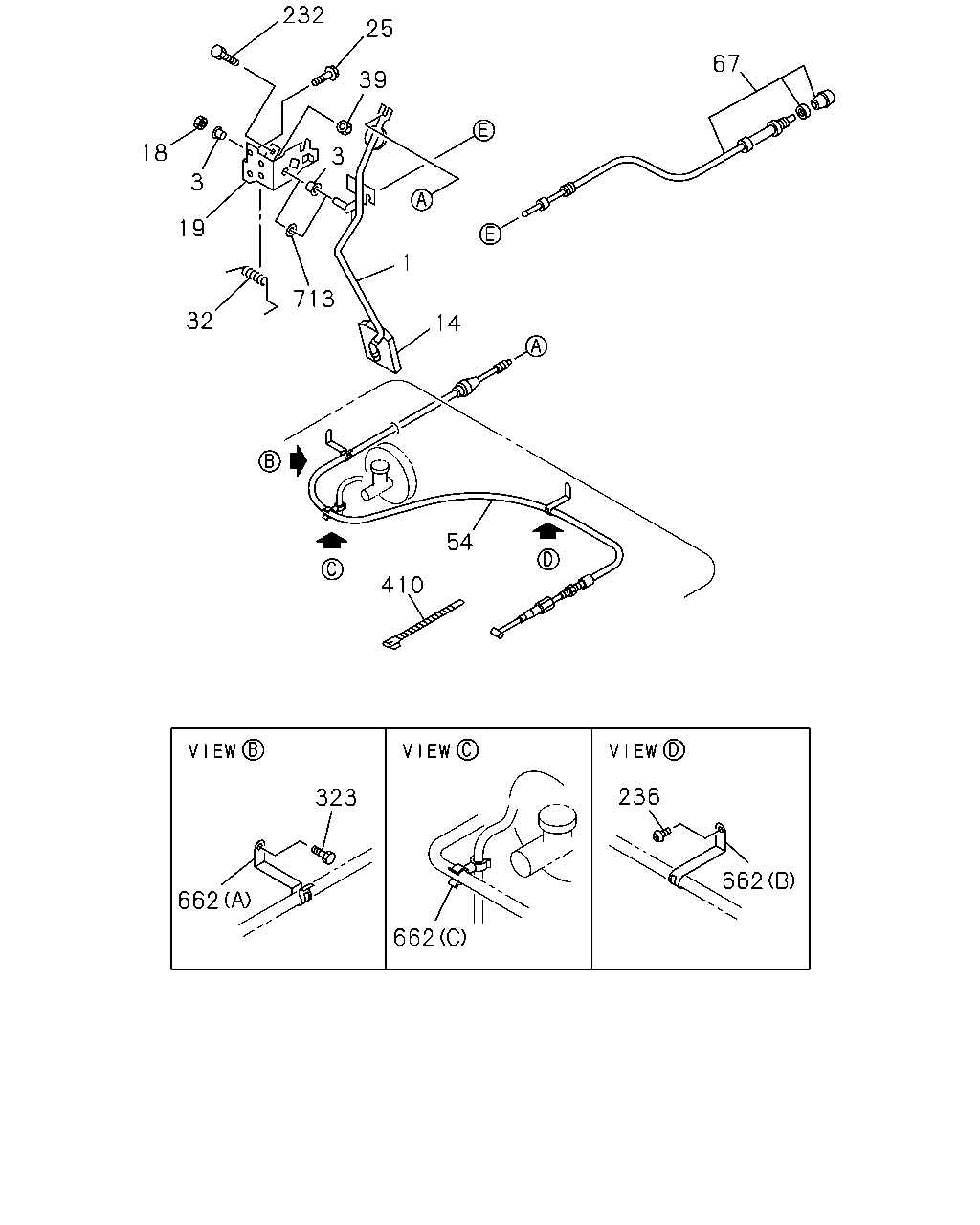

1-01 — ACCELERATOR PEDAL AND CONTROL
(#95895) — 42 parça
Tümü
A - C223 ENG
B - 4JA1 ENG
67
25
232
39
3
3
18
19
32
713
1
14
54
410
236
662
662
323
662
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LEVER; PEDAL SIDE
8-97027-101-0
01
1
9009-9601
●
1
LEVER; PEDAL SIDE
8-97027-101-1
01
1
9602-
●
3
BUSHING; PEDAL
OD=9.9
8-94279-701-3
02
1
9009-9501
●
14
PAD; PEDAL,ACCEL
8-94473-376-1
01
1
9009-9601
●
14
PAD; PEDAL,ACCEL
8-94473-376-1
01
1
9602-
●
18
NUT; JOINT LK
D=17.5
8-94368-617-0
01
1
9009-9601
●
18
NUT; JOINT LK
D=17.5
8-94368-617-0
01
1
9602-
●
19
BRACKET; ACCEL PEDAL
8-94473-370-2
01
1
9009-9501
●
19
BRACKET; ACCEL PEDAL
8-97117-119-0
01
1
9502-9601
●
19
BRACKET; ACCEL PEDAL
8-97117-119-0
01
1
9602-
●
25
BOLT; SHAFT SIDE
M6X12 W/LK WASHER
9-01900-612-0
02
1
9009-9204
●
25
BOLT; SHAFT SIDE
M6X12 W/LK WASHER
0-50040-612-0
02
1
9205-9601
●
25
BOLT; SHAFT SIDE
M6X12 W/LK WASHER
0-50040-612-0
02
1
9602-0512
●
25
BOLT; SHAFT SIDE
M6X12 W/LK WASHER
0-50540-612-0
02
1
0601-
●
32
SPRING; RETURN,ACCEL PEDAL
8-97019-283-0
01
1
9009-9601
●
32
SPRING; RETURN,ACCEL PEDAL
8-97019-283-0
01
1
9602-
●
39
NUT; ACCEL PEDAL STOPPER
M6
9-09110-406-0
01
1
9009-9601
●
39
NUT; ACCEL PEDAL STOPPER
M6
9-09110-406-0
01
1
9602-0512
●
39
NUT; ACCEL PEDAL STOPPER
M6
0-91110-506-0
01
1
0601-
●
54
CABLE; ENG CONT
DELETION
8-94367-746-1
01
1
9009-9408
●
54
CABLE; ENG CONT
DELETION
8-97109-958-0
01
1
9409-9601
●
54
CABLE; ENG CONT
DELETION IDN
8-97123-558-3
01
1
9602-
●
67
CABLE ASM; IDLE CONT
DELETION IDN
8-97100-935-2
01
1
9009-9601
●
67
CABLE ASM; IDLE CONT
DELETION IDN
8-97100-935-2
01
1
9602-
●
232
BOLT; STOPPER,ACCEL PEDAL
M6X30
9-02040-630-0
01
1
9009-9204
●
232
BOLT; STOPPER,ACCEL PEDAL
0-20800-630-0
01
1
9205-9601
●
232
BOLT; STOPPER,ACCEL PEDAL
0-20800-630-0
01
1
9602-
●
236
SCREW; TAP,PEDAL TO BRKT
M6X16 TAPPING W/PL WASHER
0-74300-616-0
01
1
9602-0604
●
236
SCREW; TAP,PEDAL TO BRKT
M6X16 TAPPING W/PL WASHER
0-74360-616-0
01
1
0605-
●
323
BOLT; CLIP
M8X20
0-28410-820-0
01
1
9009-9204
●
323
BOLT; CLIP
M8X20 FLANGE
0-28480-820-0
01
1
9205-9601
●
323
BOLT; CLIP
M8X20 FLANGE
0-28480-820-0
01
1
9602-0512
●
323
BOLT; CLIP
M8X20 FLANGE
0-28450-820-0
01
1
0601-
●
410
CLIP; BAND
DELETION L=250
5-09707-030-0
01
1
9009-9601
●
410
CLIP; BAND
DELETION L=250 IDN
5-09707-030-1
01
1
9602-
●
662
CLIP; ACCEL CONT CABLE
(A)
8-97012-096-0
01
1
9009-9601
●
662
CLIP; ACCEL CONT CABLE
(A)
8-97012-096-0
01
1
9602-
●
662
CLIP; ACCEL CONT CABLE
(C) ID=6 & 16.5
8-94165-402-0
01
1
9602-9603
●
662
CLIP; ACCEL CONT CABLE
(B) ID=10.5 H=60
8-94323-658-1
01
1
9602-
●
713
WASHER; PL
ID=8.4
9-09160-508-0
01
1
9502-9601
●
713
WASHER; PL
ID=8.4
9-09160-508-0
01
1
9602-0605
●
713
WASHER; PL
ID=8.4 OD=16
0-91610-508-0
01
1
0606-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
