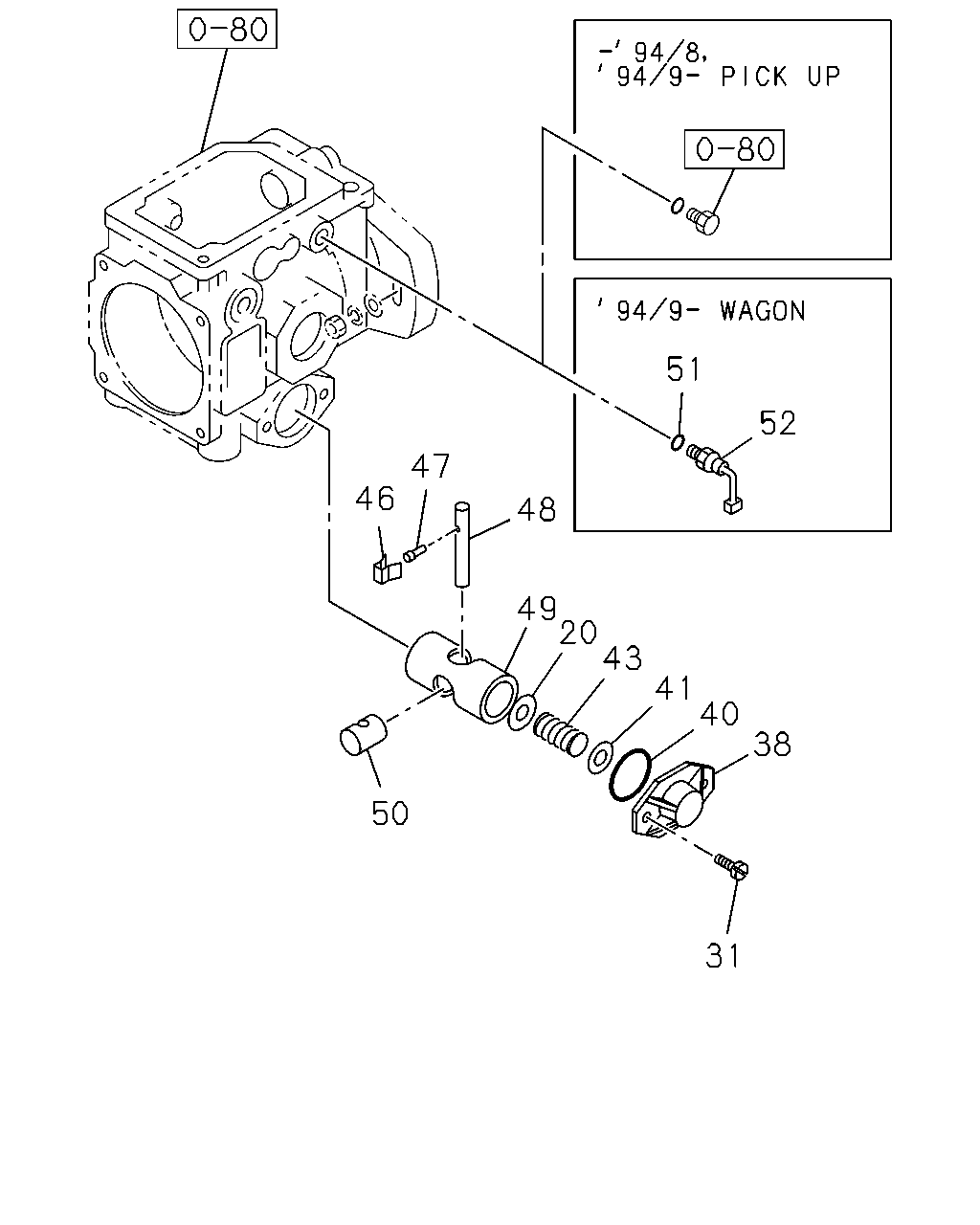

0-85 — AUTO TIMER; INJECTION PUMP (#95893) — 28 parça

51 52 48 47 46 50 31 38 40 41 43 20 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-495-0	01	1	-
31	SCREW; TIMER COVER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94313-276-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94473-120-0	01	1	-
40	GASKET; TIMER COVER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-491-0	01	1	-
40	GASKET; TIMER COVER,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94227-491-0	01	1	9802-
40	GASKET; TIMER COVER,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-763-0	01	1	-9801
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=2.40 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94121-620-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-495-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-496-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-497-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-498-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.20 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-499-0	AR	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=35.7 EFFECT TURN=5.1 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94313-200-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=35.5 ASM PART: B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94313-227-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=35.6 EFFECT TURN=5.4 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94313-241-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=35.8 EFFECT TURN=5.7 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94386-591-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=35.4 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94473-119-0	01	1	-
46	CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-488-0	01	1	-
47	PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-487-0	01	1	-
48	PIN; ROLLER HOLDER,TIMER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-486-0	01	1	-
49	PISTON; TIMER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94111-657-0	01	1	-
49	PISTON; TIMER,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-351-0	01	1	-
50	SLIDER; TIMER PISTON,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94227-493-0	01	1	9802-
50	SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0	8-94227-493-0	01	1	-
50	SLIDER; TIMER PISTON,INJ PUMP ASM PART: C = 8-97109-865-0, D = 8-97109-866-0	8-97119-163-0	01	1	-
50	SLIDER; TIMER PISTON,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97119-163-0	01	1	-9801
51	GASKET; TIMING SENSOR,INJ PUMP ASM PART: C = 8-97109-865-0, F = 8-97138-318-3	8-94227-671-0	01	1	-
52	SENSOR; TIMING,TACHOMETER,INJ PUMP ASM PART: C = 8-97109-865-0, F = 8-97138-318-3	8-94403-289-1	01	1	-
