7 |

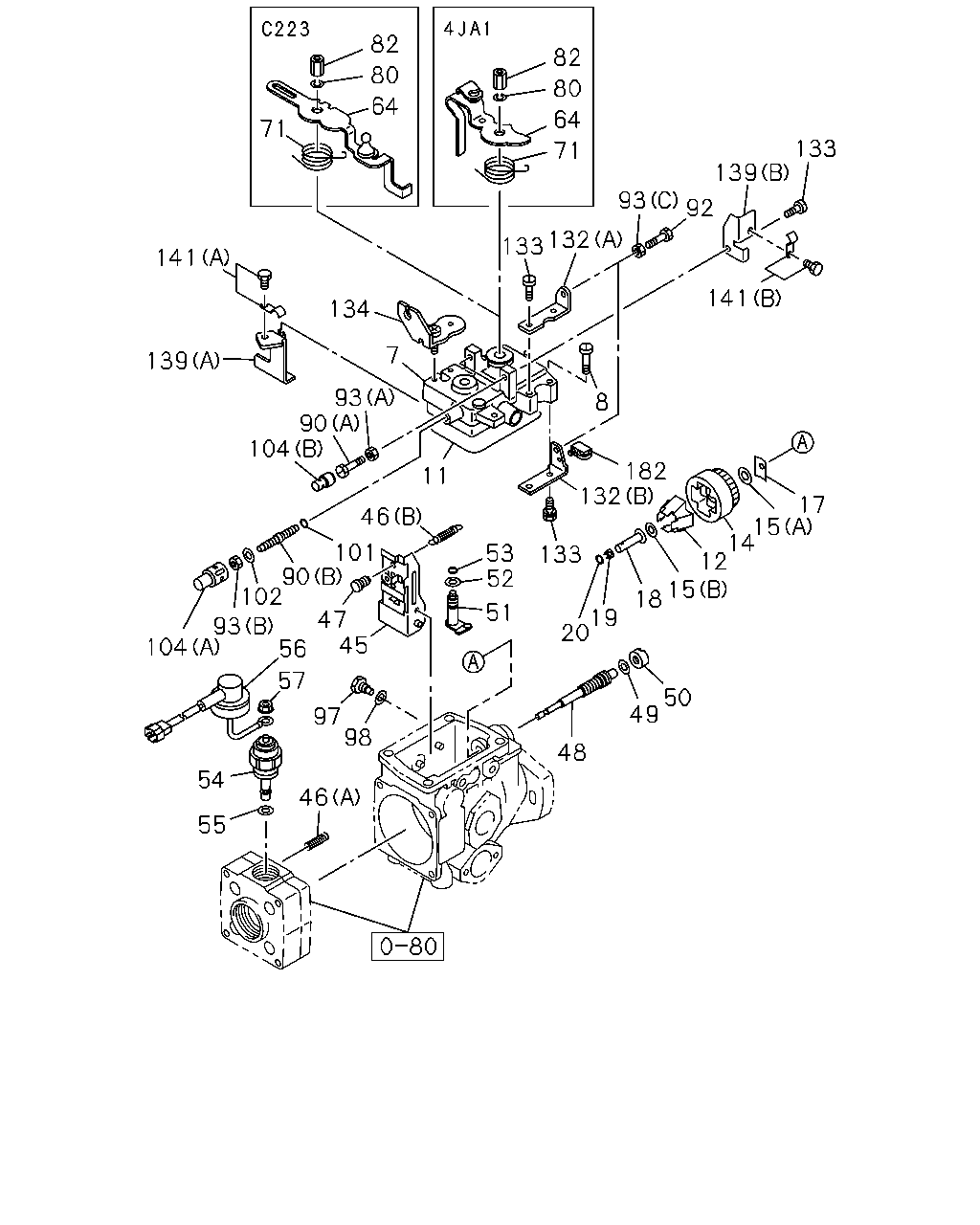

COVER; GOV HSG,INJ PUMP
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94316-269-0 |
01 |
1 |
- |
| |
7 |
COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94329-749-0 |
01 |
1 |
- |
| |
8 |
BOLT; GOV COVER,INJ PUMP
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-636-0 |
04 |
1 |
- |
| |
11 |
GASKET; COVER TO HSG,GOV
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94227-599-0 |
01 |
1 |
- |
| |
11 |
GASKET; COVER TO HSG,GOV
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97136-413-0 |
01 |
1 |
- |
| |
12 |
FLYWEIGHT ASM; GOV
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94228-403-0 |
01 |
1 |
- |
| |
14 |
HOLDER; GOV FLYWEIGHT,INJ PUMP
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-613-0 |
01 |
1 |
- |
| |
15 |
WASHER; LK,FLYWEIGHT FIX,GOV
(A) ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-612-0 |
01 |
1 |
- |
| |
15 |
WASHER; LK,FLYWEIGHT FIX,GOV
(B) ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-614-0 |
01 |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.05
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-607-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.25
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-608-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.45
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-609-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.65
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-610-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.85
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-611-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.15
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0, E = 8-97138-315-3,
F = 8-97138-318-3
|
8-94231-123-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.35
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0, E = 8-97138-315-3,
F = 8-97138-318-3
|
8-94231-124-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.55
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0, E = 8-97138-315-3,
F = 8-97138-318-3
|
8-94231-125-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.75
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0, E = 8-97138-315-3,
F = 8-97138-318-3
|
8-94231-126-0 |
AR |
1 |
- |
| |
18 |
SLEEVE; GOV
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94227-615-0 |
01 |
1 |
- |
| |
18 |
SLEEVE; GOV
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94433-222-0 |
01 |
1 |
-9801 |
| |
18 |
SLEEVE; GOV
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97214-475-0 |
01 |
1 |
9802- |
| |
19 |
CAP; GOV SLEEVE,INJ PUMP
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94227-616-0 |
01 |
1 |
- |
| |
19 |
CAP; GOV SLEEVE,INJ PUMP
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-519-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=1.70
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94227-617-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=1.90
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94227-618-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.10
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94227-619-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.30
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94227-620-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.50
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94227-621-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.70
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94227-622-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.90
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94227-623-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.10
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94227-624-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.30
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94227-625-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.50
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94227-626-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.70
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94227-627-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.90
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94227-628-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.10
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94227-629-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.30
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94227-630-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.50
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94227-631-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.70
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94227-632-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.90
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94227-633-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.10
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94227-634-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.20
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94372-499-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.30
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94372-500-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.40
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94372-501-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.50
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94372-502-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.10
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-520-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.30
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-521-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.50
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-522-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.70
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-523-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.90
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-524-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.10
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-525-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.30
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-526-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.50
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-527-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.70
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-528-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.90
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-529-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.10
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-530-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.30
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-531-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.50
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-532-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.70
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-533-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.90
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-534-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.10
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94408-535-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.20
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-868-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.40
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-869-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.60
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-870-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.80
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-871-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.00
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-872-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.20
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-873-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.40
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-874-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.60
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-875-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.80
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-876-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.00
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-877-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.20
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-878-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.40
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-879-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.60
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-880-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.80
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-881-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.00
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94428-882-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=1.80
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94433-223-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.00
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94433-224-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.20
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94433-225-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.40
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94433-226-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.60
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94433-227-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.80
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94433-228-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.00
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94433-229-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.20
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94433-230-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.40
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94433-231-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.60
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94433-232-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.80
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94433-233-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.00
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94433-234-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.20
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94433-235-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.40
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94433-236-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.60
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94433-237-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.80
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94433-238-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.00
ASM PART: A = 8-94475-188-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94433-239-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.2
ASM PART: C = 8-97109-865-0, D = 8-97109-866-0
|
8-97119-340-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.3
ASM PART: C = 8-97109-865-0, D = 8-97109-866-0
|
8-97119-341-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.4
ASM PART: C = 8-97109-865-0, D = 8-97109-866-0
|
8-97119-342-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.5
ASM PART: C = 8-97109-865-0, D = 8-97109-866-0
|
8-97119-343-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.60
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97163-167-0 |
01 |
1 |
9802- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.70
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97163-168-0 |
01 |
1 |
9802- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.80
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97163-169-0 |
01 |
1 |
9802- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.90
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97163-170-0 |
01 |
1 |
9802- |
| |
45 |
LEVER ASM; GOV,INJ PUMP
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94247-718-0 |
01 |
1 |
- |
| |
45 |
LEVER ASM; GOV,INJ PUMP
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97144-343-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(A) ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94473-128-0 |
02 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(B) ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97077-837-0 |
01 |
1 |
- |
| |
47 |
PIN; RET
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97096-706-0 |
01 |
1 |
-9810 |
| |
47 |
PIN; RET
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97223-420-0 |
01 |
1 |
9811- |
| |
48 |
SHAFT; GOV,INJ PUMP
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94248-002-0 |
01 |
1 |
- |
| |
49 |
GASKET; GOV SHAFT,INJ PUMP
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-606-0 |
01 |
1 |
- |
| |
50 |
NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-94475-188-0
|
8-94247-719-0 |
01 |
1 |
- |
| |
50 |
NUT; GOV SHAFT,INJ PUMP
ASM PART: B = 8-97062-817-0, C = 8-97109-865-0,
D = 8-97109-866-0, E = 8-97138-315-3,
F = 8-97138-318-3
|
8-94473-129-0 |
01 |
1 |
- |
| |
51 |
SHAFT; LOAD CONT LEVER,GOV
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94174-807-0 |
01 |
1 |
- |
| |
51 |
SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0
|
8-94257-706-0 |
01 |
1 |
- |
| |
52 |
WASHER; CONT SHAFT,GOV
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-590-0 |
01 |
1 |
- |
| |
53 |
GASKET; CONT SHAFT,GOV
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-585-0 |
01 |
1 |
- |
| |
54 |
VALVE; MAG,ENG STOP,INJ PUMP
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94242-275-0 |
01 |
1 |
- |
| |
55 |
GASKET; MAG VLV,INJ PUMP
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94239-373-0 |
01 |
1 |
- |
| |
56 |
WIRE; LEAD,MAG VLV,INJ PUMP
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94470-582-0 |
01 |
1 |
- |
| |
57 |
NUT; VLV
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94473-135-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
PRINTED NO. A
ASM PART: B = 8-97062-817-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94169-522-1 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
PRINTED NO. 1A
ASM PART: B = 8-97062-817-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94169-523-1 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
PRINTED NO. 0A
ASM PART: B = 8-97062-817-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94169-524-1 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
STAMP 565
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94313-282-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
STAMP 566
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94313-283-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
PRINTED NO.8220
ASM PART: A = 8-94475-188-0
|
8-94327-414-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
PRINTED NO.8320
ASM PART: A = 8-94475-188-0
|
8-94327-415-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
STAMP 195
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97214-467-0 |
01 |
1 |
9802- |
| |
64 |
LEVER; LOAD CONT,GOV
STAMP 196
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97214-468-0 |
01 |
1 |
9802- |
| |
71 |
SPRING; CONT LEVER,GOV
ASM PART: C = 8-97109-865-0
|
8-94132-785-0 |
02 |
1 |
- |
| |
71 |
SPRING; CONT LEVER,GOV
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
D = 8-97109-866-0
|
8-94132-785-0 |
01 |
1 |
- |
| |
71 |
SPRING; CONT LEVER,GOV
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94313-218-0 |
01 |
1 |
- |
| |
80 |
WASHER; LK,CONT LEVER,GOV
ID=6.1, IDN
ASM PART: B = 8-97062-817-0, C = 8-97109-865-0,
D = 8-97109-866-0, E = 8-97138-315-3,
F = 8-97138-318-3
|
9-09150-506-0 |
01 |
1 |
- |
| |
80 |
WASHER; LK,CONT LEVER,GOV
ID=6.1
ASM PART: A = 8-94475-188-0
|
9-09150-606-0 |
01 |
1 |
- |
| |
82 |
NUT; CONT LEVER FIX,GOV
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
1-15729-006-0 |
01 |
1 |
9802- |
| |
82 |
NUT; CONT LEVER FIX,GOV
ASM PART: A = 8-94475-188-0
|
1-15729-006-0 |
01 |
1 |
- |
| |
82 |
NUT; CONT LEVER FIX,GOV
M6 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
9-09110-406-0 |
01 |
1 |
-9801 |
| |
82 |
NUT; CONT LEVER FIX,GOV
M6 ASM PART: B = 8-97062-817-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
9-09110-406-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), L=53
ASM PART: A = 8-94475-188-0
|
8-94227-594-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), L=55
ASM PART: A = 8-94475-188-0
|
8-94227-595-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), L=57
ASM PART: A = 8-94475-188-0
|
8-94227-596-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), L=53.0
ASM PART: B = 8-97062-817-0, C = 8-97109-865-0,
D = 8-97109-866-0, E = 8-97138-315-3,
F = 8-97138-318-3
|
8-94316-274-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), L=55.0
ASM PART: B = 8-97062-817-0, C = 8-97109-865-0,
D = 8-97109-866-0, E = 8-97138-315-3,
F = 8-97138-318-3
|
8-94316-275-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), L=57.0
ASM PART: B = 8-97062-817-0, C = 8-97109-865-0,
D = 8-97109-866-0, E = 8-97138-315-3,
F = 8-97138-318-3
|
8-94316-276-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A) ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94426-049-0 |
01 |
1 |
- |
| |
92 |
BOLT; FULL LOAD STOPPER,GOV
ASM PART: B = 8-97062-817-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
5-15729-268-0 |
01 |
1 |
- |
| |
92 |
BOLT; FULL LOAD STOPPER,GOV
ASM PART: A = 8-94475-188-0, E = 8-97138-315-3,
F = 8-97138-318-3
|
8-94426-049-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
1-15729-006-0 |
01 |
1 |
9802- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-94475-188-0
|
8-94227-597-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: B = 8-97062-817-0, C = 8-97109-865-0,
D = 8-97109-866-0, E = 8-97138-315-3,
F = 8-97138-318-3
|
8-94316-277-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-94475-188-0, B = 8-97062-817-0
|
8-94426-047-1 |
02 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94426-047-1 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(C), M6
ASM PART: C = 8-97109-865-0, D = 8-97109-866-0
|
9-09110-406-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(C), M6
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
9-09110-406-0 |
01 |
1 |
-9801 |
| |
97 |
BOLT; PIVOT,GOV LEVER
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-601-0 |
02 |
1 |
- |
| |
98 |
GASKET; PIVOT BOLT,GOV LEVER
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-602-0 |
02 |
1 |
- |
| |
101 |
GASKET; ADJ SPRING CAPSULE,GOV
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-598-0 |
01 |
1 |
- |
| |
102 |
WASHER; FULL LOAD ADJ SCREW,GOV
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94227-593-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(A), L=16.5
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94316-262-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(B), L=18.0
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94316-263-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(B), L=21.0
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94316-264-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(B), L=24.0
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94316-265-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(B), L=27.0
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0,
C = 8-97109-865-0, D = 8-97109-866-0,
E = 8-97138-315-3, F = 8-97138-318-3
|
8-94316-266-0 |
01 |
1 |
- |
| |
132 |
BRACKET; ADJ SCREW,GOV
(B) ASM PART: B = 8-97062-817-0, C = 8-97109-865-0,
D = 8-97109-866-0
|
8-94336-941-0 |
01 |
1 |
- |
| |
132 |
BRACKET; ADJ SCREW,GOV
(A) ASM PART: A = 8-94475-188-0
|
8-94415-501-0 |
01 |
1 |
- |
| |
132 |
BRACKET; ADJ SCREW,GOV
(A) ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94457-165-0 |
01 |
1 |
- |
| |
133 |
BOLT; BRKT FIX,GOV
M6X16
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0
|
5-15729-071-0 |
02 |
1 |
- |
| |
133 |
BOLT; BRKT FIX,GOV
M6X12
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94313-267-0 |
03 |
1 |
- |
| |
133 |
BOLT; BRKT FIX,GOV
M6X14
ASM PART: C = 8-97109-865-0, D = 8-97109-866-0
|
8-94331-551-0 |
02 |
1 |
- |
| |
134 |
BRACKET; CONT CABLE,GOV
ASM PART: A = 8-94475-188-0, B = 8-97062-817-0
|
8-94329-750-0 |
01 |
1 |
- |
| |
134 |
BRACKET; CONT CABLE,GOV
ASM PART: C = 8-97109-865-0
|
8-97119-338-0 |
01 |
1 |
- |
| |
134 |
BRACKET; CONT CABLE,GOV
ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-97126-371-0 |
01 |
1 |
- |
| |
139 |
BRACKET; INJ PUMP
(A) ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94313-665-0 |
01 |
1 |
- |
| |
139 |
BRACKET; INJ PUMP
(B) ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94457-164-0 |
01 |
1 |
- |
| |
141 |
PLATE ASM; PIPE BRKT
(A) ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94174-822-0 |
01 |
1 |
- |
| |
141 |
PLATE ASM; PIPE BRKT
(B) ASM PART: E = 8-97138-315-3, F = 8-97138-318-3
|
8-94454-254-0 |
01 |
1 |
- |
| |
182 |
CLIP; PICKUP HARNESS
ASM PART: C = 8-97109-865-0
|
8-94151-491-0 |
01 |
1 |
- |
