Sayfa 0-80 - Isuzu EPC

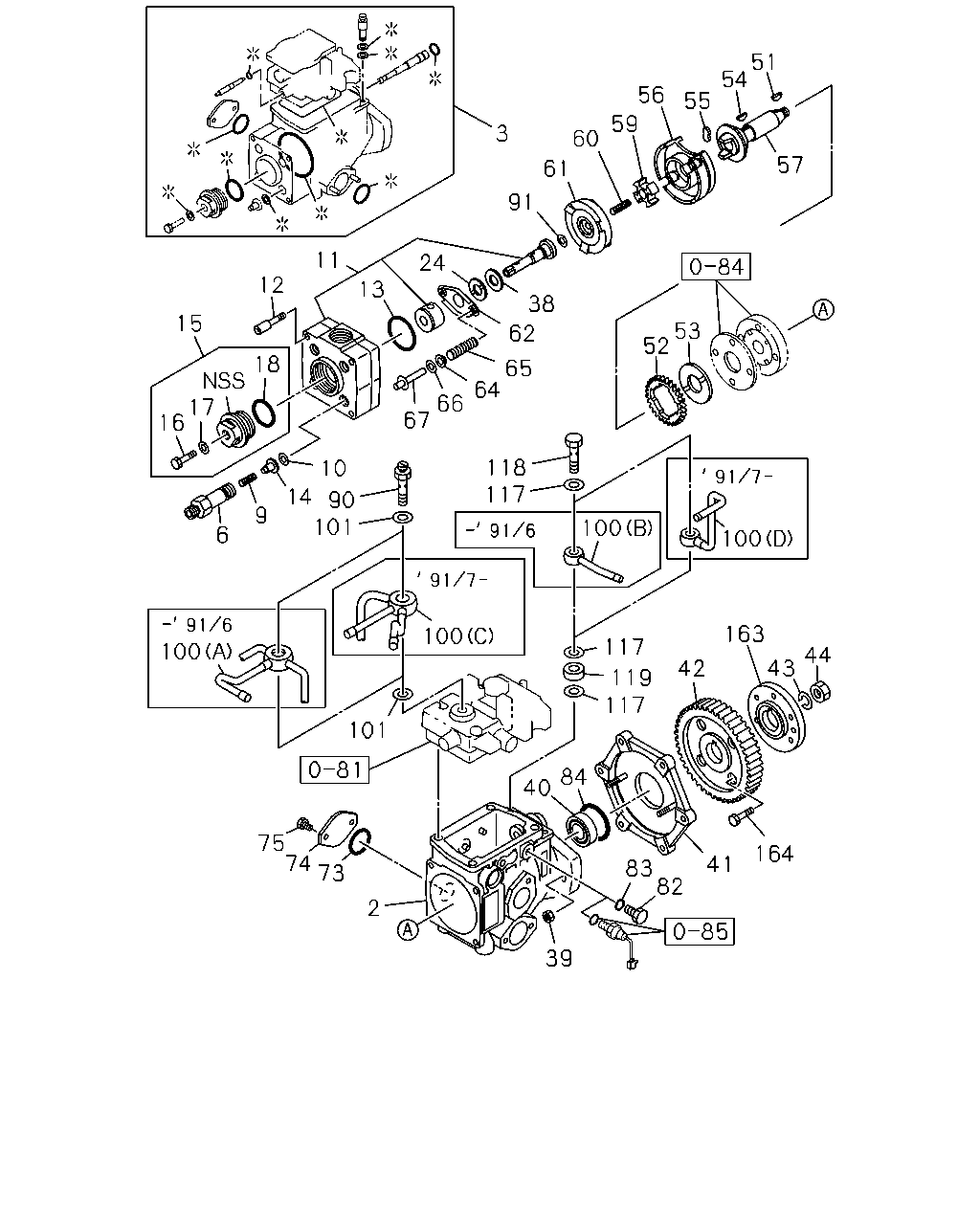

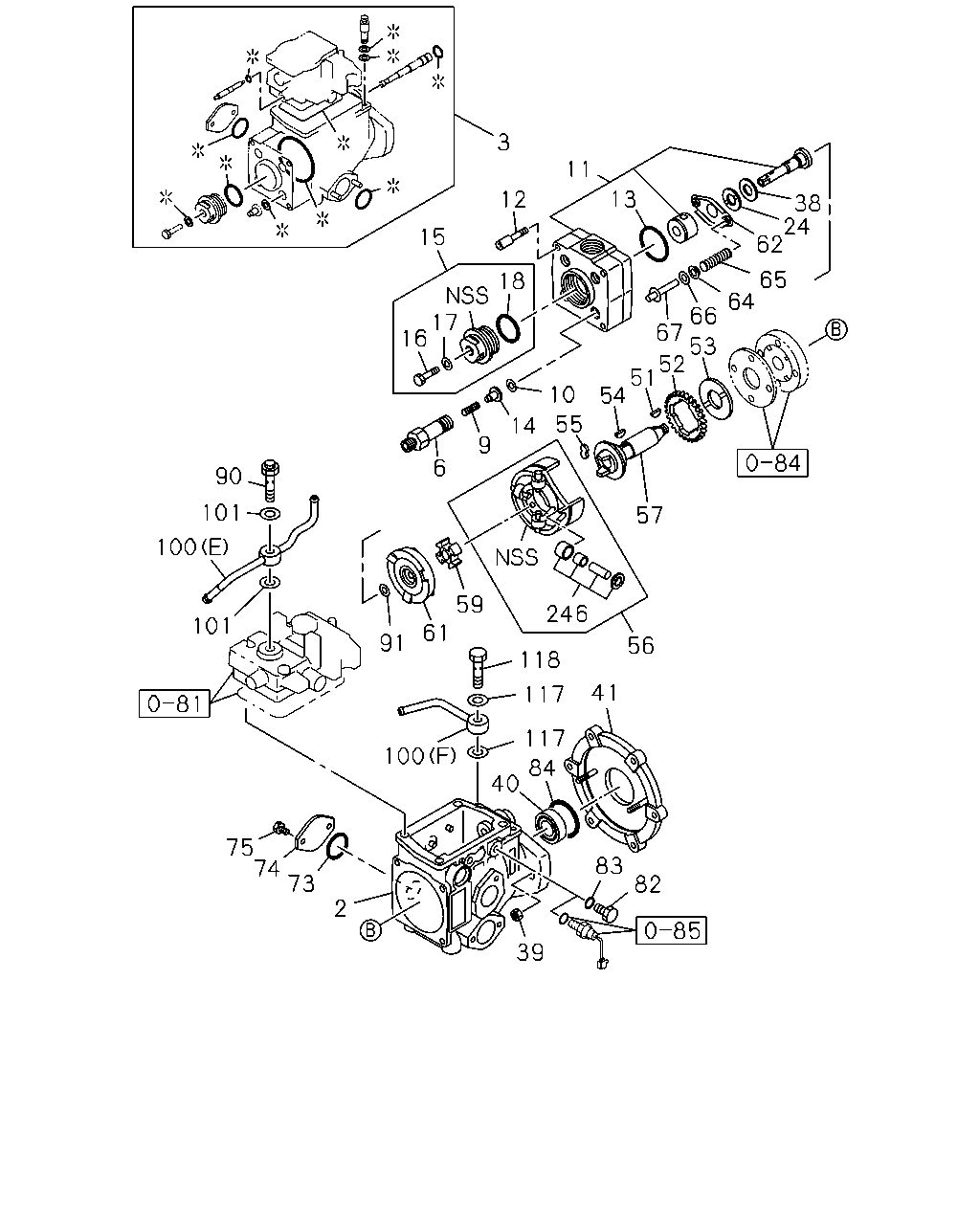

0-80 — INJECTION PUMP (#95889) — 353 parça

3 13 11 12 38 24 62 65 64 66 67 53 52 51 54 10 57 55 14 9 6 18 17 16 15 56 246 118 117 117 59 61 91 90 101 100 101 100 41 84 40 83 82 39 2 73 74 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94329-752-0	01	1	-
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94445-579-0	01	1	-
3	REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94228-545-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-582-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94367-330-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94174-803-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-581-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94247-716-0	04	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94150-153-1	01	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-353-0	01	1	-
12	SCREW; DISTR HD,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94257-670-0	04	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-527-0	01	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94174-802-0	04	1	-9801
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-580-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97172-541-0	04	1	9802-
15	PLUG ASM; DISTR,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-638-0	01	1	-
15	PLUG ASM; DISTR,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-354-0	01	1	-
16	BOLT; DISTR PLUG,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94174-818-0	01	1	-
16	BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-639-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-602-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-808-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-637-0	01	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-515-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-514-0	01	1	-
39	NUT; MTG BRKT FIX M8 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0	8-94224-829-0	02	1	-
39	NUT; MTG BRKT FIX ASM PART: C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-97119-344-0	02	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94227-475-0	01	1	-9801
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-475-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-94475-188-0	8-94418-038-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97147-034-0	01	1	9802-
41	BRACKET; INJ PUMP HSG ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94174-843-0	01	1	-
41	BRACKET; INJ PUMP HSG ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-336-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	5-83539-024-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94239-370-0	01	1	-
52	GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-483-0	01	1	-
53	WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-484-0	01	1	-
54	KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-481-0	01	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94169-528-0	02	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0	8-94227-482-1	02	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-485-0	01	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-760-0	01	1	-9801
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97211-756-0	01	1	9802-
57	SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-480-0	01	1	-
57	SHAFT; DRIVE,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-759-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-489-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-349-1	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94229-157-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-350-0	01	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-516-1	01	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-517-0	02	1	-
65	SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94229-164-0	01	1	-
65	SPRING KIT; PLUNGER,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-816-0	01	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-518-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-519-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-520-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-521-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-522-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-523-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-524-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94433-204-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94433-205-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94433-206-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94433-207-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.60 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94433-208-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.70 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94433-209-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97146-139-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97146-140-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97146-141-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97146-142-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-360-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-361-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-362-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-363-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-364-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-365-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-366-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-367-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-368-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-369-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-370-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-371-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-372-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-373-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-374-0	AR	1	9802-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-525-0	02	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-776-0	02	1	-9801
67	PIN; GUIDE,PLUNGER SPRING ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97185-285-0	02	1	9802-
73	GASKET; COVER TO HSG ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94227-491-0	01	1	9802-
73	GASKET; COVER TO HSG ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-491-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-763-0	01	1	-9801
74	COVER; HSG,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94242-967-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-352-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94313-276-0	02	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, D = 8-97109-866-0, E = 8-97138-315-3	8-94242-284-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, D = 8-97109-866-0, E = 8-97138-315-3	8-94227-671-0	01	1	-
84	GASKET; BRKT TO HSG ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94247-722-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0	8-94227-644-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 8-97109-865-0, D = 8-97109-866-0	8-97119-184-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-333-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.74 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-658-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.76 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-659-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.78 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-660-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.80 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-661-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.82 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-662-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.84 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-663-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.86 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-664-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.88 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-665-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-528-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.92 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-529-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.94 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-530-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.96 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-531-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.98 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-532-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.00 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-533-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.02 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-534-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.04 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-535-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.06 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-536-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.08 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-537-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.10 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-538-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.12 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-539-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.14 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-540-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.16 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-541-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.18 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-542-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-543-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.22 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-544-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.24 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-545-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.26 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-546-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.28 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-547-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.30 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-548-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.32 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-549-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.34 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-550-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.36 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-551-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.38 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-552-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-553-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.42 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-554-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.44 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-555-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.46 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-556-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.48 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-557-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.50 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-558-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.52 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-559-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.54 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-560-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.56 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-561-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.58 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-562-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.60 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-563-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.62 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-564-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.64 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-565-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.66 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-566-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.68 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-567-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-568-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.72 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-569-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.74 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-570-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.76 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-571-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.78 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-572-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.80 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-573-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.82 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-574-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.84 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-575-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.86 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-576-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.88 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-577-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-578-0	AR	1	-
100	PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-94475-188-0	8-94150-160-0	01	1	-
100	PIPE; FUEL INJ PUMP (D) ASM PART: B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94247-721-0	01	1	-
100	PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-94475-188-0	8-94329-751-0	01	1	-
100	PIPE; FUEL INJ PUMP (E) ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94445-576-0	01	1	-
100	PIPE; FUEL INJ PUMP (C) ASM PART: B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-97068-648-0	01	1	-
100	PIPE; FUEL INJ PUMP (F) ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97119-194-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0	8-94227-645-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-97119-187-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: B = 8-97062-817-0	8-94227-645-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 8-94475-188-0	8-94227-645-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: C = 8-97109-865-0, D = 8-97109-866-0	8-97119-187-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97119-187-0	02	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-660-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94379-688-0	01	1	-
246	ROLLER KIT; INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97163-172-0	01	1	9802-

3 51 54 55 56 59 60 61 91 57 38 24 13 11 62 64 65 66 67 12 15 10 14 9 6 18 17 16 53 52 118 117 90 101 100 100 100 100 44 43 163 42 117 119 117 84 40 164 41 82 83 39 2 73 74 75 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94329-752-0	01	1	-
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94445-579-0	01	1	-
3	REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94228-545-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-582-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94367-330-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94174-803-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-581-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94247-716-0	04	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94150-153-1	01	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-353-0	01	1	-
12	SCREW; DISTR HD,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94257-670-0	04	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-527-0	01	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94174-802-0	04	1	-9801
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-580-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97172-541-0	04	1	9802-
15	PLUG ASM; DISTR,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-638-0	01	1	-
15	PLUG ASM; DISTR,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-354-0	01	1	-
16	BOLT; DISTR PLUG,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94174-818-0	01	1	-
16	BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-639-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-602-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-808-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-637-0	01	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-515-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-514-0	01	1	-
39	NUT; MTG BRKT FIX M8 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0	8-94224-829-0	02	1	-
39	NUT; MTG BRKT FIX ASM PART: C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-97119-344-0	02	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94227-475-0	01	1	-9801
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-475-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-94475-188-0	8-94418-038-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97147-034-0	01	1	9802-
41	BRACKET; INJ PUMP HSG ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94174-843-0	01	1	-
41	BRACKET; INJ PUMP HSG ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-336-0	01	1	-
42	GEAR; DRIVE,INJ PUMP ASM PART: B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	5-12524-066-0	01	1	-
42	GEAR; DRIVE,INJ PUMP ASM PART: A = 8-94475-188-0	8-94227-734-1	01	1	-
43	WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-648-0	01	1	-
44	NUT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	1-15629-006-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	5-83539-024-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94239-370-0	01	1	-
52	GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-483-0	01	1	-
53	WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-484-0	01	1	-
54	KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-481-0	01	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94169-528-0	02	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0	8-94227-482-1	02	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-485-0	01	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-760-0	01	1	-9801
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97211-756-0	01	1	9802-
57	SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-480-0	01	1	-
57	SHAFT; DRIVE,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-759-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-489-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-349-1	01	1	-
60	SPRING; DRIVE DISC,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-647-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94229-157-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-350-0	01	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-516-1	01	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-517-0	02	1	-
65	SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94229-164-0	01	1	-
65	SPRING KIT; PLUNGER,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-816-0	01	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-518-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-519-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-520-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-521-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-522-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-523-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-524-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94433-204-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94433-205-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94433-206-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94433-207-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.60 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94433-208-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.70 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94433-209-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97146-139-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97146-140-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97146-141-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97146-142-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-360-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-361-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-362-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-363-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-364-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-365-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-366-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-367-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-368-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-369-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-370-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-371-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-372-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-373-0	AR	1	9802-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97189-374-0	AR	1	9802-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-525-0	02	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-776-0	02	1	-9801
67	PIN; GUIDE,PLUNGER SPRING ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97185-285-0	02	1	9802-
73	GASKET; COVER TO HSG ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94227-491-0	01	1	9802-
73	GASKET; COVER TO HSG ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-491-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94433-763-0	01	1	-9801
74	COVER; HSG,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94242-967-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-352-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94313-276-0	02	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, D = 8-97109-866-0, E = 8-97138-315-3	8-94242-284-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, D = 8-97109-866-0, E = 8-97138-315-3	8-94227-671-0	01	1	-
84	GASKET; BRKT TO HSG ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94247-722-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0	8-94227-644-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 8-97109-865-0, D = 8-97109-866-0	8-97119-184-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97144-333-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.74 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-658-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.76 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-659-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.78 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-660-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.80 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-661-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.82 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-662-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.84 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-663-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.86 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-664-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.88 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94111-665-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-528-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.92 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-529-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.94 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-530-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.96 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-531-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.98 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-532-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.00 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-533-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.02 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-534-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.04 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-535-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.06 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-536-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.08 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-537-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.10 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-538-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.12 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-539-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.14 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-540-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.16 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-541-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.18 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-542-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-543-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.22 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-544-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.24 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-545-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.26 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-546-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.28 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-547-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.30 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-548-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.32 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-549-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.34 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-550-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.36 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-551-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.38 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-552-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-553-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.42 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-554-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.44 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-555-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.46 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-556-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.48 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-557-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.50 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-558-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.52 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-559-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.54 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-560-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.56 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-561-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.58 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-562-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.60 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-563-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.62 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-564-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.64 ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-565-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.66 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-566-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.68 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-567-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-568-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.72 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-569-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.74 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-570-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.76 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-571-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.78 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-572-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.80 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-573-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.82 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-574-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.84 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-575-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.86 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-576-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.88 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-577-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: A = 8-94475-188-0, C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-94227-578-0	AR	1	-
100	PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-94475-188-0	8-94150-160-0	01	1	-
100	PIPE; FUEL INJ PUMP (D) ASM PART: B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94247-721-0	01	1	-
100	PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-94475-188-0	8-94329-751-0	01	1	-
100	PIPE; FUEL INJ PUMP (E) ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94445-576-0	01	1	-
100	PIPE; FUEL INJ PUMP (C) ASM PART: B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-97068-648-0	01	1	-
100	PIPE; FUEL INJ PUMP (F) ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97119-194-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0	8-94227-645-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 8-97109-865-0, D = 8-97109-866-0, E = 8-97138-315-3, F = 8-97138-318-3	8-97119-187-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: B = 8-97062-817-0	8-94227-645-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 8-94475-188-0	8-94227-645-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: C = 8-97109-865-0, D = 8-97109-866-0	8-97119-187-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-97119-187-0	02	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-660-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: E = 8-97138-315-3, F = 8-97138-318-3	8-94379-688-0	01	1	-
119	SPACER; FUEL INL,INJ PUMP ASM PART: A = 8-94475-188-0, B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-662-0	01	1	-
163	COUPLING; INJ PUMP ASM PART: B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	8-94227-337-1	01	1	-
164	BOLT; GEAR TO COUPLING ASM PART: B = 8-97062-817-0, C = 8-97109-865-0, D = 8-97109-866-0	5-15619-112-0	06	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
