Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#95888) — 181 parça

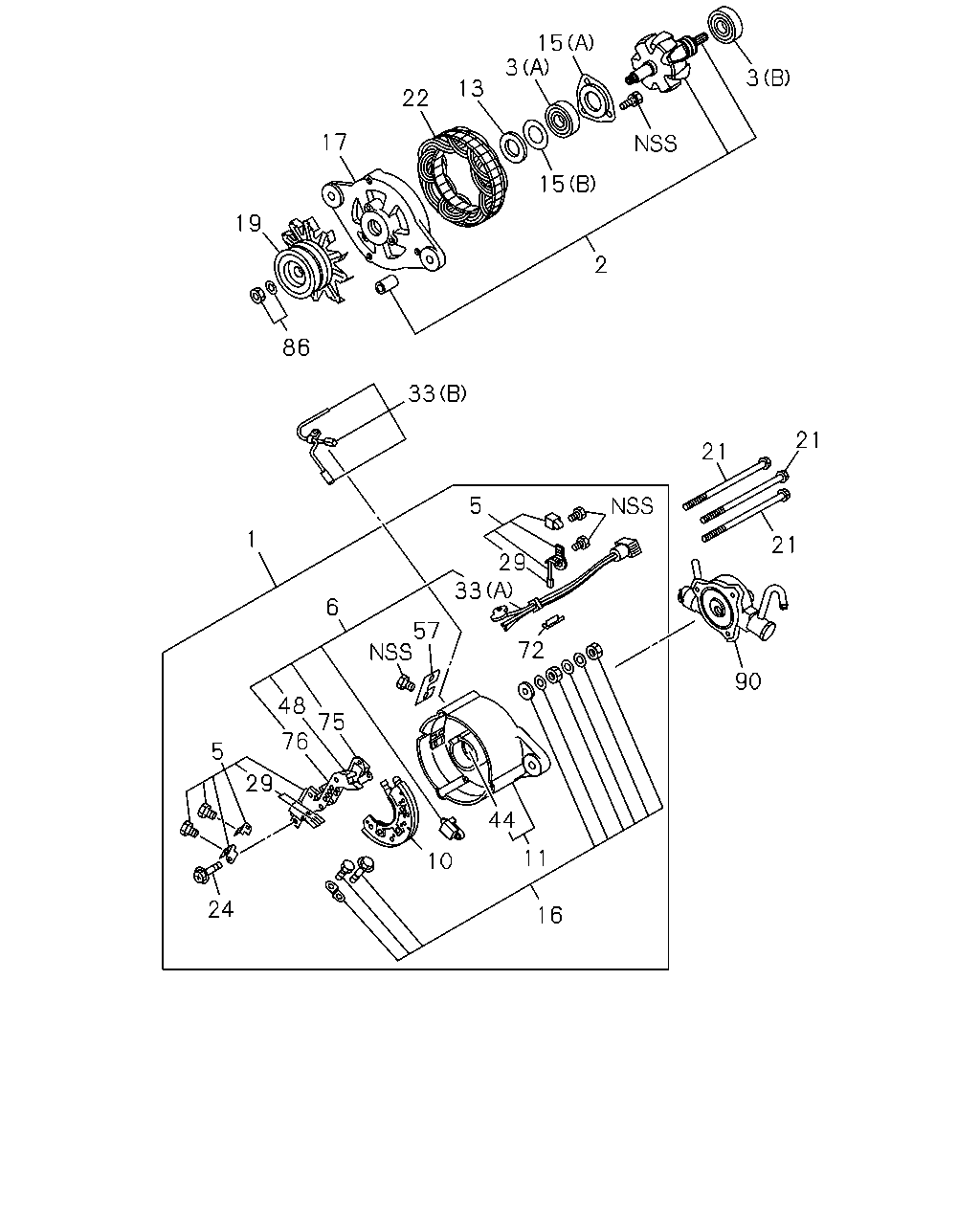

1 6 5 24 29 76 48 75 10 16 11 44 57 33 72 29 5 90 21 21 21 2 15 3 15 3 13 22 17 19 86 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN DELETION ASM PART: A = 8-94405-045-3	5-81214-115-1	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97073-924-1	8-97083-007-0	01	1	-
1	COVER ASM; RR,GEN IDN ASM PART: C = 8-97187-657-2	8-97188-852-0	01	1	-
2	ROTOR; GEN DELETION ASM PART: A = 8-94405-045-3	5-81221-059-0	01	1	-
2	ROTOR; GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-97083-006-0	01	1	-
3	BEARING; ROTOR,GEN (D), IDN ASM PART: C = 8-97187-657-2	8-94121-178-0	01	1	-1007
3	BEARING; ROTOR,GEN (B) DELETION ASM PART: A = 8-94405-045-3	8-94223-980-0	01	1	-
3	BEARING; ROTOR,GEN (C), IDN ASM PART: C = 8-97187-657-2	8-97062-654-0	01	1	-1007
3	BEARING; ROTOR,GEN (C), IDN ASM PART: B = 8-97073-924-1	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 8-97073-924-1	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2	8-97248-128-0	01	1	1008-
3	BEARING; ROTOR,GEN (C) ASM PART: C = 8-97187-657-2	8-98159-457-0	01	1	1008-
3	BEARING; ROTOR,GEN (A) DELETION ASM PART: A = 8-94405-045-3	9-00090-630-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-97073-924-1	8-94156-592-0	01	1	-
5	HOLDER; BRUSH,GEN DELETION ASM PART: A = 8-94405-045-3	8-94223-965-0	01	1	-
5	HOLDER; BRUSH,GEN IDN ASM PART: C = 8-97187-657-2	8-97026-053-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97073-924-1	8-94167-410-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN DELETION ASM PART: A = 8-94405-045-3	8-94250-968-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN IDN ASM PART: C = 8-97187-657-2	8-97026-052-0	01	1	-
10	RECTIFIER; GEN DELETION ASM PART: A = 8-94405-045-3	5-81218-033-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97073-924-1	8-94408-376-0	01	1	-
10	RECTIFIER; GEN IDN ASM PART: C = 8-97187-657-2	8-97188-870-0	01	1	-
11	COVER; RR,GEN DELETION ASM PART: A = 8-94405-045-3	5-81214-116-1	01	1	-
13	GASKET; ROTOR,GEN DELETION ASM PART: A = 8-94405-045-3	9-82215-823-0	01	1	-
15	RETAINER; ROTOR,GEN (A) DELETION ASM PART: A = 8-94405-045-3	5-81229-055-0	01	1	-
15	RETAINER; ROTOR,GEN (B) DELETION ASM PART: A = 8-94405-045-3	5-81229-058-0	01	1	-
15	RETAINER; ROTOR,GEN (C), IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94223-974-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN DELETION ASM PART: A = 8-94405-045-3	5-81229-175-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97073-924-1	8-94156-597-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN IDN ASM PART: C = 8-97187-657-2	8-97111-390-0	01	1	-
17	COVER ASM; FRT,GEN DELETION ASM PART: A = 8-94405-045-3	5-81213-033-0	01	1	-
17	COVER ASM; FRT,GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-97071-214-0	01	1	-
19	PULLEY; GEN DELETION ASM PART: A = 8-94405-045-3	5-81222-071-0	01	1	-
19	PULLEY; GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-97029-004-0	01	1	-
21	BOLT; THROUGH,GEN DELETION ASM PART: A = 8-94405-045-3	5-81229-014-0	03	1	-
21	BOLT; THROUGH,GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-602-0	04	1	-
22	STATOR; GEN DELETION ASM PART: A = 8-94405-045-3	5-81211-054-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97073-924-1	8-94167-406-0	01	1	-
22	STATOR; GEN IDN ASM PART: C = 8-97187-657-2	8-97203-864-0	01	1	-
24	SCREW; RECTIFIER,GEN SCREW & NUT DELETION ASM PART: A = 8-94405-045-3	5-81229-177-0	01	1	-
24	SCREW; RECTIFIER,GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-603-0	01	1	-
29	BRUSH; GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-593-0	02	1	-
29	BRUSH; GEN DELETION ASM PART: A = 8-94405-045-3	8-94223-966-0	02	1	-
33	WIRE; LEAD,GEN (A) DELETION ASM PART: A = 8-94405-045-3	8-94237-731-0	01	1	-
33	WIRE; LEAD,GEN (B) DELETION ASM PART: A = 8-94405-045-3	8-94411-285-0	01	1	-
33	WIRE; LEAD,GEN (C), IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-97071-213-0	01	1	-
44	SEAL; RR COVER,GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-589-0	01	1	-
44	SEAL; RR COVER,GEN DELETION ASM PART: A = 8-94405-045-3	8-94223-981-1	01	1	-
48	DIODE; GEN DELETION, IDN ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94237-727-0	01	1	-
57	COVER; BRUSH,GEN DELETION ASM PART: A = 8-94405-045-3	8-94223-982-0	01	1	-
72	CONDENSER; GEN DELETION ASM PART: A = 8-94405-045-3	8-94447-332-0	01	1	-
75	REGULATOR; VOLTAGE,GEN DELETION, IDN ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94250-964-0	01	1	-
76	BLOCK; REG,GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-591-0	01	1	-
76	BLOCK; REG,GEN DELETION ASM PART: A = 8-94405-045-3	8-94237-726-0	01	1	-
86	NUT SET; PULLEY,GEN DELETION ASM PART: A = 8-94405-045-3	8-94223-978-0	01	1	-
90	PUMP ASM; VAC,GEN DELETION ASM PART: A = 8-94405-045-3	8-94447-328-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97073-924-1	8-97083-009-0	01	1	-
90	PUMP ASM; VAC,GEN IDN ASM PART: C = 8-97187-657-2	8-97171-006-0	01	1	-0208
90	PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-2	8-97351-341-0	01	1	0209-

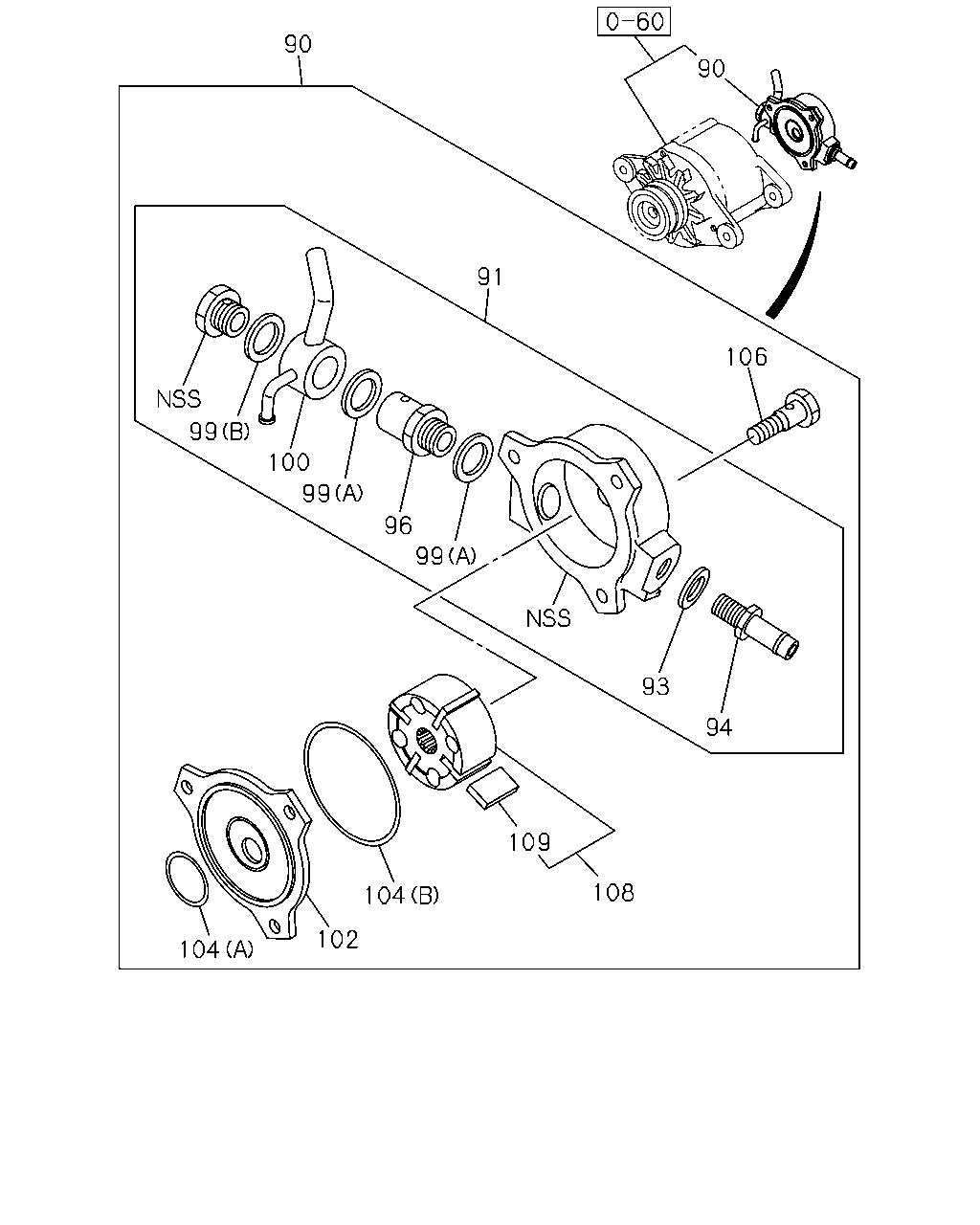

90 100 99 96 99 99 108 109 109 102 104 104 109 109 93 93 92 94 106 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	PUMP ASM; VAC,GEN DELETION ASM PART: A = 8-94405-045-3	8-94447-328-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97073-924-1	8-97083-009-0	01	1	-
90	PUMP ASM; VAC,GEN IDN ASM PART: C = 8-97187-657-2	8-97171-006-0	01	1	-0208
90	PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-2	8-97351-341-0	01	1	0209-
91	BODY; VAC PUMP DELETION ASM PART: A = 8-94405-045-3	5-19613-004-0	01	1	-
91	BODY; VAC PUMP IDN ASM PART: B = 8-97073-924-1	8-94424-381-0	01	1	-
91	BODY; VAC PUMP IDN ASM PART: C = 8-97187-657-2	8-94424-381-0	01	1	-0208
91	BODY; VAC PUMP ASM PART: C = 8-97187-657-2	8-97236-694-0	01	1	0209-
92	BOLT; DELIVERY,VAC PUMP DELETION ASM PART: A = 8-94405-045-3	5-19619-031-0	01	1	-
93	GASKET; CONN,VAC PUMP DELETION, ID=16 OD=22 ASM PART: A = 8-94405-045-3	5-19679-004-2	02	1	-
93	GASKET; CONN,VAC PUMP DELETION, ID=16 OD=22 ASM PART: C = 8-97187-657-2	5-19679-004-2	01	1	-0208
93	GASKET; CONN,VAC PUMP DELETION, ID=16 OD=22 ASM PART: B = 8-97073-924-1	5-19679-004-2	01	1	-
94	CONNECTOR; VAC PUMP IDN ASM PART: B = 8-97073-924-1	5-19619-034-0	01	1	-
94	CONNECTOR; VAC PUMP IDN ASM PART: C = 8-97187-657-2	5-19619-034-0	01	1	-0208
94	CONNECTOR; VAC PUMP DELETION ASM PART: A = 8-94405-045-3	5-19619-042-0	01	1	-
96	VALVE ASM; VAC PUMP DELETION, IDN ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94223-991-0	01	1	-
99	GASKET; VAC PUMP (A) DELETION, ID=18 OD=24 ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B) DELETION, ID=12 OD=24 ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94223-993-0	01	1	-
100	CONNECTOR; VAC PUMP IDN ASM PART: B = 8-97073-924-1	5-19619-040-0	01	1	-
100	CONNECTOR; VAC PUMP DELETION ASM PART: A = 8-94405-045-3	8-94447-331-0	01	1	-
100	CONNECTOR; VAC PUMP IDN ASM PART: C = 8-97187-657-2	8-97209-180-0	01	1	-
102	COVER; FRT,VAC PUMP DELETION ASM PART: A = 8-94405-045-3	8-94223-988-1	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: B = 8-97073-924-1	8-94424-380-0	01	1	-
102	COVER; FRT,VAC PUMP IDN ASM PART: C = 8-97187-657-2	8-97137-334-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) DELETION, IDN ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) DELETION ASM PART: A = 8-94405-045-3	8-94223-995-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP DELETION, IDN ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94223-989-0	01	1	-
108	ROTOR; VAC PUMP DELETION ASM PART: A = 8-94405-045-3	8-94223-987-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: B = 8-97073-924-1	8-94380-632-0	01	1	-
108	ROTOR; VAC PUMP IDN ASM PART: C = 8-97187-657-2	8-97137-333-0	01	1	-0208
108	ROTOR; VAC PUMP IDN ASM PART: C = 8-97187-657-2	8-97236-693-0	01	1	0209-
109	VANE; VAC PUMP DELETION, IDN ASM PART: C = 8-97187-657-2	8-94223-985-0	03	1	0209-
109	VANE; VAC PUMP DELETION, IDN ASM PART: A = 8-94405-045-3, B = 8-97073-924-1	8-94223-985-0	04	1	-
109	VANE; VAC PUMP DELETION, IDN ASM PART: C = 8-97187-657-2	8-94223-985-0	04	1	-0208

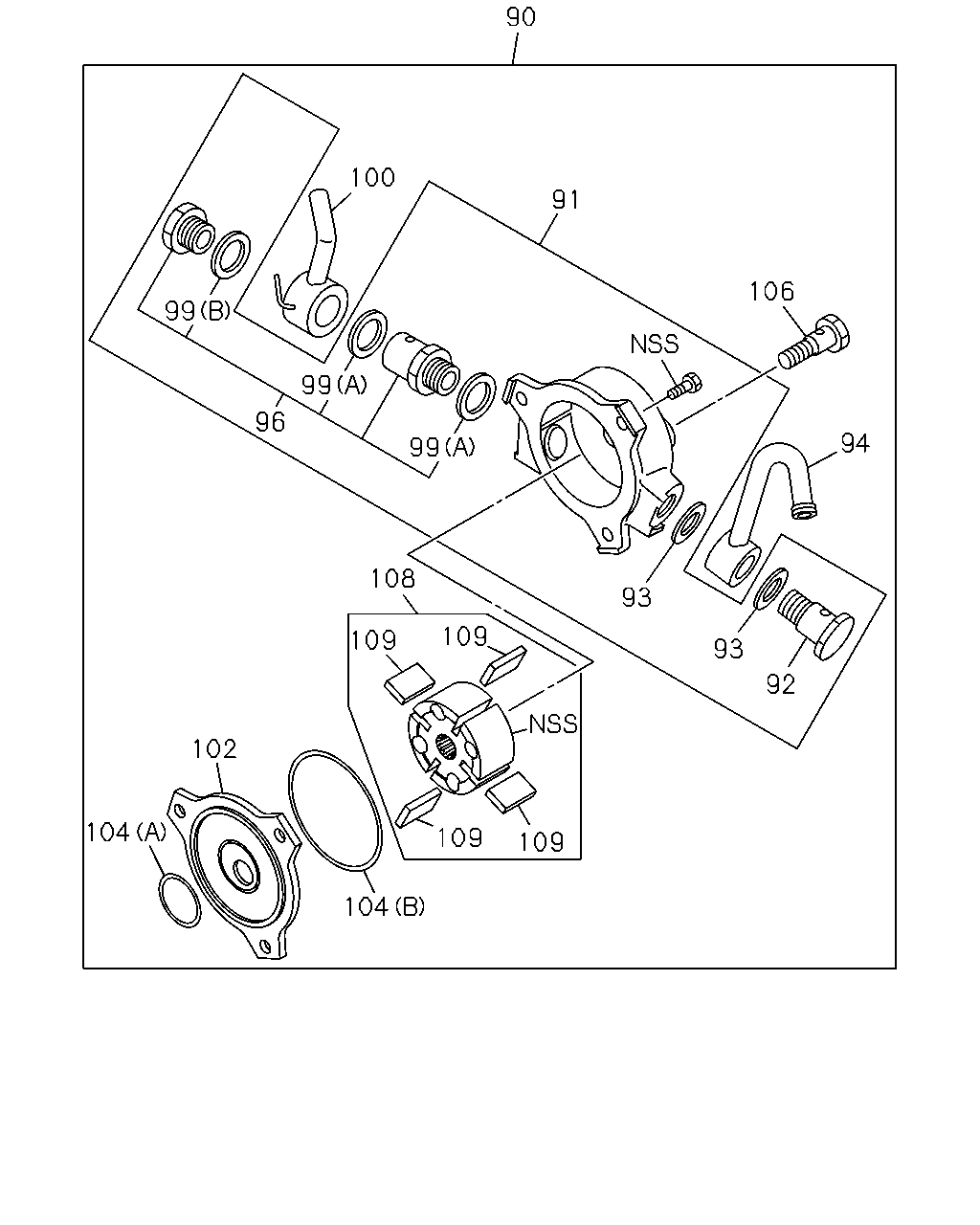

90 90 106 91 94 93 99 96 99 100 99 108 109 104 102 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	PUMP ASM; VAC,GEN DELETION ASM PART: A = 8-94405-045-3	8-94447-328-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97073-924-1	8-97083-009-0	01	1	-
90	PUMP ASM; VAC,GEN IDN ASM PART: C = 8-97187-657-2	8-97171-006-0	01	1	-0208
90	PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-2	8-97351-341-0	01	1	0209-
91	BODY; VAC PUMP DELETION ASM PART: A = 8-94405-045-3	5-19613-004-0	01	1	-
91	BODY; VAC PUMP IDN ASM PART: B = 8-97073-924-1	8-94424-381-0	01	1	-
91	BODY; VAC PUMP IDN ASM PART: C = 8-97187-657-2	8-94424-381-0	01	1	-0208
91	BODY; VAC PUMP ASM PART: C = 8-97187-657-2	8-97236-694-0	01	1	0209-
93	GASKET; CONN,VAC PUMP DELETION, ID=16 OD=22 ASM PART: A = 8-94405-045-3	5-19679-004-2	02	1	-
93	GASKET; CONN,VAC PUMP DELETION, ID=16 OD=22 ASM PART: C = 8-97187-657-2	5-19679-004-2	01	1	-0208
93	GASKET; CONN,VAC PUMP DELETION, ID=16 OD=22 ASM PART: B = 8-97073-924-1	5-19679-004-2	01	1	-
94	CONNECTOR; VAC PUMP IDN ASM PART: B = 8-97073-924-1	5-19619-034-0	01	1	-
94	CONNECTOR; VAC PUMP IDN ASM PART: C = 8-97187-657-2	5-19619-034-0	01	1	-0208
94	CONNECTOR; VAC PUMP DELETION ASM PART: A = 8-94405-045-3	5-19619-042-0	01	1	-
96	VALVE ASM; VAC PUMP DELETION, IDN ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94223-991-0	01	1	-
99	GASKET; VAC PUMP (A) DELETION, ID=18 OD=24 ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B) DELETION, ID=12 OD=24 ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94223-993-0	01	1	-
100	CONNECTOR; VAC PUMP IDN ASM PART: B = 8-97073-924-1	5-19619-040-0	01	1	-
100	CONNECTOR; VAC PUMP DELETION ASM PART: A = 8-94405-045-3	8-94447-331-0	01	1	-
100	CONNECTOR; VAC PUMP IDN ASM PART: C = 8-97187-657-2	8-97209-180-0	01	1	-
102	COVER; FRT,VAC PUMP DELETION ASM PART: A = 8-94405-045-3	8-94223-988-1	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: B = 8-97073-924-1	8-94424-380-0	01	1	-
102	COVER; FRT,VAC PUMP IDN ASM PART: C = 8-97187-657-2	8-97137-334-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) DELETION, IDN ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) DELETION ASM PART: A = 8-94405-045-3	8-94223-995-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP DELETION, IDN ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94223-989-0	01	1	-
108	ROTOR; VAC PUMP DELETION ASM PART: A = 8-94405-045-3	8-94223-987-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: B = 8-97073-924-1	8-94380-632-0	01	1	-
108	ROTOR; VAC PUMP IDN ASM PART: C = 8-97187-657-2	8-97137-333-0	01	1	-0208
108	ROTOR; VAC PUMP IDN ASM PART: C = 8-97187-657-2	8-97236-693-0	01	1	0209-
109	VANE; VAC PUMP DELETION, IDN ASM PART: C = 8-97187-657-2	8-94223-985-0	03	1	0209-
109	VANE; VAC PUMP DELETION, IDN ASM PART: A = 8-94405-045-3, B = 8-97073-924-1	8-94223-985-0	04	1	-
109	VANE; VAC PUMP DELETION, IDN ASM PART: C = 8-97187-657-2	8-94223-985-0	04	1	-0208

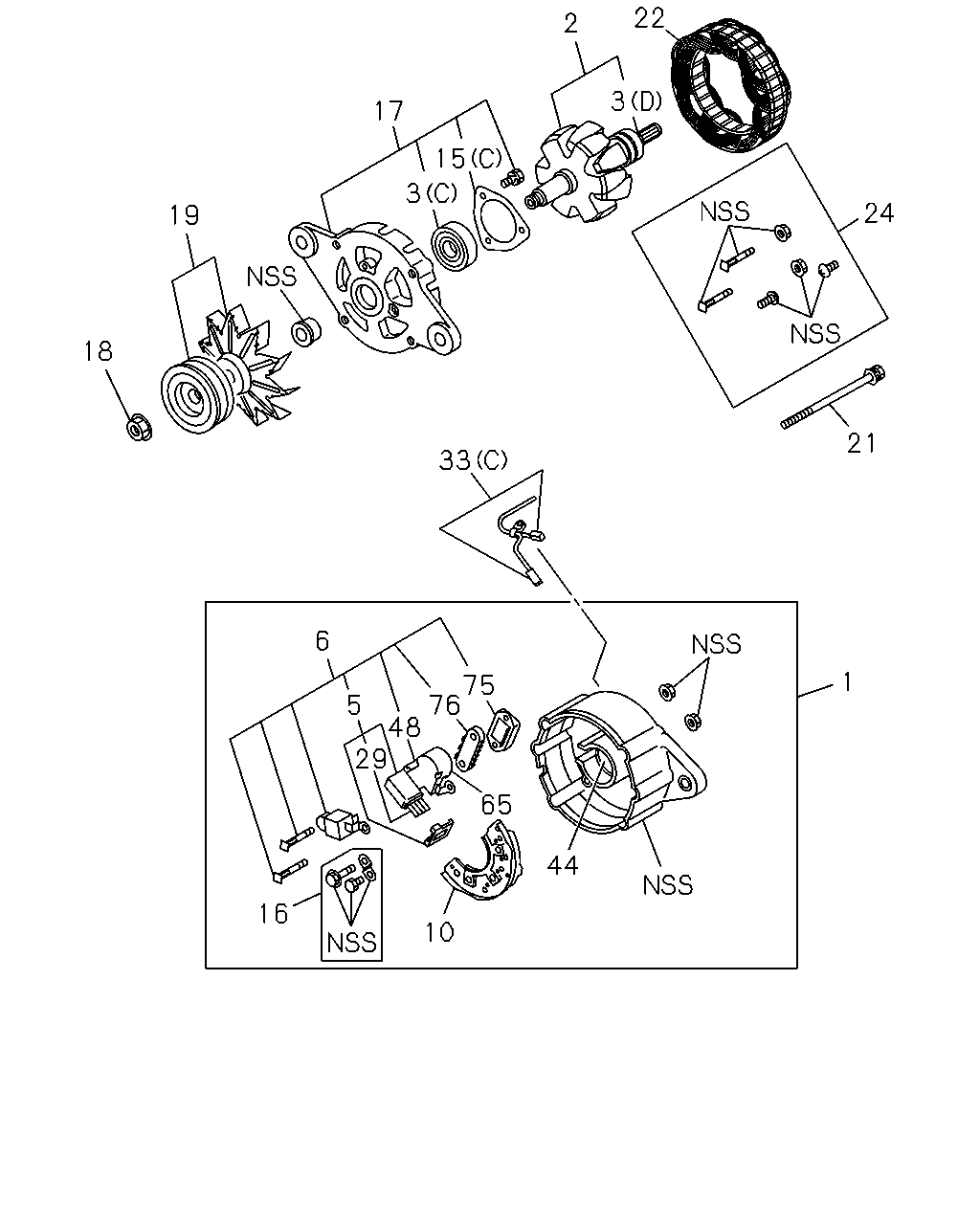

21 24 22 2 3 17 3 15 19 18 33 1 6 5 75 76 48 29 65 44 10 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN DELETION ASM PART: A = 8-94405-045-3	5-81214-115-1	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97073-924-1	8-97083-007-0	01	1	-
1	COVER ASM; RR,GEN IDN ASM PART: C = 8-97187-657-2	8-97188-852-0	01	1	-
2	ROTOR; GEN DELETION ASM PART: A = 8-94405-045-3	5-81221-059-0	01	1	-
2	ROTOR; GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-97083-006-0	01	1	-
3	BEARING; ROTOR,GEN (D), IDN ASM PART: C = 8-97187-657-2	8-94121-178-0	01	1	-1007
3	BEARING; ROTOR,GEN (B) DELETION ASM PART: A = 8-94405-045-3	8-94223-980-0	01	1	-
3	BEARING; ROTOR,GEN (C), IDN ASM PART: C = 8-97187-657-2	8-97062-654-0	01	1	-1007
3	BEARING; ROTOR,GEN (C), IDN ASM PART: B = 8-97073-924-1	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 8-97073-924-1	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-657-2	8-97248-128-0	01	1	1008-
3	BEARING; ROTOR,GEN (C) ASM PART: C = 8-97187-657-2	8-98159-457-0	01	1	1008-
3	BEARING; ROTOR,GEN (A) DELETION ASM PART: A = 8-94405-045-3	9-00090-630-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-97073-924-1	8-94156-592-0	01	1	-
5	HOLDER; BRUSH,GEN DELETION ASM PART: A = 8-94405-045-3	8-94223-965-0	01	1	-
5	HOLDER; BRUSH,GEN IDN ASM PART: C = 8-97187-657-2	8-97026-053-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97073-924-1	8-94167-410-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN DELETION ASM PART: A = 8-94405-045-3	8-94250-968-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN IDN ASM PART: C = 8-97187-657-2	8-97026-052-0	01	1	-
10	RECTIFIER; GEN DELETION ASM PART: A = 8-94405-045-3	5-81218-033-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97073-924-1	8-94408-376-0	01	1	-
10	RECTIFIER; GEN IDN ASM PART: C = 8-97187-657-2	8-97188-870-0	01	1	-
15	RETAINER; ROTOR,GEN (A) DELETION ASM PART: A = 8-94405-045-3	5-81229-055-0	01	1	-
15	RETAINER; ROTOR,GEN (B) DELETION ASM PART: A = 8-94405-045-3	5-81229-058-0	01	1	-
15	RETAINER; ROTOR,GEN (C), IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94223-974-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN DELETION ASM PART: A = 8-94405-045-3	5-81229-175-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97073-924-1	8-94156-597-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN IDN ASM PART: C = 8-97187-657-2	8-97111-390-0	01	1	-
17	COVER ASM; FRT,GEN DELETION ASM PART: A = 8-94405-045-3	5-81213-033-0	01	1	-
17	COVER ASM; FRT,GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-97071-214-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 8-97073-924-1	8-97016-301-0	01	1	-
18	NUT; PULLEY,GEN IDN ASM PART: C = 8-97187-657-2	8-97203-880-0	01	1	-
19	PULLEY; GEN DELETION ASM PART: A = 8-94405-045-3	5-81222-071-0	01	1	-
19	PULLEY; GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-97029-004-0	01	1	-
21	BOLT; THROUGH,GEN DELETION ASM PART: A = 8-94405-045-3	5-81229-014-0	03	1	-
21	BOLT; THROUGH,GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-602-0	04	1	-
22	STATOR; GEN DELETION ASM PART: A = 8-94405-045-3	5-81211-054-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97073-924-1	8-94167-406-0	01	1	-
22	STATOR; GEN IDN ASM PART: C = 8-97187-657-2	8-97203-864-0	01	1	-
24	SCREW; RECTIFIER,GEN SCREW & NUT DELETION ASM PART: A = 8-94405-045-3	5-81229-177-0	01	1	-
24	SCREW; RECTIFIER,GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-603-0	01	1	-
29	BRUSH; GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-593-0	02	1	-
29	BRUSH; GEN DELETION ASM PART: A = 8-94405-045-3	8-94223-966-0	02	1	-
33	WIRE; LEAD,GEN (A) DELETION ASM PART: A = 8-94405-045-3	8-94237-731-0	01	1	-
33	WIRE; LEAD,GEN (B) DELETION ASM PART: A = 8-94405-045-3	8-94411-285-0	01	1	-
33	WIRE; LEAD,GEN (C), IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-97071-213-0	01	1	-
44	SEAL; RR COVER,GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-589-0	01	1	-
44	SEAL; RR COVER,GEN DELETION ASM PART: A = 8-94405-045-3	8-94223-981-1	01	1	-
48	DIODE; GEN DELETION, IDN ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94237-727-0	01	1	-
65	CONDENSER; GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-594-0	01	1	-
75	REGULATOR; VOLTAGE,GEN DELETION, IDN ASM PART: A = 8-94405-045-3, B = 8-97073-924-1, C = 8-97187-657-2	8-94250-964-0	01	1	-
76	BLOCK; REG,GEN IDN ASM PART: B = 8-97073-924-1, C = 8-97187-657-2	8-94156-591-0	01	1	-
76	BLOCK; REG,GEN DELETION ASM PART: A = 8-94405-045-3	8-94237-726-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
