0-65 — STARTER (#95887) — 81 parça

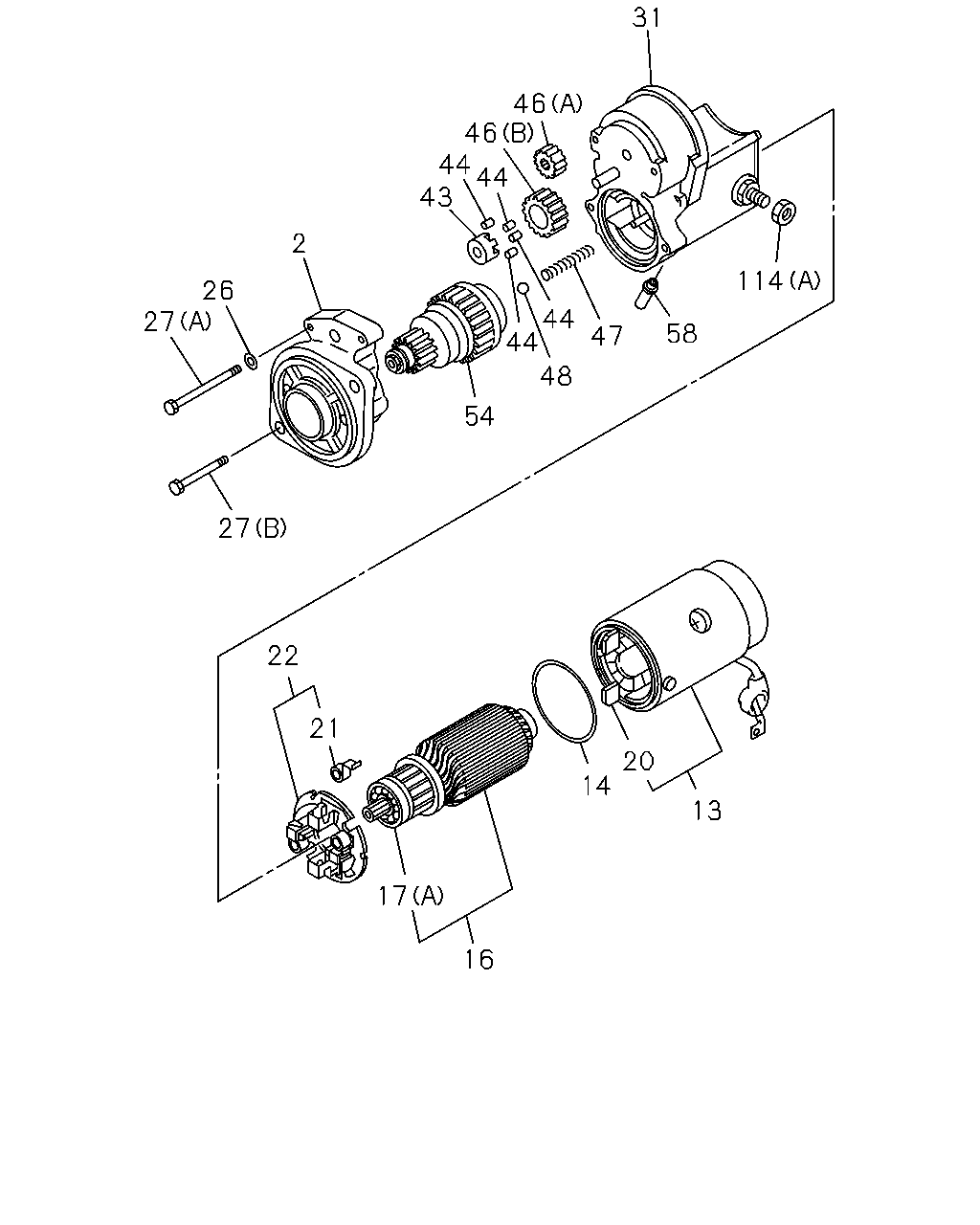

27 27 26 2 43 44 44 46 46 31 114 58 47 44 44 48 54 13 20 14 16 17 21 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81113-036-0	01	1	-
2	CASE; PINION,STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-441-0	01	1	-
13	YOKE; STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81111-010-0	01	1	-
13	YOKE; STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-438-0	01	1	-
14	GASKET; YOKE,STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81129-210-0	01	1	-
16	ARMATURE; STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81121-029-0	01	1	-
16	ARMATURE; STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-439-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) DELETION, IDN ASM PART: A = 8-94448-959-3	5-09800-081-0	01	1	-
17	BEARING; ARMATURE,STARTER (C), IDN ASM PART: B = 8-97957-512-0	8-97941-448-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), IDN ASM PART: B = 8-97957-512-0	8-97941-449-0	01	1	-
20	BRUSH; (+),STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81116-040-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER IDN ASM PART: B = 8-97957-512-0	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81118-021-0	01	1	-
22	HOLDER; BRUSH STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-443-0	01	1	-
26	SEAL; THROUGH BOLT STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81129-211-0	02	1	-
27	BOLT; THROUGH,STARTER (A) DELETION, IDN ASM PART: A = 8-94448-959-3	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) DELETION, IDN ASM PART: A = 8-94448-959-3	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER (C), IDN ASM PART: B = 8-97957-512-0	8-97941-451-0	02	1	-
27	BOLT; THROUGH,STARTER (D), IDN ASM PART: B = 8-97957-512-0	8-97941-454-0	02	1	-
31	SWITCH; ENGAGE STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	8-94450-045-2	01	1	-
31	SWITCH; ENGAGE STARTER IDN ASM PART: B = 8-97957-512-0	8-94941-442-0	01	1	-
43	RETAINER; PINION STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81129-100-0	01	1	-
43	RETAINER; PINION STARTER IDN ASM PART: B = 8-97957-512-0	8-94377-246-0	01	1	-
44	ROLLER; PINION STARTER DELETION, IDN ASM PART: A = 8-94448-959-3, B = 8-97957-512-0	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER (A) DELETION, IDN ASM PART: A = 8-94448-959-3	5-81123-010-0	01	1	-
46	GEAR; CLU STARTER (B) DELETION, IDN ASM PART: A = 8-94448-959-3	5-81123-011-0	01	1	-
46	GEAR; CLU STARTER (C), IDN ASM PART: B = 8-97957-512-0	8-97142-904-0	01	1	-
46	GEAR; CLU STARTER (D), IDN ASM PART: B = 8-97957-512-0	8-97941-445-0	01	1	-
47	SPRING; PINION STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81129-096-0	01	1	-
47	SPRING; PINION STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-447-0	01	1	-
48	BALL; PINION,STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81129-092-0	01	1	-
48	BALL; PINION,STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-446-0	01	1	-
54	CLUTCH; PINION,STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81124-003-1	01	1	-
54	CLUTCH; PINION,STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-440-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER IDN ASM PART: A = 8-94448-959-3	1-81129-677-0	01	1	9602-
58	PIPE; DRAIN RR COVER STARTER IDN ASM PART: B = 8-97957-512-0	8-97041-421-0	01	1	-
114	NUT; TERMINAL (A) DELETION, IDN ASM PART: A = 8-94448-959-3	5-09400-042-0	01	1	-
114	NUT; TERMINAL (C), IDN ASM PART: B = 8-97957-512-0	8-94377-238-0	01	1	-
114	NUT; TERMINAL (B), IDN ASM PART: B = 8-97957-512-0	8-97941-453-0	01	1	-

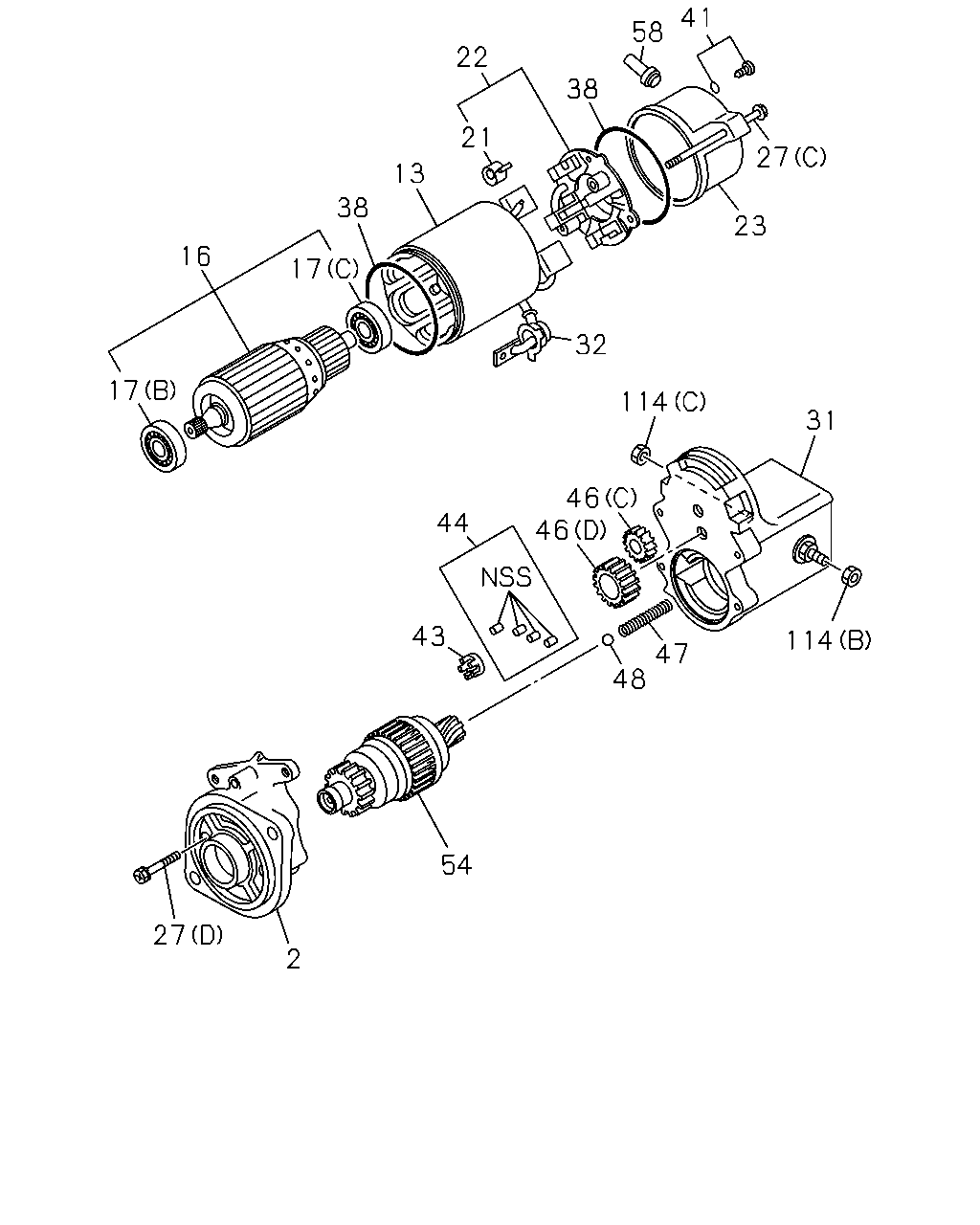

17 16 17 38 13 21 22 38 58 41 27 23 32 114 31 114 47 48 46 46 44 43 54 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81113-036-0	01	1	-
2	CASE; PINION,STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-441-0	01	1	-
13	YOKE; STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81111-010-0	01	1	-
13	YOKE; STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-438-0	01	1	-
16	ARMATURE; STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81121-029-0	01	1	-
16	ARMATURE; STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-439-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) DELETION, IDN ASM PART: A = 8-94448-959-3	5-09800-081-0	01	1	-
17	BEARING; ARMATURE,STARTER (C), IDN ASM PART: B = 8-97957-512-0	8-97941-448-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), IDN ASM PART: B = 8-97957-512-0	8-97941-449-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER IDN ASM PART: B = 8-97957-512-0	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81118-021-0	01	1	-
22	HOLDER; BRUSH STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-443-0	01	1	-
23	COVER; RR COVER STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-444-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DELETION, IDN ASM PART: A = 8-94448-959-3	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) DELETION, IDN ASM PART: A = 8-94448-959-3	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER (C), IDN ASM PART: B = 8-97957-512-0	8-97941-451-0	02	1	-
27	BOLT; THROUGH,STARTER (D), IDN ASM PART: B = 8-97957-512-0	8-97941-454-0	02	1	-
31	SWITCH; ENGAGE STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	8-94450-045-2	01	1	-
31	SWITCH; ENGAGE STARTER IDN ASM PART: B = 8-97957-512-0	8-94941-442-0	01	1	-
32	COVER; RUBBER,STARTER IDN ASM PART: B = 8-97957-512-0	5-81119-029-0	01	1	-
38	GASKET; RR COVER,STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-450-0	02	1	-
41	SCREW; RR COVER,STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-452-0	02	1	-
43	RETAINER; PINION STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81129-100-0	01	1	-
43	RETAINER; PINION STARTER IDN ASM PART: B = 8-97957-512-0	8-94377-246-0	01	1	-
44	ROLLER; PINION STARTER DELETION, IDN ASM PART: A = 8-94448-959-3, B = 8-97957-512-0	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER (A) DELETION, IDN ASM PART: A = 8-94448-959-3	5-81123-010-0	01	1	-
46	GEAR; CLU STARTER (B) DELETION, IDN ASM PART: A = 8-94448-959-3	5-81123-011-0	01	1	-
46	GEAR; CLU STARTER (C), IDN ASM PART: B = 8-97957-512-0	8-97142-904-0	01	1	-
46	GEAR; CLU STARTER (D), IDN ASM PART: B = 8-97957-512-0	8-97941-445-0	01	1	-
47	SPRING; PINION STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81129-096-0	01	1	-
47	SPRING; PINION STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-447-0	01	1	-
48	BALL; PINION,STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81129-092-0	01	1	-
48	BALL; PINION,STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-446-0	01	1	-
54	CLUTCH; PINION,STARTER DELETION, IDN ASM PART: A = 8-94448-959-3	5-81124-003-1	01	1	-
54	CLUTCH; PINION,STARTER IDN ASM PART: B = 8-97957-512-0	8-97941-440-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER IDN ASM PART: A = 8-94448-959-3	1-81129-677-0	01	1	9602-
58	PIPE; DRAIN RR COVER STARTER IDN ASM PART: B = 8-97957-512-0	8-97041-421-0	01	1	-
114	NUT; TERMINAL (A) DELETION, IDN ASM PART: A = 8-94448-959-3	5-09400-042-0	01	1	-
114	NUT; TERMINAL (C), IDN ASM PART: B = 8-97957-512-0	8-94377-238-0	01	1	-
114	NUT; TERMINAL (B), IDN ASM PART: B = 8-97957-512-0	8-97941-453-0	01	1	-
