0-60 — ENGINE ELECTRICAL CONTROL PARTS (#95885) — 64 parça

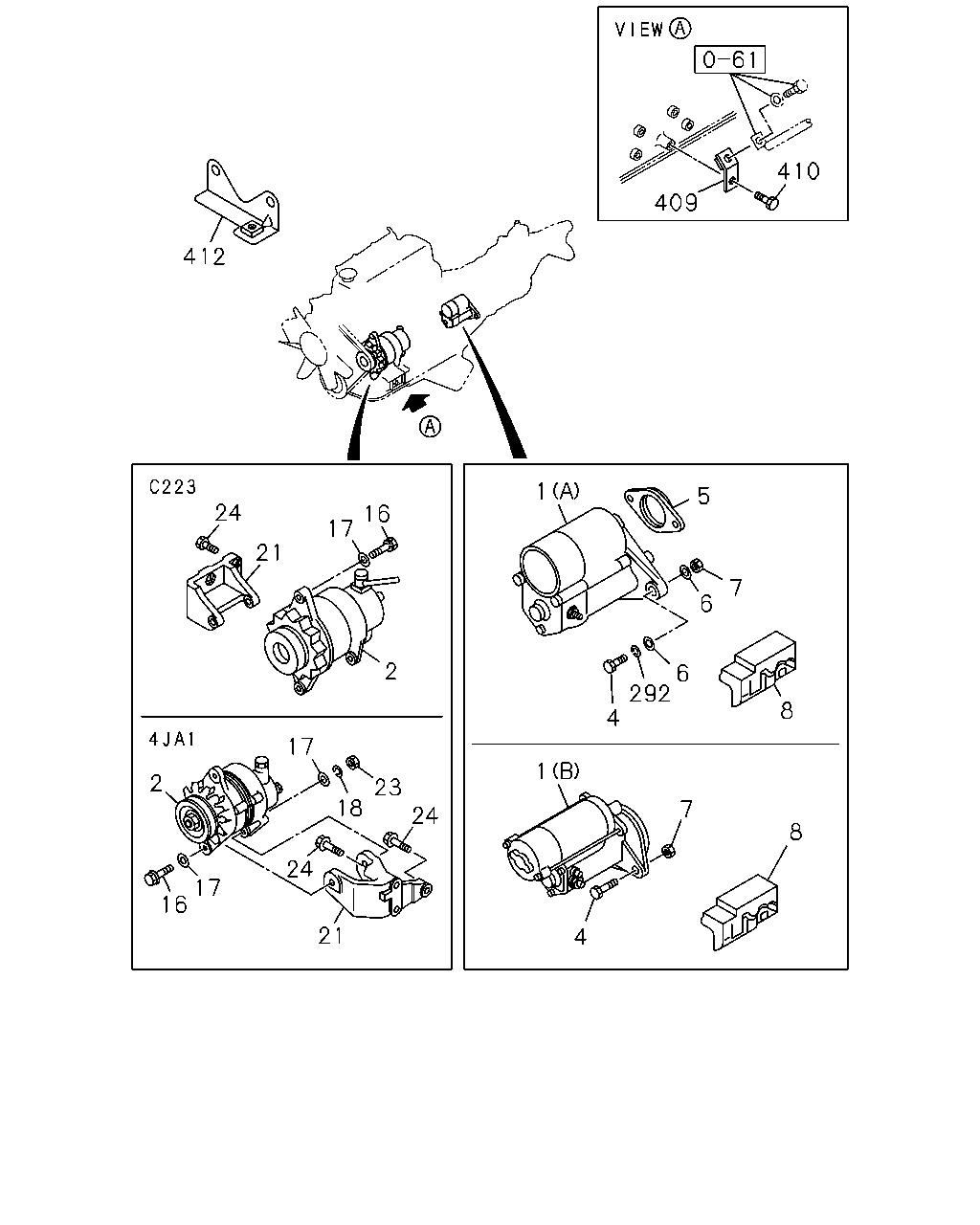

çizim 289337
4 8 7 1 4 292 6 8 6 7 5 1 2 16 17 21 24 2 17 18 23 24 21 24 17 16 412 409 410
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (A) DELETION 12V 2.0KW 		8-94448-959-1 01 1 9009-9601 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (A) DELETION 12V 2.0KW IDN 		8-94448-959-3 01 1 9602-0005 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.0KW DENSO IDN 		8-97957-512-0 01 1 0006- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. DELETION 12V 40A 		8-94405-045-3 01 1 9009-9601 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9602-9802 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A IDN 		8-97187-657-2 01 1 9803- ●
4 BOLT; STARTER
M12X70 FLANGE 		0-28081-270-0 02 1 0006-0512 ●
4 BOLT; STARTER
M12X70 FLANGE 		0-28051-270-0 02 1 0601- ●
4 BOLT; STARTER
M12X60 		9-91046-260-0 02 1 9009-9204 ●
4 BOLT; STARTER
M12X60 		0-10806-260-0 02 1 9205-9601 ●
4 BOLT; STARTER
M12X60 		0-10806-260-0 02 1 9602-0005 ●
4 BOLT; STARTER
M12X45 FLANGE 		0-28081-245-0 02 1 0006-0512 ●
4 BOLT; STARTER
M12X45 FLANGE 		0-28051-245-0 02 1 0601- ●
5 DISTANCE; STARTER 8-97045-783-0 01 1 9602-0005 ●
6 WASHER; PL,STARTER
ID=12.5 		9-09160-512-0 04 1 9009-9601 ●
6 WASHER; PL,STARTER
ID=12.5 		9-09160-512-0 04 1 9602-0005 ●
7 NUT; STARTER
M12 		9-99110-412-0 02 1 9009-9601 ●
7 NUT; STARTER
M12 		9-99110-412-0 02 1 9602-0005 ●
7 NUT; STARTER
M12 FLANGE 		0-91150-112-0 02 1 0006-0602 ●
7 NUT; STARTER
M12 FLANGE IDN 		0-91180-112-0 02 1 0603- ●
8 SPACER; STARTER 8-94133-764-3 01 1 9602-0206 ●
8 SPACER; STARTER 8-97351-456-0 01 1 0207- ●
16 BOLT; GEN
M8X22 W/LK WASHER 		0-50040-822-0 01 1 9009-9601 ●
16 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9602-9612 ●
16 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701-0512 ●
16 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0601- ●
17 WASHER; PL,GEN
ID=8.4 OD=22 		9-09164-708-0 01 1 9009-9601 ●
17 WASHER; PL,GEN
ID=10.5 OD=22 		9-09160-610-0 02 1 9602-9612 ●
18 WASHER; LK,GEN
ID=10.2 		9-09150-510-0 01 1 9602-9612 ●
21 BRACKET; GEN 8-94114-007-0 01 1 9009-9601 ●
21 BRACKET; GEN 8-97120-367-1 01 1 9602-0505 ●
21 BRACKET; GEN
IDN 		8-97562-610-0 01 1 0506- ●
23 NUT; GEN
M10 		9-09110-510-0 01 1 9602-9612 ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 01 1 9701-0602 ●
23 NUT; GEN
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
24 BOLT; GEN BRKT
M10X28 W/LK WASHER 		0-50041-028-0 04 1 9009-9601 ●
24 BOLT; GEN BRKT
M10X35 W/LK WASHER 		0-50041-035-0 01 1 9602-0512 ●
24 BOLT; GEN BRKT
M10X35 W/LK WASHER 		0-50541-035-0 01 1 0601- ●
24 BOLT; GEN BRKT
M10X40 W/LK&PL WASHER 		0-50141-040-0 02 1 9009-9601 ●
24 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9602-0909 ●
24 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50541-070-0 02 1 0910- ●
292 WASHER; LK,STARTER
ID=12.2 		9-09150-512-0 02 1 9009-9601 ●
292 WASHER; LK,STARTER
ID=12.2 		9-09150-512-0 02 1 9602-0005 ●
409 BRACKET; GRAND,ENG 8-97016-479-0 01 1 9009-9601 ●
410 BOLT; BRKT,GRAND
M10X20 W/LK WASHER 		9-01901-020-0 01 1 9009-9106 ●
410 BOLT; BRKT,GRAND
M10X16 W/LK WASHER 		9-01901-016-0 01 1 9107-9204 ●
410 BOLT; BRKT,GRAND
M10X16 W/LK WASHER 		0-50041-016-0 01 1 9205-9601 ●
412 BRACKET; BATTERY CABLE 8-94233-402-0 02 1 9009-9601 ●

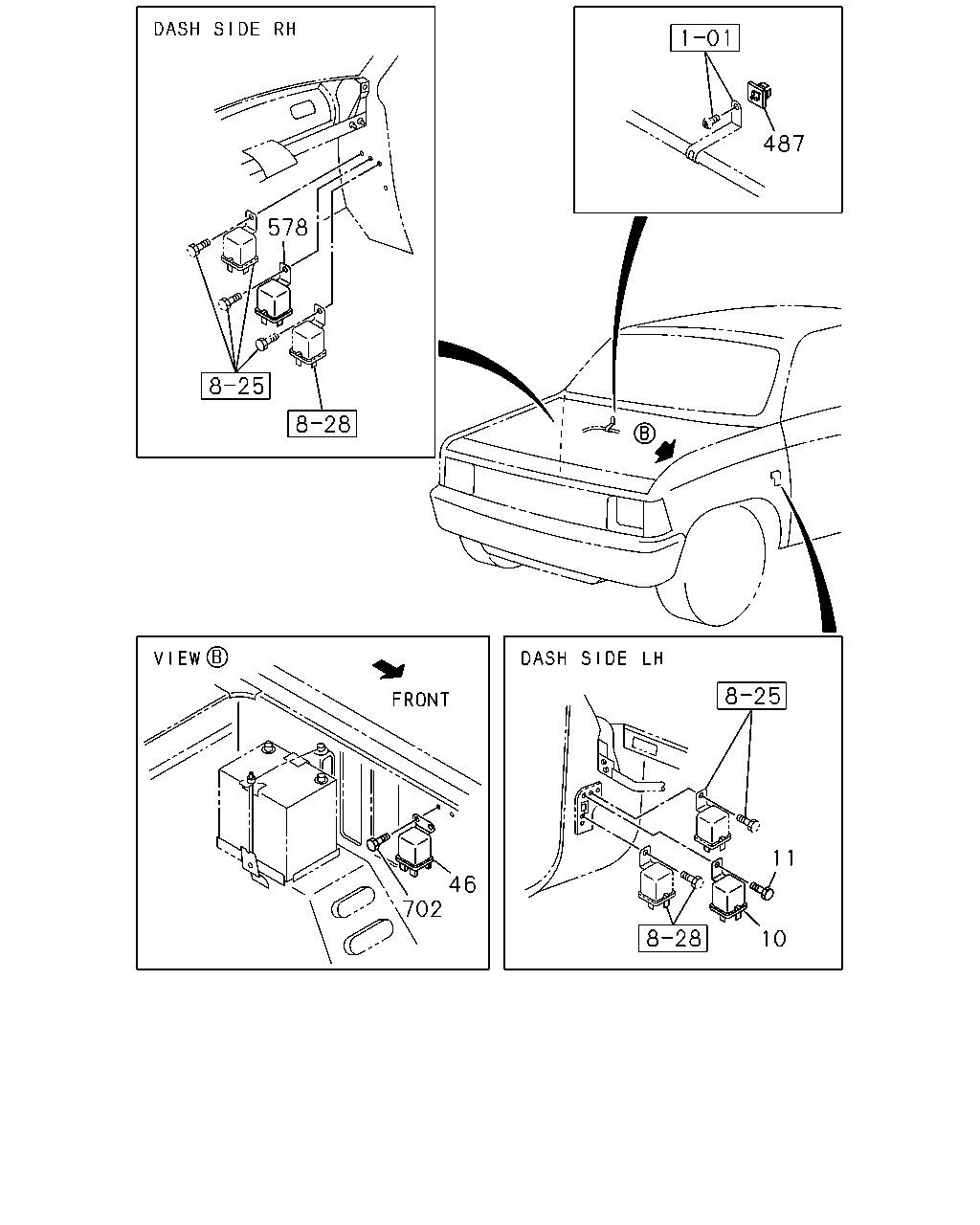

çizim 289373
578 487 11 10 46 702
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
12V 		8-94112-912-0 01 1 9009-9601 ●
10 RELAY; STARTER
12V 		8-94112-912-0 01 1 9602- ●
11 BOLT; RELAY STARTER
M6X16 		0-28410-616-0 01 1 9009-9204 ●
11 BOLT; RELAY STARTER
M6X16 FLANGE 		0-28480-616-0 01 1 9205-9601 ●
11 BOLT; RELAY STARTER
M6X16 FLANGE 		0-28480-616-0 01 1 9602-0512 ●
11 BOLT; RELAY STARTER
M6X16 FLANGE 		0-28450-616-0 01 1 0601- ●
46 RELAY; GLOW PLUG 8-94248-161-0 01 1 9009-9601 ●
487 NUT
D=9.7X9.7 L=8 		8-94222-314-0 01 1 9602- ●
578 RELAY; CHARGE WARNING 8-94232-225-0 01 1 9009-9601 ●
578 RELAY; CHARGE WARNING 8-94232-225-0 01 1 9602- ●
702 BOLT; RELAY
M6X16 		8-94239-621-0 02 1 9009-9601 ●
çizim 289782
83 108 83
BalonParca AdiParca NoAdetTipApplied Date A B
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9009-9601 ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9602- ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9009-9601 ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9602- ●
108 SWITCH; THERMO 8-94326-772-0 01 1 9009-9601 ●
