Sayfa 0-52 - Isuzu EPC

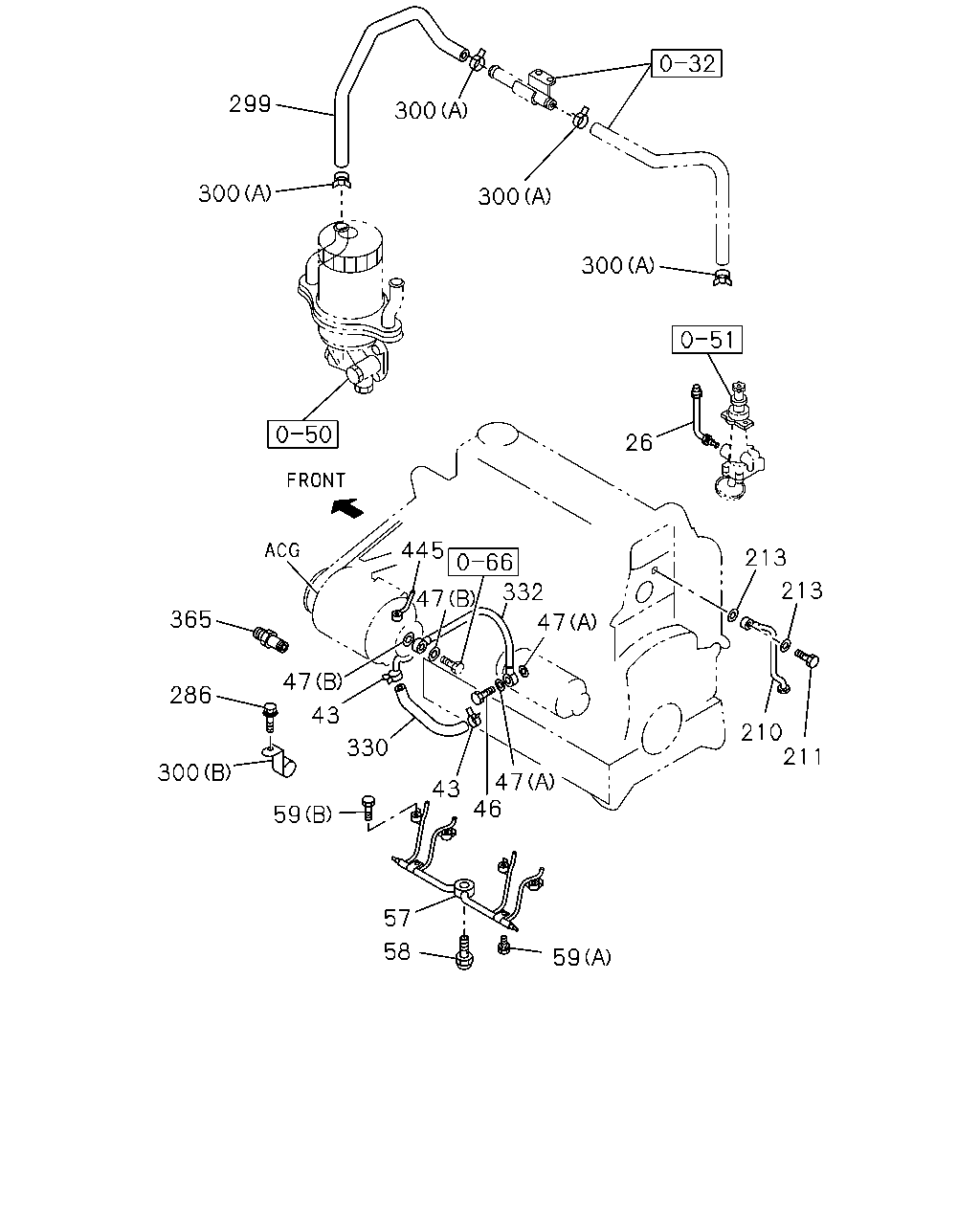

0-52 — OIL AND VACUUM PIPING; ENGINE (#95884) — 73 parça

299 300 300 300 300 26 213 213 210 211 365 286 300 47 43 330 59 46 43 47 59 58 57 47 332 47 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	PIPE; OIL,PUMP TO C/BL	8-94454-852-0	01	1	9009-9601	●
26	PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9602-		●
43	CLIP; RUB HOSE	5-09707-025-3	02	1	9009-9402	●
43	CLIP; RUB HOSE	8-97108-102-0	02	1	9403-9601	●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X24	5-09675-024-0	01	1	9009-9404	●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 EYE BOLT	5-09675-018-1	01	1	9405-9601	●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 EYE BOLT	5-09675-018-1	01	1	9602-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=17 IDN	9-09572-008-0	02	1	9009-9601	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9602-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=19	9-09572-010-0	02	1	9009-9601	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=16.0	9-09571-410-0	02	1	9602-		●
57	PIPE; OIL,OIL JET	5-13311-189-2	01	1	9009-9601	●
57	PIPE; OIL,OIL JET	8-94469-992-2	01	1	9602-		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	5-13160-006-3	01	1	9009-9601	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-94177-189-3	01	1	9602-9603		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97145-612-0	01	1	9604-0104		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97311-976-1	01	1	0105-		●
59	BOLT; OIL JET (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9009-9601	●
59	BOLT; OIL JET (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9009-9601	●
210	PIPE; OIL,C/BL TO HD,ROCKER OIL FEED	5-13311-176-0	01	1	9009-9601	●
211	BOLT; JOINT,FEED PIPE M8X18 EYE BOLT	1-09675-037-1	01	1	9009-9601	●
213	GASKET; ROCKER OIL FEED PIPE ID=8.2 OD=13.2	1-09630-082-0	02	1	9009-9601	●
286	BOLT; BRKT,OIL COOLER M6X12 W/LK&PL WASHER	9-01960-612-0	01	1	9009-9204	●
286	BOLT; BRKT,OIL COOLER M6X12 W/LK&PL WASHER IDN	0-50140-612-0	01	1	9205-9601	●
299	HOSE; OIL COOLER TO WATER PIPE	8-94456-532-0	01	1	9009-9601	●
300	CLIP; HOSE,OIL COOLER (B)	5-09700-290-0	01	1	9009-9601	●
300	CLIP; HOSE,OIL COOLER (A) ID=21.7	8-94413-822-0	04	1	9009-9601	●
330	HOSE; VAC PUMP,RETURN DELETION	5-11369-087-0	01	1	9009-9601	●
330	HOSE; VAC PUMP,RETURN IDN	8-97136-222-0	01	1	9602-		●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94135-853-1	01	1	9009-9601	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-97136-215-0	01	1	9602-		●
365	JOINT; OIL COOLER	9-09903-497-1	01	1	9009-9601	●
445	CONNECTOR; VAC HOSE AIR CON PREPARATORY PACK(S6D) DELETION IDN	8-94447-330-0	01	1	9009-9601	●
445	CONNECTOR; VAC HOSE AIR CON PREPARATORY PACK(S6D) DELETION IDN	8-94447-330-0	01	1	9602-9608		●

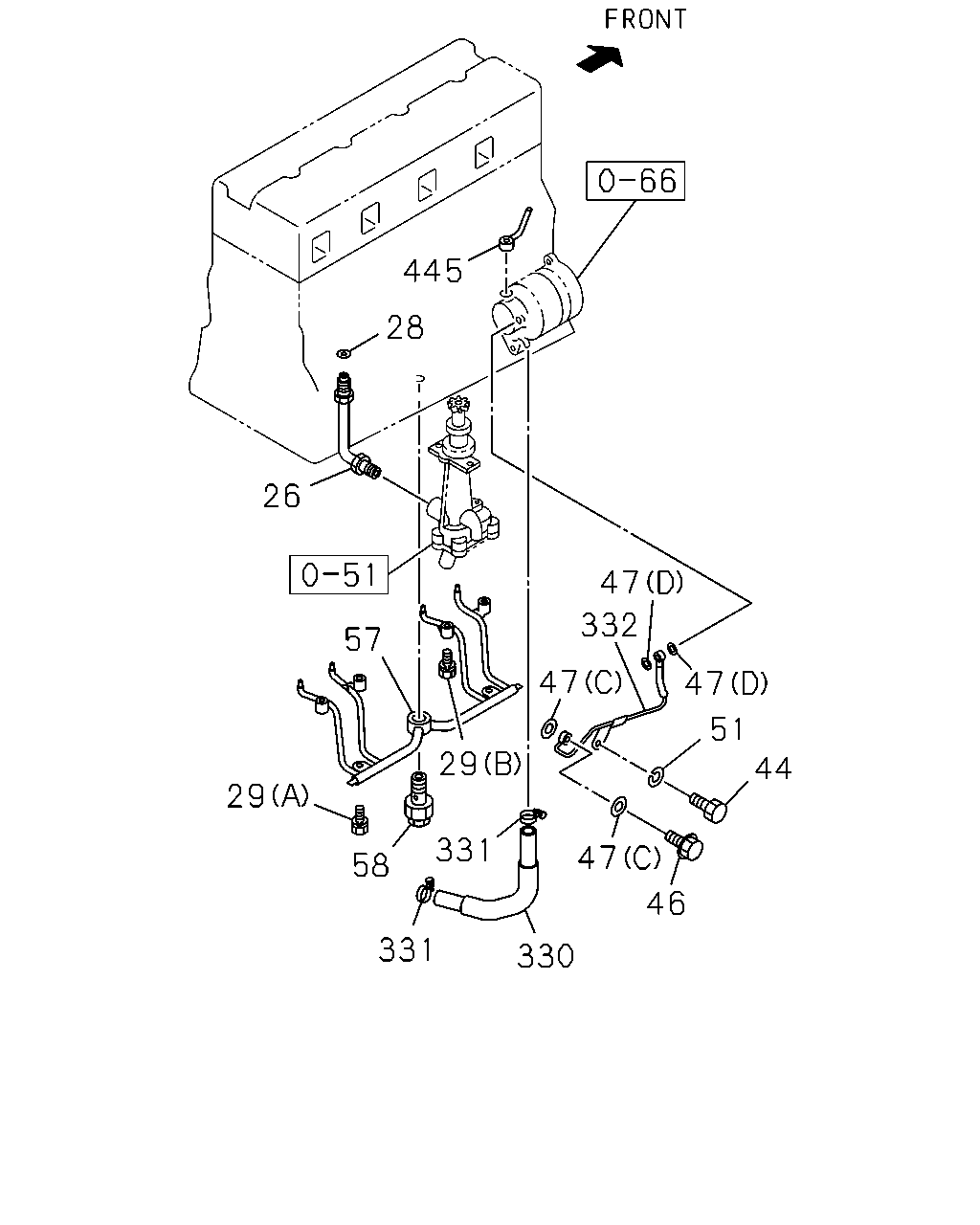

445 28 26 57 29 58 331 331 330 46 47 44 51 47 47 332 47 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	PIPE; OIL,PUMP TO C/BL	8-94454-852-0	01	1	9009-9601	●
26	PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9602-		●
28	GASKET; OIL PIPE ID=11	5-09623-002-0	01	1	9602-		●
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9602-0202		●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0512		●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	0601-		●
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9602-0512		●
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0601-		●
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	9602-0512		●
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50540-816-0	01	1	0601-		●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X24	5-09675-024-0	01	1	9009-9404	●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 EYE BOLT	5-09675-018-1	01	1	9405-9601	●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 EYE BOLT	5-09675-018-1	01	1	9602-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=17 IDN	9-09572-008-0	02	1	9009-9601	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9602-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=19	9-09572-010-0	02	1	9009-9601	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=16.0	9-09571-410-0	02	1	9602-		●
51	WASHER; PL,OIL PIPE,VAC PUMP ID=8.4 OD=18	9-09164-608-0	01	1	9602-0605		●
51	WASHER; PL,OIL PIPE,VAC PUMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-		●
57	PIPE; OIL,OIL JET	5-13311-189-2	01	1	9009-9601	●
57	PIPE; OIL,OIL JET	8-94469-992-2	01	1	9602-		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	5-13160-006-3	01	1	9009-9601	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-94177-189-3	01	1	9602-9603		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97145-612-0	01	1	9604-0104		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97311-976-1	01	1	0105-		●
330	HOSE; VAC PUMP,RETURN DELETION	5-11369-087-0	01	1	9009-9601	●
330	HOSE; VAC PUMP,RETURN IDN	8-97136-222-0	01	1	9602-		●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9602-		●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94135-853-1	01	1	9009-9601	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-97136-215-0	01	1	9602-		●
445	CONNECTOR; VAC HOSE AIR CON PREPARATORY PACK(S6D) DELETION IDN	8-94447-330-0	01	1	9009-9601	●
445	CONNECTOR; VAC HOSE AIR CON PREPARATORY PACK(S6D) DELETION IDN	8-94447-330-0	01	1	9602-9608		●

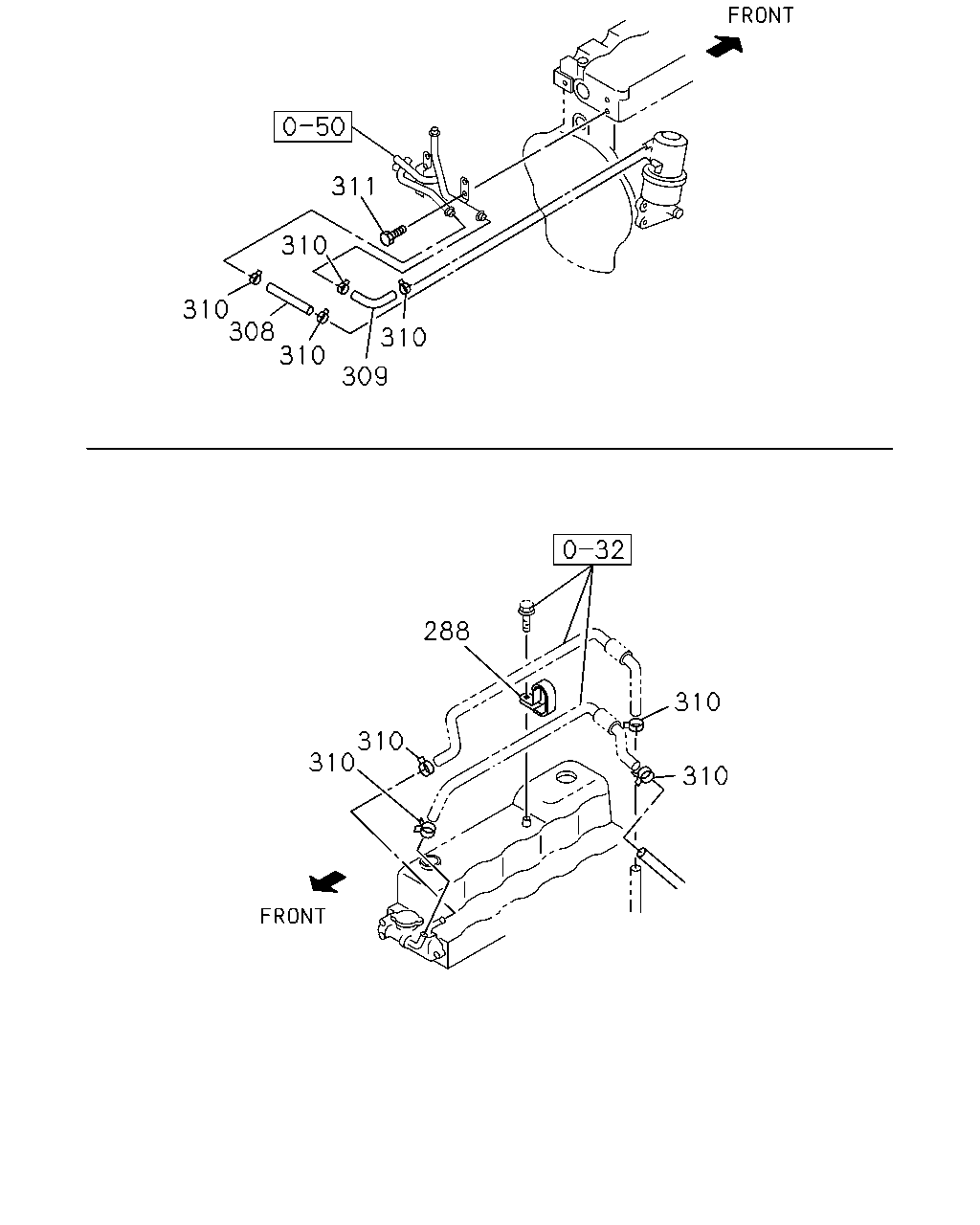

311 310 310 308 310 309 310 288 310 310 310 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
288	CLIP; HOSE,OIL COOLER	5-83574-006-0	01	1	9602-	●
308	HOSE; OIL COOLER FEED L=220 IDN	8-97119-575-1	01	1	9602-	●
309	HOSE; OIL COOLER RETURN	8-94442-162-2	01	1	9602-	●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	08	1	9602-	●
311	BOLT; PIPE FIX M8X14 W/LK WASHER	0-50040-814-0	02	1	9602-0201	●
311	BOLT; PIPE FIX M8X12 FLANGE	0-28080-812-0	02	1	0202-0512	●
311	BOLT; PIPE FIX M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
